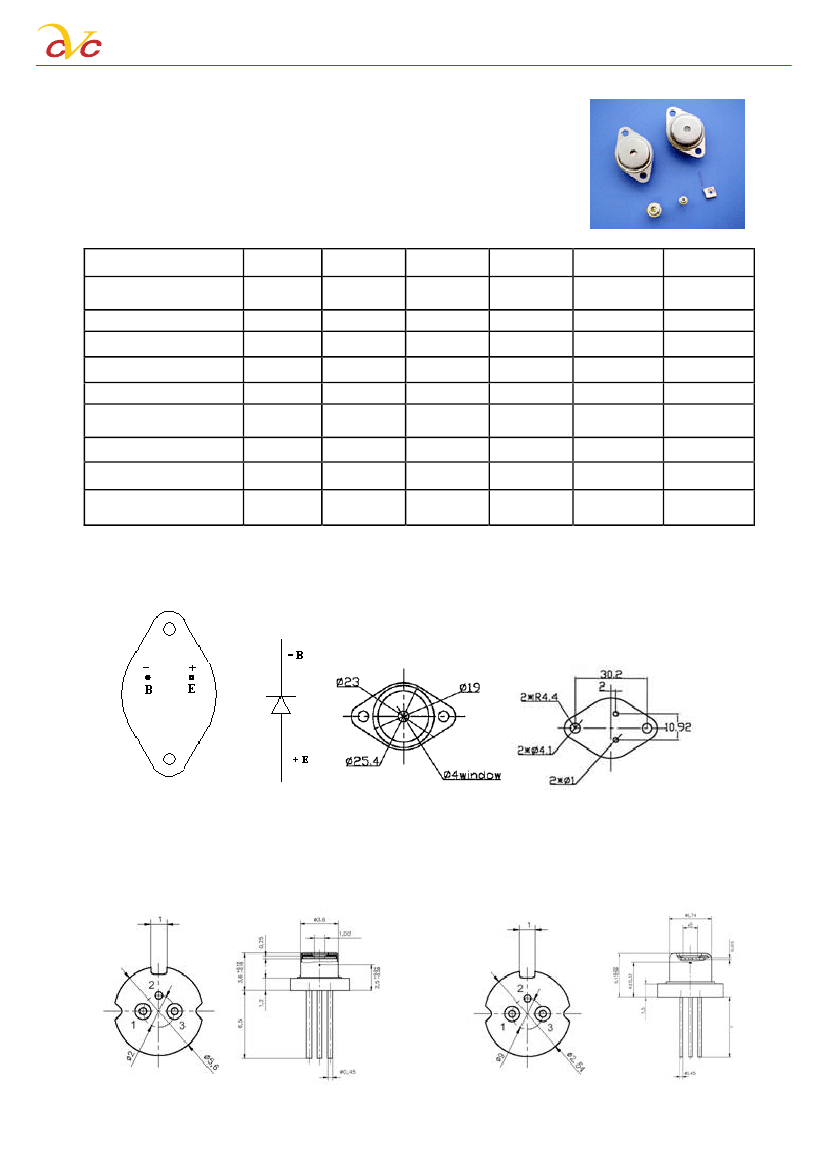

CVC INTERNATIONAL LLC

980nm High-Power Laser Diode (

LD098T Series)

APPLICATIONS

·Solid-state

Laser Pumping

·Medical

Usage

·Infrared

Sources for Night Viewing

·Information

Recognition

Main Specifications（Tc=25℃）

Part

Operating

(nm)

No.

Wavelength

LD098T50

975±15

≤0.025

≤0.10

≤1.80

≥0.70

45×10

≤5

TO5.6 or

C-block

LD098T200

975±15

200

≤0.13

≤0.30

≤1.80

≥0.70

45×10

≤1.0

TO9、TO3

or C-block

LD098T300

975±15

300

≤0.15

≤0.50

≤1.80

≥0.70

45×10

≤0.80

TO3 or

C-block

LD098T500

975±15

500

≤0.15

≤0.70

≤1.80

≥0.70

45×10

≤0.50

TO3 or

C-block

LD098T1000

975±15

1000

≤0.30

≤1.60

≤1.80

≥0.80

45×10

≤0.35

TO3 or

C-block

LD098T2000

975±15

2000

≤0.45

≤2.60

≤1.80

≥0.80

45×10

≤0.20

TO3 or

C-block

CW Output Power (mW)

Threshold Current(A)

Operating Current(A)

Operating Voltage(V)

Differential

Efficiency(W/A)

Beam DivergenceΘ

⊥

∥

Series Resistance(Ω)

Package Style

*Negative current transients greater than 25µA and /or voltage

＞3v,

can destroy the unit.

TO –3

TO – 5.6 (1:－ 2:

＋)

TO – 9(1:－ 2:

＋)

CVC INTERNATIONAL LLC

C-block 1 (c )

C-block 2 (s )

Operation notes

1. Absolute maximum ratings

If an excessively large current flows in a laser diode, a large optical output will occur and the emitting facet may sustain

damage. This optical damage can occur even with momentary over-current. For this reason, absolute maximum ratings

which must not be exceeded even momentarily have been established. Exercise particular caution with respect to the drive

voltage supply and static electricity. We guarantee use within the absolute maximum ratings. These ratings are established

for a case temperature of 25_C. As the temperature of a laser diode increases, its maximum output will decrease and the

operating range will shrink. Even when operated within the absolute maximum ratings, operation at high temperature will

result in a shorter life than operation at low temperature. For this reason, the design should include sufficient margin for heat

radiation and light output.

2. Heat radiation conditions

Like other semiconductors, prolonged operation of a laser diode will cause heat to build up at junctions and increased case

temperature. For this reason, attach aluminum, copper (or other) heat sinks (at least 30

3mm) to the stem of the laser.

3.Protection against damage due to electrostatic discharge and other current surges

Electrostatic discharge and other current surges can cause deterioration and damage in laser diodes, resulting in reduced

reliability ,We advise taking the following protective measures :

1)Ground the device and circuits. Install surge filters, surge reduction transformers, or other electrostatic discharge

protectors in the power supply inputs.

(2)

When working with laser diodes wear anti-static clothing, including footwear and caps. Materials should be selected

carefully.’ Grounded wrist should always be worn while working with laser diodes, and the strap should be grounded through

a 1 MΩ resistance.

(3)

Use anti-static containers for transport and storage.

(4)

Laser deterioration and damage can occur due to excessive current spikes when the power is turned on or off. Design

circuits to avoid the generation of excessive current spikes.

CVC INTERNATIONAL LLC

(5)

Inductive surges near equipment that emits high frequency EMI can damage or destroy lasers. Avoid using lasers near

fluorescent lamps or other sources of EMI emissions.

4. Soldering

Use a grounded soldering iron to solder laser leads. Solder at a temperature of no more than 250_C for a maximum of 3

seconds, at a point at least 2 mm from the base of the leads.

5.Handling laser diodes

Never touch the glass window of the laser. A damaged or dirtied window will impair the performance of the laser.

6. Handling packages

Due to the glass window in each device, packages must not be dropped or subjected to excessive pressure.

7. Safety

It is extremely dangerous to look, either directly or through a lens, at the laser beam emitted from a laser diode. Use a TV

camera or other similar device to adjust the optical axis.

Quality assurance

Laser diodes (semiconductor lasers) have a much longer life than other lasers such as gas or solid-state lasers. The

components of our lasers have optimum characteristic ranges.

1.Quality assurance system

(1) After the wafers have been manufactured, electrical and optical characteristics are measured to verify that

characteristics can be achieved as the manufacturing process progresses.

(2) In-process inspections are conducted at various manufacturing points to ensure the stability of our assembly

operations.

(3) All products are burned-in to minimize initial and random failures.

(4) Characteristics of all products are tested before shipping.

(5) Products are managed by wafer lot.

(6) Reliability tests are performed on randomly selected samples.

2.Quality

assurance measures

(1) Materials, manufacturing conditions, and inspection are controlled and maintained based on company set

standards. Temperature, dust, humidity and other environmental conditions are also controlled based on company

standards.

(2) Measurement instruments used during the manufacturing process are regularly inspected and calibrated based on

company measurement control standards.

Safety

The laser beam emitted from a laser diode is almost invisible to both the human eye and the animal eye, however, it

will injure the eye and sufficient caution must be exercised to avoid direct exposure or exposure through a fiber to the

beam when a laser diode is in operation.

To adjust the optical axis or perform other similar work, we recommend using an infrared-sensitive ITV camera.

We also recommend that protective glasses be worn.
