DT32-2131AS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> DT32-2131AS

DT32-2131AS: DescriptionTelecom Transformer; CategoryPower management transformer; File Size522KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric Compare View All

DT32-2131AS Overview

Telecom Transformer

DT32-2131AS Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1.08:1
Certification	UL
high	10.7 mm
length	10 mm
Manufacturer's serial number	DT32-2131AS
Installation features	SURFACE MOUNT
physical size	10.0mm X 8.0mm X 10.70mm
main impedance	100 OHMS
secondary impedance	85.7 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Telecommunication

ADSL Transformer

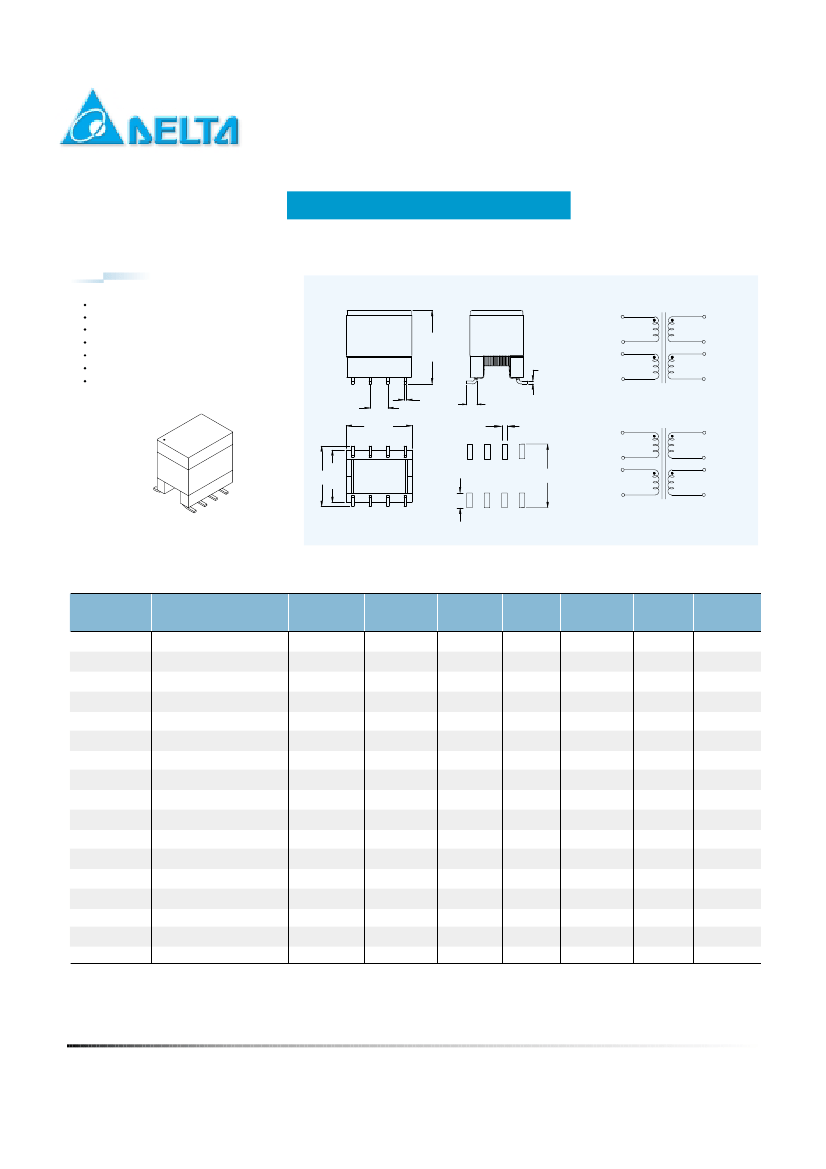

Features

Designed to meet UL1950 requirements

Good total harmonic distortion characteristics

Optimized design for size and performace

Customization available

Volume production and automated lines

For IC manufacturer approval status, contact Delta

100 ohm line impedance

10.7 MAX

0.4

2.49

D 32

E -2

LT 1

A 01

Components

0.4

1.0

0.76

PRI

(LINE)

PRI

(LINE)

SEC

(DEVICE)

(1)

10.0 MAX

8.55

8.0 MAX

9.14

SEC

(DEVICE)

1.02

(2)

Analog Devices ADSL recommendations

Part Number

DT34-2101AS

DT32-2123AS ADI AD930

DT32-2124AS ADI AD930

DT32-2126AS

ADI Diamondback,Anaconda

DT32-2127AS

ADI Diamondback,Anaconda

DT32-2128AS

DT32-2129AS

DT32-2130AS

DT32-2131AS

DT32-2132AS

DT32-2133AS Alcatel MTK-20140/152

DT32-2134AS

DT32-2135AS

DT32-2136AS

DT32-2137AS

DT32-2138AS

DT32-2142AS

CPE

ATU-C ISDN

ATU-C POTS

ATU-C ISDN

ATU-C POTS

IC number

Applcation

Mechanicals INDUCTOR

SMD

3.0 mH

2.0 mH

100 uH

2.0 mH

400 uH

49.4 uH

85 uH

100 uH

1.20 mH

100 uH

1.20 mH

171 uH

400 uH

750 uH

400 uH

850 uH

T.R

0.7:1

1.1:1

1.2:1

1:1.4

1.43:1

0.95:1

1.08:1

2.79:1

1:1

3.0:1

1:1.4

0.95:1

1.9:1

1:1

DIELECTRIC Schematic Impedance

(PRI:SEC)

135:275.5

100:82.64

100:69.4

100:194

100:48.9

100:110

100:85.7

100:12.85

100:100

100:11.1

100:196

100:110

100:27.7

100:100

1500 Vac

1875 Vac

2050 Vac

1875 Vac

(PRI:SEC) STRENGTH

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

252, SAN YING ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

Http://www.deltaww.com/products/networking

F-1

DT32-2131AS Related Products

	DT32-2131AS	DT34-2101AS	DT32-2127AS	DT32-2126AS	DT32-2136AS
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer
Reach Compliance Code	compli	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1.08:1	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 0.7:1	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1.2:1	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1.2:1	HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 1:1.4
Certification	UL	UL	UL	UL	UL
high	10.7 mm	10.7 mm	10.7 mm	10.7 mm	10.7 mm
length	10 mm	10 mm	10 mm	10 mm	10 mm
Manufacturer's serial number	DT32-2131AS	DT34-2101AS	DT32-2127AS	DT32-2126AS	DT32-2136AS
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
physical size	10.0mm X 8.0mm X 10.70mm	10.0mm X 8.0mm X 10.70mm	10.0mm X 8.0mm X 10.70mm	10.0mm X 8.0mm X 10.70mm	10.0mm X 8.0mm X 10.70mm
main impedance	100 OHMS	135 OHMS	100 OHMS	100 OHMS	100 OHMS
secondary impedance	85.7 OHMS	275.5 OHMS	69.4 OHMS	69.4 OHMS	196 OHMS
surface mount	YES	YES	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	8 mm	8 mm	8 mm	8 mm	8 mm
Maker	Delta Electronics	-	Delta Electronics	Delta Electronics	Delta Electronics
