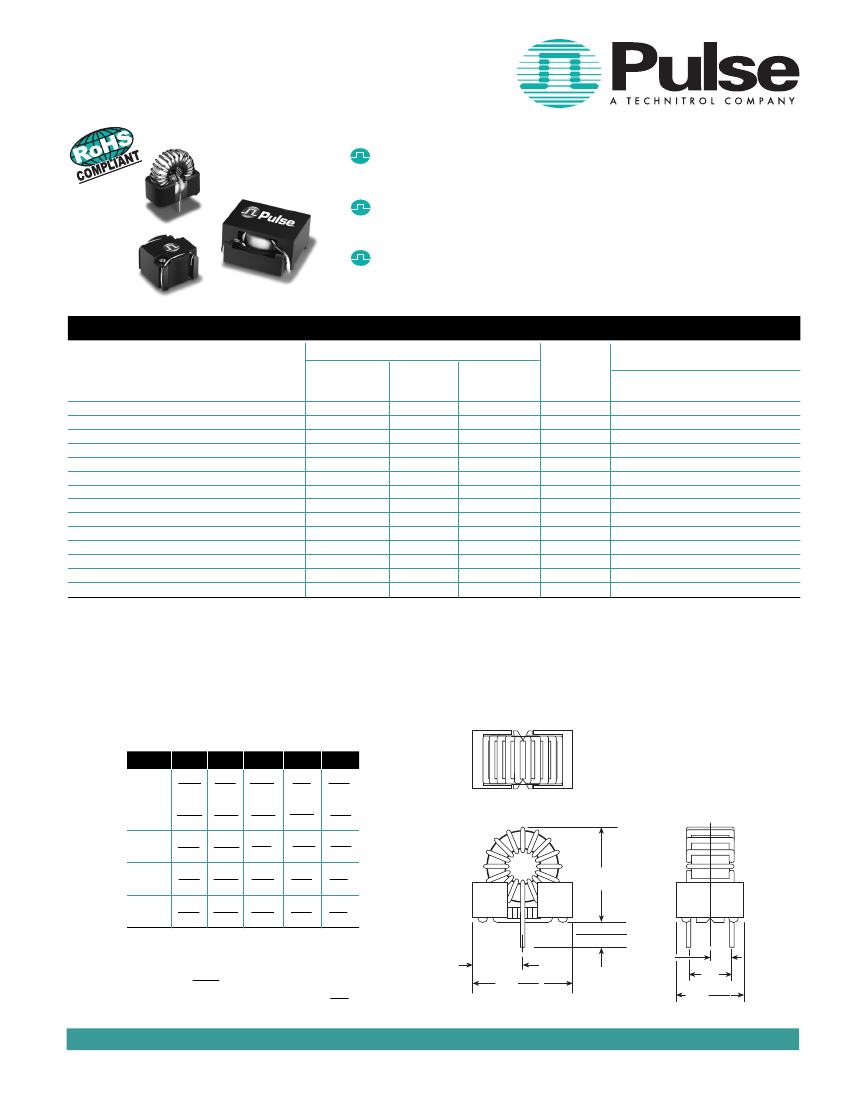

THT/SMT POWER INDUCTORS
Toroid - Designed for National’s 260kHz
Simple Switcher
™
Tested and recommended by National
Semiconductor for the LM267X series
Base material meets flammability
requirements of UL 94V-0
Available in surface mount and through
hole versions
Electrical Specifications @ 25°C— Operating Temperature -40°C to +130°C
7
Pulse
5
THT Part
Number
P0841NL
P0845NL
P0846NL
P0847NL
P0848NL
P0849NL
P0850NL
—
—
—
—
—
—
—
Pulse
4,5
SMT Part
Number
—
—
—
—
—
—
—
P0841SNL
P0845SNL
P0846SNL
P0847SNL
P0848SNL
P0849SNL
P0850SNL
National
Part
Number
LM267X-L41
LM267X-L45
LM267X-L46
LM267X-L47
LM267X-L48
LM267X-L49
LM267X-L50
LM267X-L41
LM267X-L45
LM267X-L46
LM267X-L47
LM267X-L48
LM267X-L49
LM267X-L50
In Circuit Operating Parameters
1
Nominal
Inductance
(µH)
22.8
10.2
14.8
10
50
33
23
22.8
10
15
11
52
6
36
6
24.7
6
Rated
Current
(A
DC
)
4.9
4.3
5.0
5.0
5.0
5.0
5.0
4.9
4.3
5.0
5.0
5.0
5.0
5.0
Max
2
ET
OP
(V-µSec)
23.3
10.0
17.0
13.0
40.0
36.0
24.0
23.3
10.0
17.0
13.0
40.0
36.0
24.0
Nominal
DCR
(
Ω
)
.036
.026
.023
.025
.050
.047
.026
.036
.050
.027
.025
.025
.019
.013
Package
Through
Hole
KM-3.0
KM-1.1
KM-2.1
KM-2.0
KM-4.0
KM-4.0
KM-3.0
—
—
—
—
—
—
—
Surface
Mount
—
—
—
—
—
—
—
HCI-68
LCI-44
LCI-50
LCI-50
Bigfoot
Bigfoot
Bigfoot
Lead
Diameter
.035
.031
.035
.031
.039
.035
.043
Notes :
1.
Inductance values may vary ±20%.
2.
ETop rated at 260kHz.
3.
SIMPLE SWITCHER™ is a trademark of National Semiconductor
Corporation.
4.
For SMT parts, optional Tape & Reel packaging can be ordered by adding
a "T" suffix to the part number (i.e. P0841SNL becomes P0841SNLT).
Pulse complies to industry standard tape and reel specification EIA481.
5.
The "NL" suffix indicates an RoHS-compliant part number. Non-NL
suffixed parts are not necessarily RoHS compliant, but are electrically
and mechanically equivalent to NL versions. If a part number does not
have the "NL" suffix, but an RoHS compliant version is required, please
contact Pulse for availability.
6.
Series connection (pins 2-4 connected)
7.
The temperature of the component (ambient plus temperature rise) must
be within the stated operating temperature range.
KlipMount™
Series
PKG
KM-1.1
KM-2.0
KM-2.1
KM-3.0
KM-4.0
A
.350
8,89
.450
11,43
.460
11,69
.450
11,43
.600
15,24
B
.580
14,74
.650
21,08
.670
17,02
.830
21,09
.950
24,13
C
.715
18,17
.700
17,78
.750
19,05
.950
24,13
1.350
34,29
D
.290
7,37
.325
8,26
.335
8,51
.415
10,55
.475
12,07
E
.110
2,80
.150
3,81
.150
3,81
.150
3,81
.225
5,72
C MAX
PE-XXXXX
DATE CODE
COUNTRY OF ORIGIN
.130 ± .020
3,31 ±
0,51
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
D
TYP
B± .005
0,13
E TYP
2E
A ± .005
0,13
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4641811
www.pulseeng.com
77
SPM2007 (11/07)
THT/SMT POWER INDUCTORS
Toroid - Designed for National’s 260kHz
Simple Switcher
™

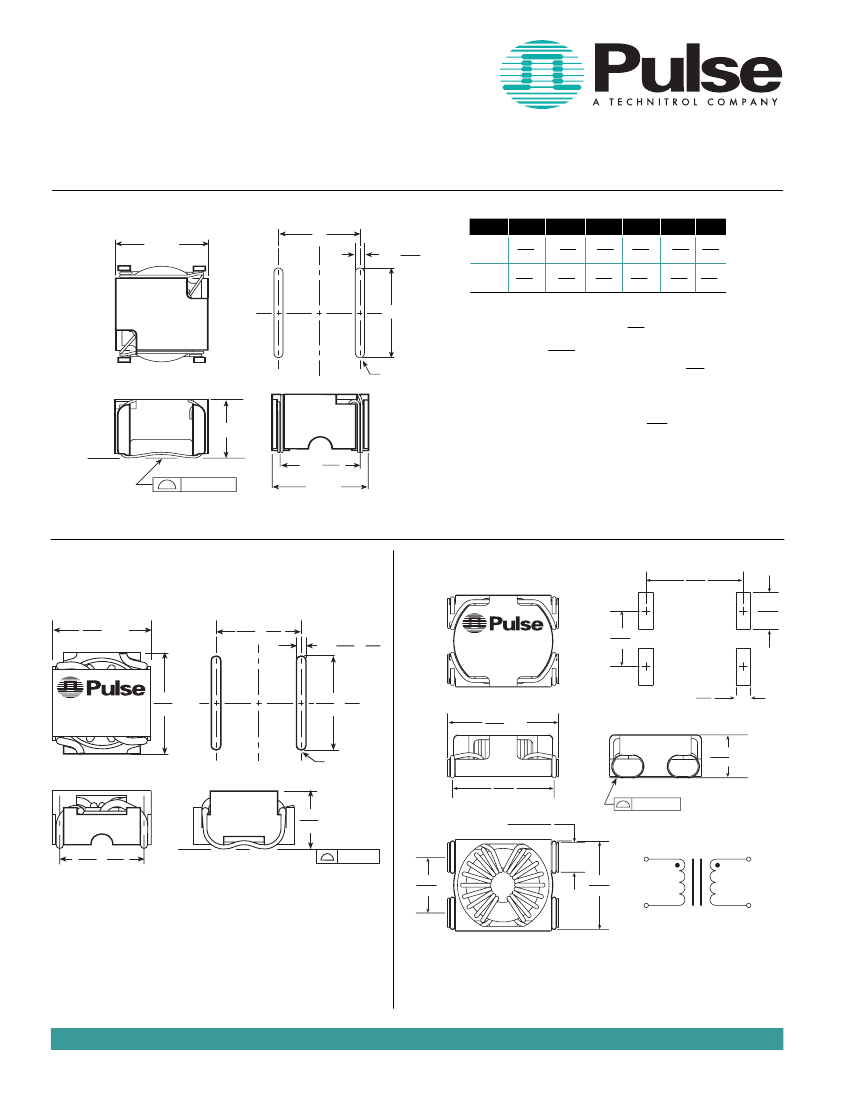

Mechanicals
LCI Series
A MAX
F
2X .060
1,52
PKG
LCI-44
LCI-50
A
.600
15,24
.670
17,02
B
.620
15,75
.700
17,78
C
.390
9,91
.390
9,91
D
.500
12,70
.580
14,74
E
F
.550 .510
13,97 12,95
.620 .590
15,75 14,99
PE-XXXXX
U.S. PAT 53091 30
DATE CODE
COUNTRY OF ORIGIN
E
R
SUGGESTED PAD LAYOUT
Note:
Coil must clear seating plane by .010 MIN
0,25
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
Notes:
1. Dimension “D” is measured across terminal blocks only.
2. Coil must clear seating plane by .010 MIN.
0,25
LCI-44
LCI-50
Weight
......................3.6 grams .............4.8 grams
Tape & Reel.................200/reel
................200/reel
Tube
.............................30/tube .................30/tube
C MAX
SEATING
PLANE
D ±.015
0,38
B MAX
.005/0,13
4 SURFACES
HCI-68
Bigfoot
2
3
P0XXX
.600
15,24
1.097
27,86
2
3
.940
MAX
23,87
.830 .005
±
21,08
0,13
.400
10,16
.080 .005
±
2X
2,03
0,13
Date Code
Country of Origin
1
DATE CODE
COUNTRY OF ORIGIN
U.S. PAT. 5309130
4
1.220
MAX
30,99
1
PE-XXXXX
.940
MAX
23,87
.700 .005
±
17,78
0,13
.155
3,94
4
SUGGESTED PAD LAYOUT
.500
MAX
12,70
SUGGESTED PAD LAYOUT
R
1.100
27,94
4X
.005/0,13
2 SURFACES
.400
MAX
10,16
.820
.015
±
20,83
0,38
.320 ± .020
8,13 ±
0,51
.006/0,15
4 SURFACES
SEATING PLANE
1
.600
15,24
1.000
25,40
4
2
Weight
. . . . . . . . . . . . . .12.1 grams
Tape & Reel
. . . . . . . . . . . .100/reel
Tube
. . . . . . . . . . . . . . . . . .40/tube
Weight
. . . . . . . . . . . . . . .18 grams
Tape & Reel
. . . . . . . . . . . . .20/reel
Tube
. . . . . . . . . . . . . . . . . .75/tube
3
SCHEMATIC
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4641811
www.pulseeng.com
78
