2006S-13TW-L: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking; CategoryThe connector The connector; File Size1MB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

2006S-13TW-L Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking

2006S-13TW-L Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.142 inch
subject depth	0.268 inch
body length	1.101 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	2006
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	13

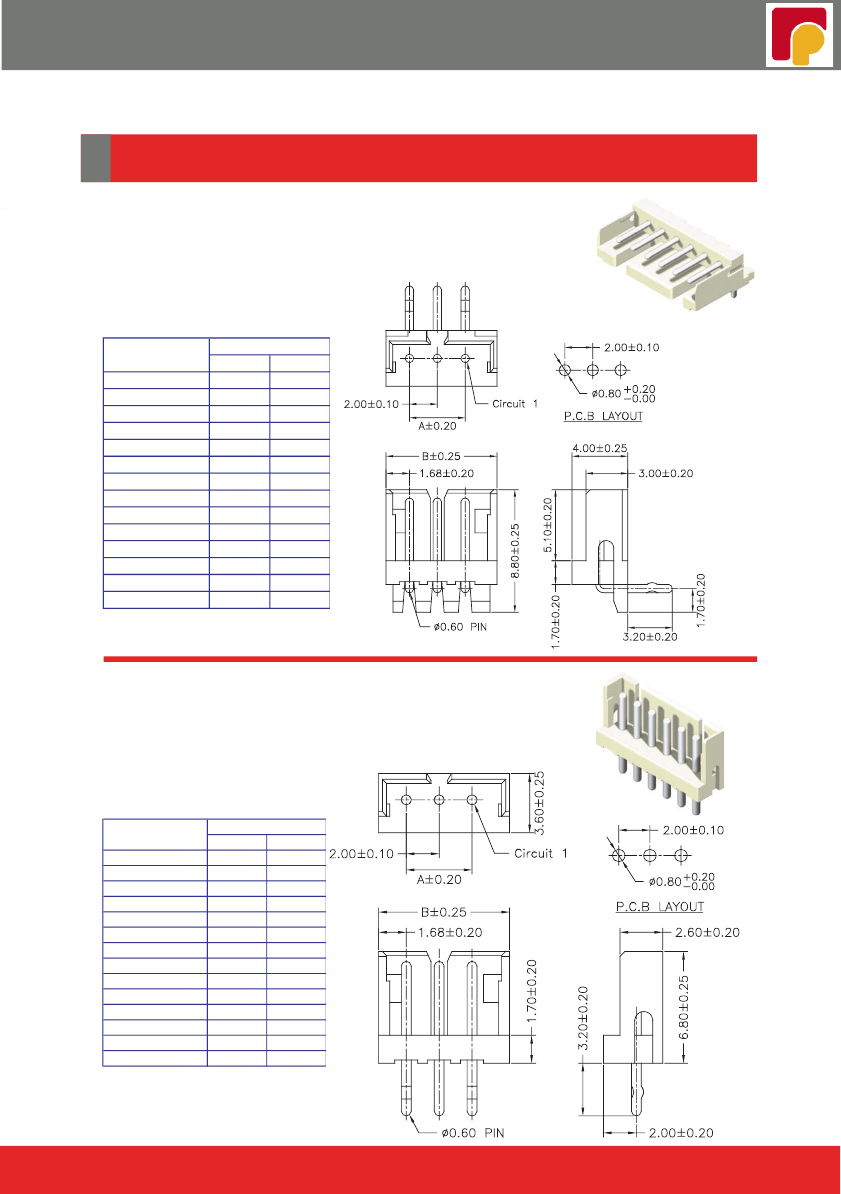

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel:+49 (0) 5741 23661-0

Fax:+49 (0) 5741 23661-20

Ratioplast-Electronics

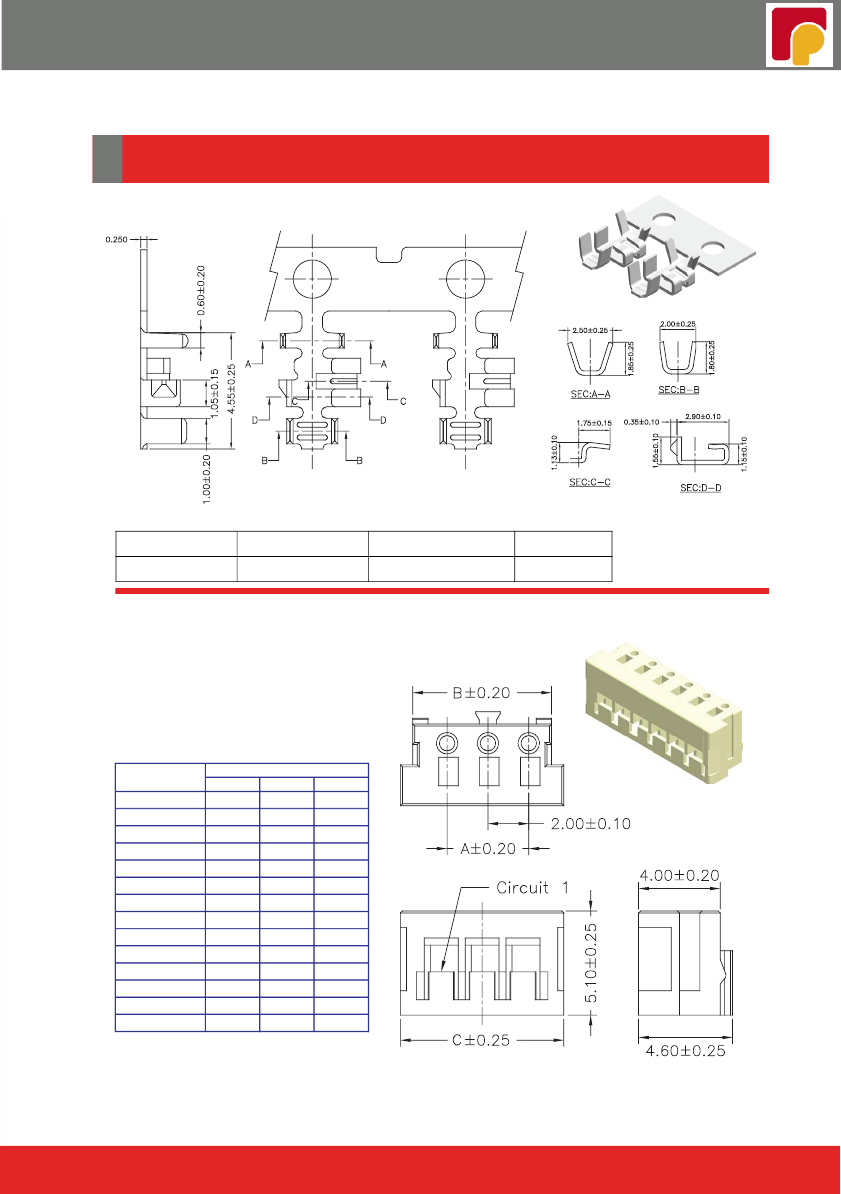

2.0mm Terminal / Housing

Part No.:2006-T-L

Wire Range

AWG#22-#26

Insulation O.D.

1.50mm(max)

Material

Phosphor Bronze

Finish

Tin Plated

Specifications

Current Rating: 4A AC,DC

Voltage Rating: 125V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 10mΩ Max

Insulation Resistance: 1000M

Ω

Min

Withstanding Voltage: 1000V AC/minute

Material:Nylon 66,UL94V-0

Part No.

2006H-02W-L

2006H-03W-L

2006H-04W-L

2006H-05W-L

2006H-06W-L

2006H-07W-L

2006H-08W-L

2006H-09W-L

2006H-10W-L

2006H-11W-L

2006H-12W-L

2006H-13W-L

2006H-14W-L

2006H-15W-L

A

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

Dimensions

B

4.80

6.80

8.80

10.80

12.80

14.80

16.80

18.80

20.80

22.80

24.80

26.80

28.80

30.80

C

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

30.00

32.00

Part No.:2006H-XXW-L

www.ratioplast.com
