DC-37PQWNA2

Description
D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size67KB,1 Pages
ManufacturerLeoco USA Corp
Websitehttp://www.leoco.com.tw

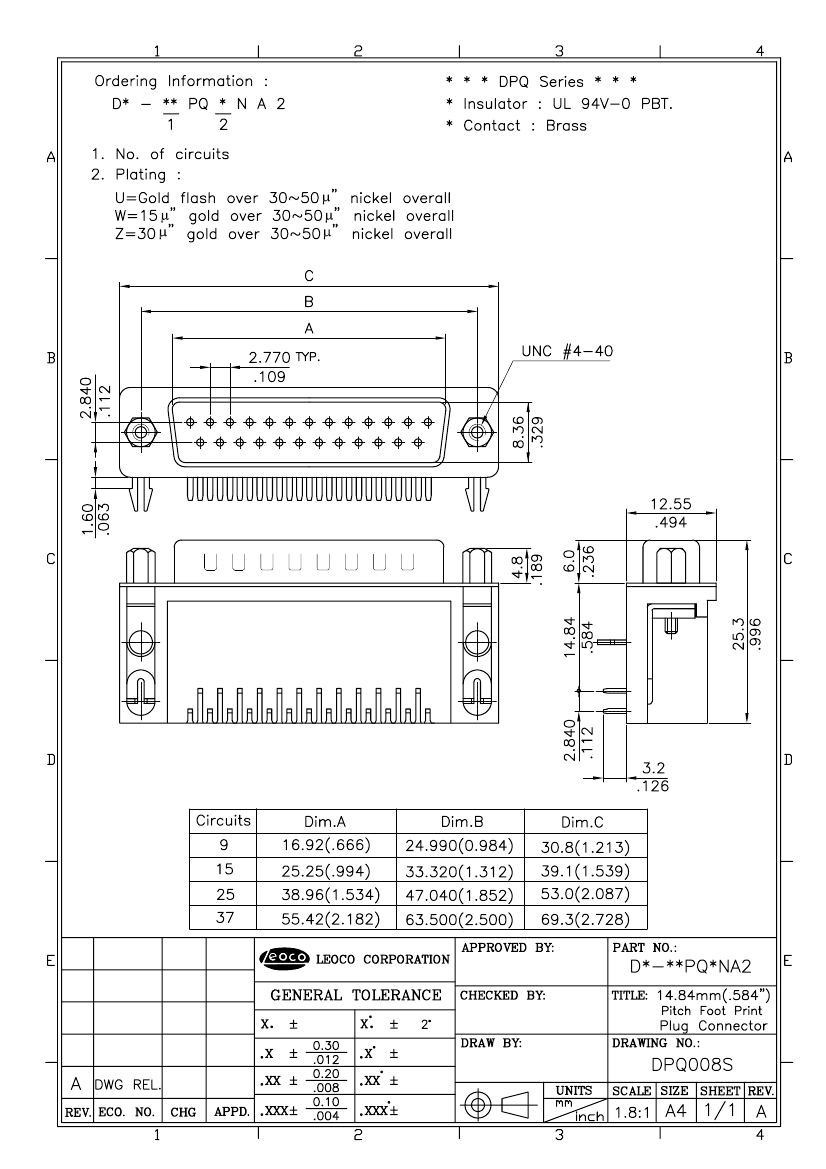

Download Datasheet Parametric View All

DC-37PQWNA2 Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

DC-37PQWNA2 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.494 inch
subject depth0.76 inch
body length2.728 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDPQ
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2SCREWLOCKS
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness15u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.126 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts37
