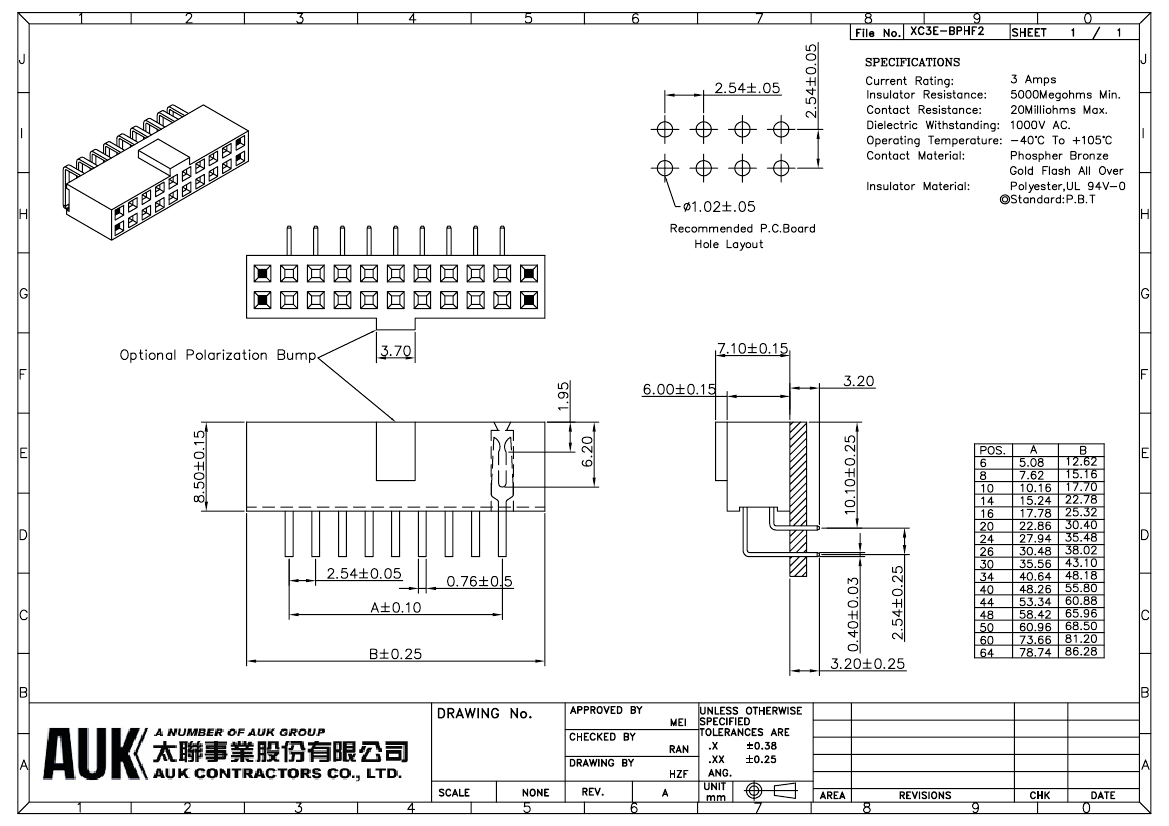

FKR2X30: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

FKR2X30 Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

FKR2X30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.28 inch
subject depth	0.506 inch
body length	3.197 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	FKR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
