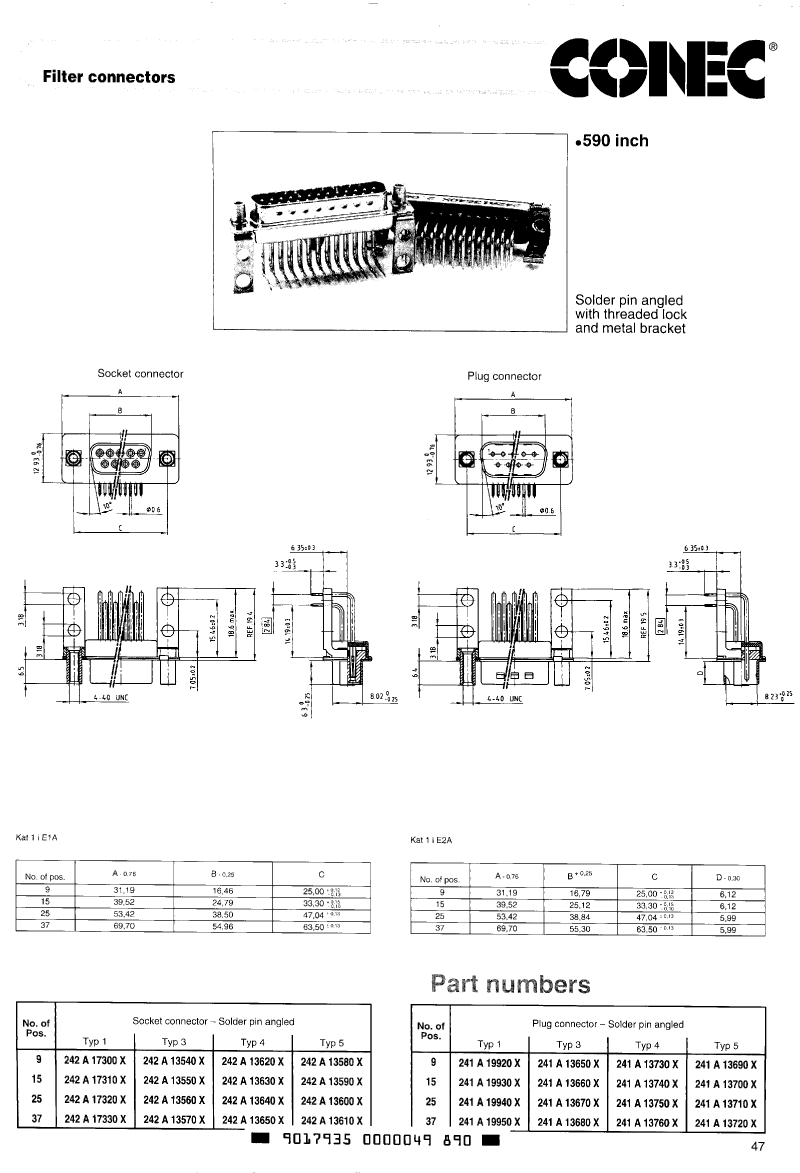

242A13640X

Description
D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
CategoryThe connector    The connector
File Size300KB，4 Pages
ManufacturerCONEC
Websitehttp://www.conec.com
Download Datasheet Parametric Compare View All

242A13640X Online Shopping

Suppliers Part Number Price MOQ In stock
242A13640X - - View Buy Now

242A13640X Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

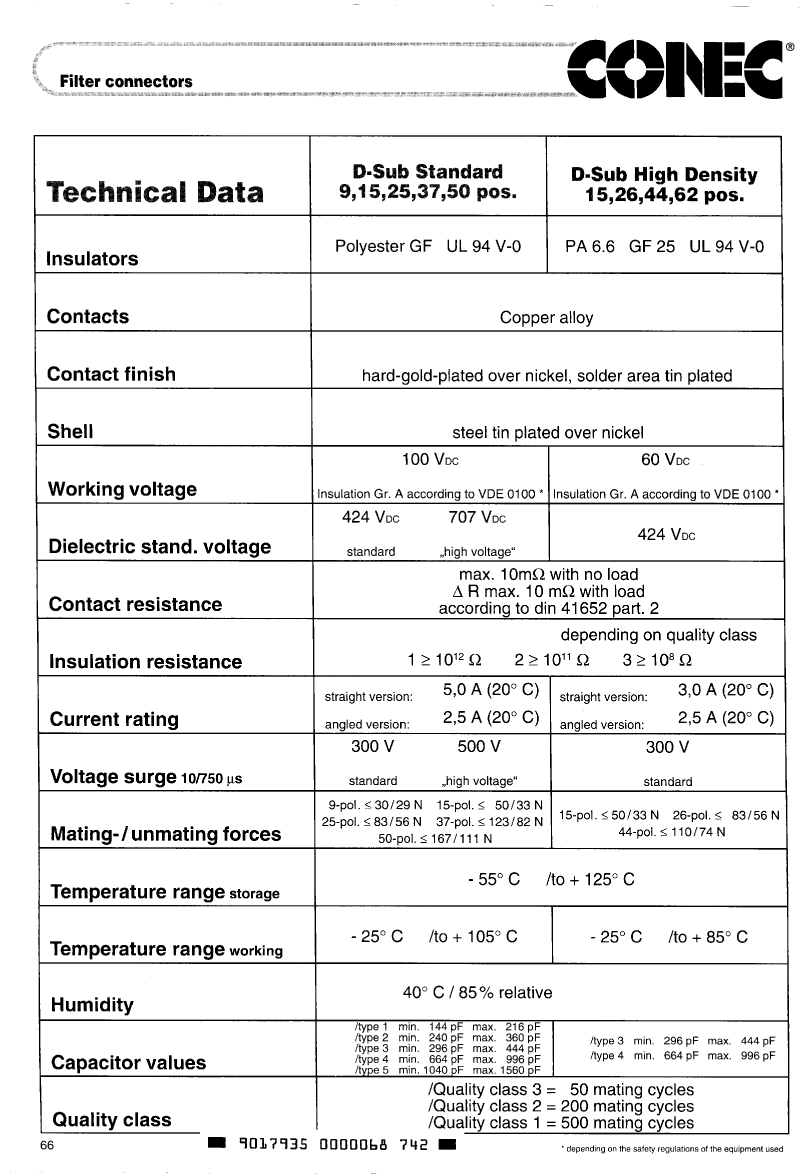

242A13640X Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTHREADED LOCK
body width0.509 inch
subject depth0.764 inch
body length2.103 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance10 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage424VDC V
Filter functionYES
maximum insertion force3.336 N
Insulation resistance100000000 Ω
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number242
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2THREADED
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Rated current (signal)2.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN OVER NICKEL
Shell materialSTEEL
Terminal length0.13 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts25
Evacuation force-minimum value2.224 N

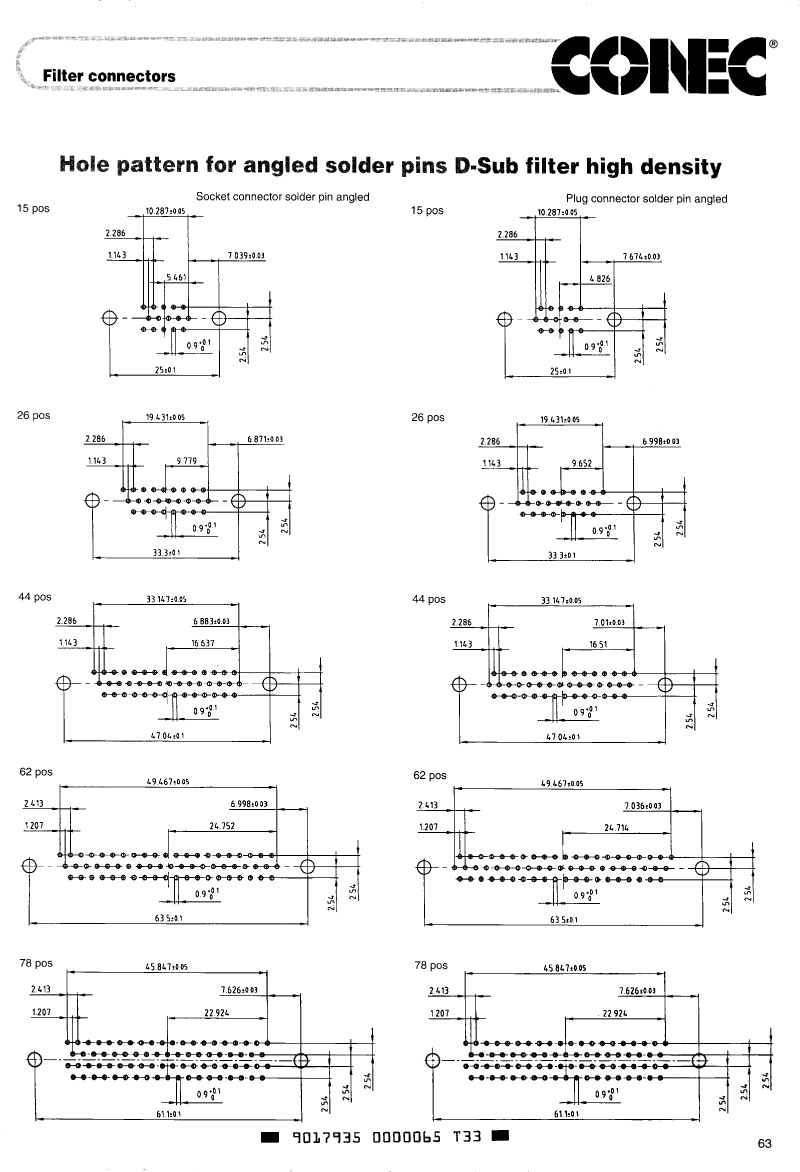

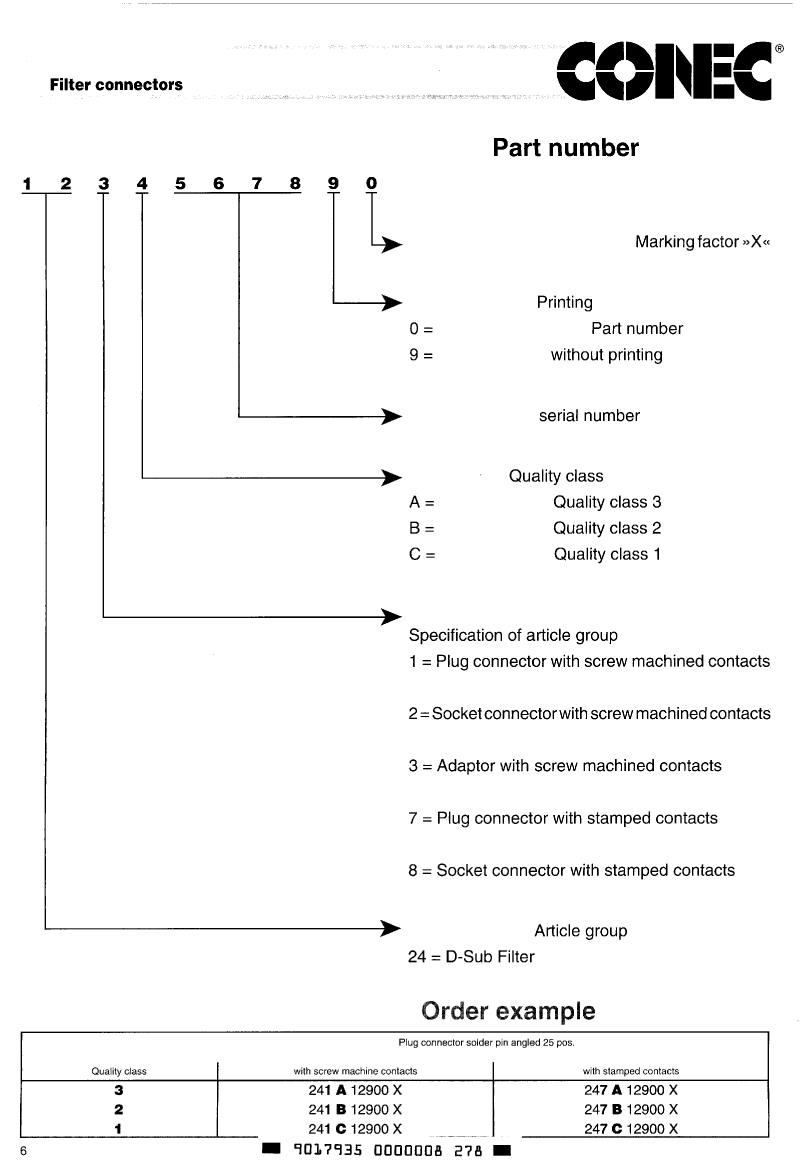

Preview

Download Datasheet
