5962-01-156-8894 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-01-156-8894

5962-01-156-8894: DescriptionIC IC,D/A CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size191KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-156-8894 Overview

IC IC,D/A CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN, Digital to Analog Converter

5962-01-156-8894 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
Contacts	16
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T16
Maximum linear error (EL)	0.2%
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	15 V
Certification status	Not Qualified
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

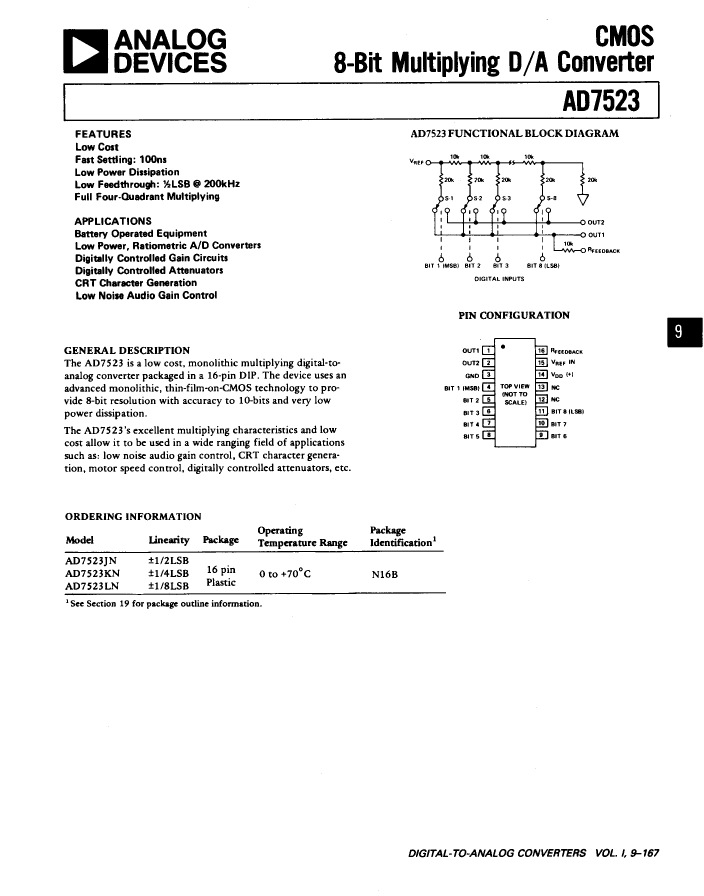

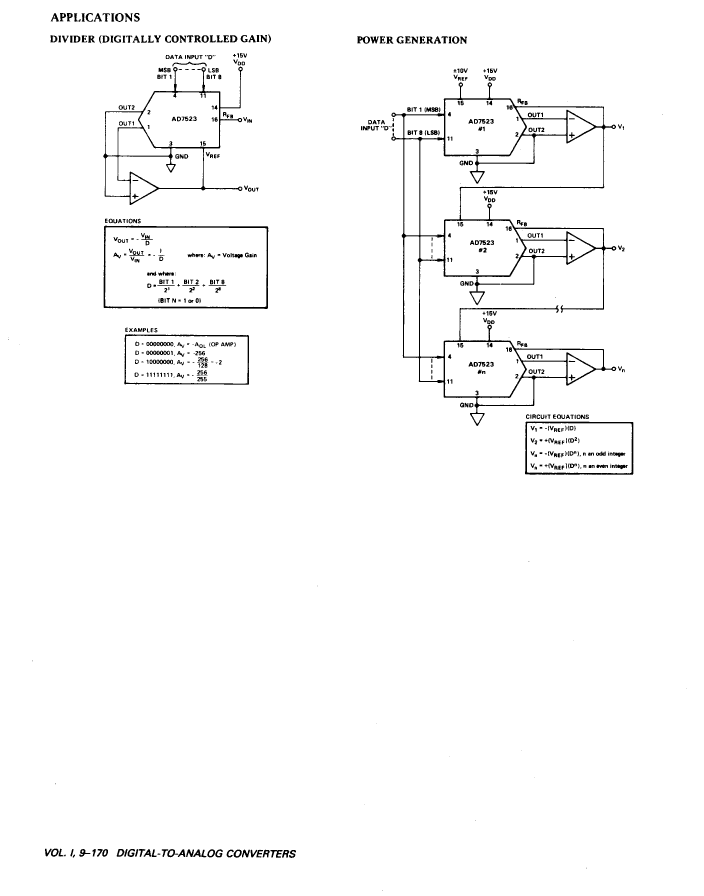

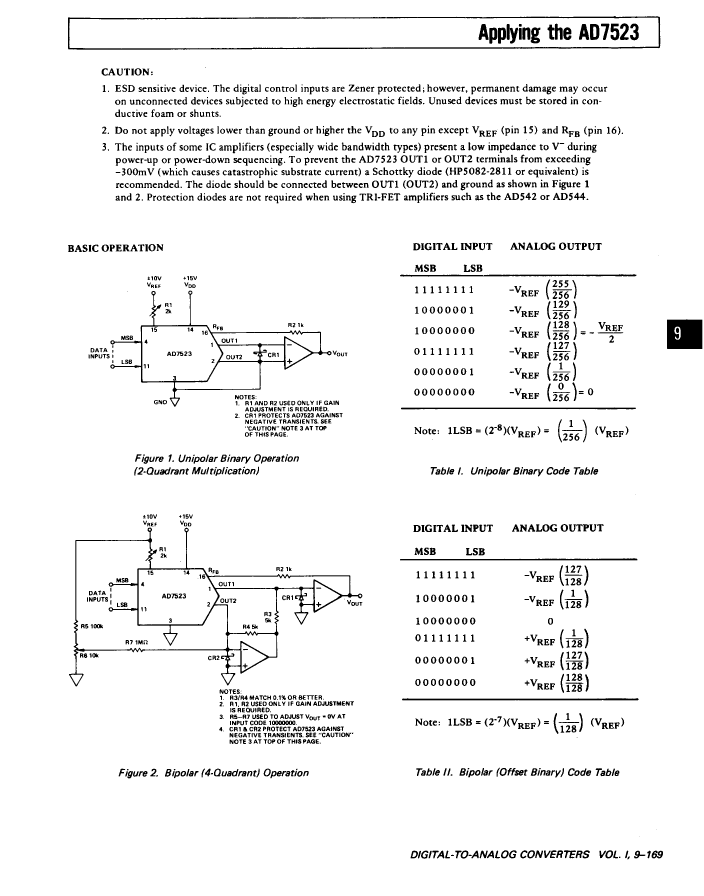

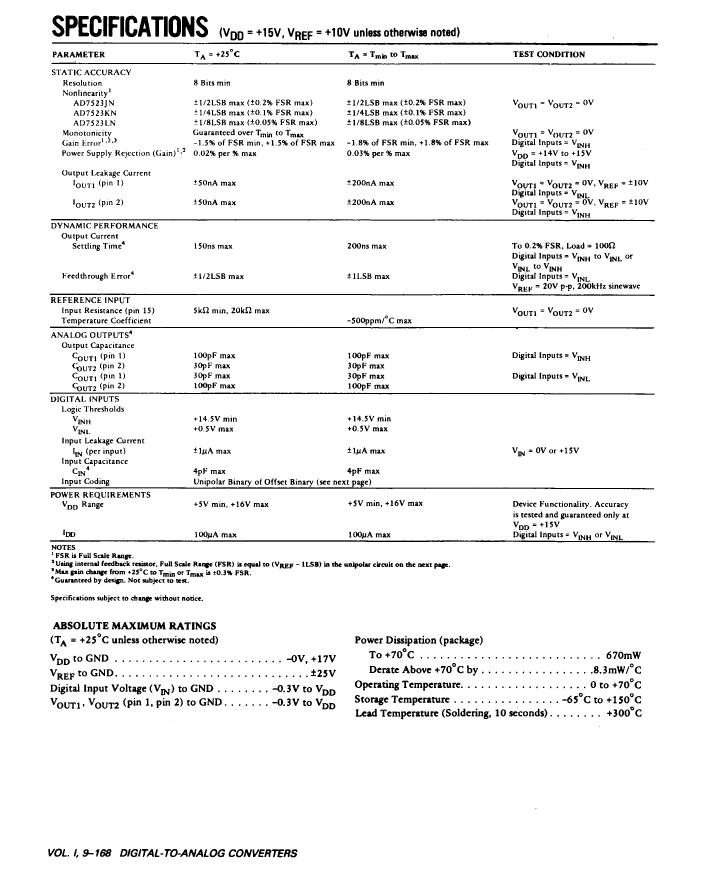

Preview

Download Datasheet

View All

5962-01-156-8894 Related Products

	5962-01-156-8894	AD7523JN/+	AD7523KN/+	AD7523SD
Description	IC IC,D/A CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	EAR99	EAR99	3A001.A.2.C
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16
Maximum linear error (EL)	0.2%	0.2%	0.1%	0.2%
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	85 °C	70 °C	70 °C	125 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	15 V	15 V	15 V	15 V
Nominal supply voltage	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	-	ADI	ADI	ADI
JESD-609 code	-	e0	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
