DBCPHC1626AG1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

DBCPHC1626AG1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,BLACK

DBCPHC1626AG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.218 inch
body length	2.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C16
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

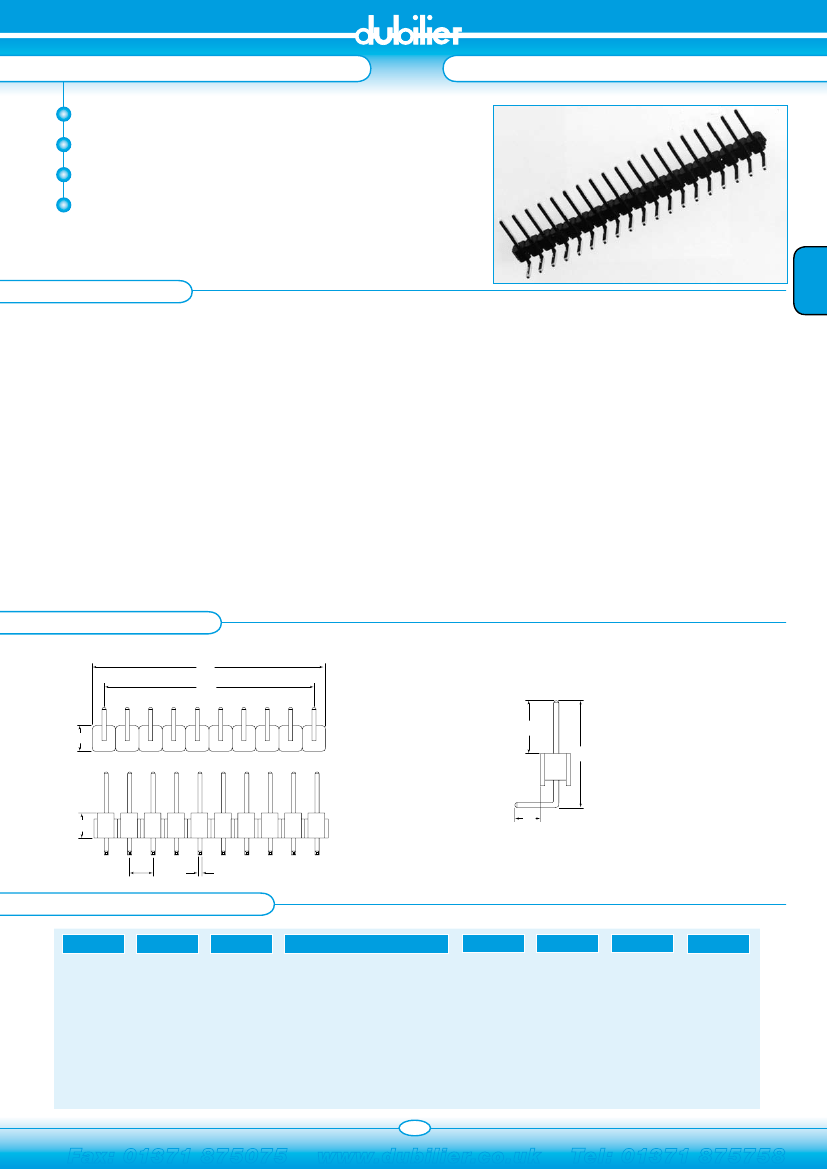

PIN HEADERS

Industry compatible

Competitively priced

Various plated contacts available

2.54mm pitch

SINGLE ROW RIGHT ANGLE

SECTION 8

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL94V-0

2 Amp

30M Ω Max

3000M Ω Min

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

Operating Temperature:

A

B

-40°C to + 105°C

2.54

OUTLINE DRAWING

A

B

A

2.54

B

E

mm

E

mm

E

F

3

E

6

A = 2.54 x N° of Positions

B = (2.54 x N° of Positions)-1

2.54

F

G

11.54

G

mm

G

mm

G

mm

G

2.54

0.64

mm

F

2.54

0.64

F

ORDERING INFORMATION

DBC

Dubilier

Connectors

For other dimension variations please consult office

mm

PH

Pin Header

Connector

C16

Series

04

Nº of Ways

02=02way

Thro to

40=40way

mm

A

A=Brass

G

Contact Plating

G= Gold Flash

S=Selective

T=Tin Plated

other plating

Available

1

Colour

1=Black

-XXX

Unique Special

Code

*See Below

Contact Material

*Dubilier will allocate a special code to
