TQDILAC0714A16M38400 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TQDILAC0714A16M38400

TQDILAC0714A16M38400: DescriptionACMOS Output Clock Oscillator, 8MHz Min, 80MHz Max, 16.384MHz Nom; CategoryPassive components oscillator; File Size83KB，2 Pages; ManufacturerCorning Frequency Control Inc

Download Datasheet Parametric View All

TQDILAC0714A16M38400 Overview

ACMOS Output Clock Oscillator, 8MHz Min, 80MHz Max, 16.384MHz Nom

TQDILAC0714A16M38400 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SMDIP4/14,.6
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
JESD-609 code	e0
Manufacturer's serial number	TQDILAC
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	80 MHz
Minimum operating frequency	8 MHz
Nominal operating frequency	16.384 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	ACMOS
Output load	25 pF
Package body material	METAL
Encapsulate equivalent code	SMDIP4/14,.6

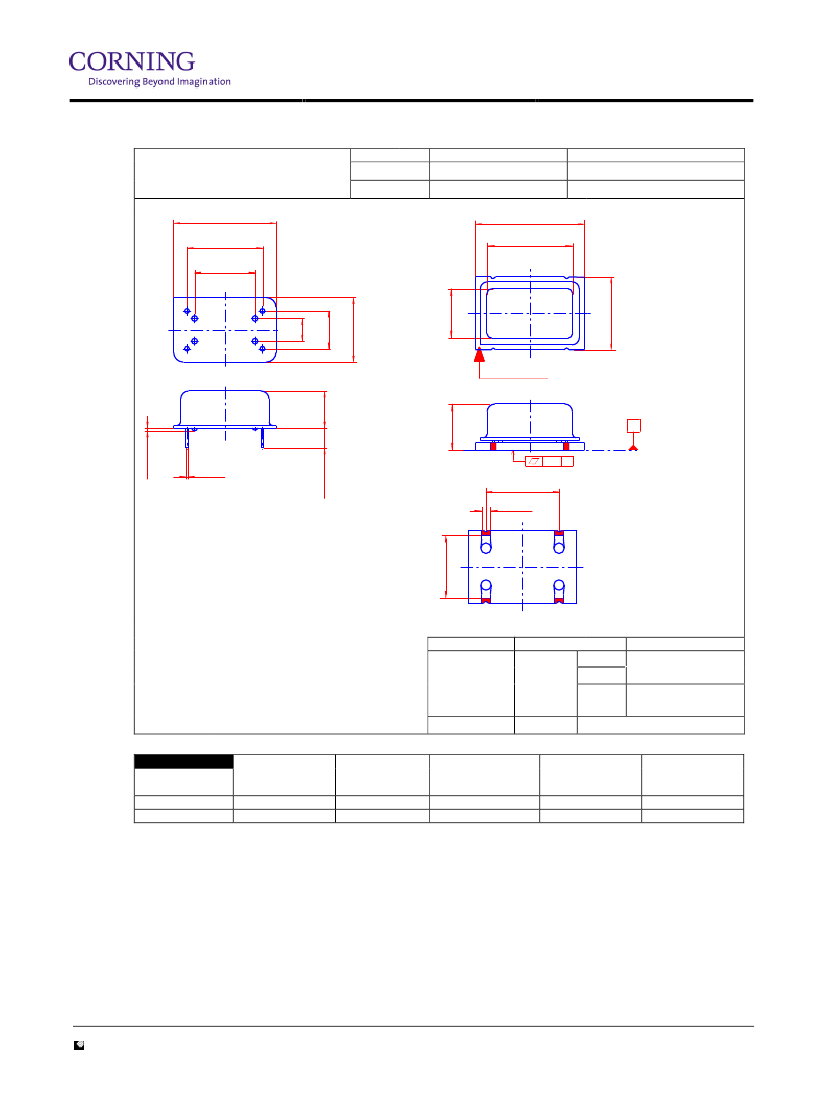

physical size	22.7mm x 15.1mm x 9.4mm
power supply	5 V
Certification status	Not Qualified
longest rise time	5 ns
Maximum slew rate	60 mA
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

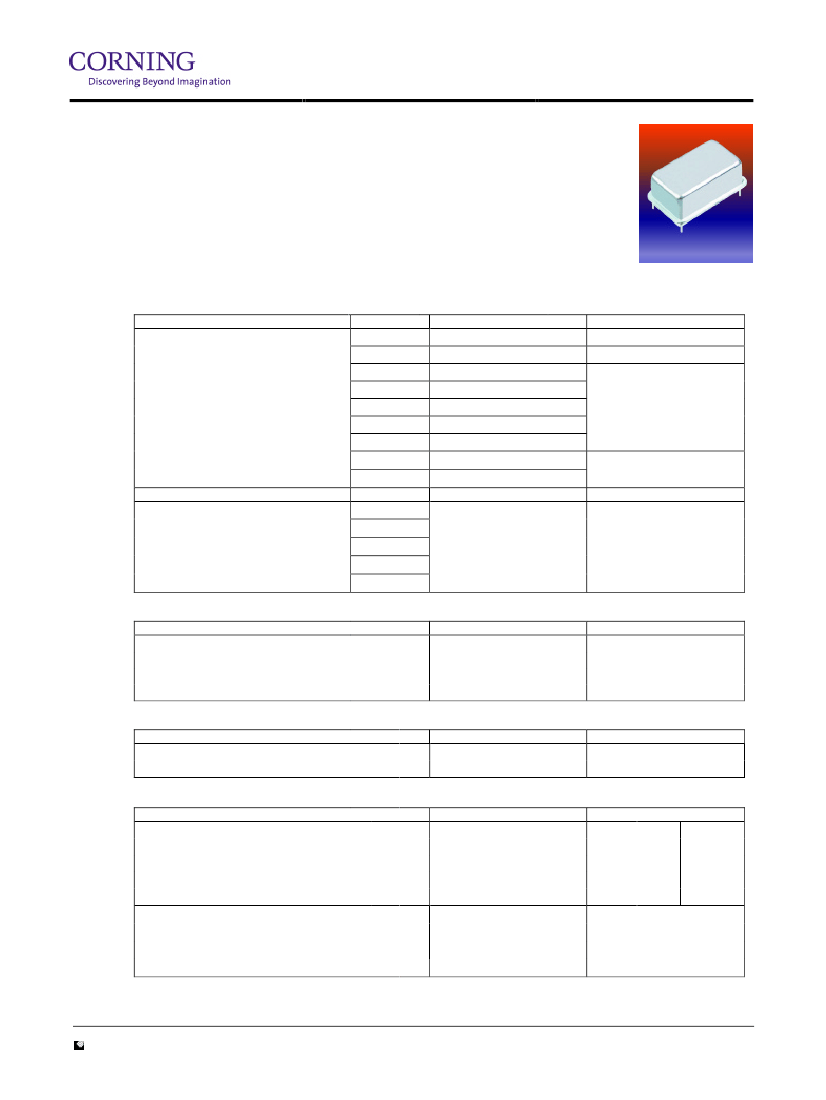

TQDILAC

Typical Applications

Base Stations

Test Equipment

Synthesizers

PXO

Features

AT-Cut Crystal

Dual-inline ACMOS-oscillator

Hermetically Sealed Package

Surface Mount Option

Frequency range

Standard frequencies

Frequency stabilities

Parameter

Code III

8 MHz – 80 MHz

10MHz; 16.384;19.44; 77.76 MHz

Frequency stability

Operating temp range

vs. operating temperature range

Code II

15 ppm

10 ppm

50 ppm

20 ppm

10 ppm

7.5 ppm

5.0 ppm

10 ppm

5.0 ppm

Frequency stability

-40 ... +90°C

-30 ... +80°C

-20 ... +70°C

0 ... +50°C

Condition

Parameter

Initial tolerance

100 ppm

50 ppm

20 ppm

10 ppm

5 ppm

Value

@ 25°C

RF output

Parameter

Condition

Signal

Load

Rise and Fall time

Duty cycle

ACMOS

25pF

10%

< 5ns

40/60 %

Value

@ 25pF & 10 to 90%

@Vs/2

Condition

Supply voltage

Parameter

Supply voltage (Vs)

Current consumption

5.0 V ± 5 %

< 60 mA

Value

Condition

Additional parameters

Parameter

Phase Noise

Weight

Operable temperature range

Storage temperature range

Processing & Packing

< - 80 dBc/Hz

< - 110 dBc/Hz

< - 135 dBc/Hz

< -145 dBc/Hz

< - 150 dBc/Hz

<6g

-40 ... +90°C

-60 ... +105°C

handling&processing note

100

kHz

Note 1

Corning Frequency Control • Worldwide Data Book 2001

v1.1.2001-08-29

Corning Frequency Control Inc.

• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com

Tele Quarz GmbH & Co. KG

• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de

1/2
