NSTE124M35V64X79: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 120000uF, CHASSIS MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size140KB，3 Pages; ManufacturerNIC Components Corp

Download Datasheet Parametric View All

NSTE124M35V64X79 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 120000uF, CHASSIS MOUNT, RADIAL LEADED

NSTE124M35V64X79 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	120000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	64 mm
dielectric materials	ALUMINUM (WET)
ESR	5.6 mΩ
JESD-609 code	e0
leakage current	6.14817 mA
length	79 mm
Manufacturer's serial number	NSTE
Installation features	CHASSIS MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	16700 mA
series	NSTE(35V)
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	28.6 mm
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

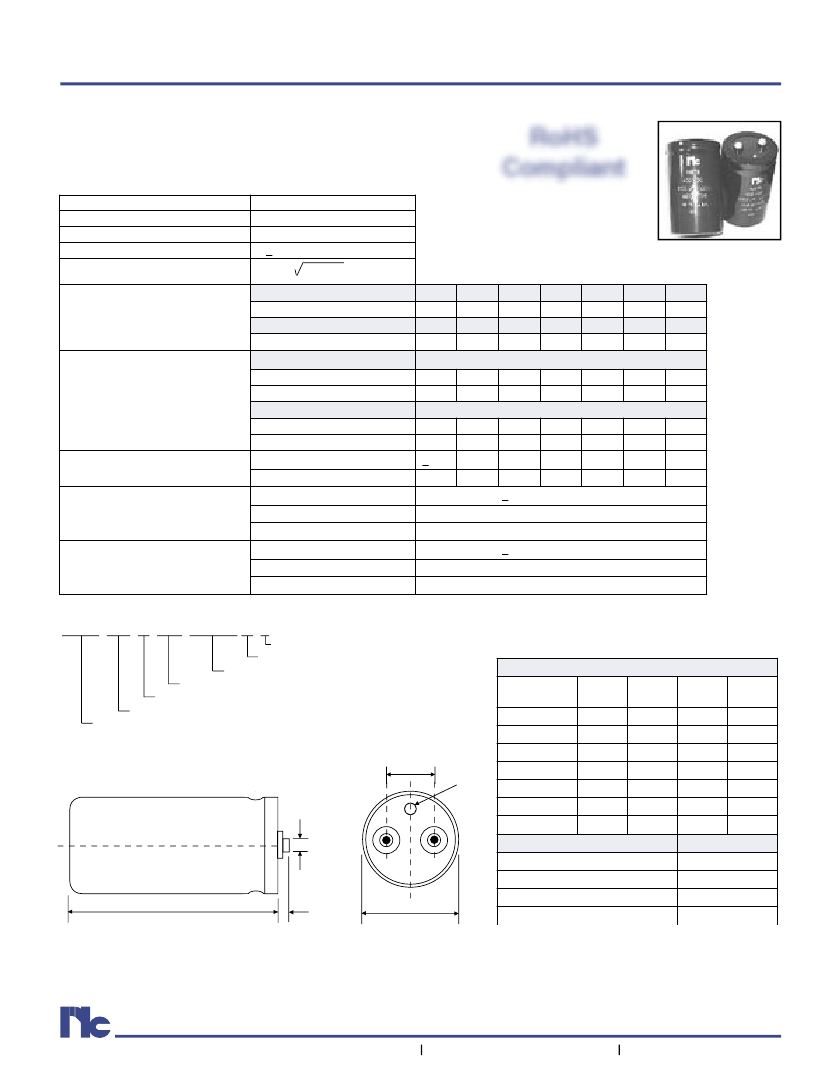

Screw Terminal Aluminum Electrolytic Capacitors

FEATURES

•

General Purpose, 85°C Temperature Rating

•

Available in Wide Range of High CV Values

•

Long Life (3,000 hours) at Rated Temperature and Ripple Current

SPECIFICATIONS

Operating Temperature Range

Rated Working Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Max. Leakage Current

After 5 Minutes (20

Surge Voltage

-40 C ~ +85 C

16 ~ 500Vdc

150

F ~

1.0

+ 20% (M) at 120Hz, +20°C

NSTE Series

RoHS

Compliant

*See Part Number System for Details

3 C(

F)V (

W.V. (Vdc)

S.V. (Vdc)

W.V. (Vdc)

S.V. (Vdc)

Voltage Rating

Frequency (Hz)

Multiplier @ 85°C

Voltage Rating

Frequency (Hz)

Multiplier @ 85°C

Temperature (°C)

Multiplier

Capacitance Change

Tan

& ESR

Leakage Current

Capacitance Change

Tan

& ESR

Leakage Current

250

300

0.9

0.75

< +45

2.2

400

450

0.95

0.8

+60

2.0

500

550

16 ~ 100Vdc

120

500

1.0

1.05

1.08

250 ~ 500Vdc

120

500

1.0

1.2

1.25

+70

1.6

+85

1.0

10K

1.15

10K

1.4

50K

1.15

50K

1.4

100

125

Ripple Current Frequency Correction

Factors

Ripple Current Temperature Correction

Factors

Load Life Test

3,000 Hours @ 85°C

Shelf Life Test

No Load

1,000 Hours @ 85°C

Within + 20% of initial measured value

Less than 200% of the specified maximum value

Less than the specified maximum value

Within + 20% of initial measured value

Less than 200% of the specified maximum value

Less than the specified maximum value

PART NUMBER SYSTEM

NSTE 684 M 16V 76X117 M F

"F" denotes RoHS compliant part

Optional Terminal Code

Case Size (mm)

Voltage Rating

Tolerance Code

Capacitance Code

Terminal Specifications (mm)

Thread

10-32 NF -2B*

10-32 NF-2B

Code

Can Diameter

Thread

Depth

9.5

5.5

9.5

11.9

8.7

11.9

8.7

h ± 0.79

6.4

1.6

6.4

2.8

6.4

2.8

t ± 0.25

8.0

17.4

Series

S ± 0.5mm

Vent

1/4-28 NF-2B

Terminal Spacing

12.7 ± 0.5

21.9 ± 0.5

28.6 ± 0.5

31.8 ± 0.5

L ± 2.0mm

D ± 1.5mm

See Standard Values and Case Size Tables for Dimensions

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com
