LS25-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> LS25-5

LS25-5: Description1-OUTPUT DC-DC UNREG PWR SUPPLY MODULE; Categorysemiconductor Analog mixed-signal IC; File Size1MB，6 Pages; ManufacturerRSG Electronic Components GmbH; Websitehttp://www.rsg-electronic.de/de/

Download Datasheet Parametric View All

LS25-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LS25-5	-	-	View	Buy Now

LS25-5 Overview

1-OUTPUT DC-DC UNREG PWR SUPPLY MODULE

LS25-5 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	5
Maximum limit input voltage	373 V
Minimum limit input voltage	125 V
Maximum operating temperature	70 Cel
Minimum operating temperature	-25 Cel
state	ACTIVE
Craftsmanship	HYBRID
packaging shape	RECTANGULAR
Package Size	MICROELECTRONIC ASSEMBLY
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Packaging Materials	UNSPECIFIED
Temperature level	OTHER
Adjustable output	Yes
Number of outputs	1
Maximum output voltage 1	5.5 V
Minimum output voltage 1	4.75 V
Rated output voltage 1	5 V
Analog IC other types	DC-DC UNREG PWR SUPPLY MODULE

Preview

Download Datasheet

View All

• High MTBF up to 900 000 hours

• Superior operating temperatue performance up to 70°C

• Very High efficiency up to 87%

• Very Low Cost

• Compact

• Withstands 300VAC surges (5s)

• Three Year Warranty

Key Market Segments & Applications

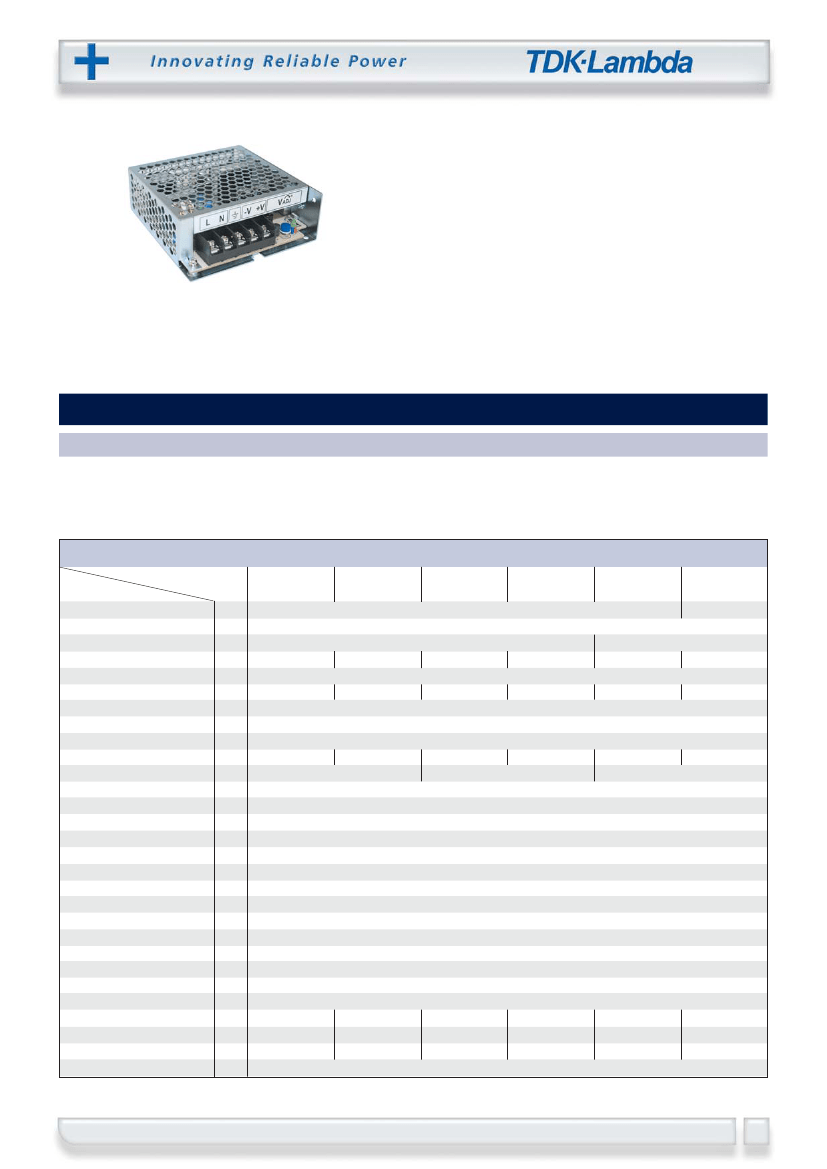

LS Series

Single output General Purpose

Power Supplies

LS Features and Benefits

Features

• High MTBF

• High efficiency

• -25 to +70°C operating temperature

• Low derating above 50 °C (up to 70% load available at 70° C)

• Curve B EMC

Test & Measurement

Automated Service

Factory Automation

General Purpose

LED Lighting & Display

Benefits

• Superior Reliability

• Easier system cooling

• Suitable for indoor & outdoor enclosures

• Improved system power optimasition

• Assists system compliance

Specifications

LS25

ITEMS

AC Input Voltage (300VAC for 5s)

Input Frequency

DC Input Voltage

Inrush Current (230VAC, cold start)

Power Factor

Input Current (115/230VAC)

Temperature Coefficient

Overcurrent Protection

Overvoltage Protection

Hold Up Time (115 / 230V input)

Leakage Current (230VAC 60Hz)

Remote Sense

LED Indicator

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Cooling

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Immunity

Safety Agency Approvals

Conducted & Radiated EMI

MTBF (MIL-HDBK-217F)

Weight (Typ)

Size (LxWxH)

Warranty

VAC

VDC

°C

hrs

yrs

LS35

LS50

LS75

LS100

LS150

88 - 264VAC (See note (2) for LS100)

88-132/176-264VAC(1)

47 - 63Hz

125 - 373VDC

248 - 273VDC

Meets EN61000-3-2, -3

0.7 / 0.4

0.8 / 0.55

1.3 / 0.8

1.6 / 1.0

2.2 / 1.2

3.5 / 2

<0.02%/°C (0 - 50°C)

> 110%

3.3V: 3.8-4.45V, 5V: 5.75-6.75V, 12V: 13.8-16.2V, 15V: 17.25-20.25V,24V: 27.6-32.4V, 36V: 41.4-48.6V, 48V: 55.2-64.8V

14 / 80

12 / 80

14 / 60

25 / 150

20 / 28

TBA

<1mA

Green LED = On

-25 to +70°C. Derate linearly to 50% load from +50 to +70°C (2)

-40 to +85

20 - 90% RH (non condensing)

10 - 95% RH (non condensing)

Convection

Input to Ground 1.5kVAC, Input to Output 3kVAC, Output to Ground 500VAC for 1 min.

>100M at 25C & 70%RH, Output to Ground 500VDC

10 - 55Hz: 19.6m/s2 constant sweep 1 min X, Y, Z for 1 hour

< 196.1 m/s2 (20G)

IEC61000-4-2, -3, -4, -5, -6, -8, -11

UL60950-1, EN60950-1, IEC60950-1, CE Mark

EN55011/EN55022-B, FCC-B

906.997

706.464

712,890

648,786

545,375

505,393

170

270

350

410

600

700

79 x 51 x 28

99 x 82 x 36

99 x 97 x 36

130 x 97 x 38

160 x 97 x 38

198 x 99 x 38

3 Years

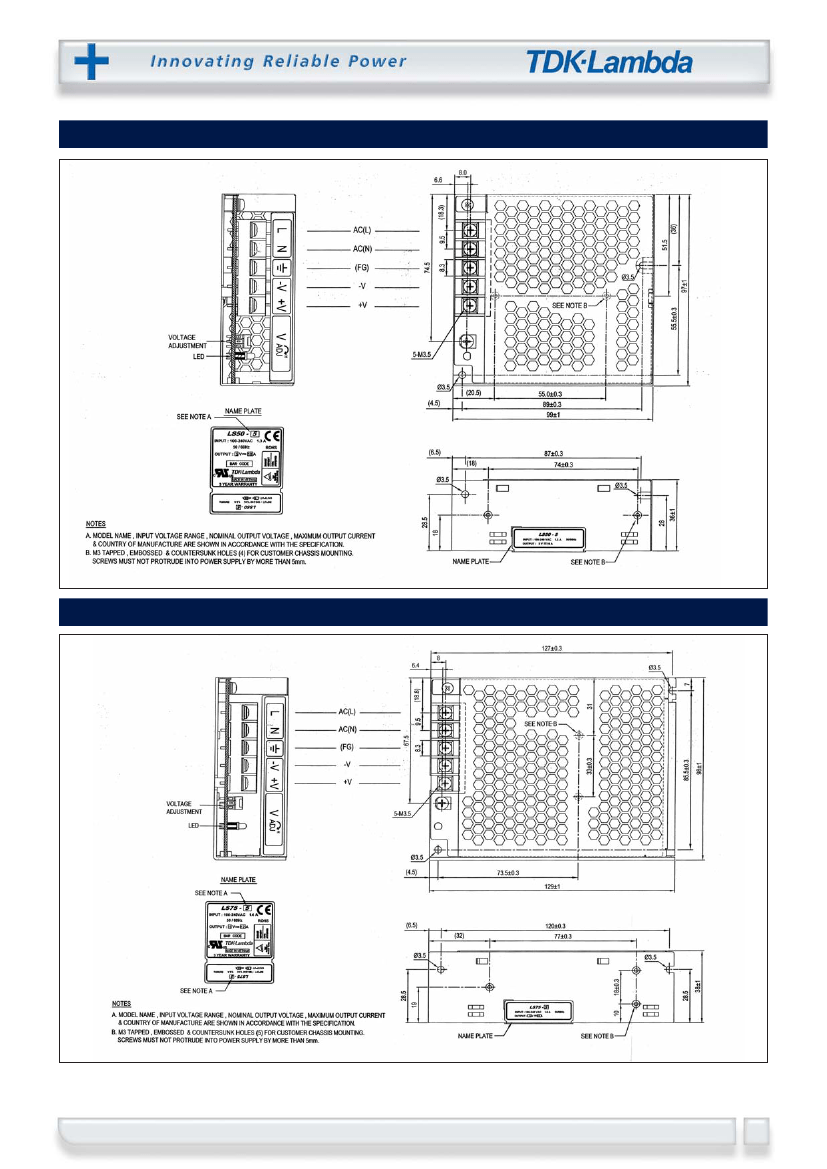

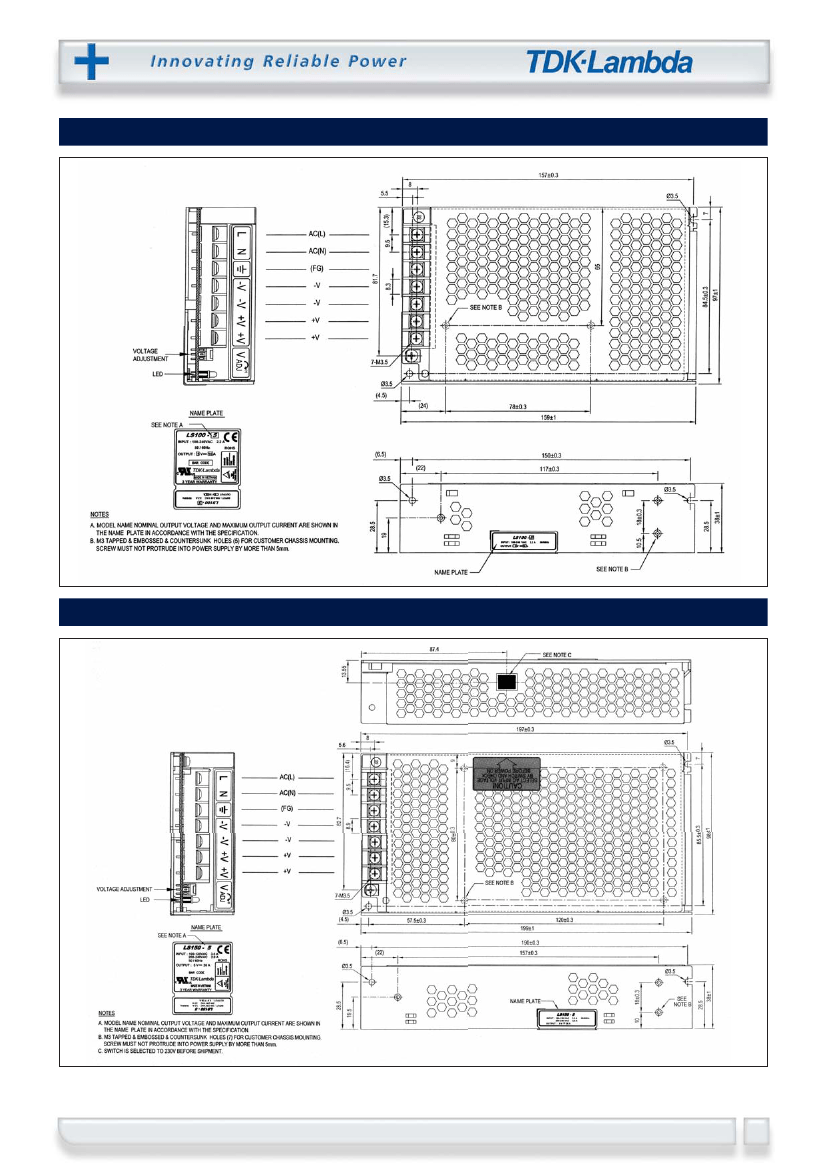

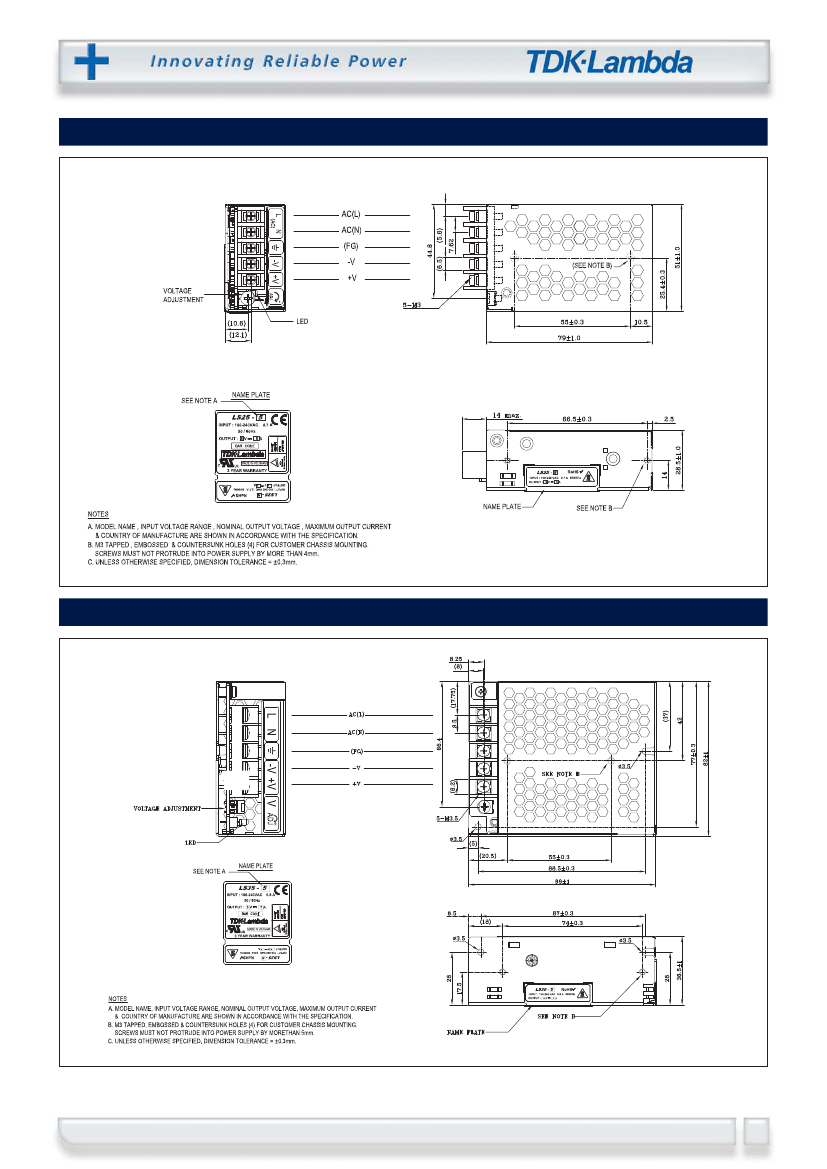

LS Series
