5030 POWER INDUCTORS

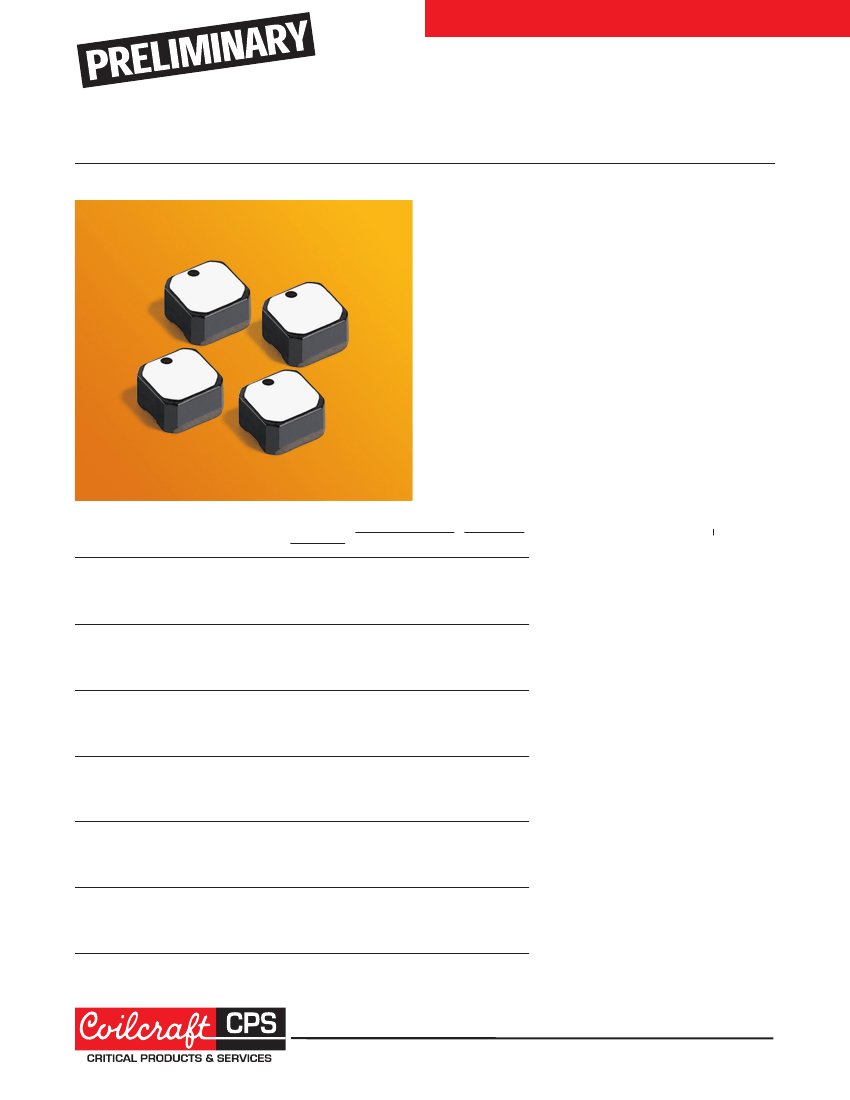

High-Reliability Power Inductors
ML466PJB
■
High temperature materials allow operation in ambient
temperatures up to 155°C.
■
Special construction allows it to pass vibration testing to
80 G and shock testing to 1000 G.
Core material
Ferrite
Terminations
Silver-palladium-platinum-glass frit
Weight
226 – 244 mg

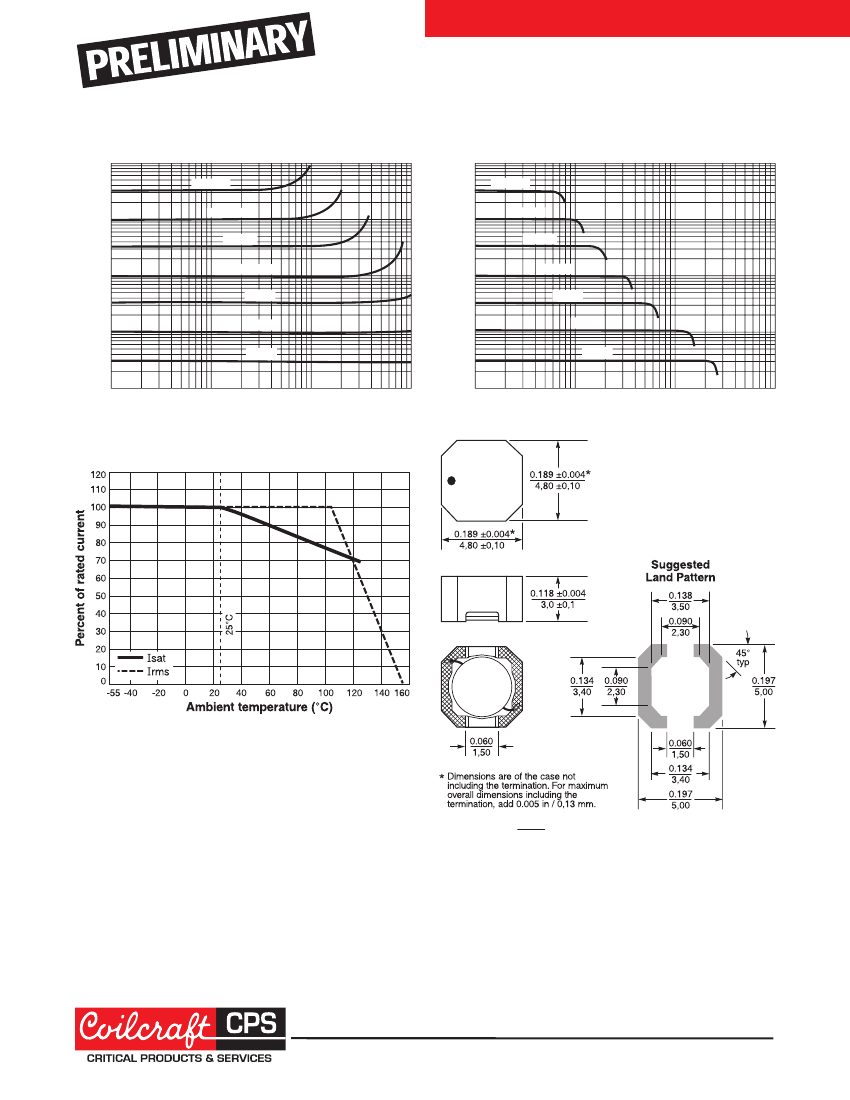

Ambient temperature
–55°C to +105°C with
Irms
current, +105°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
750/7″reel
Plastic tape: 12 mm wide, 0.32 mm thick, 8 mm pocket spacing,
3.1 mm pocket depth
Recommended pick and place nozzle
OD: 5 mm; ID:
≤
2.5 mm
DCR
max
3
(Ohms)
0.040
0.043
0.051
0.057
0.066
0.083
0.089
0.099
0.125
0.127
0.155
0.160
0.170
0.190
0.260
0.330
0.440
0.470
0.600
0.800
0.860
1.35
1.80
2.80
3.20
3.80
5.10
7.60
10.0
11.0
19.5
26.0
Isat
(A)
5
SRF (MHz)
4
10% 20%
min
typ drop drop
175 250
3.8
4.0
147 210
3.5
3.6
133 190
3.0
3.2
118 168
2.9
3.1
88 125
2.3
2.5
59
84
1.9
2.0
49
70
1.8
1.8
39
56
1.6
1.7
32
45
1.6
1.7
21
30
1.4
1.4
17
24
1.3
1.4
22
32
0.80 0.90
19
27
0.80 0.82
17
24
0.70 0.75
13
19
0.60 0.63
11.0 16
0.50 0.53
8.4 12
0.40 0.43
7.7 11
0.38 0.40
7.0 10
0.27 0.31
6.3 9.0 0.26 0.29
5.3 7.5 0.22 0.25
4.2 6.0 0.21 0.235
3.5 5.0 0.155 0.155
2.8 4.0 0.117 0.134
2.5 3.6 0.110 0.130
2.1 3.0 0.100 0.120
1.8 2.5 0.100 0.110
1.4 2.0 0.068 0.080
1.3 1.8 0.069 0.081
1.1 1.6 0.063 0.074
0.90 1.3 0.056 0.063
0.80 1.1 0.049 0.056
Irms
(A)
6
20°C 40°C
rise rise
1.7
2.2
1.6
2.1
1.5
2.0
1.3
1.7
1.1
1.4
1.0
1.4
1.0
1.3
1.0
1.3
0.88 1.2
0.80 1.2
0.76 1.1
0.74 1.1
0.72 1.0
0.70 1.0
0.68 0.96
0.60 0.80
0.52 0.72
0.48 0.66
0.44 0.60
0.36 0.53
0.34 0.46
0.29 0.40
0.26 0.34
0.22 0.30
0.18 0.26
0.16 0.23
0.14 0.20
0.12 0.17
0.10 0.14
0.080 0.12
0.070 0.10
0.065 0.090
1. When ordering, please specify
testing
code:
ML466PJB475MLZ
Testing: Z
= COTS
H
= Screening per Coilcraft
CP-SA-10001
N
= Screening per Coilcraft
CP-SA-10004
2. Inductance tested at 100 kHz, 0.1 Vrms using
an Agilent/HP 4192A.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753ES or
equivalent.
5. Typical DC current that causes the specified
inductance drop from its value without current.
6. Typical current that causes the specified tem-
perature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Com-
ponents” before soldering.
Inductance
2
Part number
1
±20% (µH)
ML466PJB901MLZ
0.90
ML466PJB122MLZ
1.2
ML466PJB172MLZ
1.7
ML466PJB222MLZ
2.2
ML466PJB332MLZ
3.3
ML466PJB472MLZ
4.7
ML466PJB562MLZ
5.6
ML466PJB682MLZ
6.8
ML466PJB822MLZ
8.2
ML466PJB103MLZ
10.0
ML466PJB123MLZ
12.0
ML466PJB153MLZ
15.0
ML466PJB183MLZ
18.0
ML466PJB223MLZ
22.0
ML466PJB333MLZ
33.0
ML466PJB473MLZ
47.0
ML466PJB683MLZ
68.0
ML466PJB823MLZ
82.0
ML466PJB104MLZ
100
ML466PJB124MLZ
120
ML466PJB154MLZ
150
ML466PJB224MLZ
220
ML466PJB334MLZ
330
ML466PJB474MLZ
470
ML466PJB564MLZ
560
ML466PJB684MLZ
680
ML466PJB105MLZ 1000
ML466PJB155MLZ 1500
ML466PJB185MLZ 1800
ML466PJB225MLZ 2200
ML466PJB335MLZ 3300
ML466PJB475MLZ 4700
30%
drop
4.1
3.7
3.3
3.2
2.6
2.0
1.9
1.7
1.7
1.4
1.4
0.90
0.87
0.78
0.64
0.55
0.44
0.40
0.32
0.30
0.263
0.245
0.200
0.146
0.140
0.126
0.110
0.089
0.086
0.080
0.067
0.059
®
These parts are preproduction products for electrical evaluation only.
Document ML581-1
Specification subject to change without notice.
Revised 07/18/11
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2011
Phone 800-981-0363
Fax 847-639-1508
E-mail cps@coilcraft.com
Web www.coilcraft-cps.com
