Preview

ZPM4YCH4R7N180: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC, 4.7ohm, CHASSIS MOUNT; CategoryPassive components The resistor; File Size32KB，1 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

ZPM4YCH4R7N180 Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC, 4.7ohm, CHASSIS MOUNT

ZPM4YCH4R7N180 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Manufacturer's serial number	ZPM
Installation features	CHASSIS MOUNT
Number of terminals	6
Package shape	RECTANGULAR PACKAGE
Rated (AC) voltage (URac)	180 V
resistance	4.7 Ω
Resistor type	PTC THERMISTOR
surface mount	NO
Terminal shape	LUG
Thermistor Applications	MOTOR START
Tolerance	25%

Preview

Download Datasheet

View All

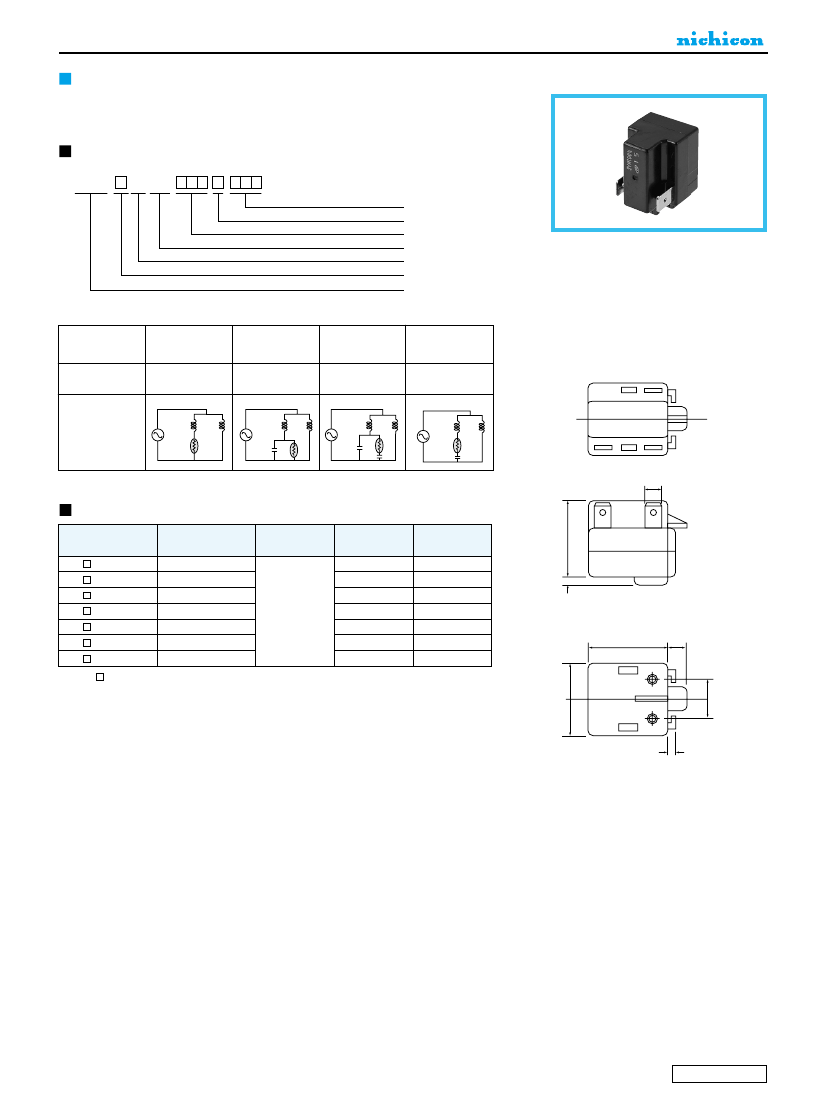

POSITIVE THERMISTORS "Posi-R"

For Motor Starting (Fail Safe Type)

This case type Posi-R is ideally suited for motor starting in various home

appliances like refrigerators, freezer and home-type air conditioners.

In case of failure on products, circuit will be opend with fail safe system.

Type numbering system

1 2 3

4

5

6 7

8 9 10 11

12 13 14

ZP M

Y CH 4R 7 N 1 8 0

Max. Operating Voltage (Vrms)

Revision Code

Initial Resistance (4R7 : 4.7Ω)

Switching Temperature (CH : 135˚C)

Diameter of Element (Y :

φ20)

Number of starting circuit

For Motor Starting

Form of motor

starting circuit

Number of

starting circuit

RSIR

1

RSCR

2

CSR

3

CSIR

(unit : mm)

4

3

Motor starting

circuit

1

2

6.35

±

0.1

Specification

Type No.

ZPM YCH4R7N180

ZPM YCH6R8N200

ZPM YCH100N225

ZPM YCH150N250

ZPM YCH220N300

ZPM YCH330N355

ZPM YCH470N400

Symbol

Initial Resistance

(at 25˚C)

4.7Ω ±25%

6.8Ω ±25%

10Ω ±25%

15Ω ±25%

22Ω ±25%

33Ω ±25%

47Ω ±25%

Switching

Temperature

Max. Operating Voltage Max. lnrush Current

(Vrms)

(Arms)

180

200

225

12

10

8

7

6

5

135˚C

250

300

355

400

2.2

±

0.2

9

25

±

1.0

25.7

±

1.0

6.0

±

0.5

is number of starting circuit.

22

±

1.0

UL approval types are also available upon request.

Please contact us if you have any request for other specifications.

6

2.5

±

0.2

CAT.8100A

11.66

±

0.1

5
