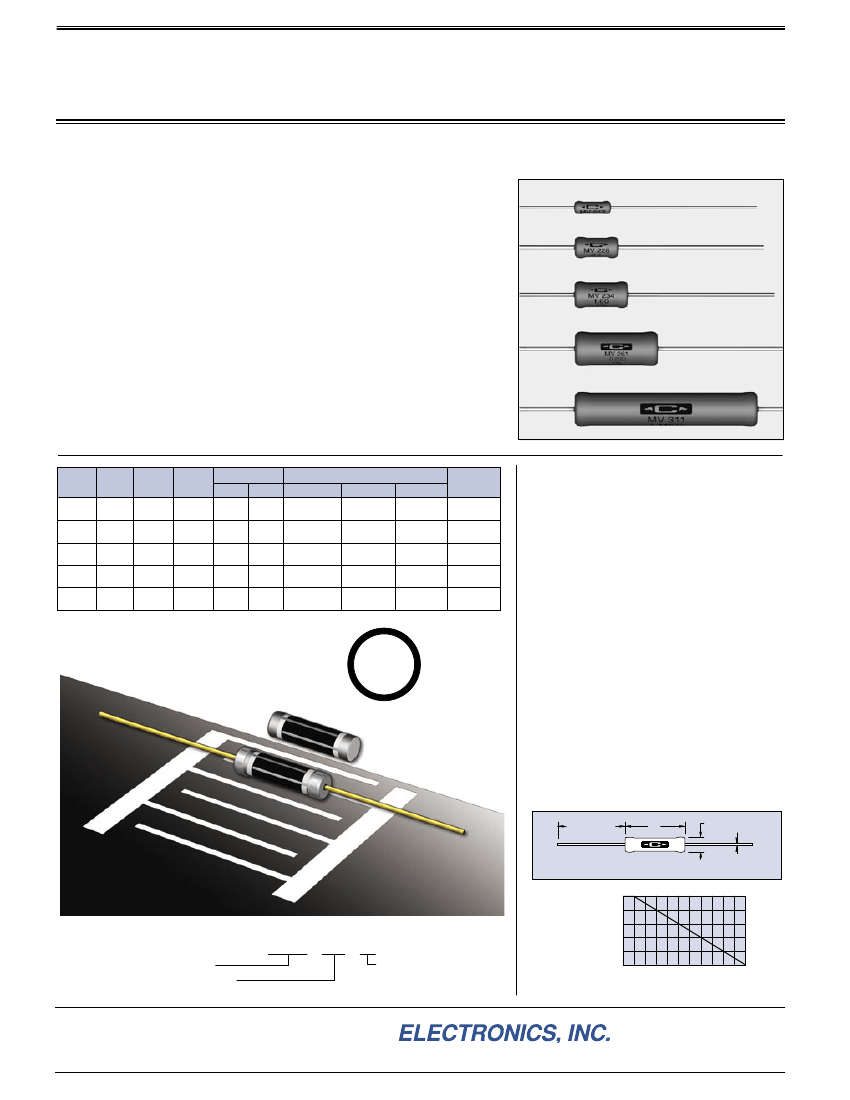

Type MV Low Resistance Power Film Resistors
Values from 0.1 ohm to 50 ohms with Exclusive Non-Inductive Design
Type MV Low Resistance Power Film Resistors combine Caddock's
Exclusive Non-Inductive Design with many high performance capabilities of
Micronox
®
resistance films to achieve these special advantages:
MV 217
•
•
•
•
•
Low Resistance - from 0.1 ohm to 50 ohms.
Maximum Operating Temperature up to +275°C.
Five Sizes and Power Ratings.
Full Power Ratings without derating for Non-Inductive Performance.
See MP900 Series Power Resistor Products for Resistances as Low as 0.005Ω.
MV 228
MV 234
The interdigitated terminations in the Type MV resistors provide a multiple-
path distribution of the current into parallel resistance sections, which provides
low resistance values and non-inductive performance. This Exclusive Non-
Inductive Design provides significant performance improvements in high speed
or inductance sensitive electronic circuits, including high performance power
amplifiers, high-speed data transmission systems, high frequency video
amplifiers, current switching circuits, and current sensing circuits.
Model
No.
MV
217
MV
228
MV
234
MV
261
MV
311
MV 261
MV 311
Watt-
age
1.5
2.0
3.0
6.0
10.0
Oper.
Temp.
(Max.)
275°C
275°C
275°C
275°C
275°C
Dielect.
Strength
800
1,000
1,000
1,000
1,000
Resistance
Min.
0.20
Ω
0.10
Ω
0.10
Ω
0.10
Ω
0.10
Ω
Max.
50
Ω
50
Ω
50
Ω
50
Ω
50
Ω
Dimensions in inches and (millimeters)
A
.400
±.060
(10.16
±1.52)
.480
±.060
(12.19
±1.52)
.570
±.060
(14.48
±1.52)
.910
±.060
(23.11
±1.52)
B
.140
±.030
(3.56
±.76)
.230
±.030
(5.84
±.76)
.300
±.030
(7.62
±.76)
.350
±.040
(8.89
±.76)
C
.025
±.002
(.64
±.05)
.040
±.002
(1.02
±.05)
.040
±.002
(1.02
±.05)
.040
±.002
(1.02
±.05)
.040
±.002
(1.02
±.05)
Leadwire
Solderable
Solderable
Solderable
Solderable
Solderable
Specifications:
Resistance Tolerance:
20% are also available).
±1% (5%, 10% and
Temperature Coefficient:
5 ohms and above,
±100 ppm/°C, referenced to +25°C,
ΔR
taken at
-15°C and +105°C.
Below 5 ohms, ±(200 ppm + 0.00002 ohm)/°C,
referenced to +25°C,
ΔR
taken at -15°C and
+105°C.
Insulation Resistance:
10,000 Megohms, min.
Momentary Overload:
5 times rated power for
5 seconds,
ΔR
±(1 percent + 0.001 ohm) max.
Thermal Shock:
Mil-Std-202, Method 107,
Cond. C,
ΔR
±(1 percent + 0.001 ohm) max.
Moisture Resistance:
Mil-Std-202, Method 106,
ΔR
±(1 percent + 0.001 ohm) max.
Load Life:
1,000 hours at +25°C at rated
power,
ΔR
±(1 percent + 0.001 ohm) max.
Encapsulation:
High Temperature Silicone
Conformal.
Measurement Note:
For these specifications,
resistance measurement shall be made at a
point 0.3 inch (7.62 mm) from the resistor body.
1.500
±
.125
(38.10
±
3.18)
A
B
C
.350
±.040
2.000
±.080
(50.80
±2.03)
(8.89
±1.02)
MV
Exclusive
Non-Inductive
Design
DIMENSIONS IN INCHES AND (MILLIMETERS)
Derating
Curve:
100
80
60
40
20
0
Ordering Information
:
Model Number:
RATED LOAD, %
MV234 - 0.10 - 1%
Tolerance
Resistor Value:
25
75
125
175
225
275
AMBIENT TEMPERATURE,
°C
Applications Engineering
17271 North Umpqua Hwy.
Roseburg, Oregon 97470-9422
Phone: (541) 496-0700
Fax: (541) 496-0408
© 2004 Caddock Electronics, Inc.
CADDOCK
e-mail: caddock@caddock.com • web: www.caddock.com
For Caddock Distributors listed by country see caddock.com/contact/dist.html
Sales and Corporate Office
1717 Chicago Avenue
Riverside, California 92507-2364
Phone: (951) 788-1700
Fax: (951) 369-1151
28_IL109.1004
