PDX-012-120: DescriptionSplit Bobbin Power Transformer; File Size568KB，2 Pages; ManufacturerWabash Transformer Inc.; Websitehttps://www.wabashtransformer.com/

Download Datasheet View All

PDX-012-120 Overview

Split Bobbin Power Transformer

Preview

Download Datasheet

View All

Split Bobbin Power Transformer

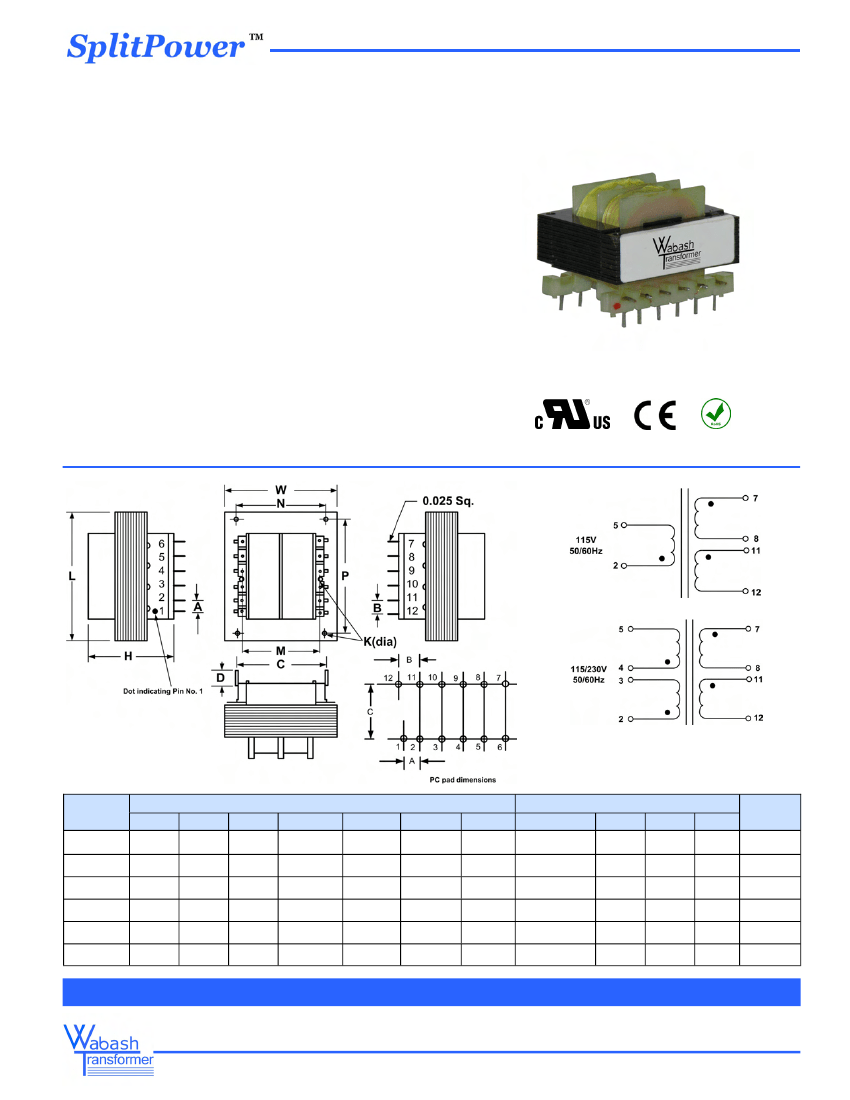

Series: PSX & PDX

- Printed Circuit Mount, Horizontal

Pins



Power Rating 1.2VA to 30VA

Single or Dual Primary, 115V or 115/230V

Frequency 50/60HZ

Series or Parallel Secondary

Dielectric Strength – 1500 Vrms

Insulation Class B (130°C)

Agency Approvals:



UL/cUL 5085-2 Recognized (File E47299)

Insulation File No. E95662

Single Primary

Dual Primary

●

Indicates Like Polarity

Primaries and Secondaries are designed to be used

simultaneously. That is, they must be used either series or parallel

connected (as one winding). Same applies to secondaries also.

Rating

Dimensions (Inches)

Mounting Dimension

0.172

0.188

0.140

0.219 X 0.09*

* = Slots

1.000

1.060

1.250

1.687

1.50

1.87

Wgt. lbs

0.165

0.230

0.310

0.520

0.780

1.150

1.2

2.4

1.38

1.63

1.88

2.25

1.12

1.31

1.56

1.87

1.13

1.26

1.41

1.79

0.150

0.200

0.250

0.300

0.860

0.950

1.100

1.300

Any application, Any requirement, Contact us for our Custom Designs

Sales Office:

300 W Factory Road, Addison IL 60101

•

Phone: (630) 628-9999

•

Fax: (630) 628-9922

•

www.wabashtransformer.com
