R694.281.257

Description
RF Connector, Male, Board Mount, Solder Terminal
CategoryThe connector    The connector
File Size94KB,3 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

R694.281.257 Overview

RF Connector, Male, Board Mount, Solder Terminal

R694.281.257 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Characteristic impedance75 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.49 dB
insulator materialPEEK, ULTEM
MIL complianceNO
Manufacturer's serial numberMCC2
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
voltage standing wave ratio1.2
TECHNICAL DATA SHEET
1/3

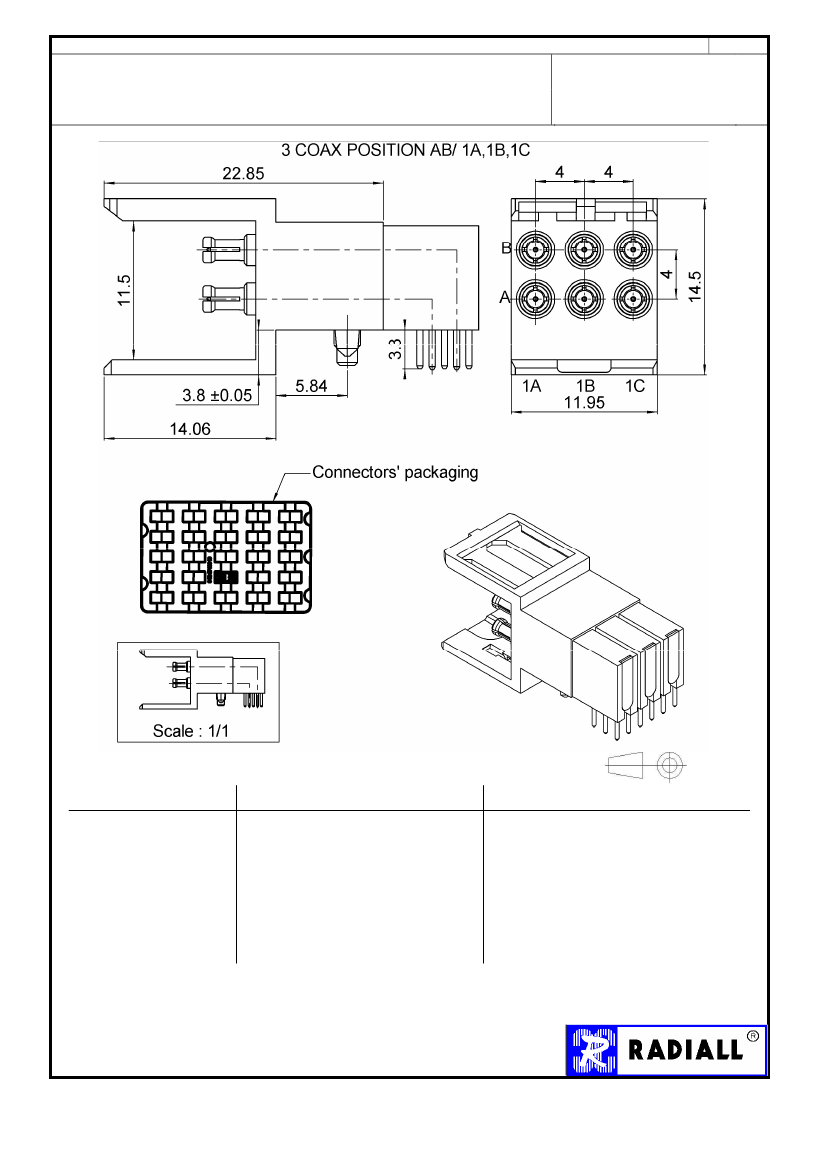

MALE SHIELDED COAXIPACK 6 COAX
SOLDER TYPE 3.5
R694.281.257
Series :
MCC2

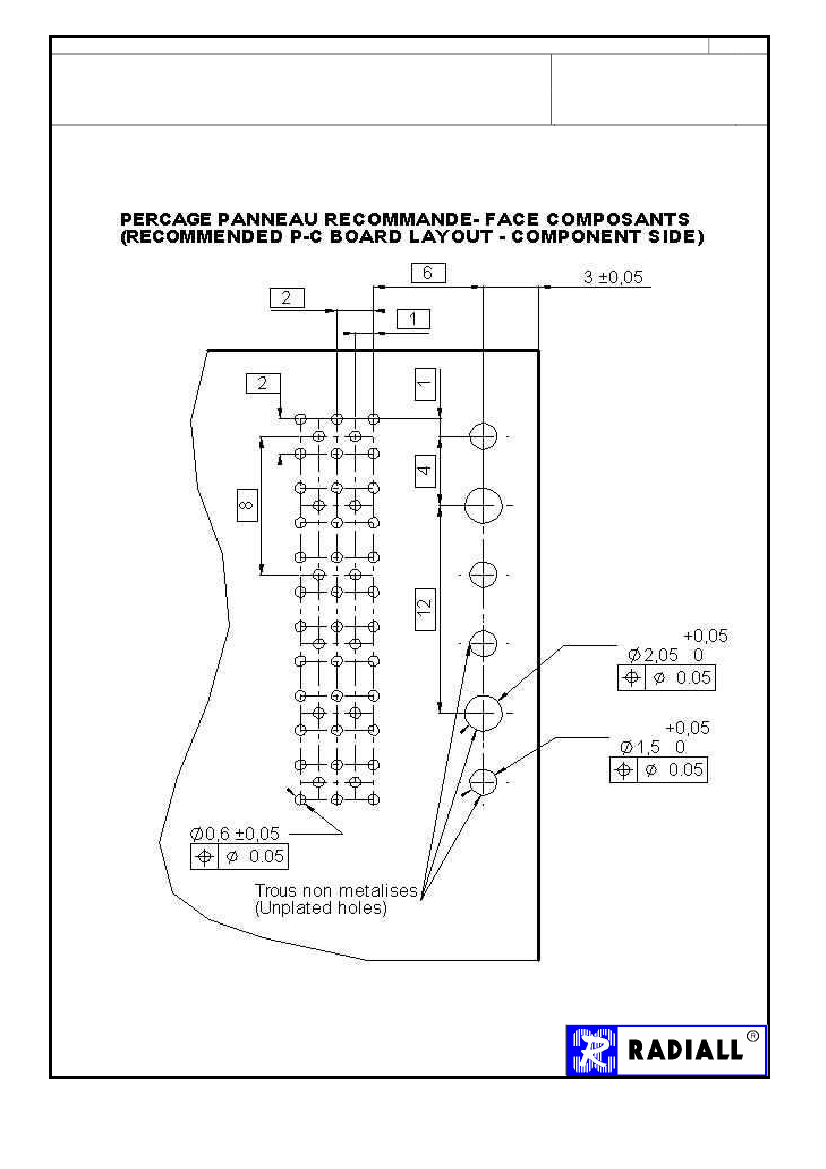

All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BERYLLIUM COPPER
BRONZE
PEEK , ULTEM
POLYM. C. L. 30% FV
-
-
NICKEL 2
NPGR
NPGR
PLATINGS (
µm
)
NICKEL 0.6 SUR CUIVRE 3
-
-
Issue :
0815 B
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
