SIT5349AN-FR325JLB60.000001X datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SIT5349AN-FR325JLB60.000001X

SIT5349AN-FR325JLB60.000001X: DescriptionLVCMOS Output Clock Oscillator, 60.000001MHz Nom,; CategoryPassive components oscillator; File Size2MB，34 Pages; ManufacturerSiTime; Environmental Compliance

Download Datasheet Parametric View All

SIT5349AN-FR325JLB60.000001X Overview

LVCMOS Output Clock Oscillator, 60.000001MHz Nom,

SIT5349AN-FR325JLB60.000001X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LCC10,.13X.2,58/52/48
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION
Ageing	0.3 PPM/YEAR
maximum descent time	1.9 ns
Frequency Adjustment - Mechanical	NO
frequency stability	0.05%
Installation features	SURFACE MOUNT
Number of terminals	10
Nominal operating frequency	60.000001 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVCMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	LCC10,.13X.2,58/52/48
physical size	5.15mm x 3.35mm x 1.06mm
longest rise time	1.9 ns
Maximum slew rate	62 mA
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

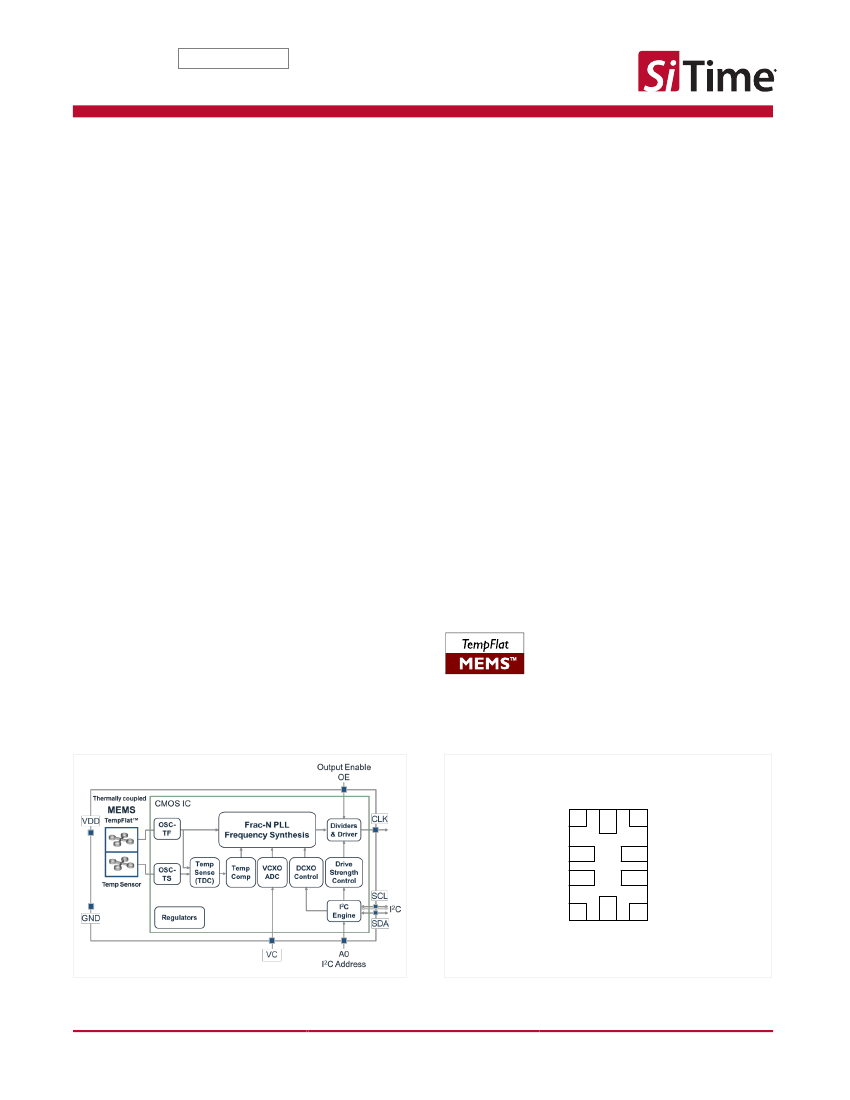

SiT5349

PRELIMINARY

60 MHz to 220 MHz, ±50 ppb, Endura™ Series Ultra-precision Super-TCXO

Description

The

SiT5349

is a ruggedized ±50 ppb precision MEMS

Super-TCXO with a maximum acceleration sensitivity of

0.009 ppb/g or 0.1 ppb/g. Engineered for best dynamic

performance, the SiT5349 is ideal for high reliability

defense, space, avionics, guidance, precision GNSS and

communications applications.

Leveraging SiTime’s unique DualMEMS™ temperature

sensing and TurboCompensation™ technologies, the

SiT5349 delivers the best dynamic performance for timing

stability in the presence of environmental stressors due to

air flow, temperature perturbation, vibration, shock, and

electromagnetic interference. This device also integrates

multiple on-chip regulators to filter power supply noise,

eliminating the need for a dedicated external LDO.

The SiT5349 offers three device configurations that can be

ordered using

Ordering Codes

for:

1) TCXO with non-pullable output frequency,

2) VCTCXO allowing voltage control of output

frequency, and

3) DCTCXO, enabling digital control of output frequency

using an I

C interface, pullable to 5 ppt (parts per

trillion) resolution.

The SiT5349 can be factory programmed for any

combination of frequency, stability, voltage, and pull range.

Programmability enables designers to optimize clock

configurations while eliminating long lead times and

customization costs associated with quartz devices where

each frequency is custom built.

Refer to

Manufacturing Guideline

for proper reflow profile

and PCB cleaning recommendations for best performance.

Features



Output 60–189 MHz, and 200–220 MHz, in 1 Hz steps

Factory programmable options for low lead time

Best dynamic stability under airflow, thermal shock



0.009 ppb/g or 0.1 ppb/g acceleration sensitivity



±50 ppb stability across temperature



±1 ppb/C typical frequency slope (ΔF/ΔT)



3e-11 ADEV at 10 second averaging time

0°C to +70°C operating temperature

No activity dips or micro jumps

Resistant to shock, vibration and board bending

On-chip regulators eliminate the need for external LDOs

Digital frequency pulling (DCTCXO) via I



Digital control of output frequency and pull range



Up to

±3200

ppm pull range



Frequency pull resolution down to 5 ppt

2.5V, 2.8V, 3.0V and 3.3V supply voltage

LVCMOS output

RoHS and REACH compliant

Pb-free, Halogen-free, Antimony-free

Applications



Ballistics, missiles, munitions

Military portable radios

Ruggedized communications networks

Precision GNSS systems

SATCOM

Transponders

Military, defense, space, avionics systems

Block Diagram

5.0 x 3.2 mm

Package Pinout

SDA / NC

OE / VC / NC

SCL / NC

GND

VDD

CLK

A0 / NC

Figure 1. SiT5349 Block Diagram

Figure 2. Pin Assignments (Top view)

(Refer to

Table 10

for Pin Descriptions)

July 23, 2019

www.sitime.com

Rev 0.5

SiT5349

60 MHz to 220 MHz, ±50 ppb, Endura™ Series Ultra-precision Super-TCXO

TABLE OF CONTENTS

PRELIMINARY

Description ................................................................................................................................................................................... 1

Features....................................................................................................................................................................................... 1

Applications ................................................................................................................................................................................. 1

Block Diagram ............................................................................................................................................................................. 1

5.0 x 3.2 mm

Package Pinout ..................................................................................................................................................... 1

Ordering Information .................................................................................................................................................................... 2

Electrical Characteristics.............................................................................................................................................................. 4

Device Configurations and Pin-outs ............................................................................................................................................. 8

Pin-out Top Views................................................................................................................................................................. 8

Test Circuit Diagrams for LVCMOS Outputs................................................................................................................................ 9

Waveforms................................................................................................................................................................................. 10

Timing Diagrams ........................................................................................................................................................................ 10

Typical Performance Plots ......................................................................................................................................................... 11

Architecture Overview ................................................................................................................................................................ 14

Frequency Stability ............................................................................................................................................................. 14

Output Frequency and Format ............................................................................................................................................ 14

Output Frequency Tuning ................................................................................................................................................... 14

Pin 1 Configuration (OE, VC, or NC) .................................................................................................................................. 15

Device Configurations ................................................................................................................................................................ 15

TCXO Configuration ........................................................................................................................................................... 15

VCTCXO Configuration ...................................................................................................................................................... 16

DCTCXO Configuration ...................................................................................................................................................... 17

VCXO-Specific Design Considerations ...................................................................................................................................... 18

Linearity .............................................................................................................................................................................. 18

Control Voltage Bandwidth ................................................................................................................................................. 18

FV Characteristic Slope K

................................................................................................................................................. 18

Pull Range, Absolute Pull Range ........................................................................................................................................ 19

DCTCXO-Specific Design Considerations ................................................................................................................................. 20

Pull Range and Absolute Pull Range .................................................................................................................................. 20

Output Frequency ............................................................................................................................................................... 21

C Control Registers .......................................................................................................................................................... 23

Register Descriptions.......................................................................................................................................................... 23

Register Address: 0x00. Digital Frequency Control Least Significant Word (LSW) ............................................................ 23

Register Address: 0x01. OE Control, Digital Frequency Control Most Significant Word (MSW) ......................................... 24

[14]

........................................................................................ 25

Serial Interface Configuration Description .......................................................................................................................... 26

Serial Signal Format ........................................................................................................................................................... 26

Parallel Signal Format ........................................................................................................................................................ 27

Parallel Data Format ........................................................................................................................................................... 27

C Timing Specification ...................................................................................................................................................... 29

C Device Address Modes ................................................................................................................................................. 30

Schematic Example ............................................................................................................................................................ 31

Dimensions and Patterns ........................................................................................................................................................... 32

Layout Guidelines ...................................................................................................................................................................... 33

Manufacturing Guidelines .......................................................................................................................................................... 33

Rev 0.5

Page 3 of 34
