SPICE Device Model Si1419DH
Vishay Siliconix
P-Channel 200-V (D-S) MOSFET
CHARACTERISTICS
•
P-Channel Vertical DMOS
•
Macro Model (Subcircuit Model)
•
Level 3 MOS
•
Apply for both Linear and Switching Application
•
Accurate over the
−55
to 125°C Temperature Range
•
Model the Gate Charge, Transient, and Diode Reverse Recovery
Characteristics
DESCRIPTION
The attached spice model describes the typical electrical
characteristics of the p-channel vertical DMOS. The subcircuit
model is extracted and optimized over the
−55
to 125°C
temperature ranges under the pulsed 0-V to 10-V gate drive. The
saturated output impedance is best fit at the gate bias near the
threshold voltage.
A novel gate-to-drain feedback capacitance network is used to model
the gate charge characteristics while avoiding convergence difficulties
of the switched C
gd
model. All model parameter values are optimized
to provide a best fit to the measured electrical data and are not
intended as an exact physical interpretation of the device.
SUBCIRCUIT MODEL SCHEMATIC
This document is intended as a SPICE modeling guideline and does not constitute a commercial product data sheet. Designers should refer to the appropriate
data sheet of the same number for guaranteed specification limits.
Document Number: 73330
S-50412Rev. A, 14-Mar-05
www.vishay.com
1
SPICE Device Model Si1419DH
Vishay Siliconix
SPECIFICATIONS (T
J
= 25°C UNLESS OTHERWISE NOTED)
Parameter
Static
Gate Threshold Voltage
On-State Drain Current
a
Drain-Source On-State Resistance
a
Forward Transconductance
a
Diode Forward Voltage
a
Symbol
Test Condition
Simulated
Data
3.1
1.3
3.95
4.08
0.5
−0.72
Measured
Data
Unit
V
GS(th)
I
D(on)
r
DS(on)
g
fs
V
SD
V
DS
= V
GS
, I
D
=
−250 µA
V
DS
=
−5
V, V
GS
=
−10
V
V
GS
=
−10
V, I
D
=
−0.4
A
V
GS
=
−6
V, I
D
=
−0.4
A
V
DS
=
−10
V, I
D
=
−0.4
A
I
S
=
−0.4
A, V
GS
= 0 V
V
A
3.98
4.06
1
−0.80
Ω
S
V
Dynamic
b
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Q
g
Q
gs
Q
gd
V
DS
=
−100
V, V
GS
=
−10
V, I
D
=
−0.4
A
3.6
0.8
1.3
4.1
0.8
1.3
nC
Notes
a. Pulse test; pulse width
≤
300
µs,
duty cycle
≤
2%.
b. Guaranteed by design, not subject to production testing.
www.vishay.com
2
Document Number: 73330
S-50412Rev. A, 14-Mar-05
SPICE Device Model Si1419DH
Vishay Siliconix

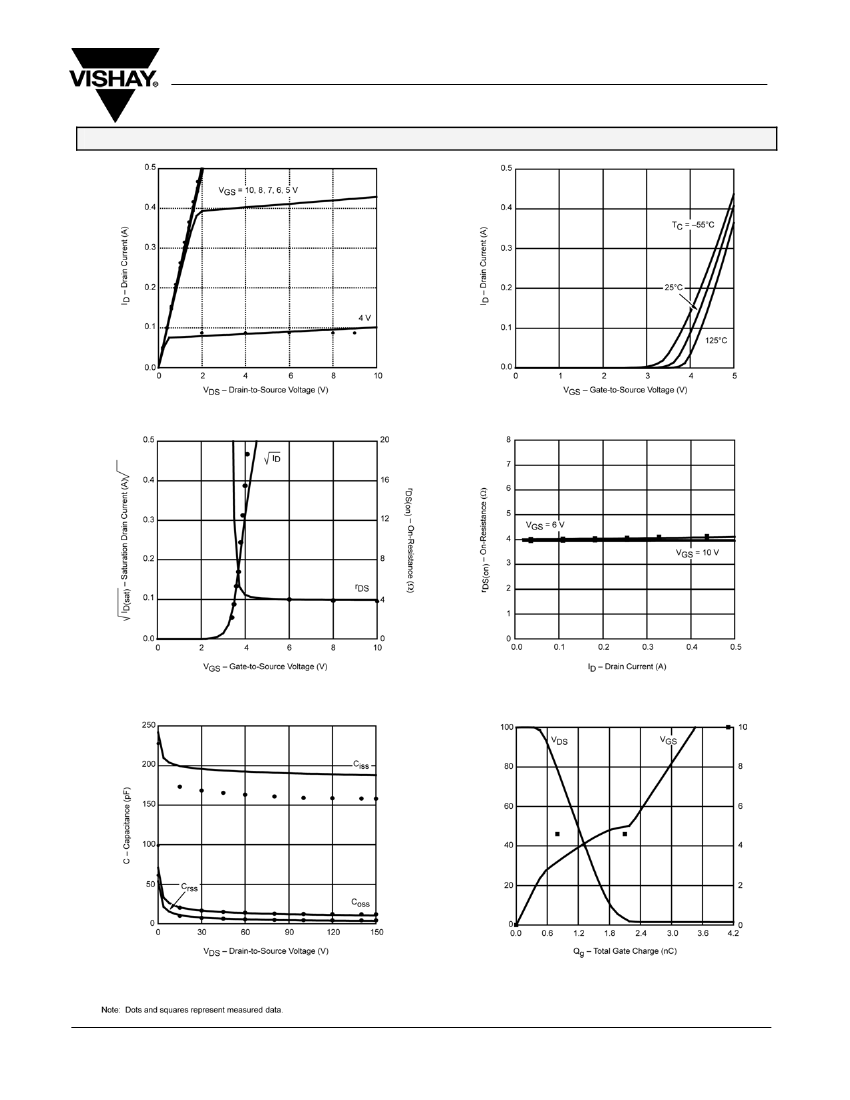

COMPARISON OF MODEL WITH MEASURED DATA (T
J
=25°C UNLESS OTHERWISE NOTED)
Document Number: 73330
S-50412Rev. A, 14-Mar-05
www.vishay.com
3
