HB15SKW01-CC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> HB15SKW01-CC

HB15SKW01-CC: DescriptionSwitch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount; CategoryMechanical and electronic products switch; File Size831KB，5 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric Compare View All

HB15SKW01-CC Overview

Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount

HB15SKW01-CC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	RED
Actuator length	0.138 inch
Actuator material	POLYCARBONATE
Actuator stroke	2.9972 mm
Actuator type	PUSHBUTTON
Other features	SQUARE PUSHBUTTON
body width	8.9916 mm
Body color	BLACK
body height	31.3182 mm
Body length or diameter	8.9916 mm
Casing diameter	0.315 inch
Nozzle length	0.394 inch
Casing type	M8P0.75
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Contact (AC) maximum rated R load	0.1A@30VAC
Maximum contact current (AC)	0.1 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@30VDC
Contact function	ON-(ON)
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	30 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	500VAC V
Electrical life	50000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	SILVER
Shell material	GLASS FILLED REINFORCED NYLON
illumination	LED
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
Manufacturer's serial number	HB
Installation features	PANEL MOUNT
Maximum operating temperature	50 °C
Minimum operating temperature	-25 °C
seal	EPOXY
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Terminal surface	Silver (Ag)
Terminal length	0.197 inch
Terminal material	PHOSPHOR BRONZE
Termination type	SOLDER LUG

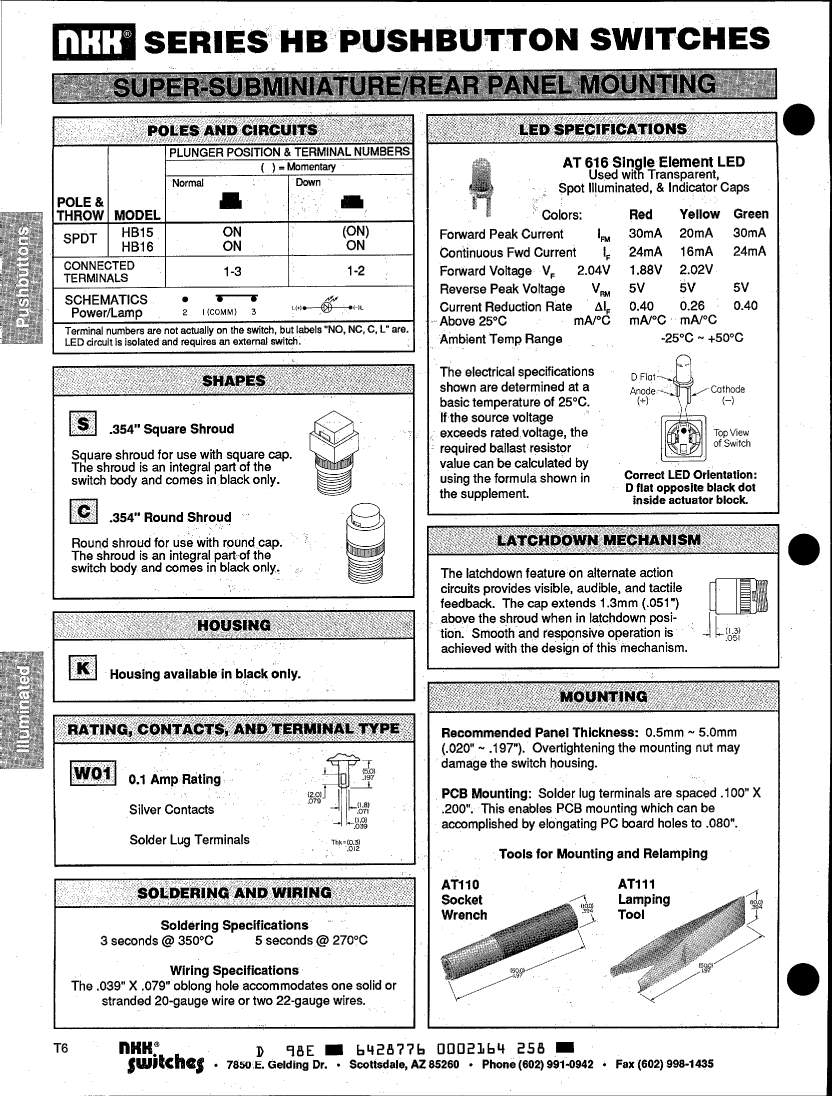

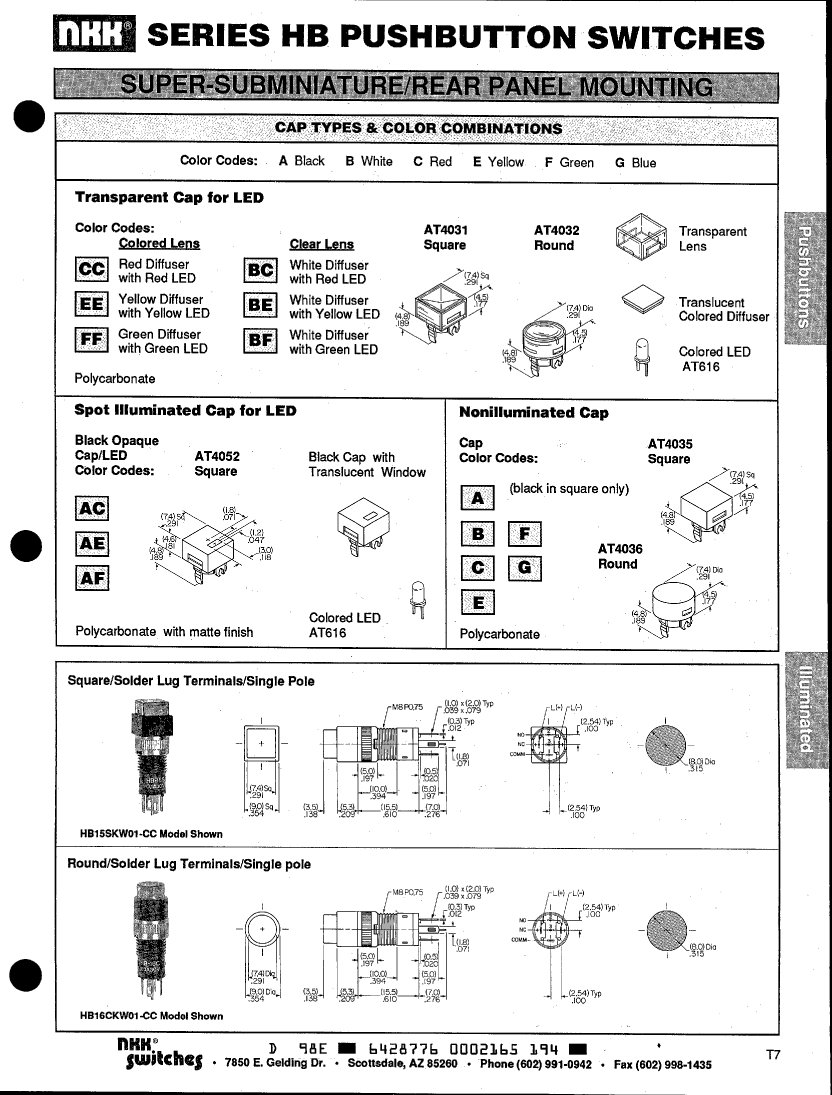

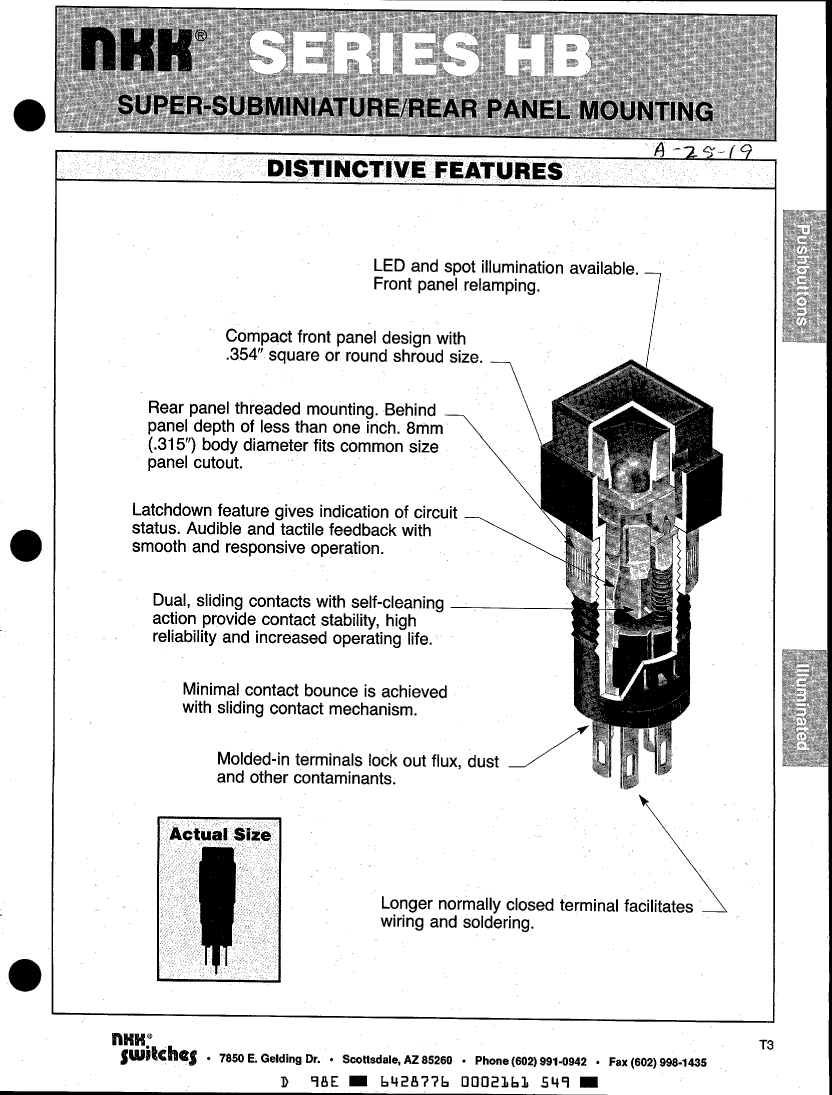

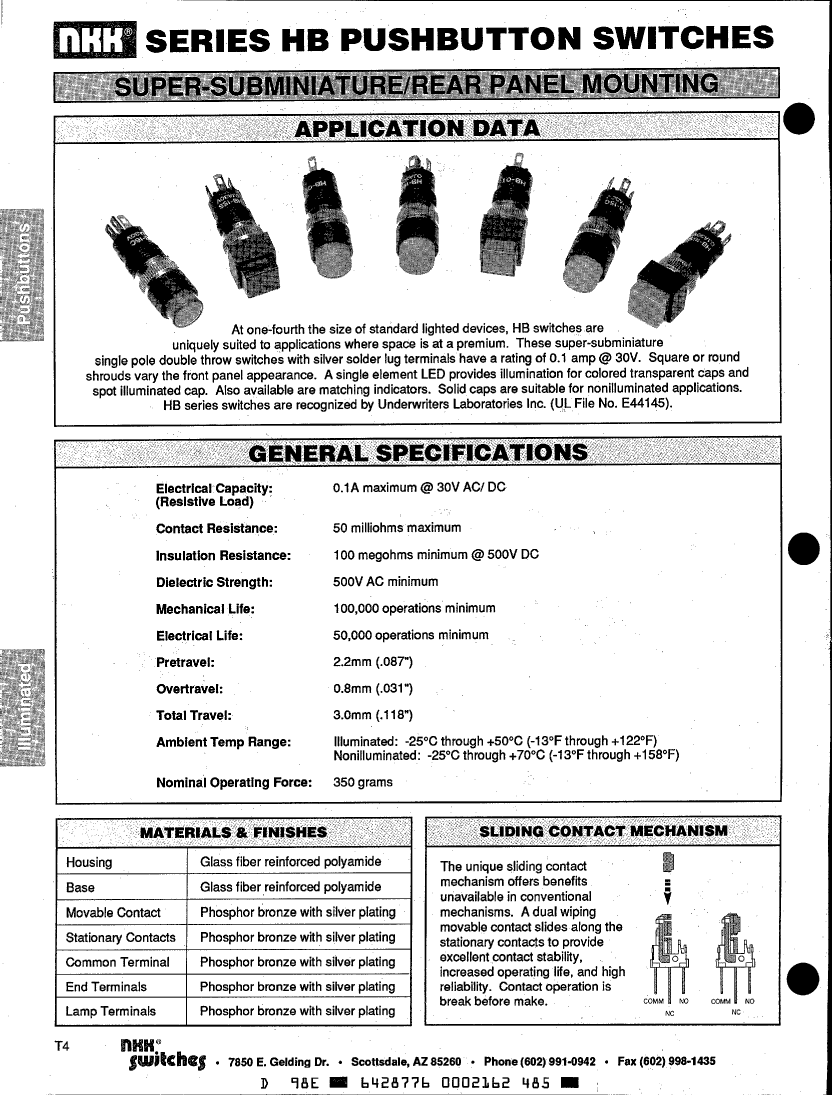

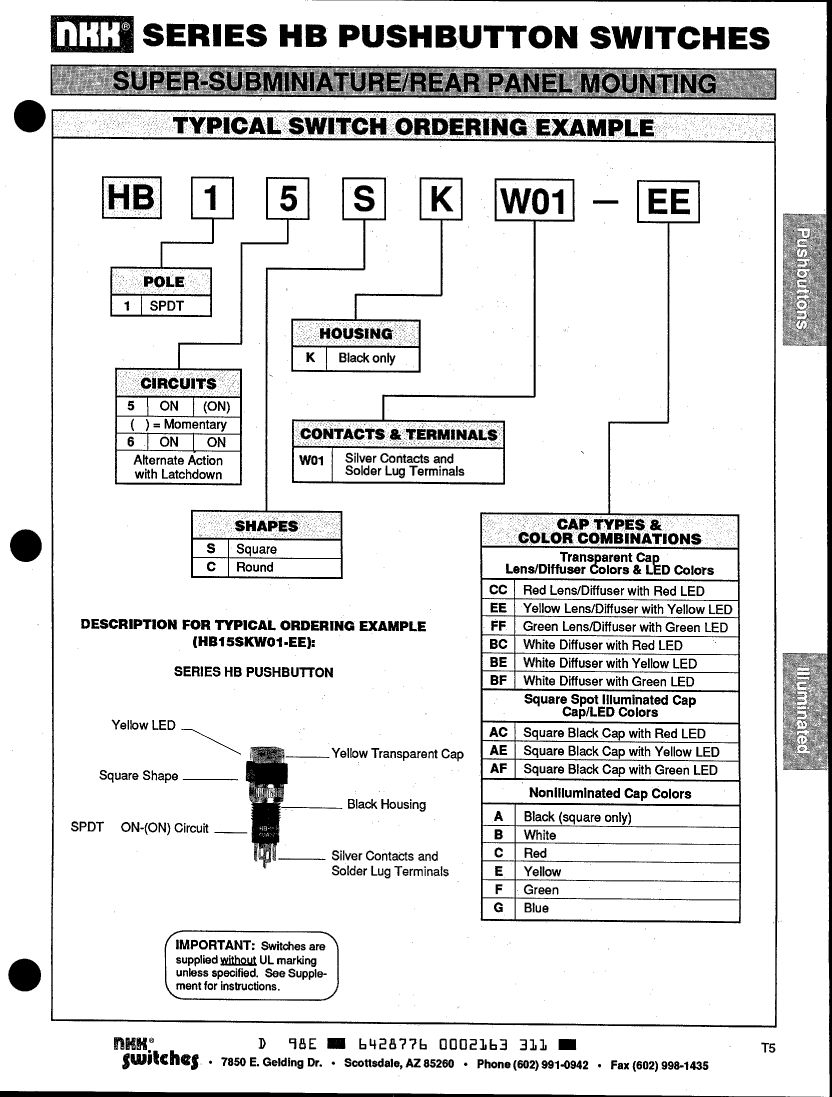

Preview

Download Datasheet

View All

HB15SKW01-CC Related Products

	HB15SKW01-CC	HB15CKW01-AE	HB15CKW01-FF	HB15SKW01-AE	HB15SKW01-AF	HB15SKW01-BC	HB15SKW01-BE	HB15SKW01-BF	HB15SKW01-FF
Description	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount	Switch, SPDT, Momentary, 0.1A, 30VDC, Panel Mount
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	RED	BLACK	GREEN	BLACK	BLACK	WHITE	WHITE	WHITE	GREEN
Actuator length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Actuator material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Actuator stroke	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm	2.9972 mm
Actuator type	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON
Other features	SQUARE PUSHBUTTON	ROUND PUSHBUTTON	ROUND PUSHBUTTON	SQUARE PUSHBUTTON	SQUARE PUSHBUTTON	SQUARE PUSHBUTTON	SQUARE PUSHBUTTON	SQUARE PUSHBUTTON	SQUARE PUSHBUTTON
Body color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
body height	31.3182 mm	31.3182 mm	31.3182 mm	31.3182 mm	31.3182 mm	31.3182 mm	31.3182 mm	31.3182 mm	31.3182 mm
Body length or diameter	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm
Casing diameter	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch
Nozzle length	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch
Casing type	M8P0.75	M8P0.75	M8P0.75	M8P0.75	M8P0.75	M8P0.75	M8P0.75	M8P0.75	M8P0.75
center contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Center contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Contact (AC) maximum rated R load	0.1A@30VAC	0.1A@30VAC	0.1A@30VAC	0.1A@30VAC	0.1A@30VAC	0.1A@30VAC	0.1A@30VAC	0.1A@30VAC	0.1A@30VAC
Maximum contact current (AC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	0.1A@30VDC	0.1A@30VDC	0.1A@30VDC	0.1A@30VDC	0.1A@30VDC	0.1A@30VDC	0.1A@30VDC	0.1A@30VDC	0.1A@30VDC
Contact function	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Maximum contact voltage (DC)	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Electrical life	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
End contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
End contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Shell material	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON	GLASS FILLED REINFORCED NYLON
illumination	LED	LED	LED	LED	LED	LED	LED	LED	LED
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	HB	HB	HB	HB	HB	HB	HB	HB	HB
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
seal	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY	EPOXY
Solderability	WAVE	WAVE	WAVE	WAVE	WAVE	WAVE	WAVE	WAVE	WAVE
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT	SPDT
Terminal surface	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Silver (Ag)
Terminal length	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Terminal material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
body width	8.9916 mm	-	-	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm	8.9916 mm
