L-ML1PNY3Y3R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> L-ML1PNY3Y3R

L-ML1PNY3Y3R: DescriptionSpecial Switch, SPDT, On-(on), Momentary, 0.1A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size3MB，4 Pages; ManufacturerWell Buying

Download Datasheet Parametric Compare View All

L-ML1PNY3Y3R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	L-ML1PNY3Y3R	-	-	View	Buy Now

L-ML1PNY3Y3R Overview

Special Switch, SPDT, On-(on), Momentary, 0.1A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight

L-ML1PNY3Y3R Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator length	0.106 inch
Actuator material	POLYOXYMETHYLENE
Actuator type	PUSHBUTTON
body width	15.3924 mm
body height	10.8966 mm
Body length or diameter	15.3924 mm
center contact material	COPPER
Center contact plating	GOLD
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@28VDC
Contact function	ON-(ON)
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VAC V
Electrical life	200000 Cycle(s)
End contact material	COPPER
End contact plating	GOLD
Shell material	GLASS FILLED POLYAMIDE
illumination	LED
Insulation resistance	100000000 Ω
Manufacturer's serial number	L
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	6
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Terminal length	0.122 inch
Terminal material	BRASS
Termination type	SOLDER

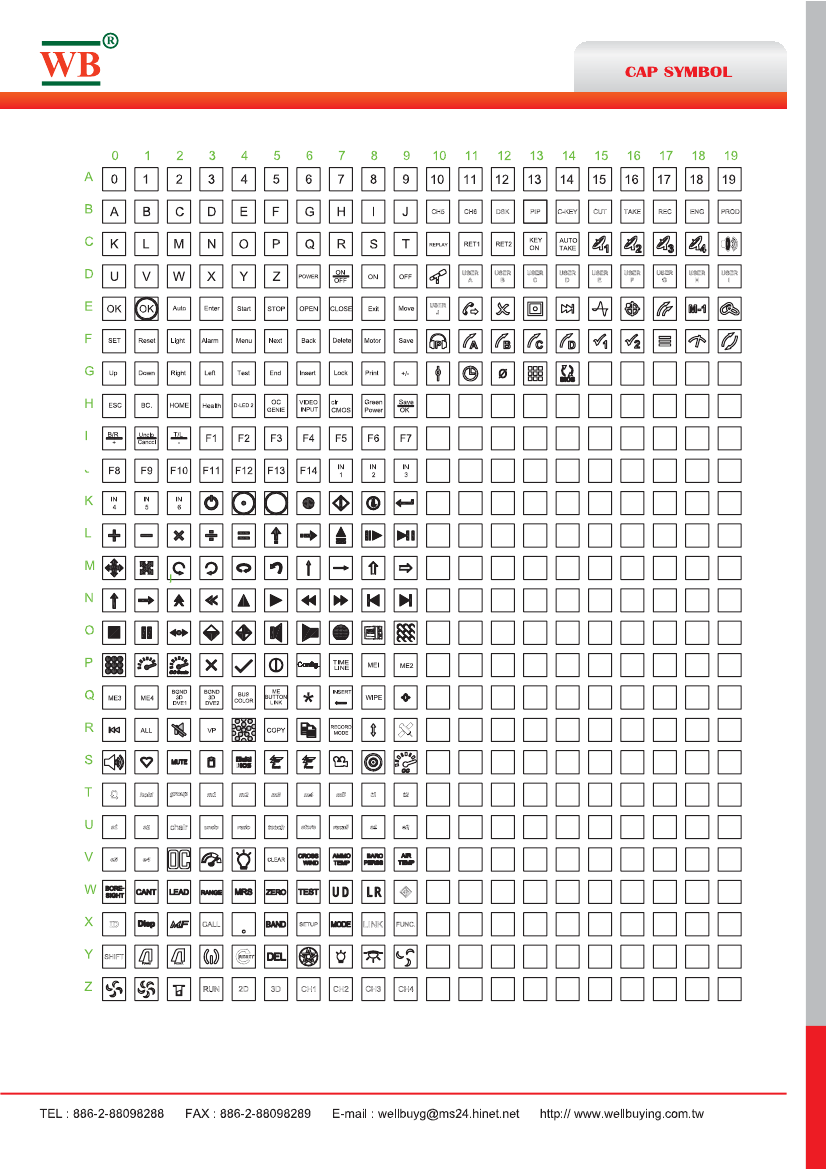

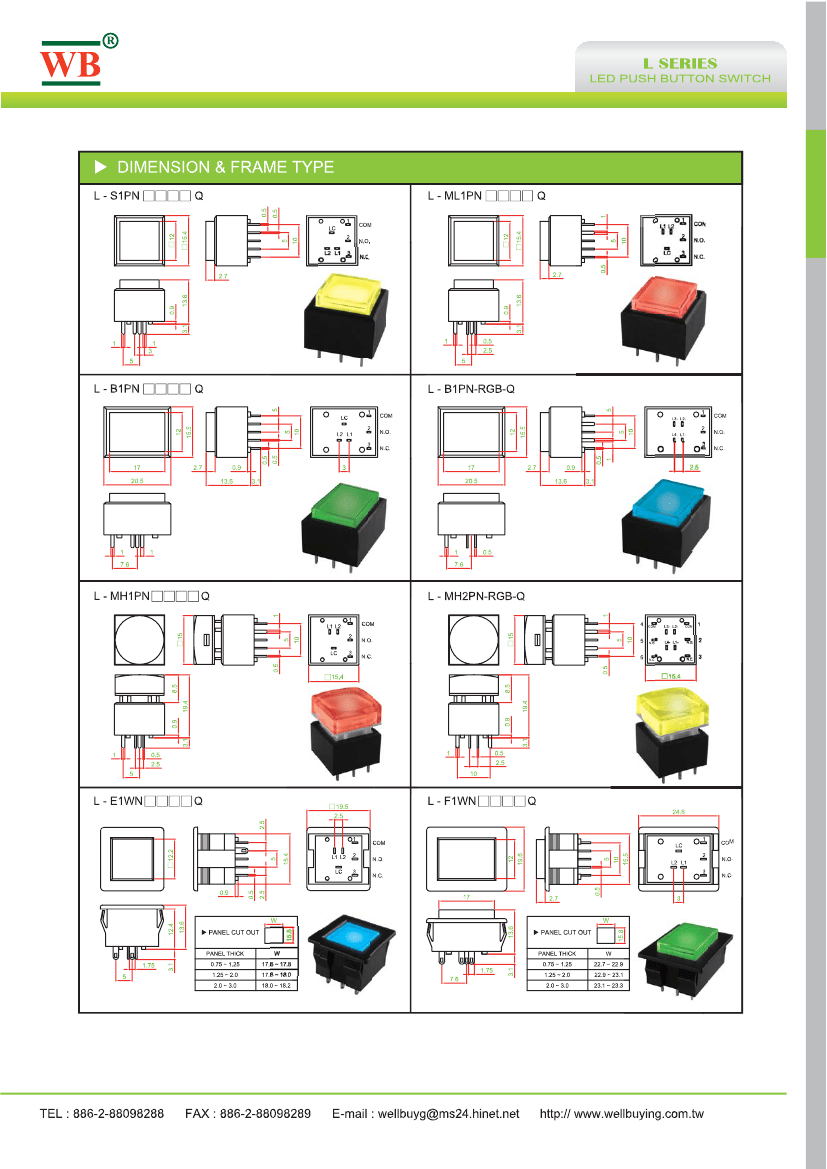

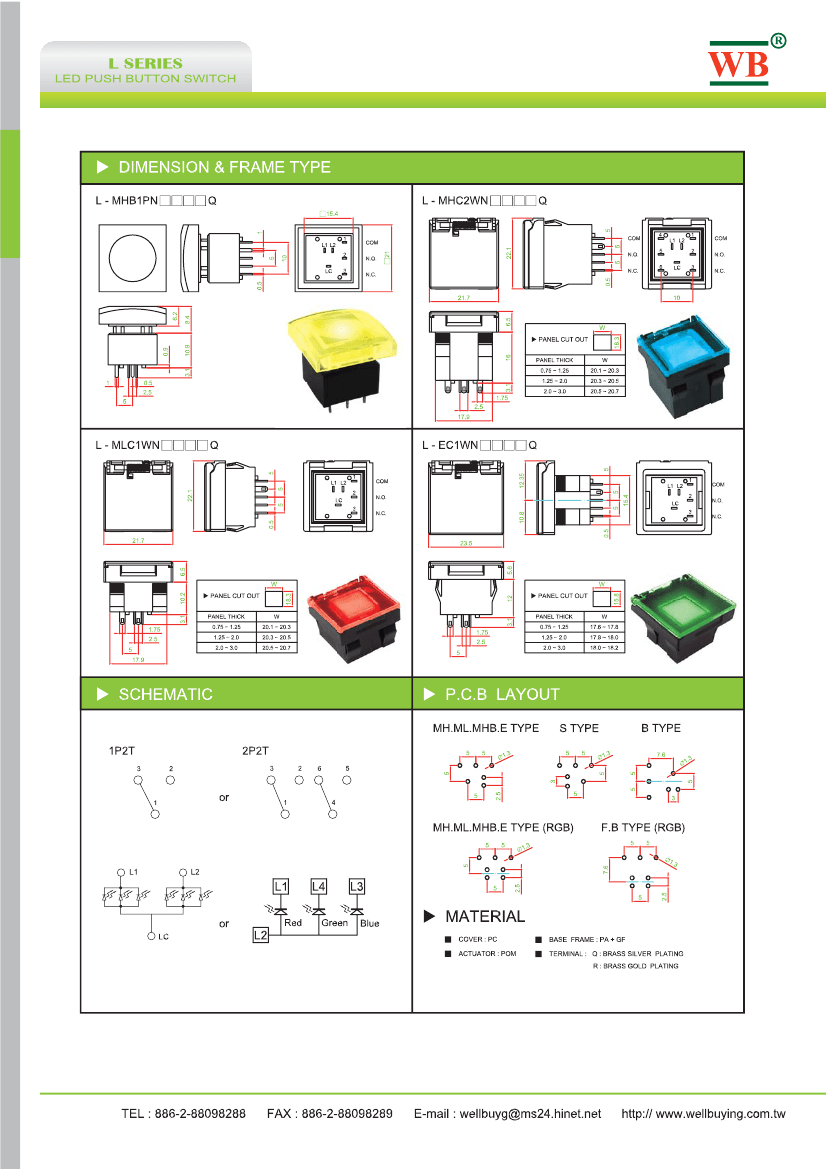

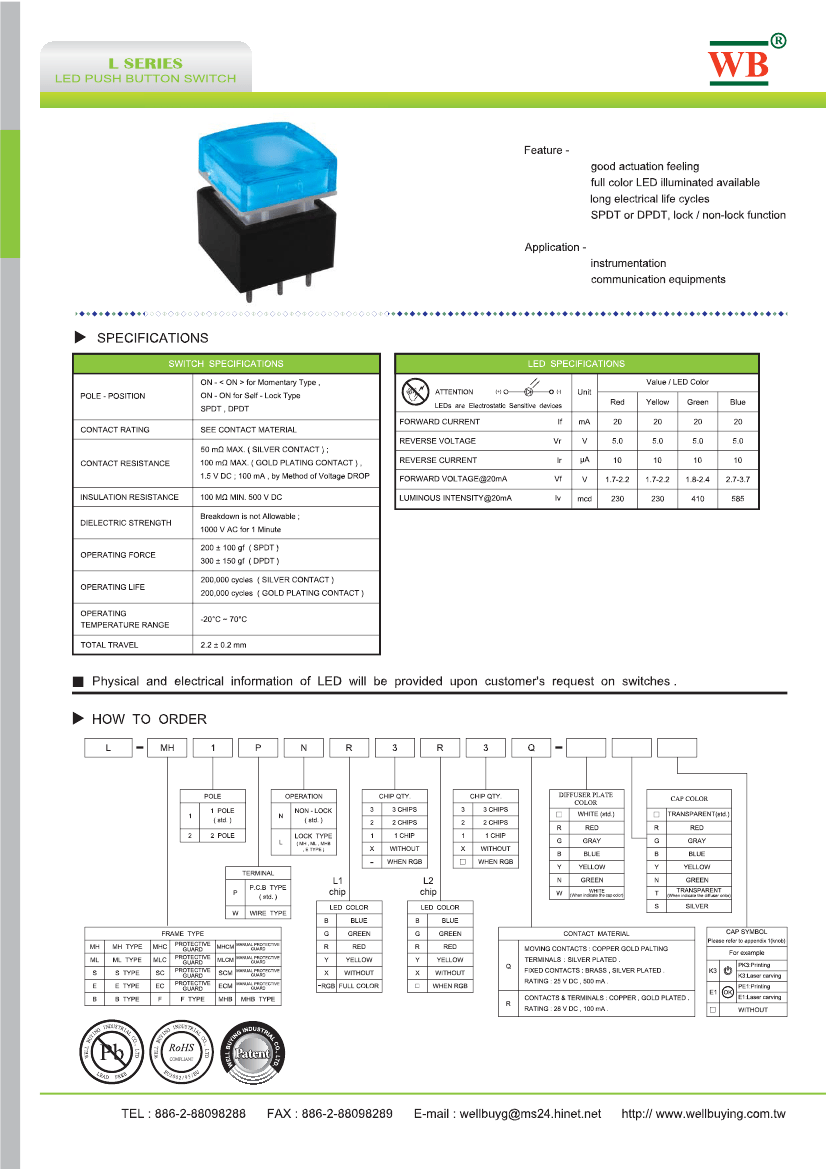

Preview

Download Datasheet

View All

L-ML1PNY3Y3R Related Products

	L-ML1PNY3Y3R	L-MHB1PNG3R3Q	L-ML1PNR3G3Q	L-B1PNR3R3R	L-MHB1PNR3XXQ
Description	Special Switch, SPDT, On-(on), Momentary, 0.1A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Special Switch, SPDT, On-(on), Momentary, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Special Switch, SPDT, On-(on), Momentary, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Special Switch, SPDT, On-(on), Momentary, 0.1A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight	Special Switch, SPDT, On-(on), Momentary, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator length	0.106 inch	0.244 inch	0.106 inch	0.106 inch	0.244 inch
Actuator material	POLYOXYMETHYLENE	POLYOXYMETHYLENE	POLYOXYMETHYLENE	POLYOXYMETHYLENE	POLYOXYMETHYLENE
Actuator type	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON
body width	15.3924 mm	15.3924 mm	15.3924 mm	15.494 mm	15.3924 mm
body height	10.8966 mm	10.8966 mm	10.8966 mm	10.8966 mm	10.8966 mm
Body length or diameter	15.3924 mm	15.3924 mm	15.3924 mm	15.494 mm	15.3924 mm
center contact material	COPPER	BRASS	BRASS	COPPER	BRASS
Center contact plating	GOLD	SILVER	SILVER	GOLD	SILVER
Contact function	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)	ON-(ON)
Contact resistance	0.1 mΩ	0.05 mΩ	0.05 mΩ	0.1 mΩ	0.05 mΩ
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Electrical life	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)
End contact material	COPPER	BRASS	BRASS	COPPER	BRASS
End contact plating	GOLD	SILVER	SILVER	GOLD	SILVER
Shell material	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE	GLASS FILLED POLYAMIDE
illumination	LED	LED	LED	LED	LED
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	L	L	L	L	L
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB hole count	6	6	6	6	6
surface mount	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT	SPDT
Terminal length	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
