DTSYHL-62K-Q-B Overview

Switch, SPST, Vertical, 0.05A, 12VDC, Through Hole-straight

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	BLACK
Actuator length	0.043 inch
Actuator material	THERMOPLASTIC
Actuator type	PUSHBUTTON
Other features	UL
body width	5.9944 mm
Body color	BLACK
body height	2.0066 mm
Body length or diameter	6.1976 mm
center contact material	STAINLESS STEEL
Center contact plating	SILVER
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	200000 Cycle(s)
End contact material	STAINLESS STEEL
End contact plating	SILVER
Shell material	STEEL
Insulation resistance	100000000 Ω
Manufacturer's serial number	DTS
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	4
Solderability	HAND
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Terminal length	0.138 inch
Terminal material	BRASS
Termination type	SOLDER

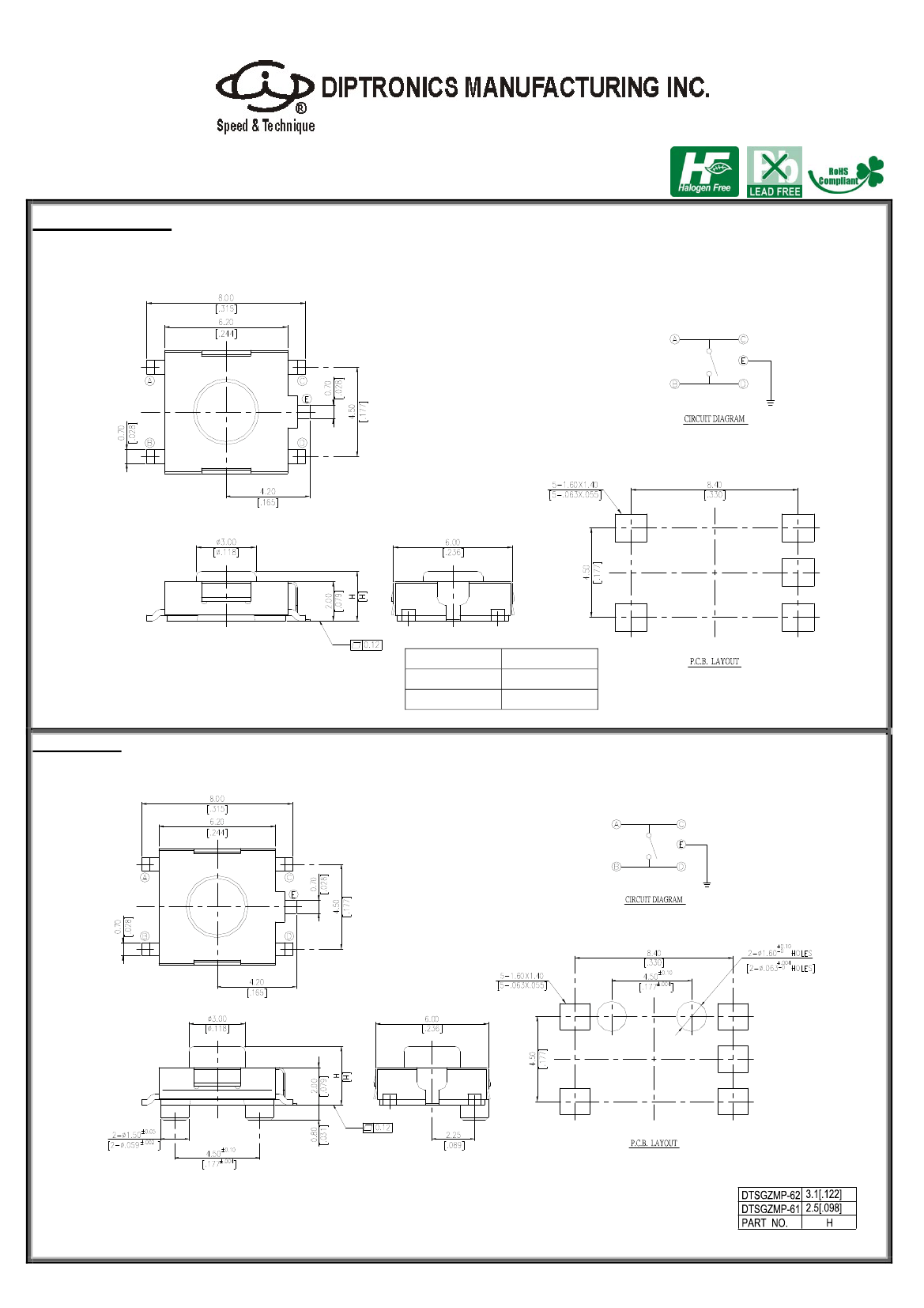

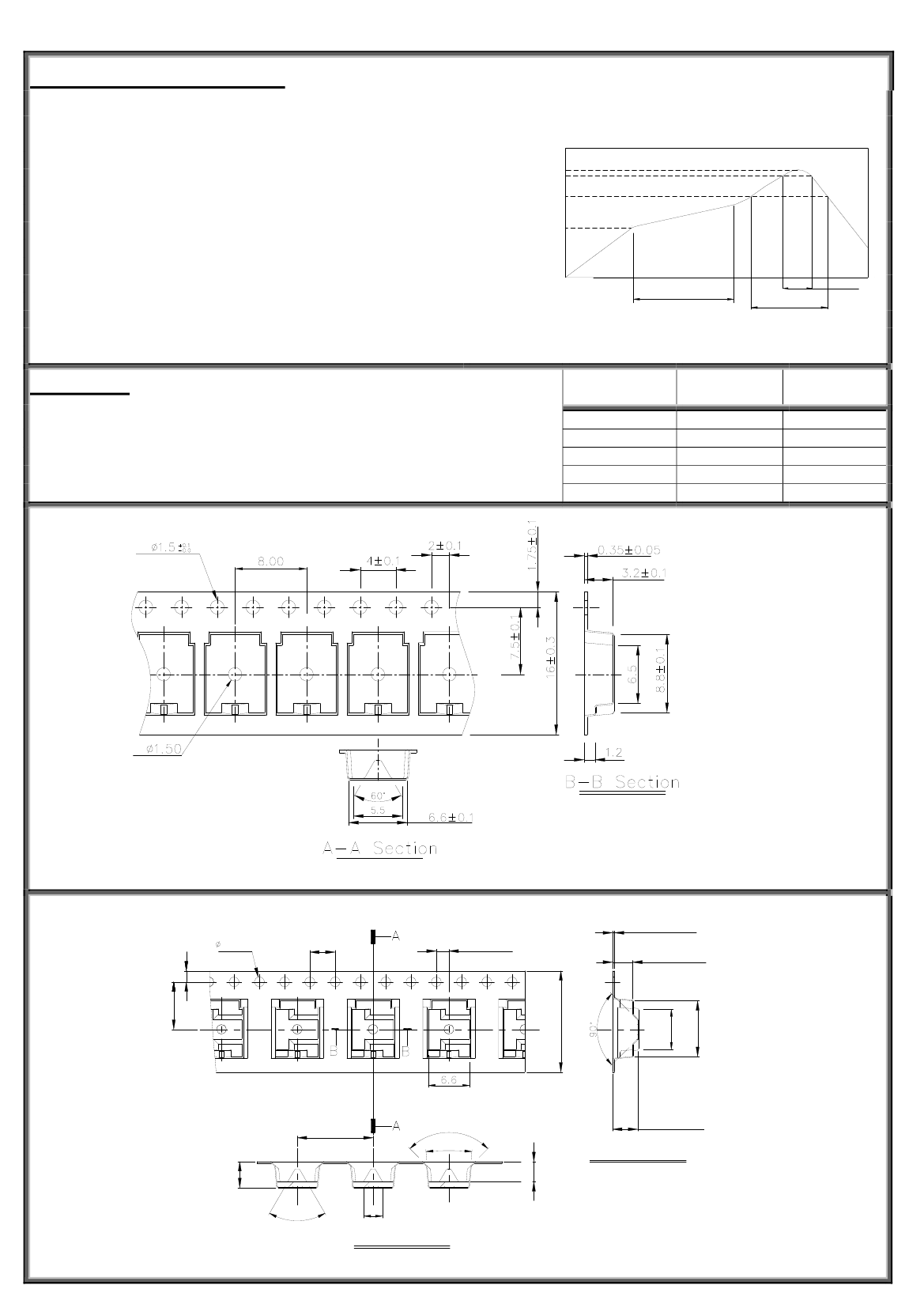

DTS(G)ZM(P).DTSYH-6 SERIES

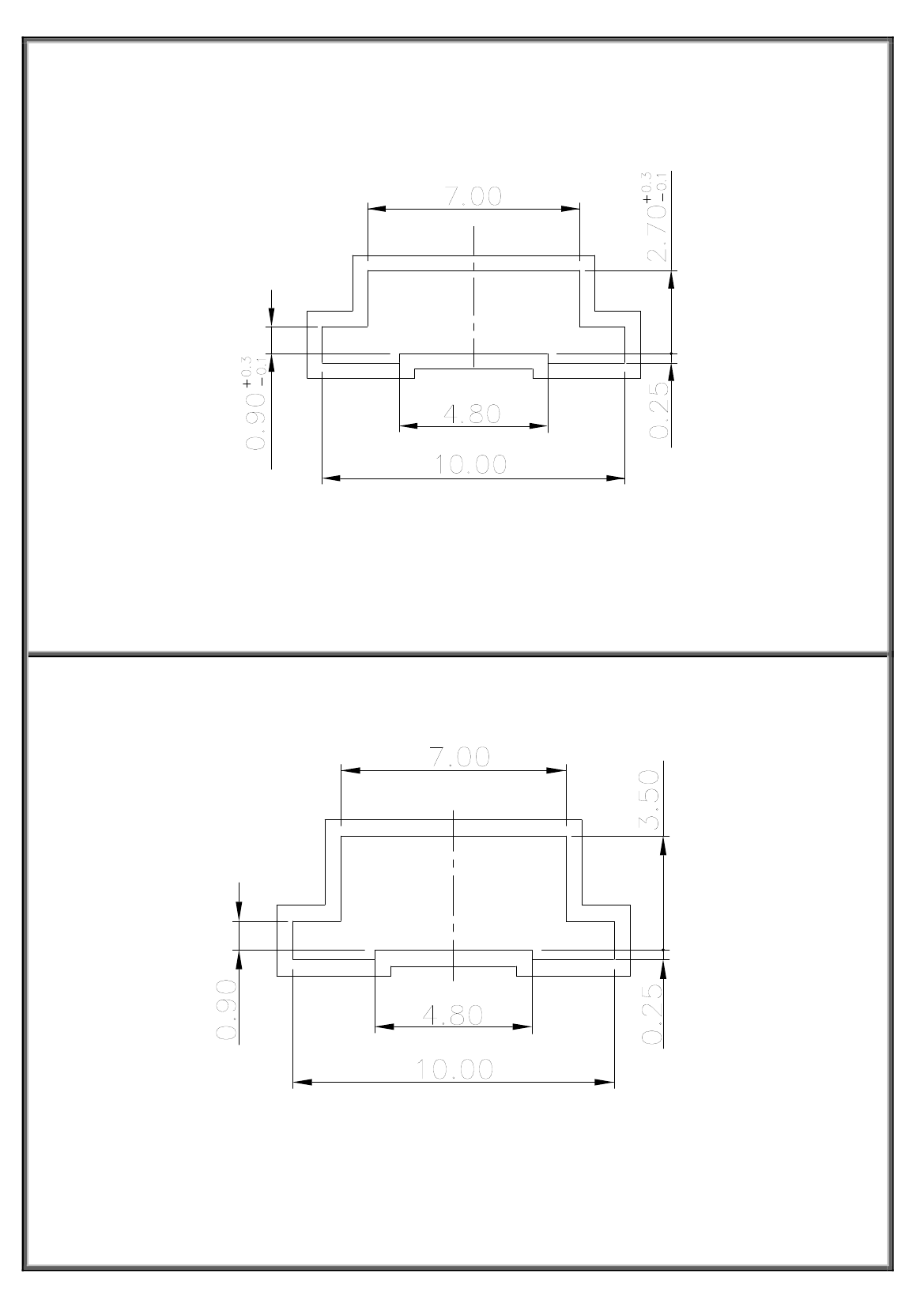

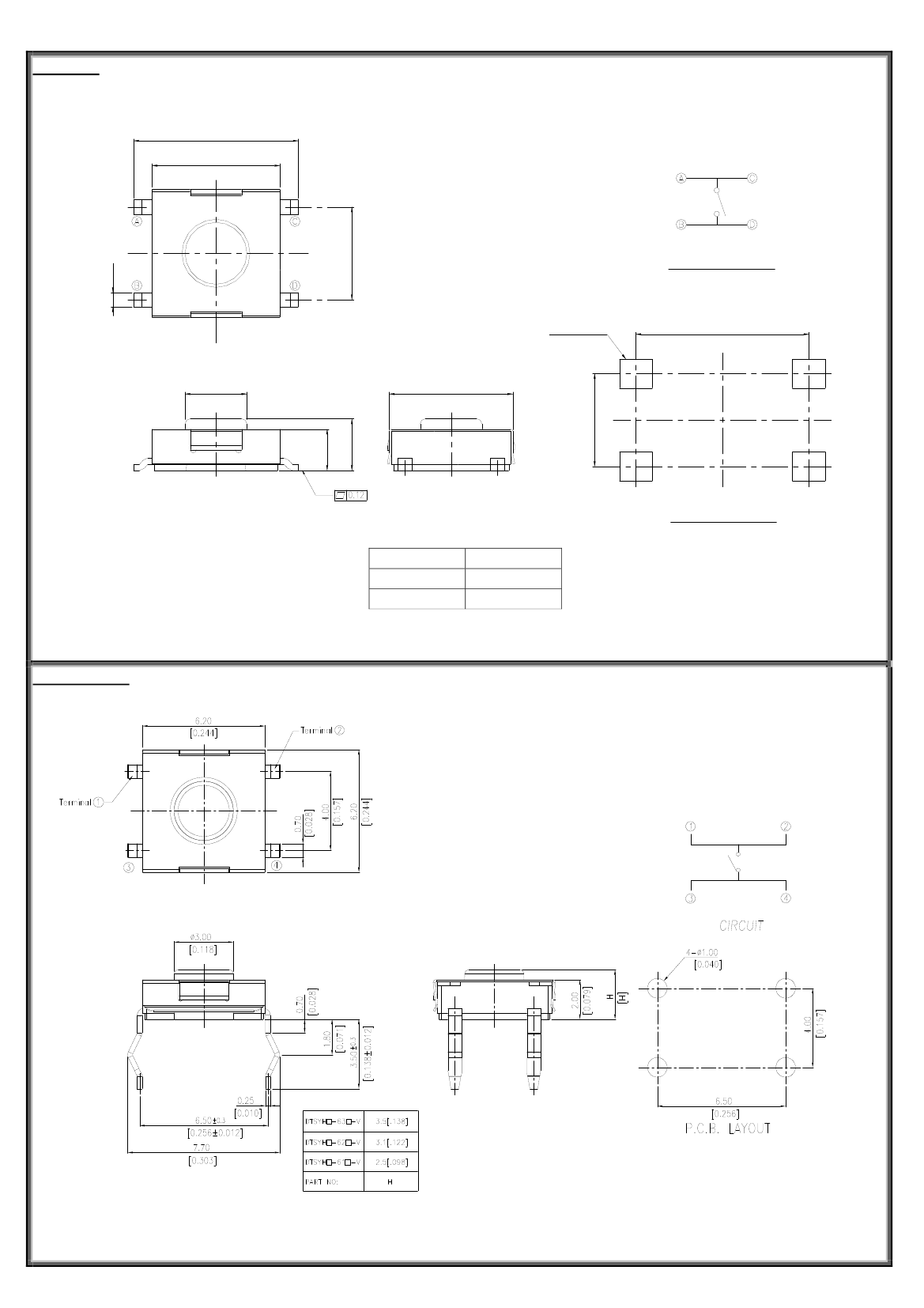

DIMENSIONS

DTSGZM-6

DTSGZM-62

DTSGZM-61

PART

NO.

3.1mm[.122]

2.5mm[.098]

General Tolerance：±0.2mm

DTSGZMP-6

General Tolerance：±0.2mm
