SMPC3825-221L-RC

Description
1 ELEMENT, 220 uH, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components
File Size273KB,1 Pages
ManufacturerALLIED [Allied Electronics]
Download Datasheet View All

SMPC3825-221L-RC Overview

1 ELEMENT, 220 uH, GENERAL PURPOSE INDUCTOR, SMD

RoHS

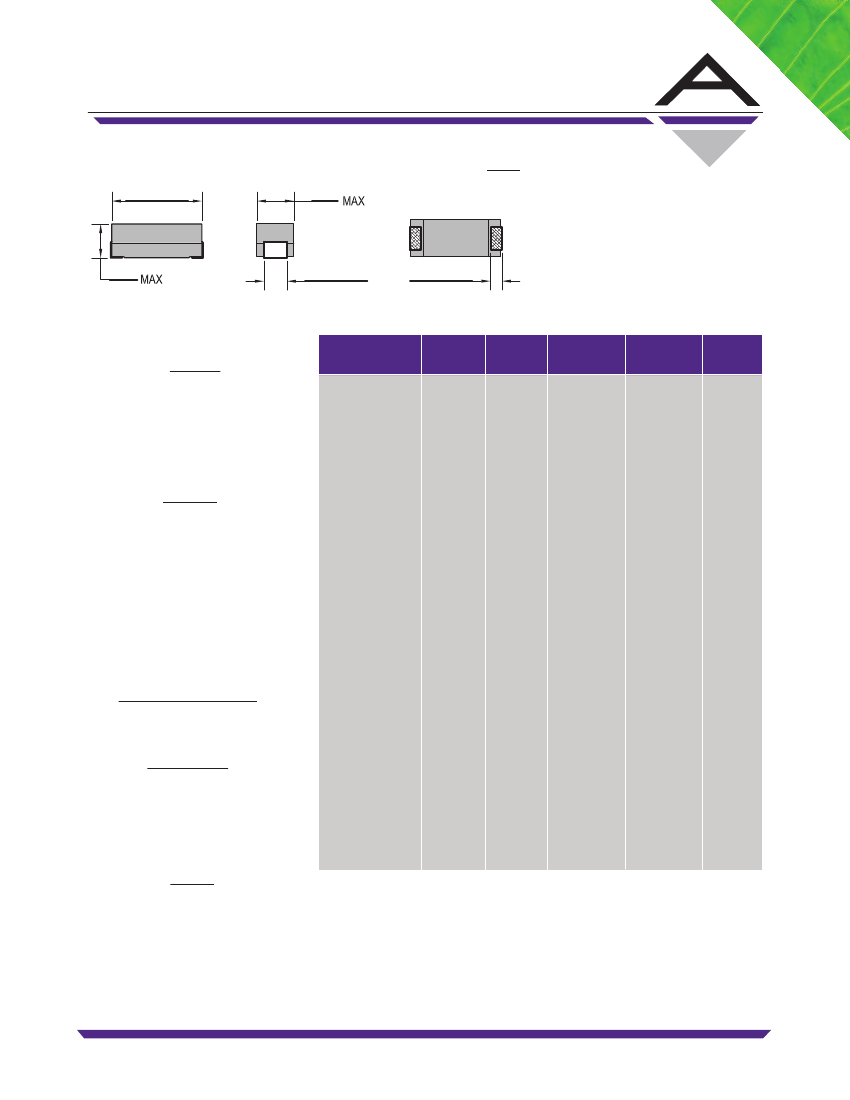

SMPC3825
0.440 MAX
(11.18 MAX)
Surface Mount Power Choke
Dimensions:
0.225
(5.72)
Inches
(mm)
0.250
(6.35)
.055 to .095
(1.40 to 2.41)
0.075±0.010
(1.91±0.25)
Features
• SMD Molded High Current Choke
• Wide Inductance Range
• Rohs Compliant
Tape and Reel for Auot Replacement
• Cross to Vishay IHSM3825
Allied
Part
Number
Inductance
(
µh)
Tolerance
(%)
DCR
Max.
(Ω)
Current Rating
(Amps)
Max
Incremental
Current
(Amps)
Electrical
Inductance Range:
1.0µh ~ 1000µh
Tolerance:
15% over entire range
Also available in tighter tolerances.
Test Frequency:
1KHz over entire range
Operating Temp:
-55ºC ~ +125ºC
Current Rating:
Based on a 40ºC Temp
Rise.
IDC:
The current at which the inductance
will drop no more than 5% of its intitial
value with no DC current.
Resistance to Solder Heat
Reflow 260ºC 10 seconds
Test Equipment
(L):
CH1-100 1KHz
(RDC):
Chen Hwa CH-301 DCR Meter
(IDC):
Chen Hwa CH-301 & DCR Meter
SMPC3825-1R0L-RC
SMPC3825-1R2L-RC
SMPC3825-1R5L-RC
SMPC3825-1R8L-RC
SMPC3825-2R2L-RC
SMPC3825-2R7L-RC
SMPC3825-3R3L-RC
SMPC3825-3R9L-RC
SMPC3825-4R7L-RC
SMPC3825-5R6L-RC
SMPC3825-6R8L-RC
SMPC3825-8R2L-RC
SMPC3825-100L-RC
SMPC3825-120L-RC
SMPC3825-150L-RC
SMPC3825-180L-RC
SMPC3825-220L-RC
SMPC3825-270L-RC
SMPC3825-330L-RC
SMPC3825-390L-RC
SMPC3825-470L-RC
SMPC3825-560L-RC
SMPC3825-680L-RC
SMPC3825-820L-RC
SMPC3825-101L-RC
SMPC3825-121L-RC
SMPC3825-151L-RC
SMPC3825-181L-RC
SMPC3825-221L-RC
SMPC3825-271L-RC
SMPC3825-331L-RC
SMPC3825-391L-RC
SMPC3825-471L-RC
SMPC3825-561L-RC
SMPC3825-681L-RC
SMPC3825-821L-RC
SMPC3825-102L-RC
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1000
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
0.015
0.016
0.017
0.022
0.031
0.038
0.045
0.062
0.083
0.091
0.101
0.118
0.126
0.170
0.228
0.306
0.336
0.389
0.440
0.490
0.646
0.845
1.040
1.240
1.440
2.180
2.900
3.280
3.650
4.400
5.070
5.900
7.670
8.850
10.200
11.580
12.970
5.11
4.93
4.63
4.27
3.61
3.18
2.94
2.57
2.17
2.08
1.94
1.83
1.74
1.50
1.29
1.13
1.05
0.98
0.92
0.86
0.74
0.65
0.61
0.56
0.48
0.45
0.38
0.36
0.34
0.29
0.27
0.23
0.22
0.21
0.18
0.17
0.16
4.41
4.11
3.66
3.22
2.62
2.40
2.13
2.05
1.93
1.79
1.62
1.50
1.36
1.26
1.11
1.05
0.96
0.86
0.75
0.72
0.68
0.64
0.58
0.51
0.42
0.40
0.37
0.33
0.28
0.26
0.23
0.20
0.19
0.17
0.15
0.14
0.13
Physical
Packaging:
800 / reel.
Marking:
EIA Inductance Code.
All specifications subject to change without notice.
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
12/22/10
www.alliedcomponents.com
