SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 1
SHIELDED SMD
POWER INDUCTOR
A
ABC'S DWG NO.
ABC'S ITEM NO.
SS0603□□□□L□-□□□
Ⅰ﹒

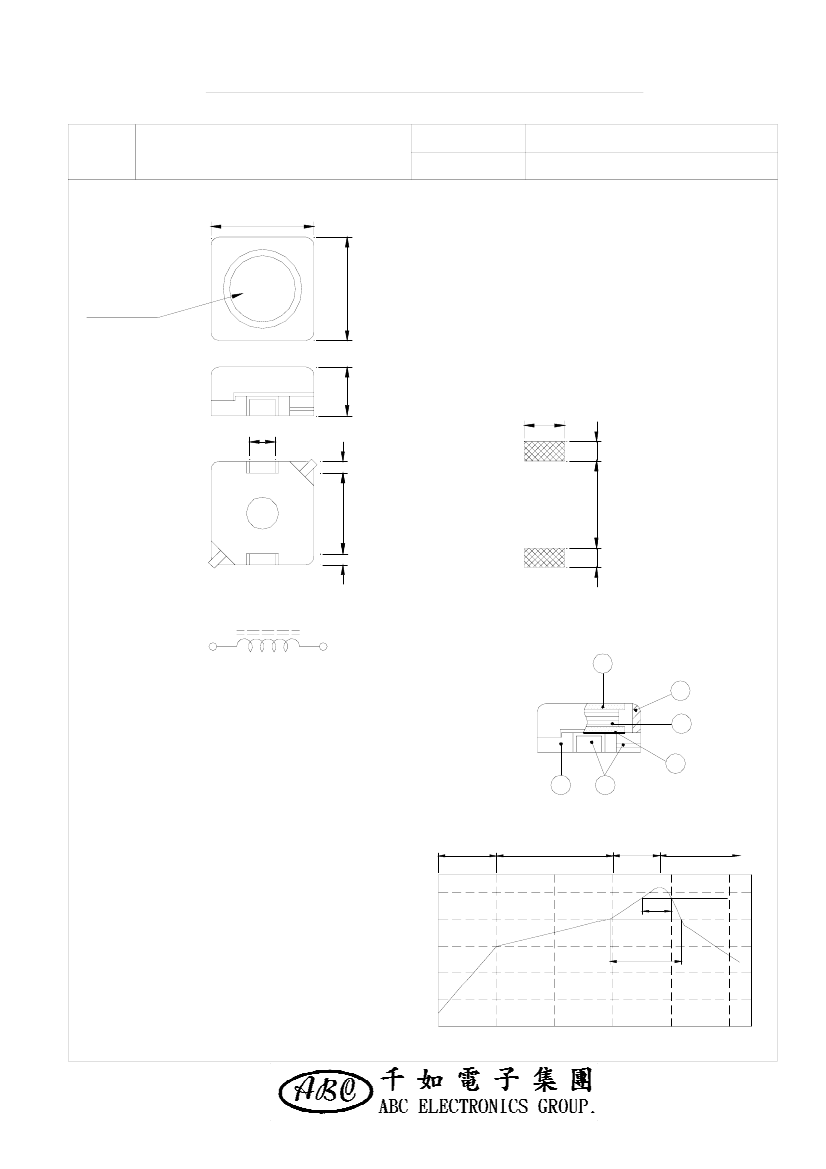

CONFIGURATION & DIMENSIONS
：
A
：
6.5±0.3
B
：
6.5±0.3
C
：
3.1±0.3
+0.2
D
：
0.8 - 0.3
E
：
1.6±0.2
F
：
5.0 typ.
G
：
4.3 ref.
H
：
2.5 ref.
I
：
1.5 ref.
H
E
D
I
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
Marking
Inductance code
101
C
B
D
F
Ⅱ﹒
SCHEMATIC DIAGRAM
：
( PCB Pattern )
I
a
Ⅲ﹒
MATERIALS
：
a
﹒
Core
：
Ferrite DR core
b
﹒
Core
：
Ferrite RI core
c
﹒
Wire
：
Enamelled copper wire
（
class F
）
d
﹒
Terminal
：
Cu/Ni/Sn
e
﹒
Base
：
LCP E4008
f
﹒
Adhesive
：
Epoxy resin
g
﹒
Remark
：
Lead content 200ppm max.
include ferrite
G
b
c
f
e
Peak Temp
：
260
℃
max.
Max time above 230
℃ ：
50sec max.
Max time above 200
℃ ：
70sec max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
℃
/ sec max.
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temperature:
260
℃
50sec max.
230
℃
d
Ⅳ﹒
GENERAL SPECIFICATION
：
a
﹒
Temp. Rise
：
40
℃
max.
b
﹒
Rated Current
：
Base on temp. rise
&
△
L / LOA=10% max.
c
﹒
Storage Temp.
：
-40
℃
~ +125
℃
d
﹒
Operating Temp.
：
-40
℃
~ +105
℃
e
﹒
Resistance to solder heat
：
260
℃
. 10 secs.
AE-001A
Temperature (
℃
)
250
200
150
70sec max.
100
50
0
50
100
150
Time ( seconds )
200
250
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 2
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS0603□□□□L□-□□□
Ⅴ﹒
ELECTRICAL CHARACTERISTICS
：
DWG No.
SS06031R5ML□ -□□□
SS06032R5ML□ -□□□
SS06033R3ML□ -□□□
SS06034R7ML□ -□□□
SS06036R8ML□ -□□□
SS0603100ML□ -□□□
SS0603150ML□ -□□□
SS0603220ML□ -□□□
SS0603330KL□ -□□□
SS0603470KL□ -□□□
SS0603680KL□ -□□□
SS0603101KL□ -□□□
SS0603151KL□ -□□□
SS0603221KL□ -□□□
SS0603331KL□ -□□□
SS0603471KL□ -□□□
SS0603681KL□ -□□□
SS0603102KL□ -□□□
2)."-
Inductance
(uH)
1.5±20%
2.5±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
15.0±20%
22.0±20%
33.0±10%
47.0±10%
68.0±10%
100.0±10%
150.0±10%
220.0±10%
330.0±10%
470.0±10%
680.0±10%
1000.0±10%
Test Freq.
(Hz)
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
RDC
(Ω)
max
0.032
0.040
0.055
0.070
0.100
0.120
0.180
0.270
0.430
0.550
0.900
1.500
1.900
2.700
4.200
6.700
10.500
14.000
IDC
(A)
max
2.20
2.00
1.80
1.60
1.20
1.10
0.90
0.70
0.60
0.50
0.40
0.30
0.25
0.20
0.18
0.15
0.12
0.10
1).
□
：
Packaging information… A
：
Bulk B
：
Taping Reel
□□□
":Reference code
10 3
7
5
3
2
@ Inductance VS. DC Superposition Characteristics
102
Inductance
（
uH
）
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 1
101
100
1R5
2
3
5 7 10 2
2
3
5 7 10 3
2
3
5 7 10 4
DC Current (mA)
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 3
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS0603□□□□L□-□□□
Ⅵ﹒

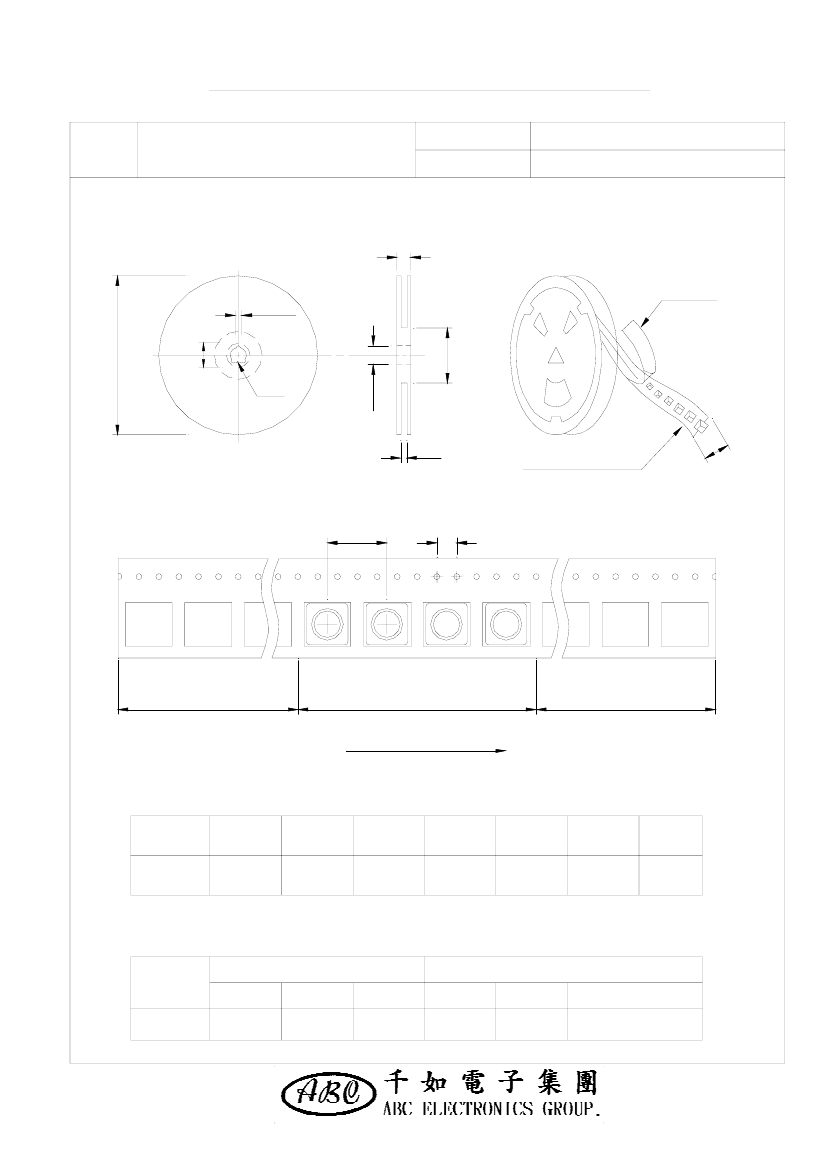

PACKAGING INFORMATION
：
( 1 ) Configuration
T
Cover tape
2.0±0.5
A
B
∮
C
∮
C
N
G
D
Embossed carrier
※
Carrier tape width : D
P:12 m/m
End
4 m/m
Start
101
101
101
101
Leader
no component
200 m/m Min.
Components
User direction of feed
Trailer
no component
400 m/m Min.
( 2 ) Dimensions
Style
13 - 16
A
330
B
21±0.8
C
13±0.5
D
16
G
18
+0
N
50
-0
Unit:m/m
T
22.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
SS0603
AE-001A
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
1,000
860
13 - 16
6,000
9.5
40 x 40 x 24
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 4
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS0603□□□□L□-□□□
Ⅶ﹒
DWGING NUMBER EXPRESSION
：
S
S
0
6
0
3
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1
：
Product Classification
L
：
Lead Free Standard products comply with RoHS' requirements
1 ~ 9
：
Lead Free Special products comply with RoHS' requirements
Appendix code 2
：
Package Information
Code
A
B
Inner package
T.B.D.
T / R ( Reel package )
Inner package Q'TY
T.B.D.
1000
pcs
Remark
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 5
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS0603□□□□L□-□□□
Ⅷ﹒
RELIABILITY TEST
：
Test item
Specification
More than 90% of the
terminal electrode
Shall be covered
With fresh solder.
Test condition
Preheat : 150±25
℃
for 60 seconds
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5℃
Flux : Rosin
Dip time : 4±1 seconds
Solderability
Thermal shock test
( Temp. cycle )
Inductance shall
not change more
than ±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-25±2
℃
30 minutes
85±2
℃
30 minutes
Humidity
Resistance test
Temperature : 40±2℃
Humidity : 90 ~ 95%
Applied current : Per spec.
Time : 500 hours
High temp.
Resistance test
Temperature : 105±2℃
Applied current : Per spec.
Time : 500 hours
AE-001A
