MAX161-MX7581 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> logic> MAX161-MX7581

MAX161-MX7581: Description8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28; Categorysemiconductor logic; File Size344KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX161-MX7581 Overview

8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28

MAX161-MX7581 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Rated supply voltage	5 V
Maximum linear error	0.7324 %
Maximum limit analog input voltage	5 V
Minimum limit analog input voltage	-5 V
Processing package description	SOIC-28
state	ACTIVE
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	COMMERCIAL
Output format	Parallel, 8-bit
Type of converter	continuous approximation
Number of digits	8
Output bit encoding	binary, OFFSET binary, COMPLEMENTARY binary
Number of analog channels	8

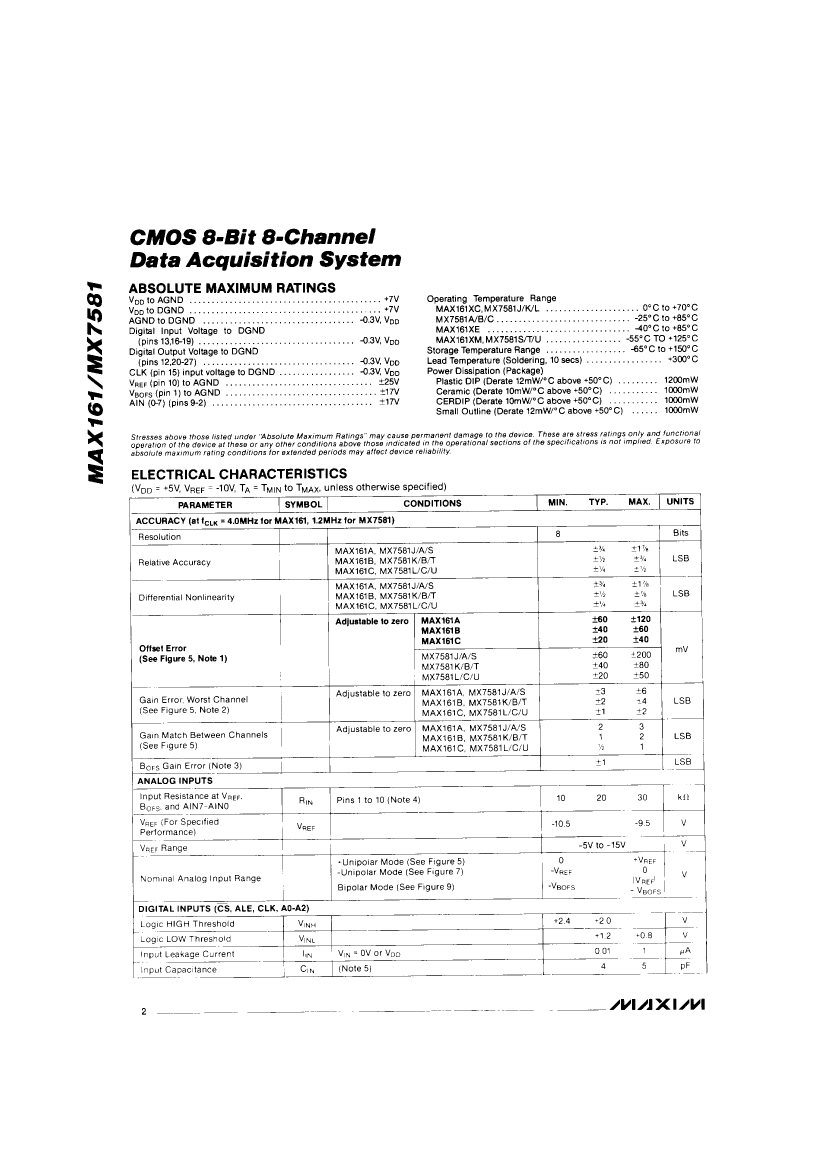

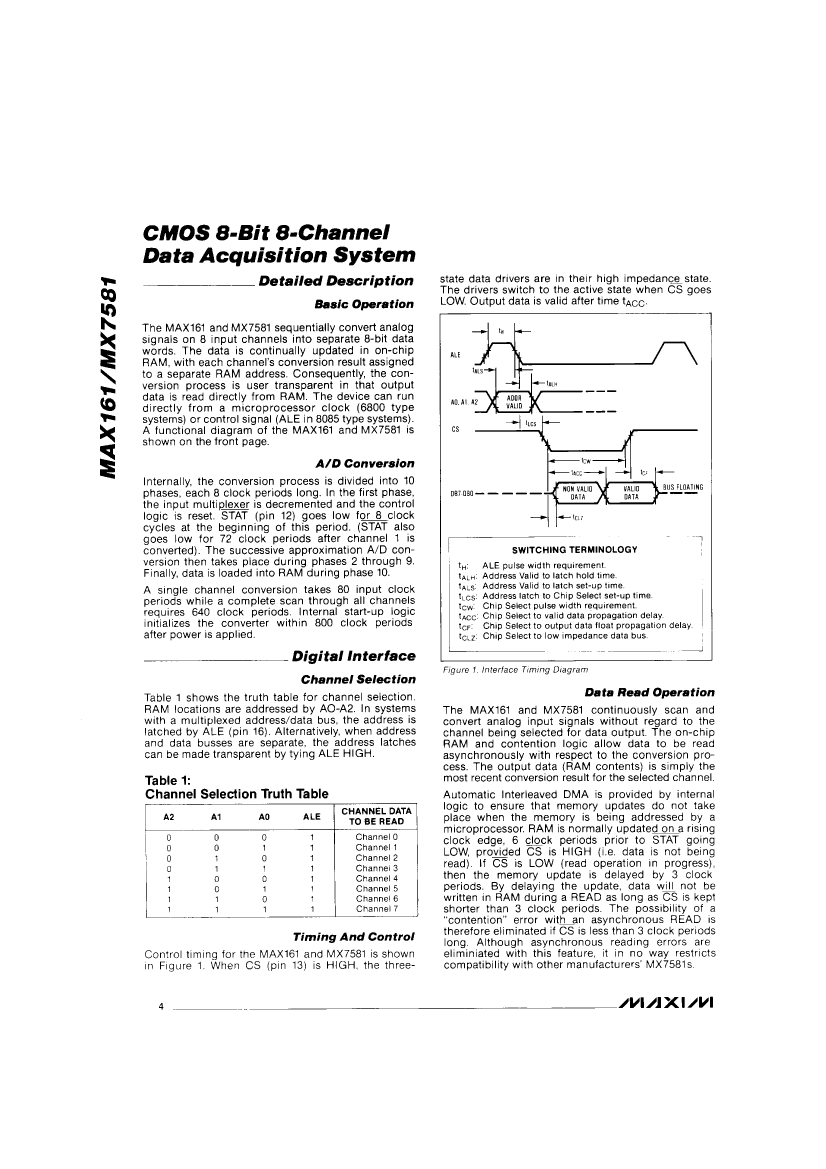

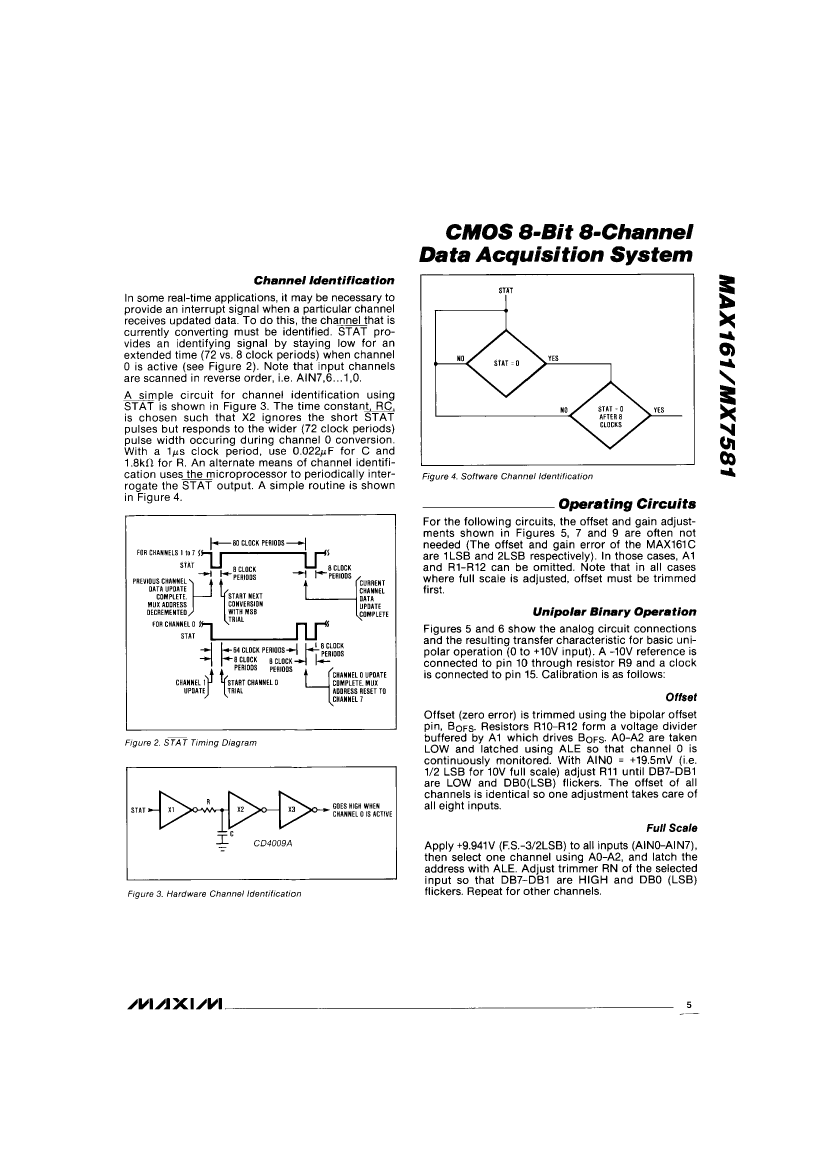

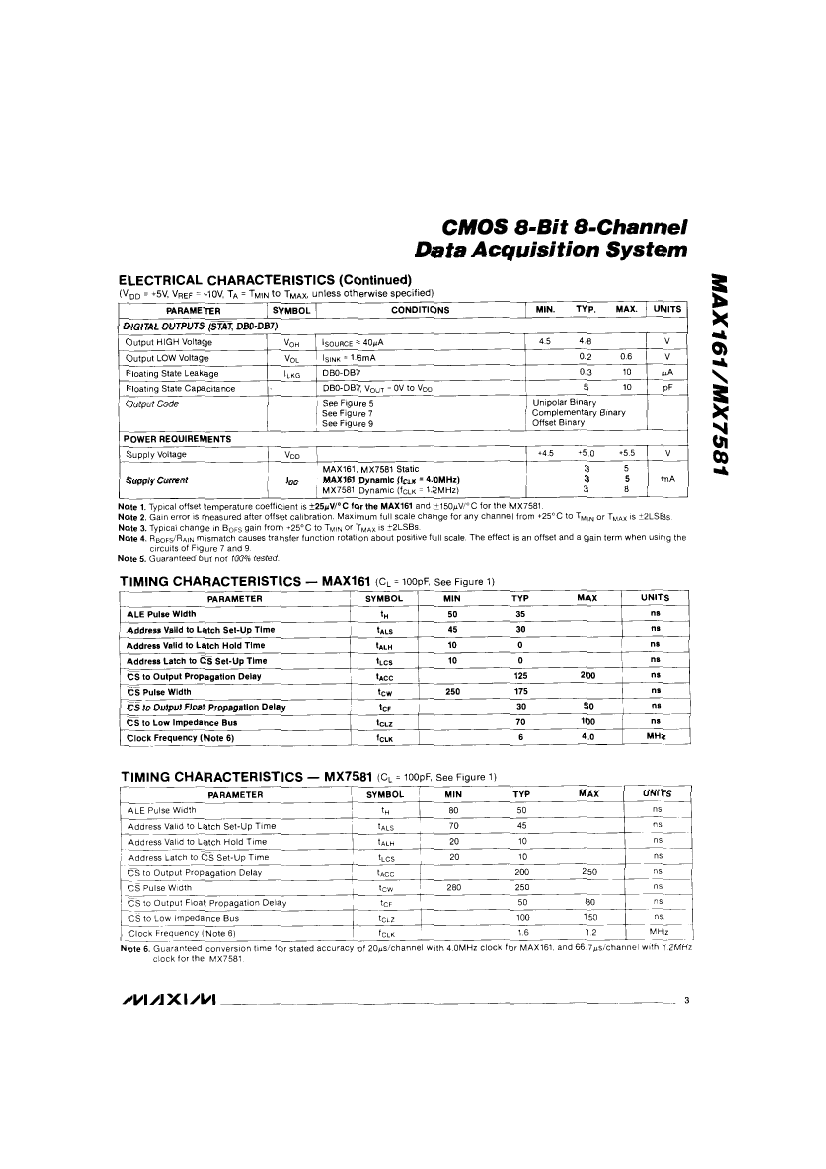

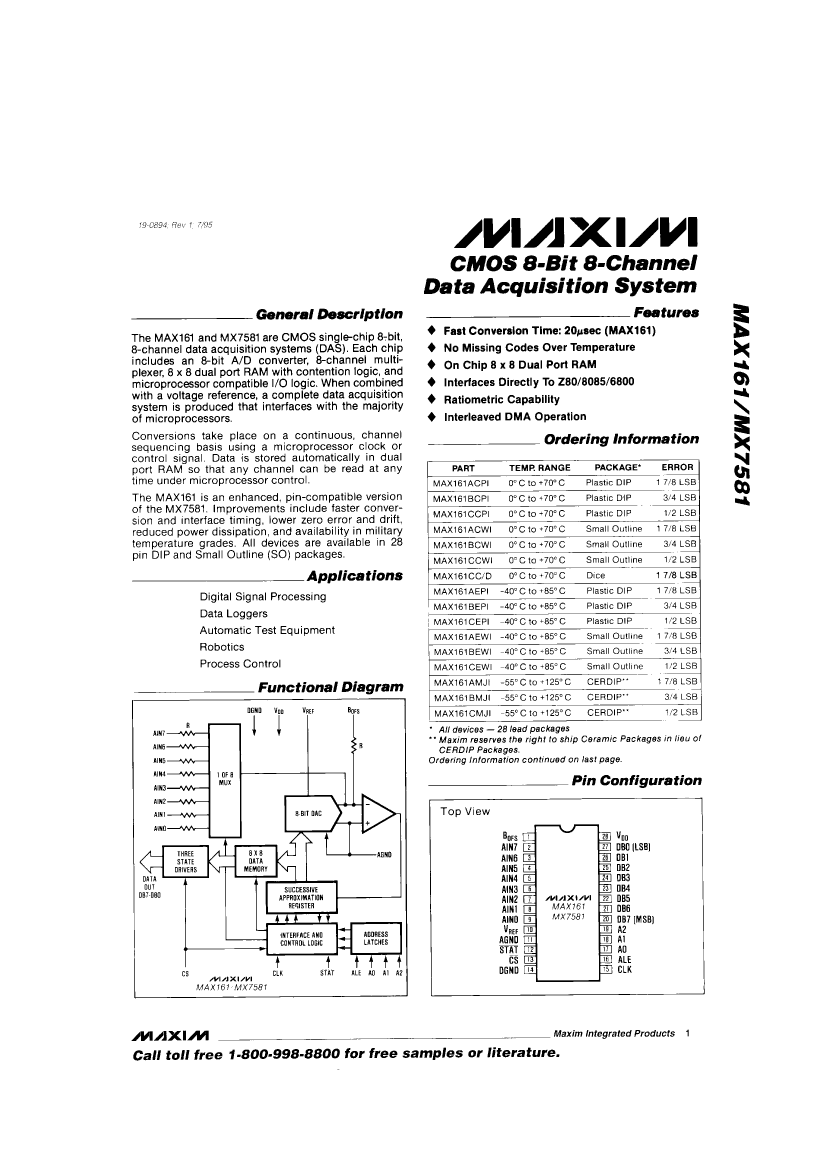

Preview

Download Datasheet

View All

MAX161-MX7581 Related Products

	MAX161-MX7581	MX7581	MAX161BMJI	MAX161CC/D	MAX161	MX7581LK
Description	8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28	8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28	8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28	8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28	8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28	8-CH 8-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO28
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	70 Cel	70 Cel	125 °C	70 °C	70 Cel	70 Cel
Minimum operating temperature	0.0 Cel	0.0 Cel	-55 °C	-	0.0 Cel	0.0 Cel
surface mount	Yes	Yes	NO	YES	Yes	Yes
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	NO LEAD	GULL WING	GULL WING
Terminal location	pair	pair	DUAL	UPPER	pair	pair
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Output format	Parallel, 8-bit	Parallel, 8-bit	PARALLEL, 8 BITS	PARALLEL, 8 BITS	Parallel, 8-bit	Parallel, 8-bit
Number of digits	8	8	8	8	8	8
Rated supply voltage	5 V	5 V	-	-	5 V	5 V
Maximum linear error	0.7324 %	0.7324 %	-	-	0.7324 %	0.7324 %
Maximum limit analog input voltage	5 V	5 V	-	-	5 V	5 V
Minimum limit analog input voltage	-5 V	-5 V	-	-	-5 V	-5 V
Processing package description	SOIC-28	SOIC-28	-	-	SOIC-28	SOIC-28
state	ACTIVE	ACTIVE	-	-	ACTIVE	ACTIVE
Craftsmanship	CMOS	CMOS	-	-	CMOS	CMOS
packaging shape	Rectangle	Rectangle	-	-	Rectangle	Rectangle
Package Size	SMALL OUTLINE	SMALL OUTLINE	-	-	SMALL OUTLINE	SMALL OUTLINE
Terminal spacing	1.27 mm	1.27 mm	-	-	1.27 mm	1.27 mm
terminal coating	tin lead	tin lead	-	-	tin lead	tin lead
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	-	-	Plastic/Epoxy	Plastic/Epoxy
Type of converter	continuous approximation	continuous approximation	-	-	continuous approximation	continuous approximation
Output bit encoding	binary, OFFSET binary, COMPLEMENTARY binary	binary, OFFSET binary, COMPLEMENTARY binary	-	-	binary, OFFSET binary, COMPLEMENTARY binary	binary, OFFSET binary, COMPLEMENTARY binary
Number of analog channels	8	8	-	-	8	8
