1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SS12H THRU SS110H
SOLDERING PAD
CATHODE
.087(2.2)
.065(1.65)
.040(1.25)
.071(1.8)
.177(4.5)
.220(5.6)
.192(4.9)
.190(4.8)
.157(4.0)
FEATURES
EXTREMELY LOW VF
LOW STORED CHARGE, MAJORITY CARRIER CONDUCTION
LOW POWER LOSS / HIGH EFFICIENCY
UL 94V-0 FLAME RETARDANT EPOXY MOLDING COMPOUND
.110(2.8)
.090(2.3)
.100(2.6)
.080(2.0)
MECHANICAL DATA
CASE: TRANSFER MOLDED, DO-214AC SMA, DIMENSIONS
IN INCHES AND (MILLIMETERS)
TERMINALS: SOLDERABLE PER MIL-STD-750, METHOD 2026
POLARITY CATHODE INDICATED BY COLOR BAND
WEIGHT 0.064 GRAMS
.071(1.8)
.035(0.9)
.080(2.0)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
AT T
L
=90°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
SYMBOL SS12H SS13H SS14H SS15H SS16H SS17H SS18H SS19H SS110H UNITS
V
RRM
V
RMS
V
DC
I
O
I
FSM
C
J
T
STG
T
OP
20
14
20
30
21
30
40
28
40
50
35
50
60
42
60
1.0
25
70
- 55 TO + 150
- 55 TO + 125
70
49
70
80
56
80
90
63
90
100
70
100
V
V
V
A
A
PF
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
MAXIMUM FORWARD VOLTAGE AT Io DC
MAXIMUM REVERSE CURRENT AT 25℃
SYMBOL SS12H SS13H SS14H SS15H SS16H SS17H SS18H SS19H SS110H UNITS
V
F
I
R
0.50
0.70
0.1
0.85
V
mA
NOTE: 1. MEASURED AT 1.0 MHz AND APPLIED REVERSE VOLTAGE OF 4.0V D.C.
SS12H THRU SS110H
Page: 1

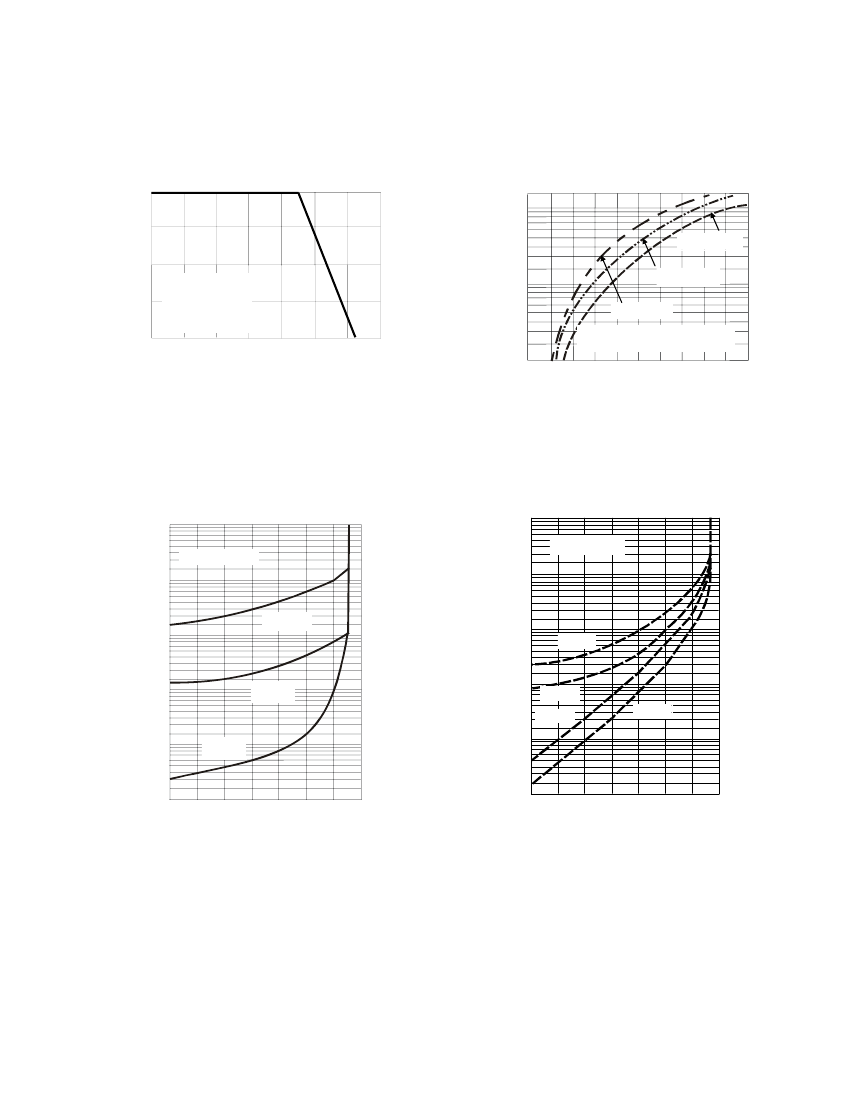

RATINGS AND CHARACTERISTIC CURVE SS12H THRU SS110H
FIG. 1 - FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT
AMPERES
1.00
0.75
INSTANTANEOUS FORWARD CURRENT
AMPERES
20
10
FIG. 2 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
SS17H~110H
SS15H~16H
1.0
SS12H~14H
T
J
=25℃
PULSE WIDTH=300us 1% DUTY CYCLE
0.50
0.25
0
0
20
40
60
80
100
120 140
SINGLE PHASE
HALF WAVE 60H
Z
RESISTIVE OR
INDUCTIVE LOAD
0.1
.1
.3
.5
.7
.9
1.1
1.3 1.5
1.7 1.9
2.1
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
LEAD TEMPERATURE,
℃
FIG. 3A - TYPICAL REVERSE
CHARACTERISTICS
100
SS12H~14H
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
10
10
100
FIG. 3B - TYPICAL REVERSE
CHARACTERISTICS
SS15H~110H
T
J
=125℃
1.0
1.0
T
J
=150℃
.10
T
J
=75℃
.10
T
J
=125℃
T
J
=75℃
T
J
=25℃
.01
.01
T
J
=25℃
.001
0
20
40
60
80 100 120 140
.001
0
20
40
60
80 100 120 140
PERCENT OF RATED PEAK REVERSE
VOLTAGE, (%)
PERCENT OF RATED PEAK REVERSE
VOLTAGE, (%)
SS12H THRU SS110H
Page: 2
