SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 1
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1205□□□□L□-□□□

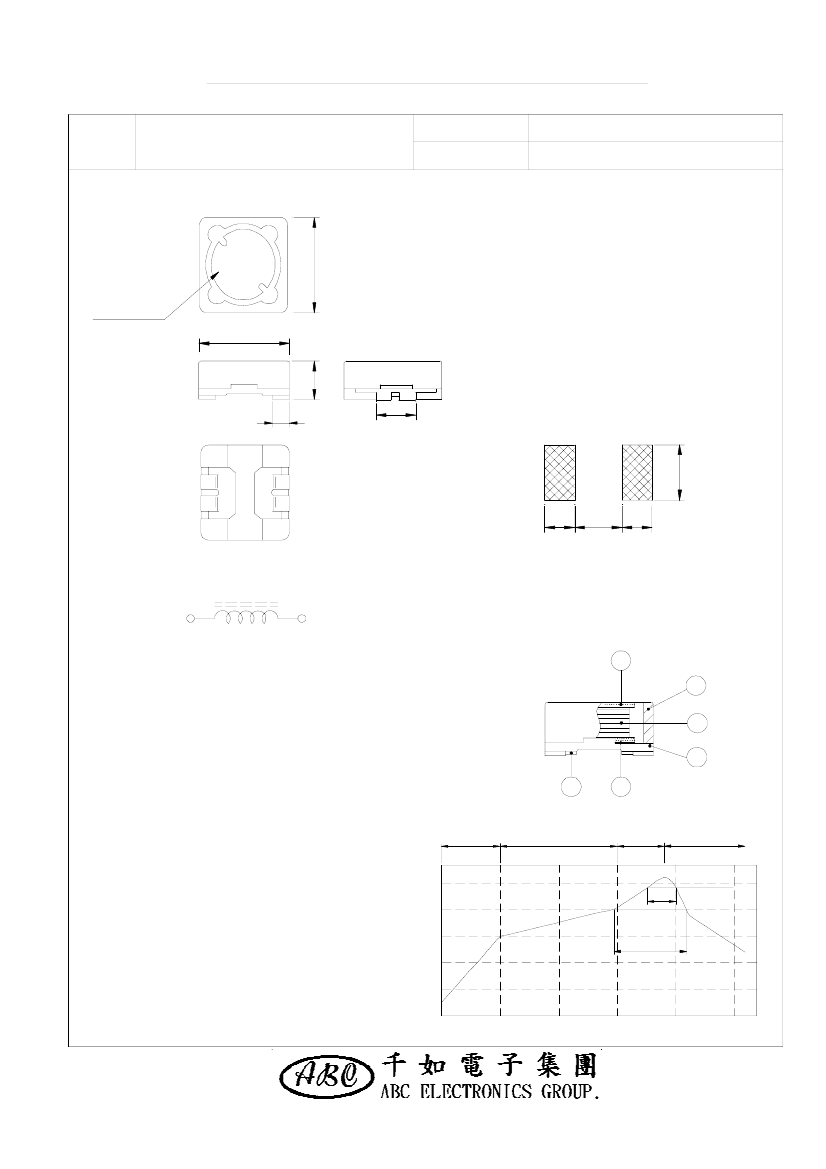

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
B
C
E
F
G
H
I
F
: 12.7±0.3
: 12.7±0.3
: 5.0±0.5
: 2.3±0.2
: 5.0±0.2
:
6.0 ref.
:
7.0 ref.
:
4.0 ref.
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
101
Marking
Inductance code
A
C
E
B
I
G
I
( PCB Pattern )
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core
b﹒Core：Ferrite RI core
c﹒Wire
：Enamelled
copper wire
（class
F）
d﹒Base：LCP
e﹒Terminal：Cu/Ni/Sn
f﹒Adhesive：Epoxy resin
g﹒Remark：Products comply with RoHS'
requirements
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
a
b
c
d
e
f
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
℃
-(1.0 ~ 5.0)
℃
/ sec max.
/ sec max.
Peak Temperature:
260℃
50sec max.
230℃
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Temp. rise
：40℃
max.
b﹒Rated current
：Base
on temp. rise
&
△
L / LOA=10% max.
c﹒Storage temp.：-40℃ ----+125℃
d﹒Operating temp.：-40℃----+105℃
e﹒Resisance to solder heat：260℃ . 10 secs.
AE-001A
Temperature (
℃
)
250
200
150
70sec max.
100
50
0
50
100
150
Time ( seconds )
H
Forced Cooling Area
200
250
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 2
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1205□□□□L□-□□□
Ⅴ﹒ELECTRICAL
CHARACTERISTICS
：
DWG No.
SS12052R5ML□-□□□
SS12055R0ML□-□□□
SS12057R5ML□-□□□
SS1205100ML□-□□□
SS1205120ML□-□□□
SS1205150ML□-□□□
SS1205180ML□-□□□
SS1205220ML□-□□□
SS1205250ML□-□□□
SS1205330ML□-□□□
SS1205390ML□-□□□
SS1205500YL□-□□□
SS1205560YL□-□□□
SS1205680YL□-□□□
SS1205750YL□-□□□
SS1205101KL□-□□□
SS1205121KL□-□□□
SS1205151KL□-□□□
SS1205181KL□-□□□
SS1205221KL□-□□□
SS1205271KL□-□□□
SS1205331KL□-□□□
SS1205391KL□-□□□
SS1205471KL□-□□□
SS1205561KL□-□□□
SS1205681KL□-□□□
SS1205821KL□-□□□
Inductance
( µH )
2.50±20%
5.00±20%
7.50±20%
10.00±20%
12.00±20%
15.00±20%
18.00±20%
22.00±20%
25.00±20%
33.00±20%
39.00±20%
50.00±15%
56.00±15%
68.00±15%
75.00±15%
100.00±10%
120.00±10%
150.00±10%
180.00±10%
220.00±10%
270.00±10%
330.00±10%
390.00±10%
470.00±10%
560.00±10%
680.00±10%
820.00±10%
Test Freq.
( Hz )
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
B：Taping Reel
RDC
( mΩ )
max
24.0
35.0
40.0
54.0
65.0
70.0
82.0
95.0
120.0
145.0
160.0
200.0
240.0
280.0
330.0
400.0
500.0
580.0
750.0
840.0
1000.0
1340.0
1500.0
1980.0
2200.0
2400.0
3000.0
IDC
(A)
max
5.00
4.00
3.50
3.00
2.80
2.70
2.60
2.40
2.00
1.80
1.65
1.50
1.40
1.30
1.20
1.00
0.90
0.80
0.70
0.65
0.60
0.54
0.50
0.45
0.40
0.35
0.30
1).
□：Packaging
information… A：Bulk
2)."-
":Reference code
□□□
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 3
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1205□□□□L□-□□□
Ⅵ﹒CURVE：
10 3
7
5
3
2
@ Inductance VS. DC Current Curve
821
331
Inductance（uH）
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 1
101
330
2R5
2 3
5 7 10 2 2 3
5 7 10 3 2 3
5 7 10 4
DC Current (mA)
10 3
7
5
3
2
10 2
7
5
3
2
10 1
7
5
3
2
10 0
10 1
@ DC Current VS. Temp. Rise Curve
2R5M
101K
821K 331K
330M
（℃）
2 3
5 7 10 2 2 3
5 7 10 3 2 3
5 7 10 4
DC Current (mA)
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 4
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1205□□□□L□-□□□

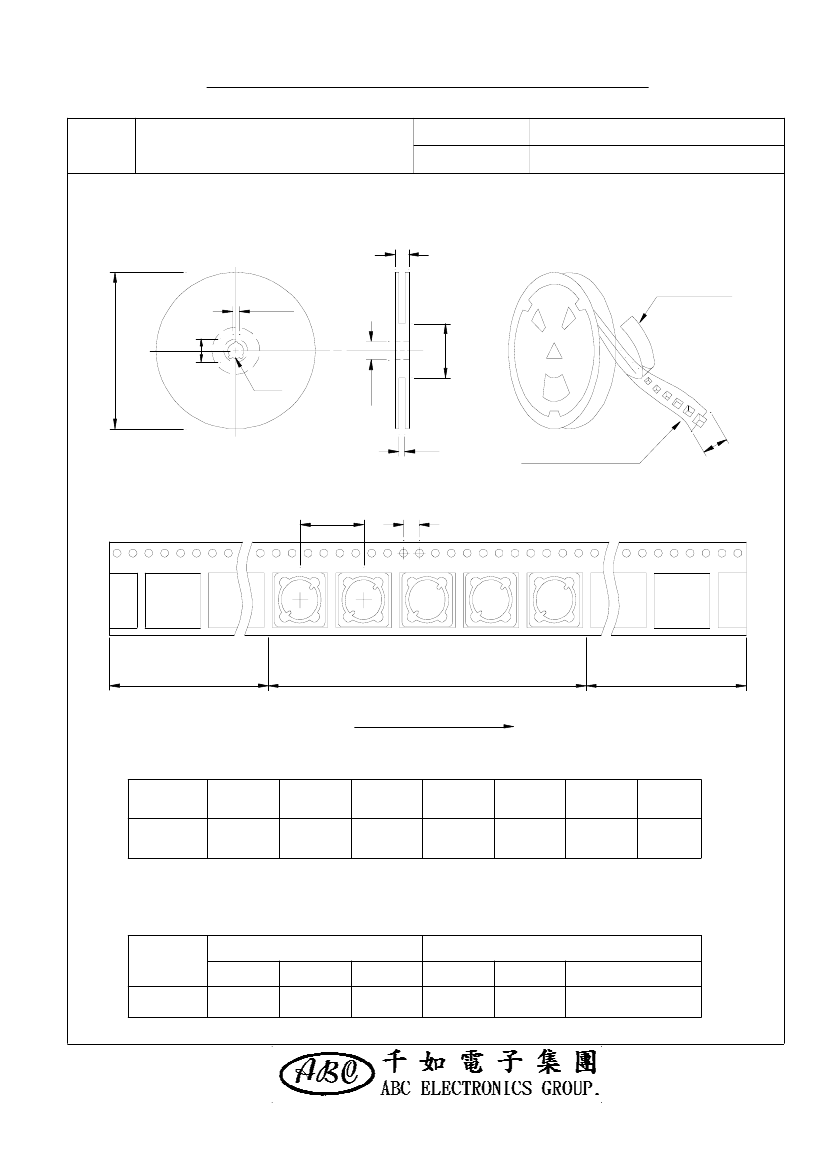

Ⅶ﹒PACKAGING
INFORMATION：
( 1 ) Configuration
T
Cover tape
2.0±0.5
A
B
∮
C
∮
C
N
G
D
Emobossed carrier
※
Carrier tape width : D
End
P:16 m/m
4 m/m
Start
101
Leader
no component
200 m/m Min.
101
101
101
101
Trailer
no compoment
400 m/m Min.
Components
User direction of feed
( 2 ) Dimensions
Style
13 - 24
A
330
B
21±0.8
C
13
D
24
G
26
+0
N
50
-0
Unit:m/m
T
30.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
SS1205
AE-001A
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (Kg)
Size (cm)
600
1,900
13 - 24
2,400
9.8
40 x 40 x 24
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 5
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1205□□□□L□-□□□
Ⅷ﹒DWGING
NUMBER EXPRESSION：
S
S
1
2
0
5
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Remark
Code
A
B
Inner package
T.B.D.
T / R ( Reel package )
Inner package Q'TY
T.B.D.
600
pcs
AE-001A
