SS12408R2ML

Description
SHIELDED SMD POWER INDUCTOR
File Size143KB,8 Pages
ManufacturerABC [ABC Taiwan Electronics Corp]
Download Datasheet View All

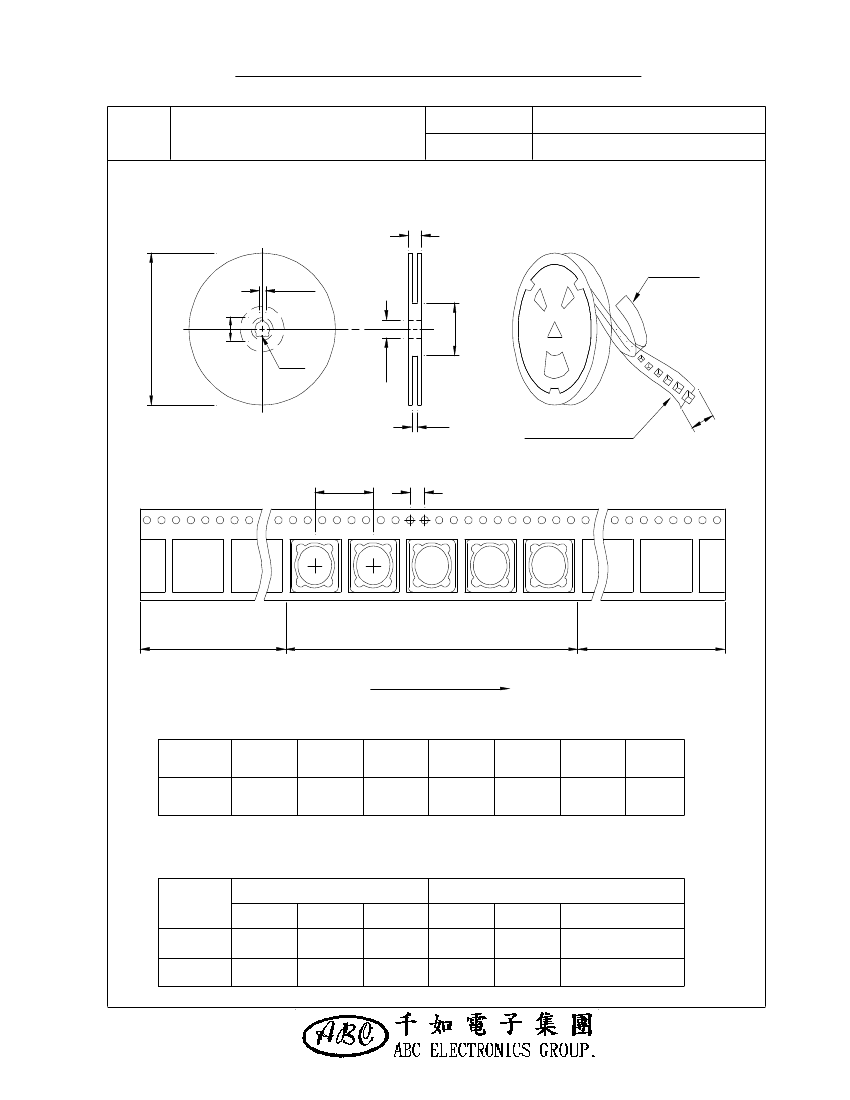

SS12408R2ML Overview

SHIELDED SMD POWER INDUCTOR

SPECIFICATION FOR APPROVAL
REF :
20090505-A
PROD.
NAME
PAGE: 1
ABC'S DWG NO.
ABC'S ITEM NO.
SS1240□□□□L□-□□□
SHIELDED SMD
POWER INDUCTOR

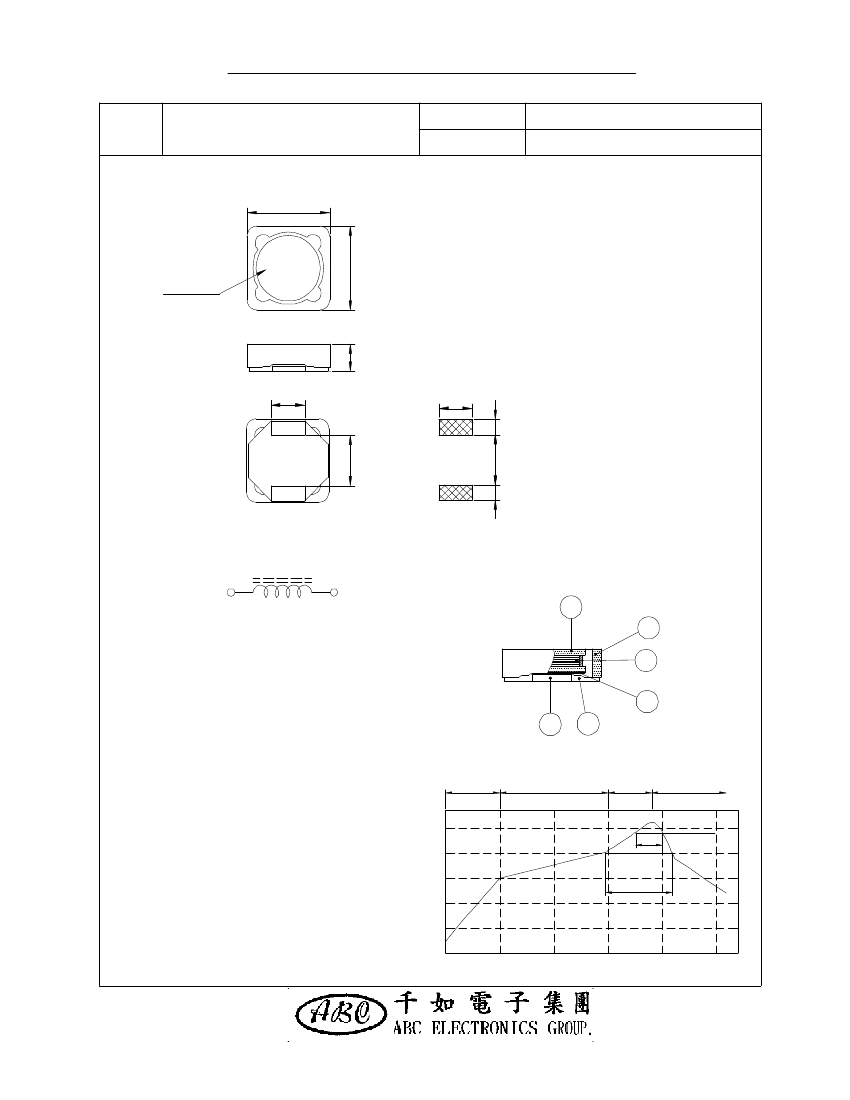

Ⅰ﹒CONFIGURATION
& DIMENSIONS:
A
A
:
12.5
±0.3
12.5
±0.3
4.0
±0.5
5.0
±0.3
7.0 typ.
6.8 ref.
5.4 ref.
2.9 ref.
:
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
B :
B
C :
D
E
F
C
G
H
D
G
H
:
:
:
:
Marking
100
E
(PCB Pattern)
Ⅱ﹒SCHEMATIC
DIAGRAM:
H
F
a
Ⅲ﹒MATERIALS:
a﹒Core:Ferrite DR core
b﹒Core:Ferrite RI core
c﹒Wire
:Enamelled
copper wire
(class
F)
d﹒Base:LCP
e﹒Terminal:Cu/Ni/Sn
f﹒Adhesive:Epoxy resin
g﹒Remark:Products comply with RoHS'
requirements
250
b
c
f
e
Peak Temp:260℃ max.
Max time above 230℃
:50sec
max.
Max time above 200℃
:70sec
max.
Temperature
Risin g Area
+4.0
/ sec max.
Preheat Area
150 ~ 200
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
/ sec max.
Forced Cooling Area
-(1.0 ~ 5.0)
/ sec max.
Peak Temp erature:
260℃
230℃
d
Ⅳ﹒GENERAL
SPECIFICATION:
a﹒Temp. rise
:40℃
typ.
b﹒Storage temp.:-40℃ ----+125℃
c﹒Operating temp.:-40℃----+125℃
(Temp.
rise included)
d﹒Resistance to solder heat
:260℃
. 10 secs.
AR-001A
Temperature (
)
5 0sec max.
200
150
7 0sec max.
100
50
0
50
100
150
Time ( seconds )
200
250
