SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 1
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1806□□□□L□-□□□

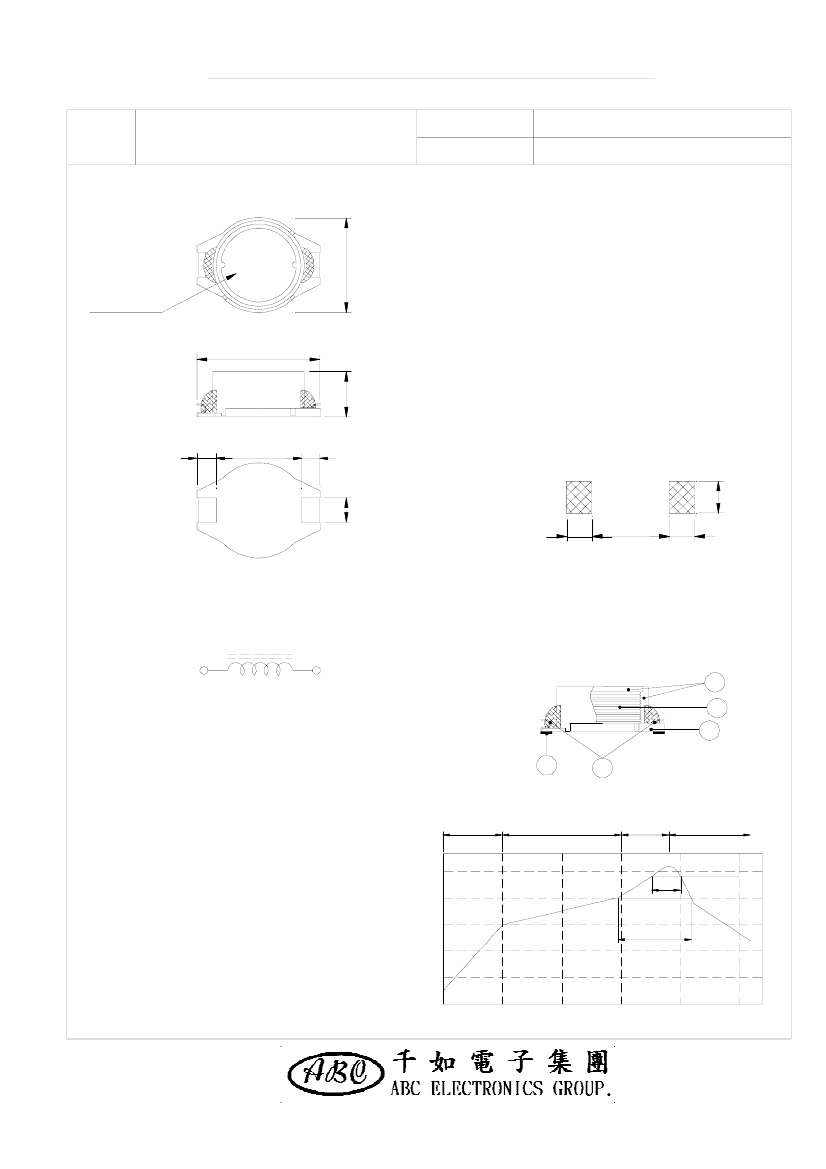

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
Marking
Winding & inductance code
B
C
A
B
C
D
E
F
G
H
I
: 14.0±0.5
: 18.2±0.5
:
6.8±0.3
:
2.5±0.2
:
2.6±0.2
: 13.0±0.3
: 12.7 ref.
:
2.9 ref.
:
3.2 ref.
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
m/m
100
D
F
D
A
E
I
G
( PCB Pattern )
I
Ⅱ﹒SCHEMATIC
DIAGRAM：
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite core
b﹒Wire：Enamellde copper wire
（class
F）
c﹒Base：LCP E4008
d﹒Terminal：Cu/Sn
e﹒Adhesive：Epoxy resin
f﹒Solder wire：Sn97/Cu3 Alloys
g﹒Remark：Products comply with RoHS'
requirements
d
Peak Temp：260℃ max.
Max time above 230℃
：50sec
max.
Max time above 200℃
：70sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
e
Forced Cooling Area
Reflow Area
+2.0 ~ 4.0
℃
-(1.0 ~ 5.0)
℃
/ sec max.
/ sec max.
Peak Temperature:
260
℃
50sec max.
230
℃
250
200
150
70sec max.
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Storage temp.：-45℃ ~ +125℃
b﹒Operating temp.：-40℃ ~ +105℃
c﹒Resistance to solder heat：260℃. 10 secs.
AE-001A
Temperature (
℃
)
100
50
0
50
100
150
Time ( seconds )
200
H
a
b
c
250
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 2
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1806□□□□L□-□□□
Ⅴ﹒ELECTRICAL
CHARACTERISTICS：
DWG No.
SS1806100ML□-□□□
SS1806150ML□-□□□
SS1806220ML□-□□□
SS1806330ML□-□□□
SS1806470ML□-□□□
SS1806680ML□-□□□
SS1806101ML□-□□□
SS1806151ML□-□□□
SS1806221ML□-□□□
SS1806331ML□-□□□
SS1806471ML□-□□□
SS1806681ML□-□□□
SS1806102ML□-□□□
Inductance
( µH )
100K/0.1V
10.0±20%
15.0±20%
22.0±20%
33.0±20%
47.0±20%
68.0±20%
100.0±20%
150.0±20%
220.0±20%
330.0±20%
470.0±20%
680.0±20%
1000.0±20%
Q
ref.
56
53
51
44
40
37
40
39
29
30
27
19
46
( Hz )
2.52M
2.52M
2.52M
2.52M
2.52M
2.52M
0.796M
0.796M
0.796M
0.796M
0.796M
0.796M
0.252M
SRF
(MHz)
typ
19.0
17.5
16.0
10.0
8.0
6.0
4.6
4.3
3.5
3.0
2.4
2.1
1.5
RDC
(
Ω
)
max
0.040
0.052
0.070
0.100
0.130
0.200
0.320
0.500
0.600
0.920
1.150
1.700
2.450
Irms
(A)
4.00
3.60
3.00
2.50
2.00
1.60
1.30
1.05
1.00
0.80
0.64
0.54
0.45
Isat
(A)
8.20
7.20
6.20
5.00
4.20
3.40
2.60
2.30
1.90
1.40
1.30
1.10
0.90
1).
□：Packaging
information… A：Bulk
2)."-
□□□
":Reference code
B：Taping Reel
3). Irms Base on
△
T=40
℃
typ.
4). Isat Base on
△
L/L0A=10% typ.
5). Inductance test condition 100KHz/0.1V
@ Inductance VS. DC Superposition Characteristics
10000
1000
Inductance ( uH )
102
331
100
101
330
10
100
1
0.01
0.1
1
10
DC Current ( A )
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 3
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1806□□□□L□-□□□

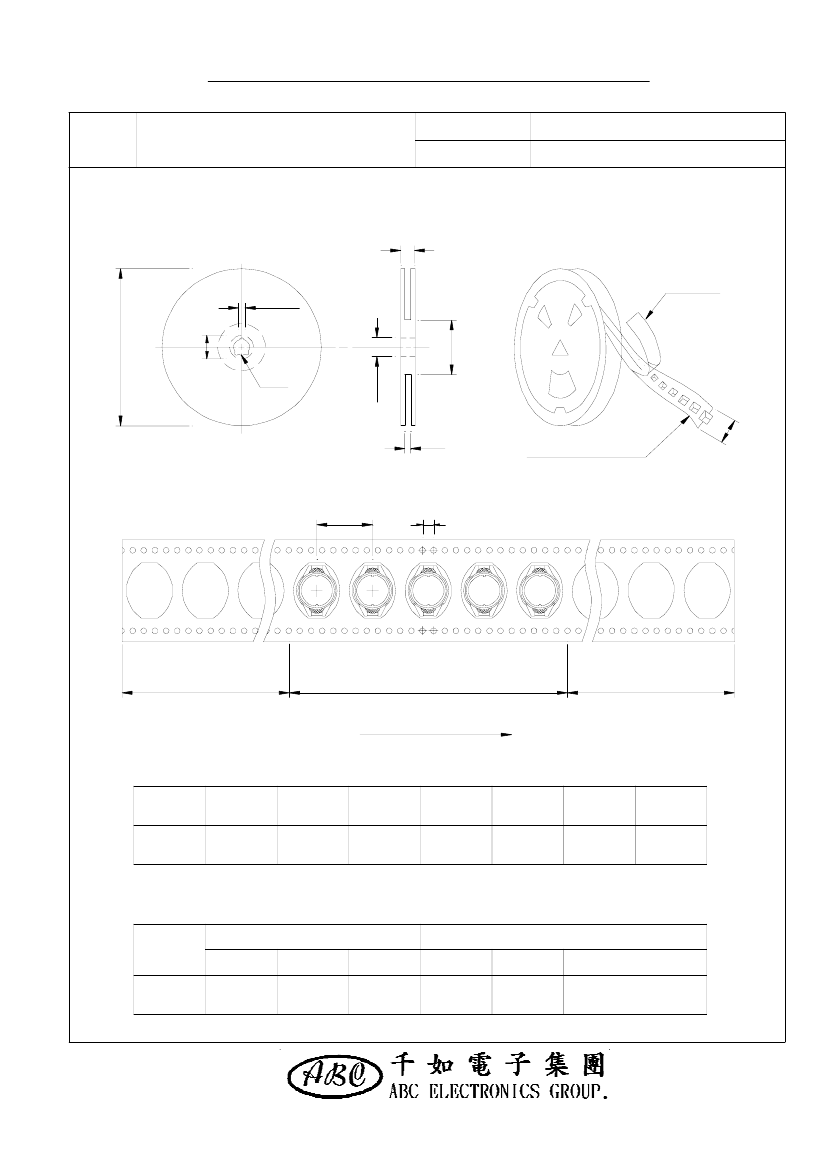

Ⅵ﹒PACKAGING
INFORMATION：
1. Configuration :
T
Cover tape
2.0±0.5
A
∮
C
∮
C
N
B
G
Emobossed carrier
※Carrier
tape width：D
P:20 m/m
End
4 m/m
Start
100
100
100
100
100
Leader
no component
200 m/m Min.
Components
User direction of feed
Trailer
no component
400 m/m Min.
2. Dimensions : (m/m)
Style
13 - 32
A
330
B
21±0.8
C
13±0.5
D
32
G
26
+0
N
50
-0
T
38.4
3. Q'TY & G.W. Per package :
Inner : Reel
Series
SS1806
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
Outer : Carton
G.W. (kg)
Size (cm)
250
1250
13 - 32
1000
6.8
40 x 40 x 24
AE-001A
D
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 4
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1806□□□□L□-□□□
Ⅶ﹒DWGING
NUMBER EXPRESSION：
S
S
1
8
0
6
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Code
A
B
T.B.D.
T /R (Reel package)
Inner package
Inner package Q'TY
T.B.D.
250 pcs
Remark
AE-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
PAGE: 5
SHIELDED SMD
POWER INDUCTOR
ABC'S DWG NO.
ABC'S ITEM NO.
SS1806□□□□L□-□□□
Ⅷ﹒RELIABILITY
TEST：
Test item
Specification
More than 90% of the
terminal electrode
Shall be covered
With fresh solder.
Test condition
Preheat : 150±25
℃
for 60 seconds
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5℃
Flux : Rosin
Dip time : 4±1 seconds
Solderability
Thermal shock test
( Temp. cycle )
Inductance shall
not change more
than ±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-25±2
℃
30 minutes
85±2
℃
30 minutes
Humidity
Resistance test
Temperature : 40±2℃
Humidity : 90 ~ 95%
Applied current : Per spec.
Time : 500 hours
High temp.
Resistance test
Temperature : 105±2℃
Applied current : Per spec.
Time : 500 hours
AE-001A
