2SH-B-10-TS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2SH-B-10-TS

2SH-B-10-TS: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

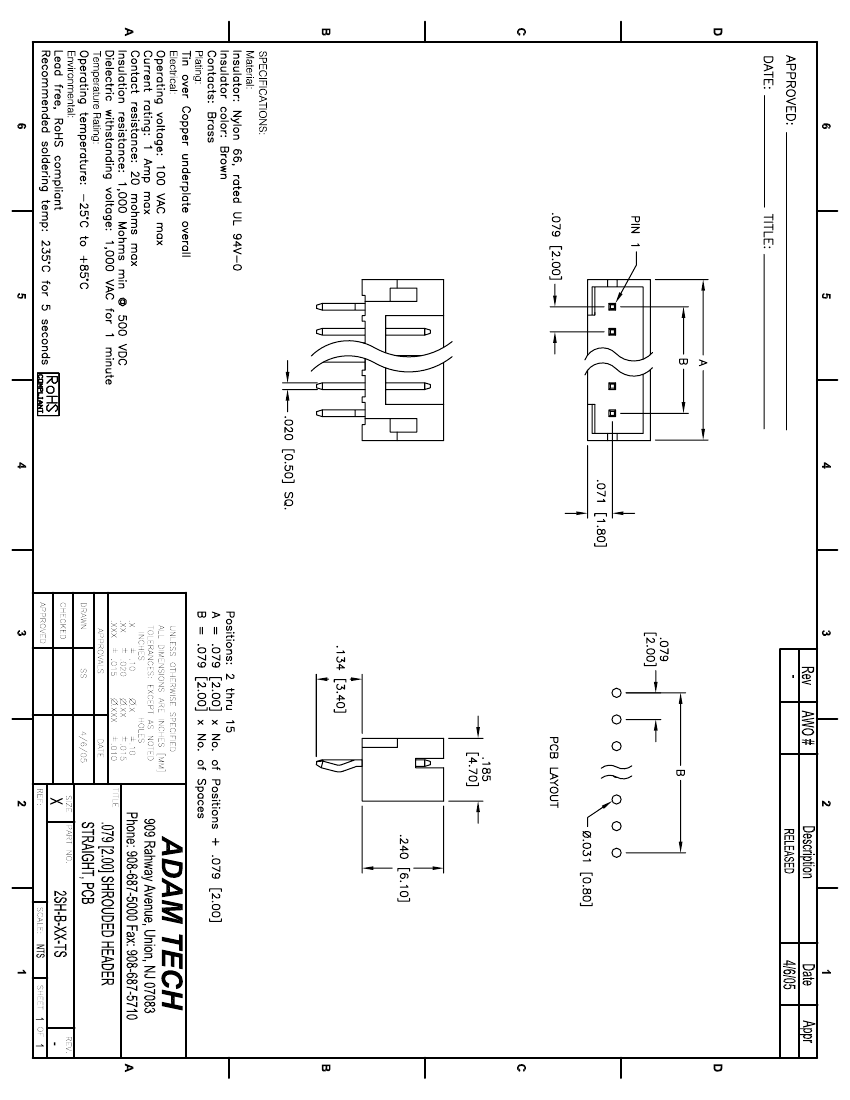

2SH-B-10-TS Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle

2SH-B-10-TS Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.185 inch
subject depth	0.24 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	NYLON
Manufacturer's serial number	2SH
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	10

2SH-B-10-TS Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

2SH-B-10-TS Related Products

	2SH-B-10-TS	2SH-B-06-TS	2SH-B-12-TS	2SH-B-13-TS	2SH-B-05-TS	2SH-B-03-TS	2SH-B-04-TS	2SH-B-14-TS	2SH-B-08-TS
Description	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Brown Insulator, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch	0.185 inch
subject depth	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch	0.24 inch
body length	0.866 inch	0.551 inch	1.024 inch	1.102 inch	0.472 inch	0.315 inch	0.394 inch	1.181 inch	0.709 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON CU	SN ON CU	SN ON CU	SN ON CU	TIN OVER COPPER	TIN OVER COPPER	SN ON CU	SN ON CU	SN ON CU
Contact completed and terminated	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN	BROWN
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	2SH	2SH	2SH	2SH	2SH	2SH	2SH	2SH	2SH
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch	0.134 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	10	6	12	13	5	3	4	14	8
