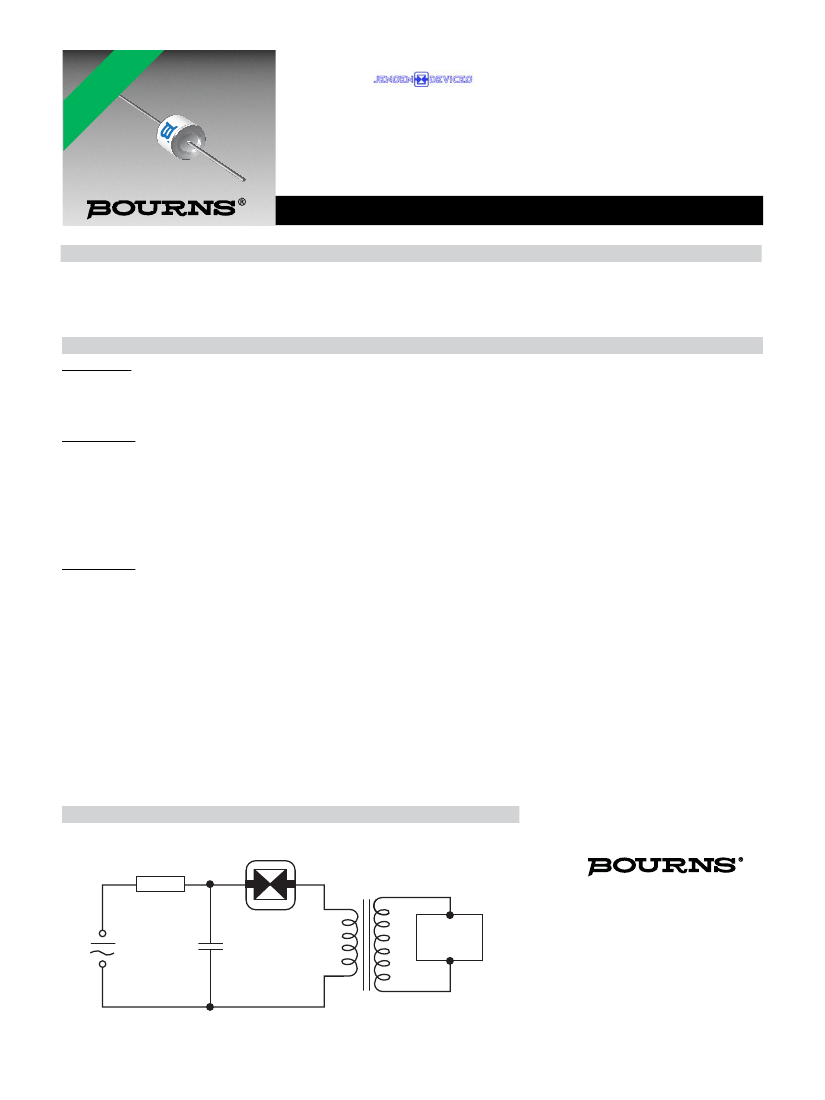

Features
■
Formerly a
■
Fast switching rate
■
High energy, low loss capability
■
Wide operating temperature range
■
Long service life
■
High insulation resistance
■
RoHS compliant*
Applications
product
■
Igniters for architectural and automotive
CO
M
Xenon discharge lamps
■
Electronic igniters for gas heating and gas
domestic appliances, e.g., cookers
■
Ignition of ultra-high pressure gas
discharge lamps for data and video
projectors
*R
oH
S
ST-0800 Series Sparctube
™
Switching Spark Gap
Description
Bourns
®
Sparctube
™
Series is a range of switching spark gaps designed specifically for voltage controlled switching of capacitive
discharge circuits where a high energy, low loss, fast rate of switching is required. This series is ideally suited for applications where a
capacitive discharge is utilized with a transformer to obtain pulses of very high voltage levels in the order of several thousand volts.
Characteristics
Initial Values:
Static Breakdown Voltage @ 800 V/s
1
First Ignition Values ..............................................................................................................< 950 V
Following Ignition Values ......................................................................................................800 V ±12 %
Electrical Life:
Minimum Number of Switching Cycles .......................................................................................2x10
5
Peak Current (Approx.)...............................................................................................................450 A
Maximum Switching Frequency..................................................................................................500 Hz
Breakdown Characteristics @ 1000 V Limit
First Ignition Values ..............................................................................................................≤ 1000 V
Delay Time............................................................................................................................< 60 ms
Following Ignition Values ......................................................................................................800 V ±15 %
General Data:
Breakdown Time .........................................................................................................................< 50 ns
Insulation Resistance @100 Vdc ...............................................................................................> 100 megohms
Maximum Static Breakdown Voltage @ 100 V/ms .....................................................................1300 V
Share of Early Ignition Values (< 680 V) ....................................................................................< 1 %
Residual Voltage @ 50 ns ..........................................................................................................< 300 V
Capacitance................................................................................................................................< 1 pF
Operating Temperature Range
2
................................................................................................-40 °C to +160 °C
Storage Temperature Range ......................................................................................................-65 °C to +125 °C
Weight (Approx.).........................................................................................................................2.3 g
Testing ........................................................................................................................................100 %
Robustness of Terminations .......................................................................................................IEC 60068-2-21
3
Notes:
1
At delivery AQL 0.65 Level II, DIN ISO 2859.
2
Distribution of switchings: maximum 20 % above +125 °C and 20 % below +20°C.
3
Test Ua1 (tensile), Ua2 (thrust), Ub (bending) and Uc (torsion).
Basic Application Circuit
Sparctube
™
Switching Spark Gap
R
Asia-Pacific:
Tel: +886-2 2562-4117
Fax: +886-2 2562-4116
Europe:
Tel: +41-41 768 5555
Fax: +41-41 768 5510
The Americas:
Tel: +1-951 781-5500
Fax: +1-951 781-5700
www.bourns.com
C
LOAD
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
ST-0800 Series Sparctube
™
Switching Spark Gap

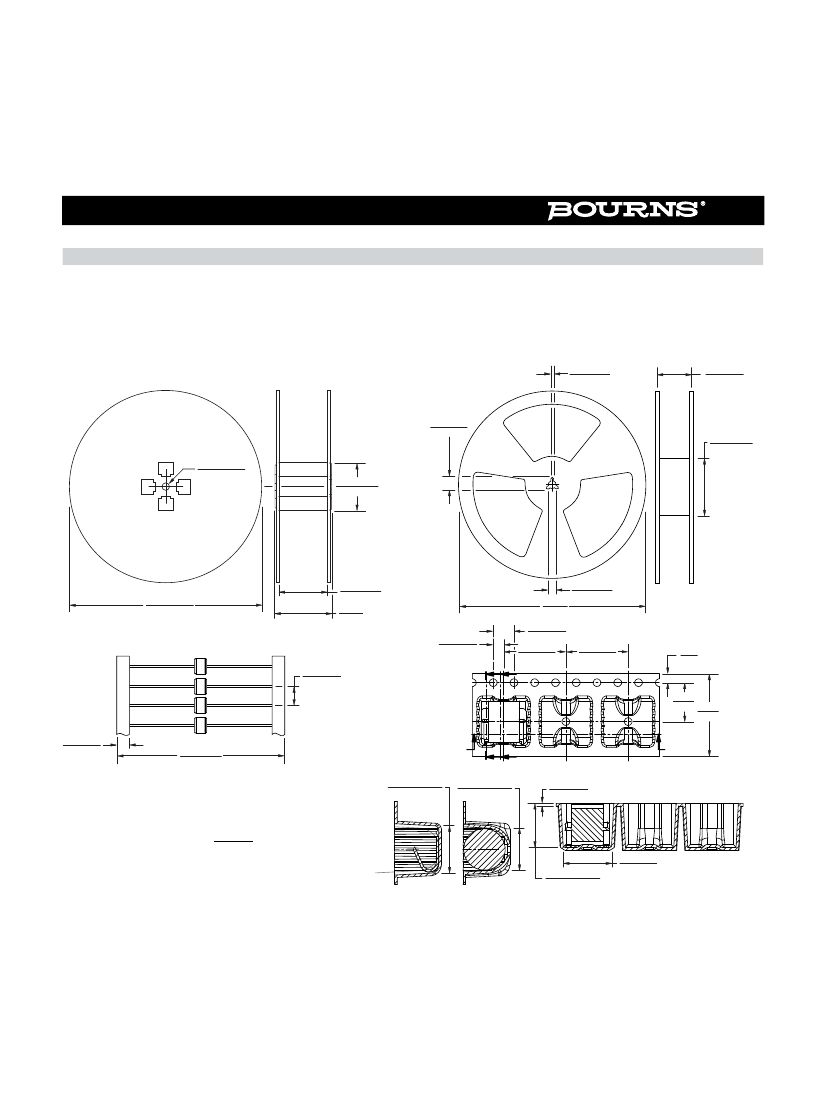

Packaging Specifications
Models ST-0800-BBB, ST-0800-BLB and ST-0800-BCB* ship standard bulk pack, 1,000 pcs./bag. The optional tape and reel packaging
contains 1,000 pcs./reel for Model ST-0800-BLT; 500 pcs./reel for Model ST-0800-BBT.
* Available in bulk packaging only.
ST-0800-BLT
ST-0800-BBT
2.2 ± 0.5
(.087 ± .020)
16.5 ± 0.1
(.650 ± .004)
20.2 ± 1.0
(.795 ± .039)
100 ± 1.0
(3.937 ± .039)
14.0 +1.0/-0.0
(.551 +.039/-.00)
DIA.
90.0 ± 2.0
(3.543 ± .079)
356.0 ± 2.0
(14.016 ± .079)
DIA.
90.0 ± 2.0
(3.543 ± .079)
105.0
(4.134)
2.0 ± 0.1
(.079 ± .004)
10.0 ± 1.0
(.394 ± .039)
SPACING
13.0 ± 0.2
(.512 ± .008)
330
(12.992)
4.0 ± 0.1
(.157 ± .004)
12.0 ± 0.1
(.472 ± .004)
12.0 ± 0.1
(.472 ± .004)
1.75
(.069)
C B
7.50
(.295)
16.0
(.630)
6.2 ± 1.0
(.244 ± .039)
85.0 ± 2.0
(3.346 ± .079)
9.1 +0.2/-0.0
(.358 +.008/-.000)
A
C B
8.2 +0.2/-0.0
(.323 +.008/-.000)
0.50 ± 0.05
(.020 ± .002)
A
DIMENSIONS:
MM
(INCHES)
8.5 +0.15/-0.05
(.335 +.006/-.002)
9.3 ± 0.1
(.366 ± .004)
SECTION A-A
SECTION C-C
SECTION B-B
REV. 10/12
