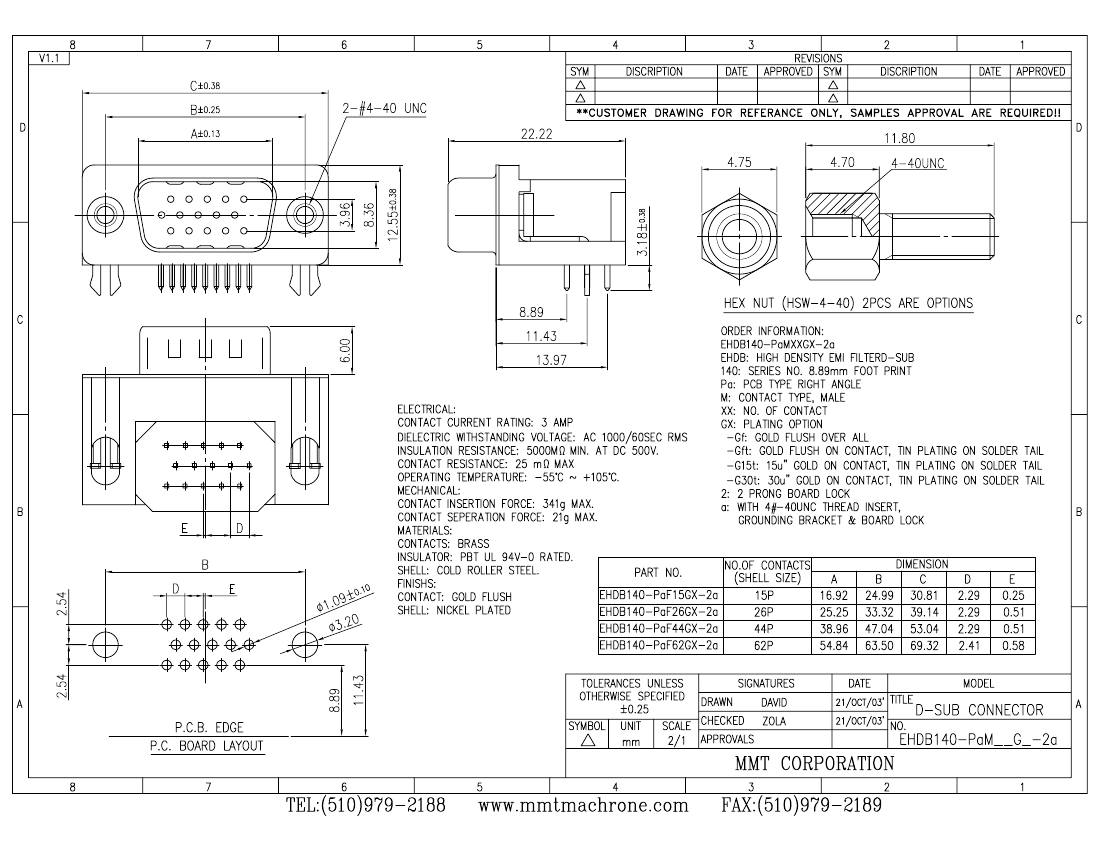

D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.494 inch |
| subject depth | 0.639 inch |
| body length | 1.541 inch |
| Body/casing type | RECEPTACLE |
| Contact to complete cooperation | AU |
| Contact completed and terminated | TIN |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| maximum insertion force | 3.336 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 140 |
| Plug contact pitch | 0.09 inch |
| Match contact row spacing | 0.078 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | STEEL |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.286 mm |
| Termination type | SOLDER |
| Total number of contacts | 26 |
| Evacuation force-minimum value | .1946 N |
| EHDB140-PAM26GFT-2A | EHDB140-PAM44G15T-2A | EHDB140-PAM44G30T-2A | EHDB140-PAM44GF-2A | |
|---|---|---|---|---|
| Description | D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle | D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle | D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle | D Type Connector, 44 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| body width | 0.494 inch | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | 0.639 inch | 0.639 inch | 0.639 inch | 0.639 inch |
| body length | 1.541 inch | 2.088 inch | 2.088 inch | 2.088 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Contact to complete cooperation | AU | AU | AU | AU |
| Contact completed and terminated | TIN | TIN | TIN | TIN |
| Contact point gender | MALE | MALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS | BRASS |
| contact mode | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| maximum insertion force | 3.336 N | 3.336 N | 3.336 N | 3.336 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 140 | 140 | 140 | 140 |
| Plug contact pitch | 0.09 inch | 0.09 inch | 0.09 inch | 0.09 inch |
| Match contact row spacing | 0.078 inch | 0.078 inch | 0.078 inch | 0.078 inch |
| Installation option 1 | #4-40 | #4-40 | #4-40 | #4-40 |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| PCB row number | 3 | 3 | 3 | 3 |
| Number of rows loaded | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | FLASH inch | 15u inch | 30u inch | FLASH inch |
| Rated current (signal) | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell surface | NICKEL | NICKEL | NICKEL | NICKEL |
| Shell material | STEEL | STEEL | STEEL | STEEL |
| Terminal length | 0.125 inch | 0.125 inch | 0.125 inch | 0.125 inch |
| Terminal pitch | 2.286 mm | 2.286 mm | 2.286 mm | 2.286 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 26 | 44 | 44 | 44 |
| Evacuation force-minimum value | .1946 N | .1946 N | .1946 N | .1946 N |
