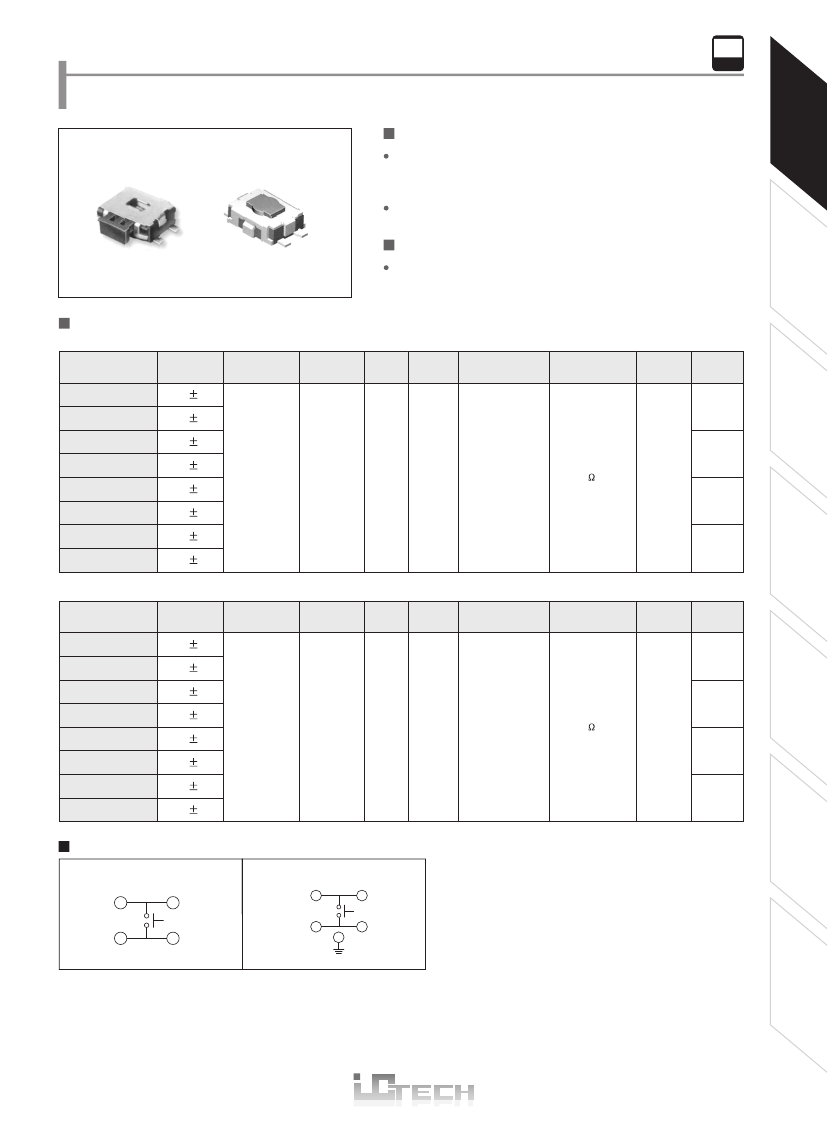

1.6mm thin type SidePush most suitable for high density mountings.
Featur es
With 4.7×4.5mm outline size and 1.6mm height,these
surface-mounting type TACT switches are ideal for
high-high-density mounting.Horizontal type capable
of operating in horizontal direction to PC board.
Contact-sealed construction provided high-reliability.
Permits reflow soldering.
Multi control
Devices
A pplications
For operating various electronic devices such as audio device,
communication devices,video recorders,camera,automotive
and household,digital audio player, etc.
Pr oduct Line
Horizontal Type
Product No.
T043W0-N45E-01
T043W0-N45F-01
T043W1-N45E-01
T043W1-N45F-01
T043W0-N45E
T043W0-N45F
T043W1-N45E
T043W1-N45F
Operating
force (gf)
200 50
250 50
200 50
250 50
200 50
250 50
200 50
250 50
Operating
feeling
Operating Travel
(mm)
direction
Rating
(max.)
Operating life
(5mA 5V DC)
Initial contact
resistance
Mount
Type
Drawing
No.
1
Slide
Switches
2
Sharp
feeling
Horizontal
0.30
DC 12V
50mA
50,000cycles
100m
Max.
Surface
mount
3
Detector
Switches
4
Vertical Type
Product No.
T04CW0-N20C
T04CW0-N20F
T04CW1-N20C
T04CW1-N20F
T04CW0-N20C-02
T04CW0-N20F-02
T04CW1-N20C-02
T04CW1-N20F-02
Operating
force (gf)
160 30
250 30
160 30
250 30
160 30
250 30
160 30
250 30
Operating
feeling
Operating Travel
(mm)
direction
Rating
(max.)
Operating life
(5mA 5V DC)
Initial contact
resistance
Mount
Type
Drawing
No.
5
Push
Switches
6
Sharp
feeling
Vertical
0.25
DC 12V
50mA
50,000cycles
100m
Max.
Surface
mount
7
8
Encoder
Switches
Cir cuit Dia g r am
A
1
2
3
4
B
1
2
3
5
4
Connectors
8
T043W
TACT
Switches

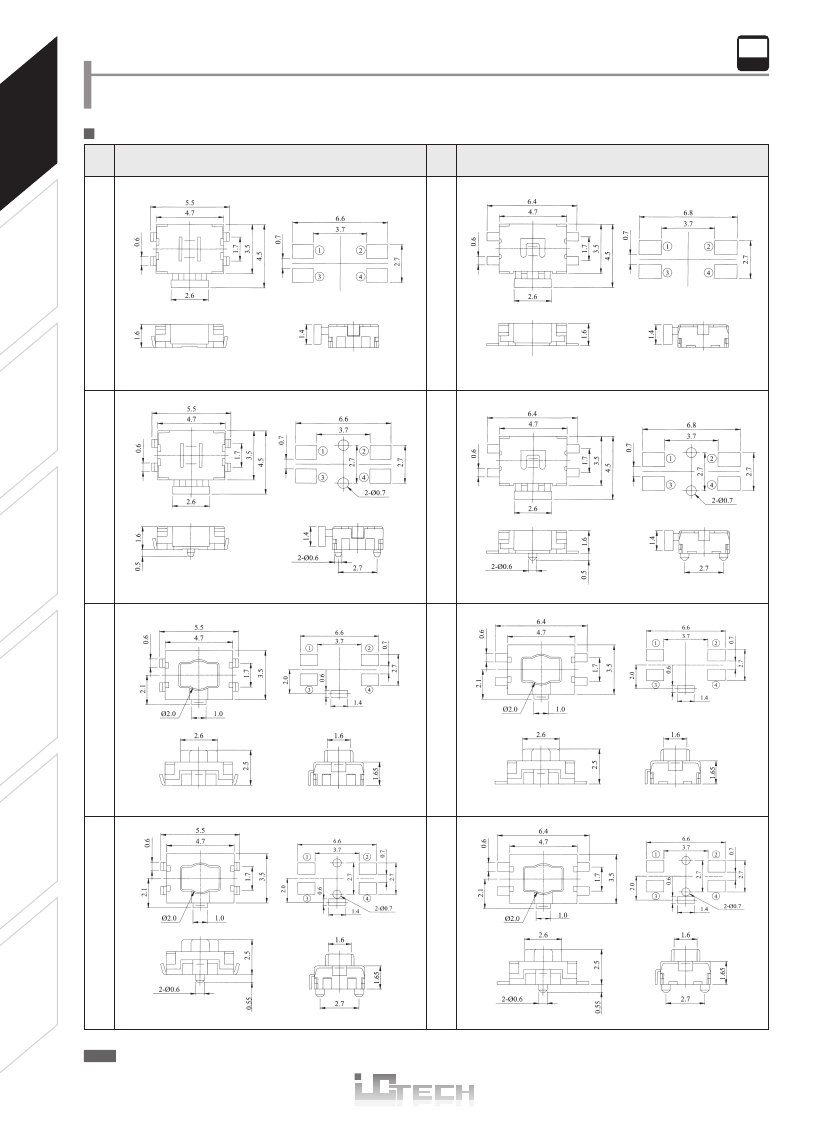

Dimensions
Series
RoHS
applicable
1.8mm thin type SidePush most suitable for high density mountings.
Unit: mm
Style
No.
Style
No.
Multi control
Devices
1
P.C Board Land Dimensions
2
P.C Board Land Dimensions
Slide
Switches
Circuit Diagram A
Circuit Diagram A
3
4
P.C Board Land Dimensions
P.C Board Land Dimensions
Detector
Switches
Circuit Diagram A
Circuit Diagram A
Push
Switches
5
P.C Board Land Dimensions
6
P.C Board Land Dimensions
Encoder
Switches
Circuit Diagram B
Circuit Diagram B
7
P.C Board Land Dimensions
8
P.C Board Land Dimensions
Connectors
Circuit Diagram B
Circuit Diagram B
Note
For more information please contact: Sales or Products Information Center.
9
TACT Switches
TACT
Switches
RoHS
applicable
Products Specification
Series
Item
Sharp feeling type
Soft feeling type
-20 to 70 C
Operating temperature range
Multi control
Devices
-30 to 80 C
Rating (Max.)
(Resistive load)
Rating (Min.)
(Resistive load)
Initial contact
resistance
DC 12V 50mA
DC 1V 10µA
100m
100M
Min.
Max.
Slide
Switches
Electrical
performance
Insulation
resistance
Voltage proot
Vibration
Solderability
Manual
Resistance soldering
to soldering
Dip
heat
soldering
DC250V for 1Min
250V AC for 1 Min
10 to 55 to 10Hz/min., the amplitude is 1.5mm for all the frequencies, in the
3 direction of X. Y and Z for 2 hours respectively
Mechanical
performance
230 5 C , 3 0 . 5 S
350 1 0 C , 3 1 S
260 5 C , 5 1 S
-40 2 C , f o r 9 6 h
85 2 C , f o r 9 6 h
40
2 C, 90 to 95%RH for 96h
Detector
Switches
Cold
Environmental
test
Dry heat
Damp heat
Note
Push
Switches
We can raise the working temperature range for in-vehicle applications upon request. Contact us if you have any
requirements of this kind.
Power
Forward pulse
dissipation peak current
PD (mW)
IFP (mA)
Forward
current
IFDC (mA)
Reverse
voltage
VR (V)
Forward
voltage
VF(V)
IF=10mA
Peak
emission
wave length
peak(nm)
IF=10mA
625 TYP
2.4max.
1.8TYP
590 TYP
570 TYP
80 Max.
100 Max.
30 Max.
5
465 TYP
30 TYP
20 TYP
Spectral
line half
width
(nm)
IF=10mA
Luminous
intensity
IV (mcd)
IF=10mA
Color of light
Red
Encoder
Switches
Orange
Green
Blue
White
150 max.
100 TYP
80 max.
60 TYP
180 max.
130 TYP
300 max.
200 TYP
120 max.
80 TYP
80 max.
60 TYP
120 max.
80 TYP
180 max.
120 TYP
3.4max.
3.0TYP
Connectors
Red/Green
Red/Blue
R
G
R
G
2.3max.
2.0TYP
2.4max.
1.8TYP
2.3max.
2.0TYP
3.5max.
3.0TYP
625 TYP
570 TYP
625 TYP
465 TYP
50 TYP
20 TYP
50 TYP
30 TYP
43
TACT Switches
Soldering Conditions
Available for Surface Mount Type.
RoHS
applicable
TACT
Switches
Condition for Reflow
1. H e a t i n g m e t h o d : D o u b l e h e a t i n g m e t h o d w i t h i n f r a r e d h e a t e r.
2. Te m p e r a t u r e m e a s u r e m e n t : T h e r m o c o u p l e 0 . 1 t o 0 . 2 C A ( K ) o r C C ( T ) a t s o l d e r i n g p o r t i o n ( c o p p e r f o i l s u r f a c e ) . A
heat resisting tape should be used for fixed measurement.
3. Te m p e r a t u r e p r o f i l e
Multi control
Devices
Temperature (˚C )
180
150
260˚C max. 3 sec max.
230˚C
Time
120 sec max(pre-heating)
Slide
Switches
40s max.
3 to 4min.
Time inside soldering equipment
Note
1. The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where
the PC board's temperature greatly differs from that of the switch, depending on the PC board's material, size,
thickness, etc. The above-stated conditions shall also apply to switch surface temperatures.
2. Soldering conditions differ depending on reflow soldering machines. You are requested to verify the soldering
conditions thoroughly beforehand.
3. Ask us for the specifications of lead-free products.
Detector
Switches
Available for Snap-in Type and Radial Type
Items
Flux built-up
Preheating temperature
Preheating time
Soldering temperature
Continuous dipping time
Number of soldering
Condition
Mounting surface should not be coated with flax
Ambient temperature of the soldered surface of
PC board, 100 C max.
Conditions for Auto-dip
Available for Manual Soldering Type
Items
Soldering temperature
Continuous dipping time
Condition
350 C max.
3s max.
Manual
Soldering
Push
Switches
60s max.
260 C max.
5s max.
2times max.
Encoder
Switches
Note
1. Consult with us for TACT switch washing conditions.
2. Prevent flux penetration from the top side of the TACT switch.
3. Switch terminals and a PC board should not be coated with flux prior to soldering.
4. The second soldering should be done after the switch returns to normal temperature.
5. Use the flux with a specific gravity of at least 0.83.
( M H - 8 2 0 V o r C F 2 2 0 V b y TA M U R A C o r p o r a t i o n , o r t h e i r e q u i v a l e n t s . )
44
Connectors
TACT Switches
TACT
Switches
RoHS
applicable

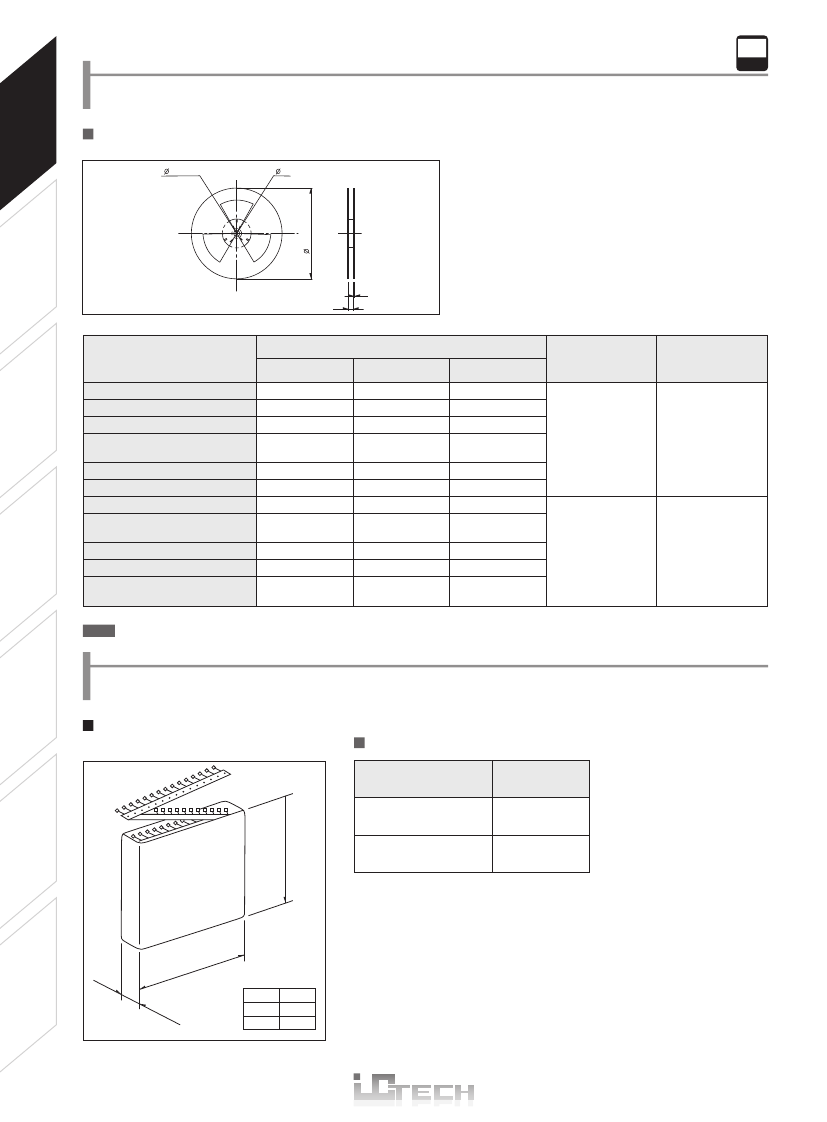

Taping Specifications
Ta ping Packa ging
Reel Size
13 hole
21
Unit: mm
Multi control
Devices
330~380
t
W
Slide
Switches
Series
T030/T041
T051/T053
T050/T052
T031/T042/T043
T046/T048
T044/T04C
T04D/T06I
T06W
T064/T06B/T06C
T06N/T06Y
T040/T06P/T06Z
T060/T062/T06T
T065/T066
T06G/T06X
Note
Number of packages (pcs)
1 reel
6,000
5,000
4,000
3,000
2,500
2,000
4,000
3,000
2,000
1,500
1,000
1 case/domestic 1 case/export packing
24,000
20,000
16,000
12,000
10,000
8,000
12,000
9,000
6,000
4,500
3,000
102,000
85,000
28,000
51,000
42,500
34,000
52,000
39,000
26,000
19,500
13,000
Reel width
W (mm)
Tape width
(mm)
12.4
12
Detector
Switches
16.4
16
1. Order products in N minimum packing units (1 reel or 1 case) .
Push
Switches
Specification of Radial Taping Package
Ta ping Packa ge for Auto-inser tion
Box Size
Unit: mm
Ta p i n g P a c k a g e f o r A u t o - i n s e r t i o n
