300-48-XX-B datasheet, PDF - EEWORLD Datasheet

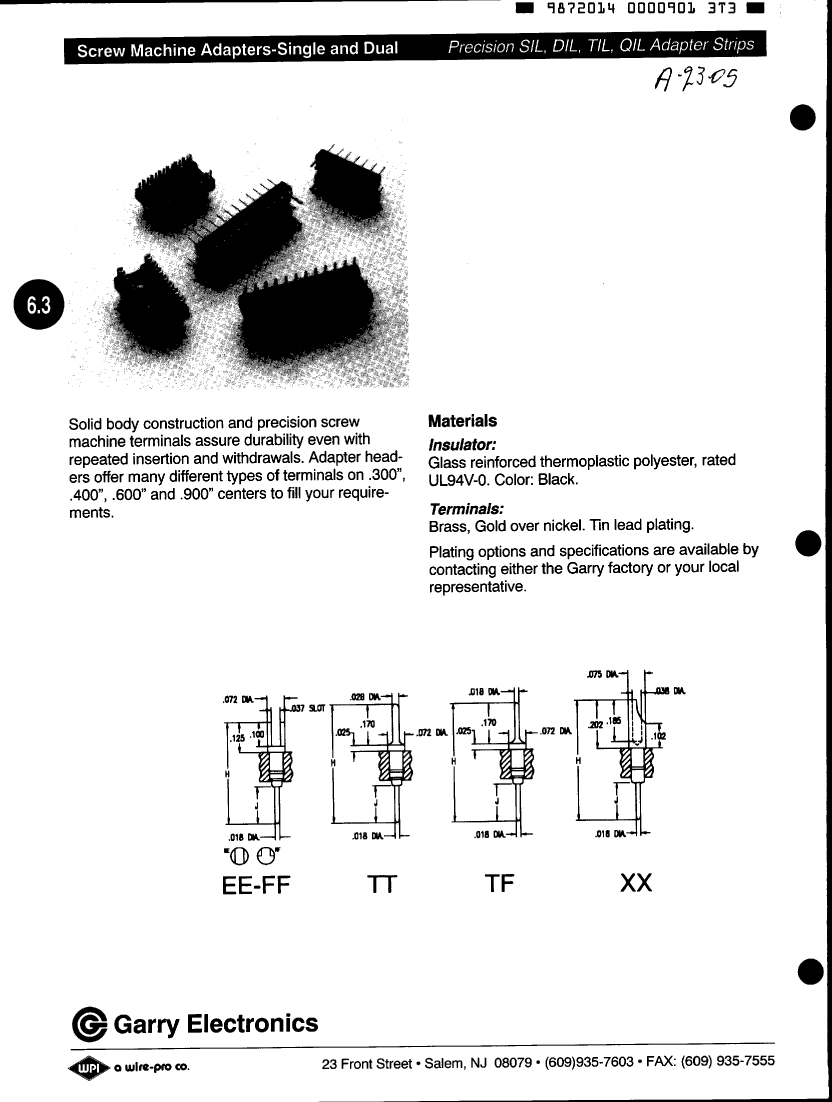

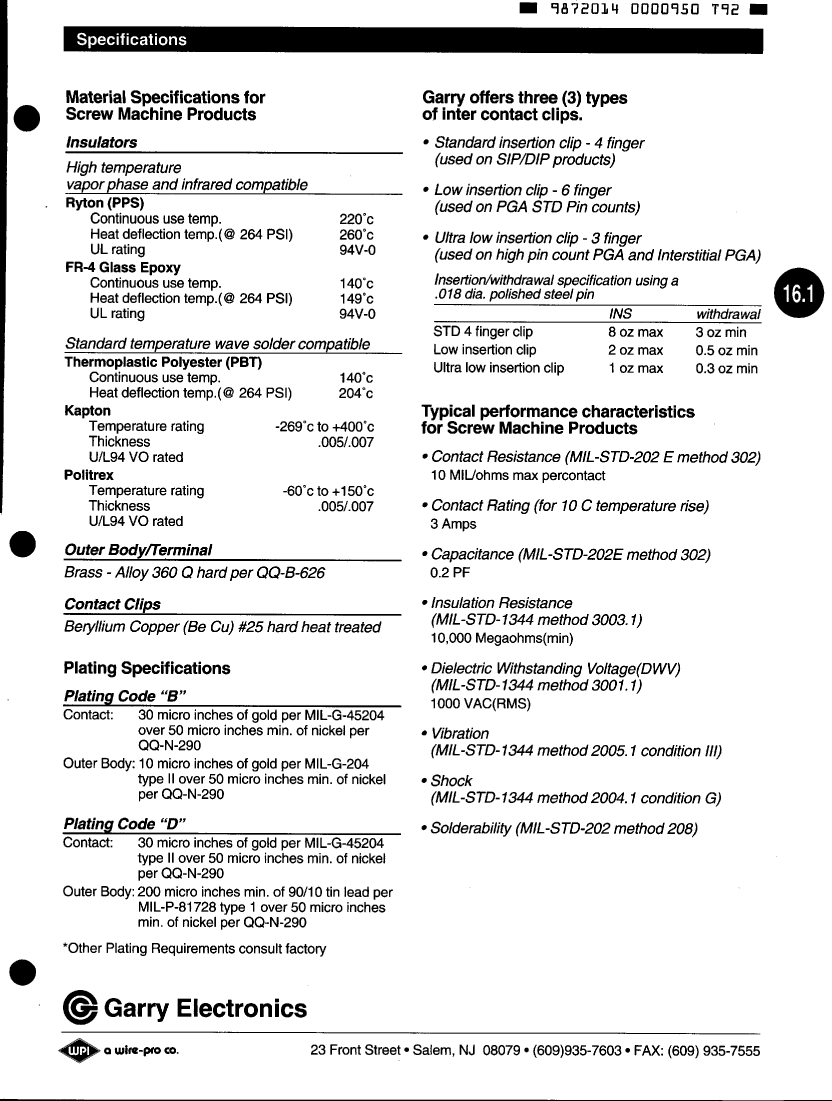

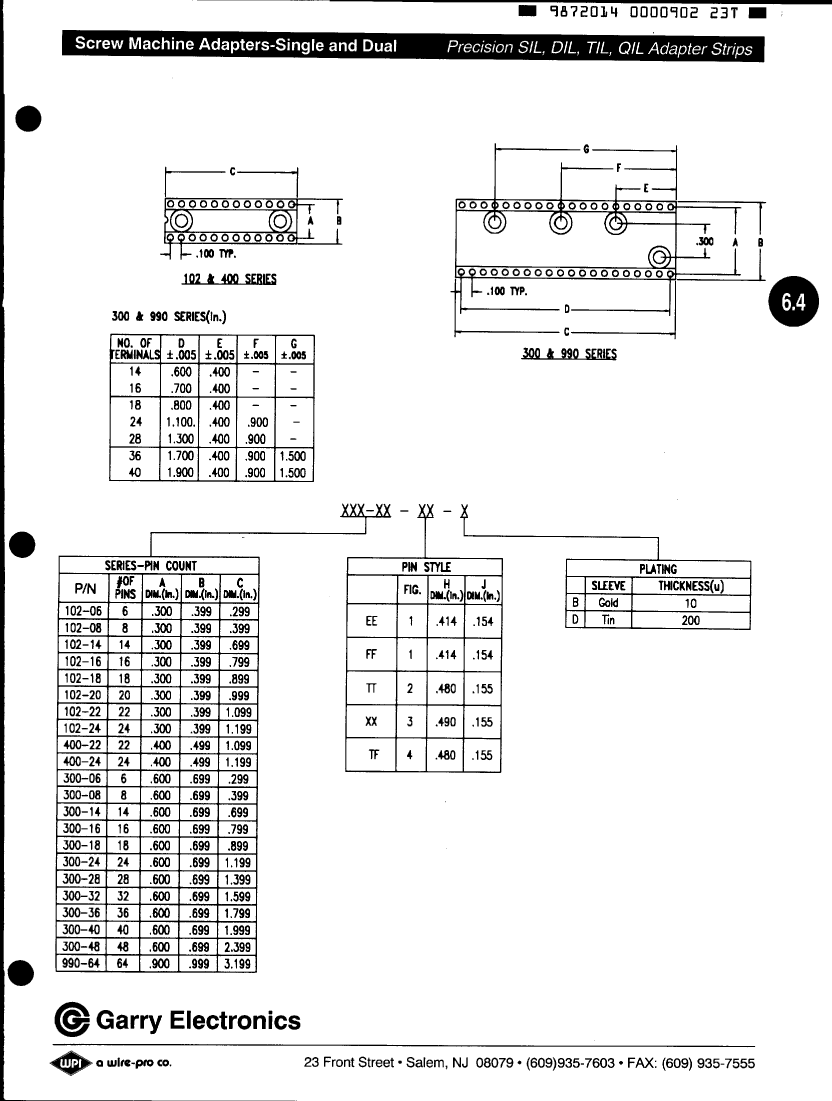

300-48-XX-B: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size266KB，3 Pages; ManufacturerEaton

Download Datasheet Parametric View All

300-48-XX-B Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.699 inch
subject depth	0.12 inch
body length	2.399 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	MACHINE SCREW
Dielectric withstand voltage	1000VAC V
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	300
Plug contact pitch	0.1 inch
Match contact row spacing	0.6 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.155 inch
Termination type	SOLDER
Total number of contacts	48
