0805 CHIP INDUCTORS
Chip Inductors for Critical Applications
ST336RAD
These inductors provide exceptional Q values, even at
high frequencies. They have a ceramic body and wire
wound construction to provide the highest SRFs, tight
inductance tolerance and batch consistency.
Part number
1
This robust version of Coilcraft’s standard 0805HQ series
features high temperature materials that allow operation
in ambient temperatures up to 155°C.
SRF min
4
(GHz)
>5.00
4.88
4.55
2.80
2.40
2.20
2.05
2.00
1.74
1.60
1.40
1.28
Inductance
2
(nH)
2.5 @ 250 MHz
5.6 @ 250 MHz
6.2 @ 250 MHz
12 @ 250 MHz
16 @ 250 MHz
18 @ 250 MHz
20 @ 250 MHz
27 @ 250 MHz
30 @ 250 MHz
39 @ 250 MHz
48 @ 200 MHz
51 @ 200 MHz
Percent
tolerance
5
5
5
5
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
Q min
3
DCR max
5
(Ohms)
0.020
0.035
0.035
0.045
0.060
0.060
0.060
0.070
0.095
0.110
0.095
0.120
Imax
(A)
2.0
1.9
1.8
1.6
1.4
1.4
1.4
1.3
1.1
1.0
1.1
0.9
ST336RAD2N5JLZ
ST336RAD5N6JLZ
ST336RAD6N2JLZ
ST336RAD12NJLZ
ST336RAD16N_LZ
ST336RAD18N_LZ
ST336RAD20N_LZ
ST336RAD27N_LZ
ST336RAD30N_LZ
ST336RAD39N_LZ
ST336RAD48N_LZ
ST336RAD51N_LZ
56 @ 1000 MHz
83 @ 1000 MHz
80 @ 1000 MHz
52 @ 500 MHz
72 @ 500 MHz
70 @ 500 MHz
54 @ 250 MHz
58 @ 250 MHz
50 @ 250 MHz
53 @ 250 MHz
44 @ 150 MHz
36 @ 150 MHz
1. When ordering, specify
tolerance, termination
and
testing
codes:
ST336RAD51NGLZ
Tolerance:
F
= 1%
G
= 2%
J
= 5%
Termination: L
= RoHS compliant silver-palladium-platinum glass frit.
Special order:
S
= Tin-lead (63/37) over silver-platinum-glass frit.
T
= Tin-silver-copper (95.5/4/0.5) over silver-platinum-
glass frit.
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
2. Inductance measured using a Coilcraft SMD-A fixture in an Agilent/HP
4286 impedance analyzer or equivalent with Coilcraft-provided correla-
tion pieces.
3. Q measured at the same frequency as inductance using an Agilent/HP
4291A with an Agilent/HP 16197 test fixture or equivalents.
4. SRF measured using an Agilent/HP 8753ES network analyzer or
equivalent and a Coilcraft SMD-D test fixture.
5. DCR measured on a Keithley 580 micro-ohmmeter or equivalent and a
Coilcraft CCF858 test fixture.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ceramic
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Ambient temperature
–40°C to +125°C with
Imax
current, +125°C
to +140°C with derated current
Storage temperature
Component: –55°C to +140°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging
2000 per 7″ reel Plastic tape: 8 mm wide, 0.23 mm
thick, 4 mm pocket spacing, 1.65 mm pocket depth
®
Document ST197-1 Revised 11/06/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012

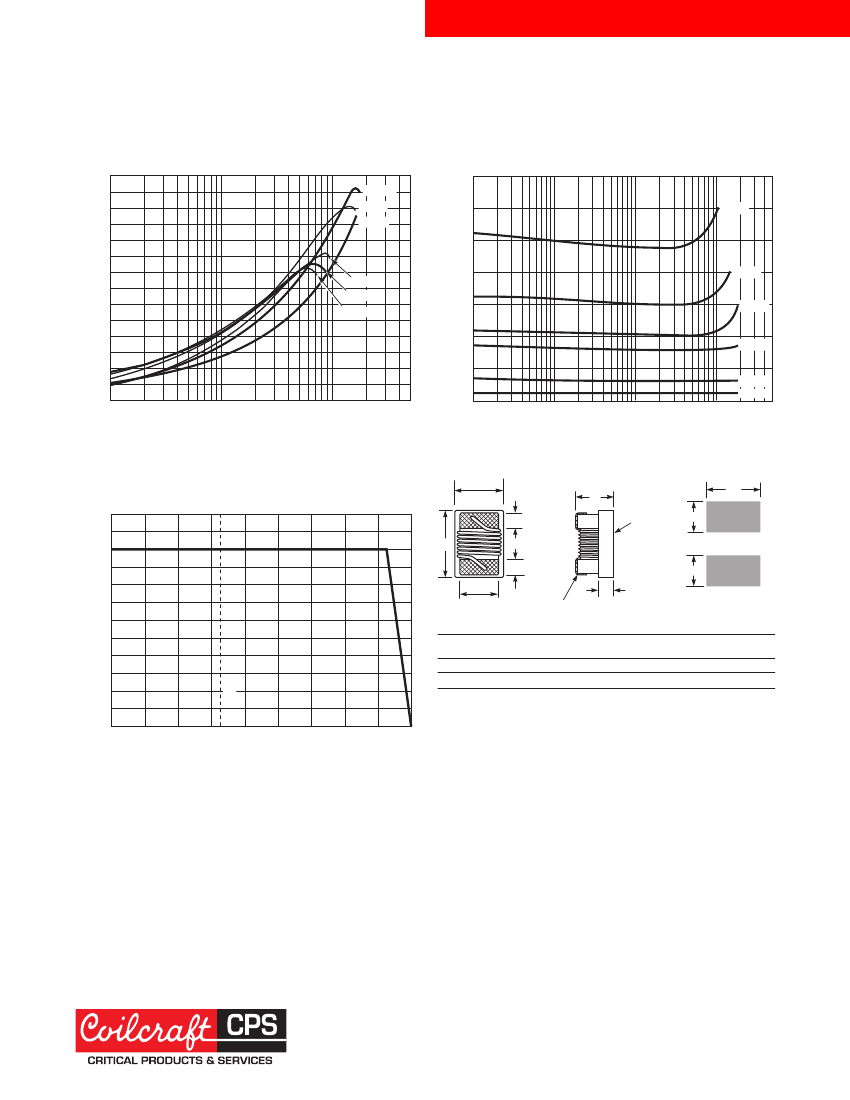

0805 CHIP INDUCTORS
ST336RAD Series (0805)
Typical Q vs Frequency
140
120
100
Typical L vs Frequency
70
6.2 nH
16 nH
2.5 nH
60
50
40
30
20
10
0
30 nH
20 nH
48 nH
80
60
40
20
0
20 nH
30 nH
48 nH
Inductance (nH)
Q Factor
16 nH
6.2 nH
2.5 nH
1
10
100
1000
5000
10
100
1000
5000
Frequency (MHz)
Frequency (MHz)
Irms Derating
120
110
100
A
B
overall
F
G
F
E
terminal
C
H
Pick and
place
material
I
J
I
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
D
Terminal wraparound:
approx 0.015/0,38 both ends
Suggested
Recommended
Land Pattern
Land Pattern
25°C
A
B
C
D
max max max ref
E
F
G
H
I
J
0.090 0.068 0.060 0.020 0.050 0.020 0.040 0.070 0.040 0.030 inches
2,29 1,73 1,52 0,51 1,27 0,51 1,02 1,78 1,02 0,76 mm
Note: Dimensions are before optional solder application. For maximum
overall dimensions including solder, add 0.0025 in / 0,064 mm to
B
and 0.006 in / 0,15 mm to
A
and
C.
Ambient temperature (°C)
®
Document ST197-2 Revised 11/16/121
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
