NMC0201X7R471M50TRPLP datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC0201X7R471M50TRPLP

NMC0201X7R471M50TRPLP: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00047uF, SURFACE MOUNT, 0201, CHIP; CategoryPassive components capacitor; File Size200KB，3 Pages; ManufacturerNIC Components Corp

Download Datasheet Parametric View All

NMC0201X7R471M50TRPLP Overview

CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.00047uF, SURFACE MOUNT, 0201, CHIP

NMC0201X7R471M50TRPLP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	, 0201
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.00047 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Other Capacitance Values Also Available
dielectric materials	CERAMIC
high	0.3 mm
JESD-609 code	e0
length	0.6 mm
Manufacturer's serial number	NMC
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
series	NMC0201(X7R,50V)
size code	0201
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.3 mm

Preview

Download Datasheet

View All

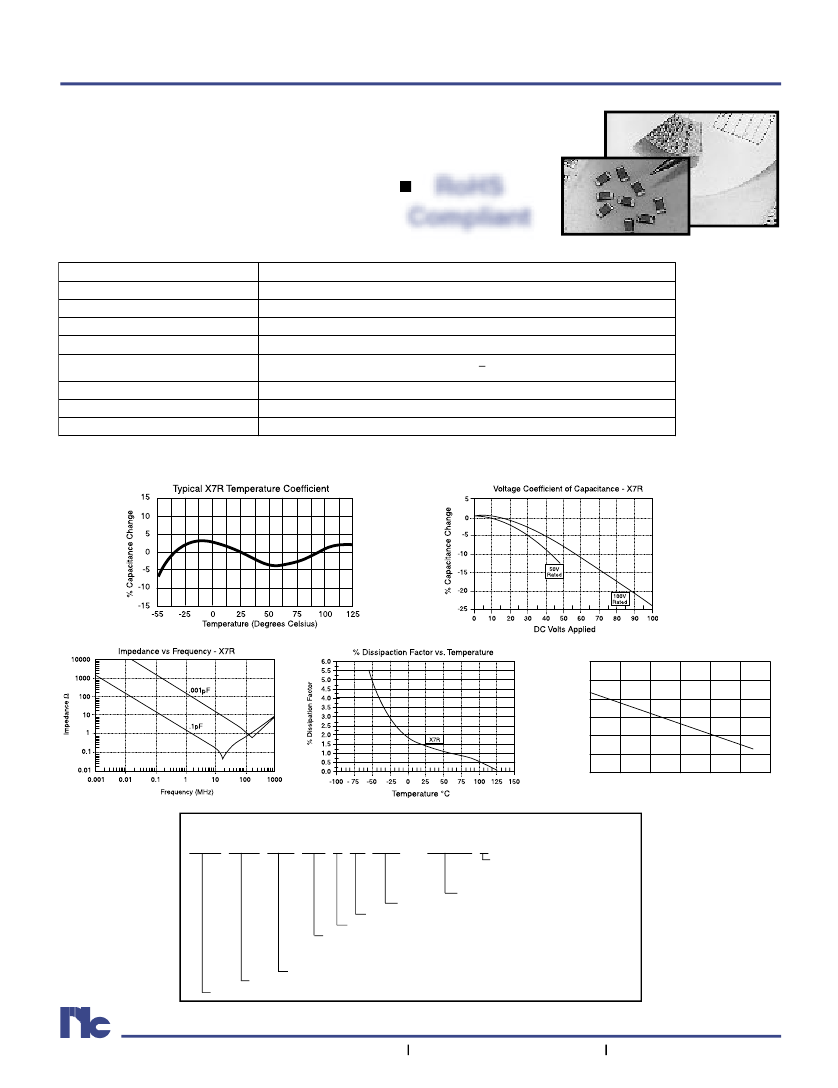

Multilayer Ceramic Chip Capacitors

FEATURES

• CLASS II DIELECTRIC, TEMPERATURE STABLE

• EXCELLENT FREQUENCY CHARACTERISTICS, NON-LINEAR

CAPACITANCE CHANGE

• HIGHER CAPACITANCE THAN NPO

• NICKEL BARRIER

TERMINATIONS AND EXCELLENT

MECHANICAL STRENGTH

• EIA MARKING AVAILABLE

NMC Series X7R

RoHS

Compliant

0.0012

F to 100

µF

±10%(K), ±20%(M)

-55

C to +85

*See Part Number System for Details

Capacitance Range

Capacitance Tolerances

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

Insulation Resistance

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

±15%

∆

max. over temperature range (with 0 Vdc applied)

6.3Vdc, 10Vdc, 16Vdc, 25Vdc , 35Vdc, 50Vdc

C < 2.2

F 5% max., C > 2.2

F 10% max.

@ 1.0Vrms and KHz, +25 °C

10,000 Megohms min. or 100Meg ohm/

F min. whichever is less @ 25°C

250% of Rated Voltage for 5 ±1 seconds, 50 milliamps maximum

1KHz, 1.0V ±0.2 Vrms

10000

Insulation Resistance

(Ω Farads)

Minimum Insulation Resistance

vs. Temperature

1000

100

Temperature °C

100 125

PART NUMBERING SYSTEM

NMC 0805 X7R 102 K 50 TRP or TRPLP F

Lead Free Terminations

(100% Sn optional)

Series

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Paper carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)
