Interface Connectors for Miniature, Portable Terminal Devices
ST Series
Strong locking mechanism
Right
Mating direction
Left
Top
49N max.
■
Overview
Developed as external input/output connectors for the
portable and mobile devices used in consumer markets. As
such, the connectors incorporate features required to assure
reliable electrical and mechanical performance under
extreme and unpredictable conditions.
Bottom
Prevention against reversed or angle insertion
■
Features
1. Strong locking mechanism
To assure continuous reliability of the connection in an
Mobile recorders and any mobile or portable device
requiring high reliability small size input/output
connection.
2008.4w
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
ST Series●Interface Connectors for Miniature, Portable Terminal Devices
■Specifications
Rating
Current rating
Voltage rating
Characteristic
11.
Contact resistance
12.
Insulation resistance
13.
Dielectric withstanding voltage
14.
Mating/un-mating forces
15.
Durability
(mating/un-mating)
16.
Shock
0.5A (1 A max. can be carried via 4 random contacts) Operating temperature range
100V AC
Specification
60m ø max.
100M ø min.
No flashover or insulation breakdown.
Mating: 29.4N max.
Contact resistance: 50 m ø max.
No electrical discontinuity of 10 μ sec. max.
Contact resistance: 100m ø max.
Storage temperature range
: -30ç to
+
80ç
: -40ç to
+
85ç (Note)
Conditions
100mA DC
250V DC
350V AC/ one minute
With corresponding connector.
10000 cycles
Acceleration of 490 m/s2, 11 ms duration, sine half-wave
waveform, 3 cycles in each of the 3 axis.
Temperature : -55ç
➝
+
5ç to
+
35ç
➝
+
85ç
➝
+
5ç to
+
35ç
Contact resistance: 100m ø max.
Time (Minutes) :
-30
➝
+
5
➝
+
30
➝
+
5
17.
Temperature cycle
Insulation resistance: 1000M ø min.
5 cycles
5±1% salt water solution at 35±3ç for 48 hours, after
18.
Salt spray
No corrosions
washing without salt, leave for 24 hours at room temperature
Fully inserted and locked corresponding connector. No Pull force: 49N max. applied in each of the 3 axis.
19.
Lock strength
physical damage or electrical failure.
No electrical discontinuity of 10 μ sec. max. Contact Frequency: 10 to 55 Hz, single amplitude of 0.75mm, 2 hours,
10. Shock
3 axis.
resistance: 100m ø max.
Note: Includes temperature rise caused by current flow.
■Materials
●
Receptacles and cradles
Component
Insulator
Contacts
Shield
Material
Thermoplastic compound, glass reinforced
Copper alloy
Stainless steel
Finish
Color: Black
Contact area: Gold plated
Tin alloy plating
Remarks
UL94V-0
-------------------
-------------------
●
Plugs
Component
Insulator
Contacts
Shield
Cover
Material
Thermoplastic compound, glass reinforced
Copper alloy
Stainless steel
Thermoplastic compound, glass reinforced
Finish
Color: Black
Contact area: Gold plated
-------------------
-------------------
Remarks
UL94V-0
-------------------
-------------------
UL94-HB
■Ordering
information
●
Receptacles
1
Series name
2
Termination type
: ST
ST 60 - 18 P /4 (50)
1
2
4
5
6
8
3
●
Plugs
ST 40 X - 18 S - CVR (80)
1
2
3
4
5
7
8
4
5
6
7
●
Plug - Cradle type
ST 80 X - 18 S (50)
1
2
3
4
5
8
8
60
: Right angle SMT
40
: Solder type
80
: Cradle, vertical, SMT
Shield
X
: With shield
Blank
: Without shield
Number of positions
Contact type
P
: Male contact (Receptacle)
S
: Female contact (Plug)
Contact arrangement /4
: Combination, with 4 power contacts
Plug type
CV
: Standard type, for top PCB mount
CVR
: Reverse type, for bottom PCB mount
CV1
: For larger diameter cables
RoHS compliant
: (50), (80)
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on
Series●Interface
search at www.hirose-connectors.com,
Portable Terminal Devices
ST
the Hirose website RoHS
Connectors for Miniature,
or contact your Hirose sales representative.

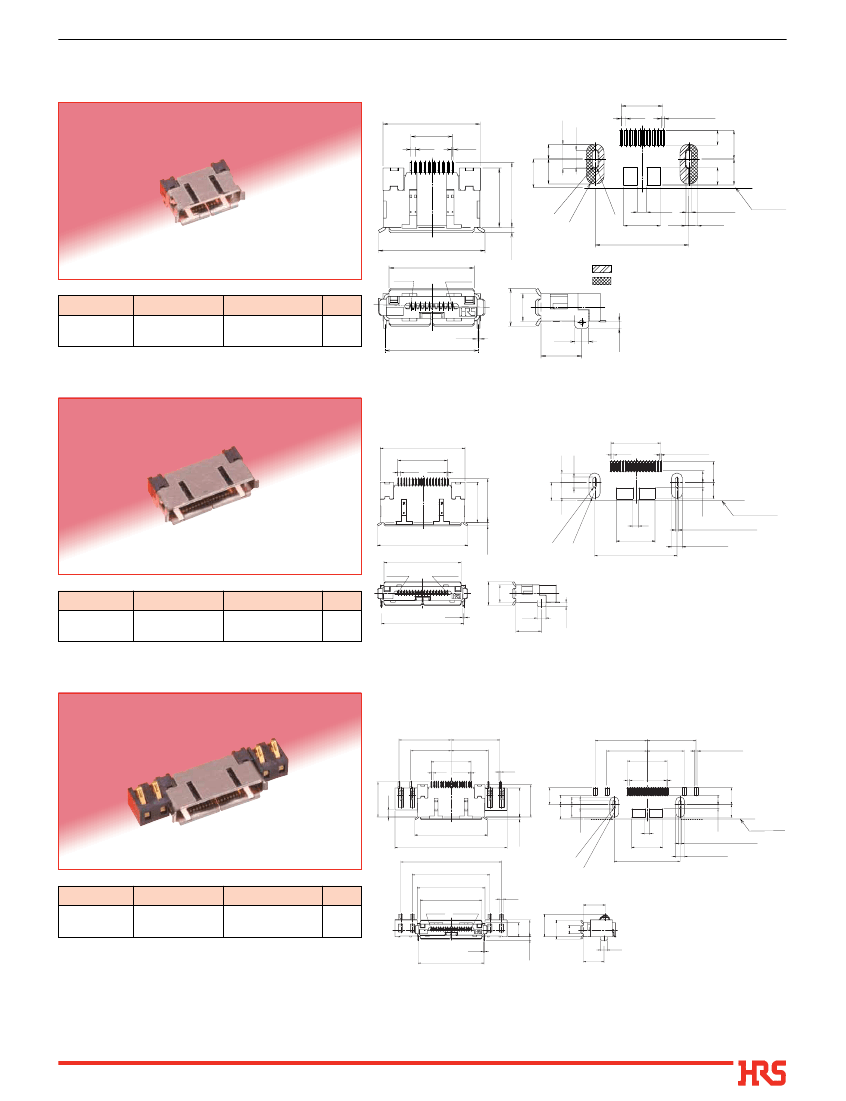

■Receptacle
●
10 pos.
10.5
4.5
0.5
B
Recommended PCB
mounting pattern
4.5
0.5
2.65
1.9
0.18
0.3(Land)
1.6
1.9
3.1
2.8
PCB edge
3.1
2.7 1.6
1
0.4
4(Land)
10.1
R0
0.6
(Through hole)
0.95
6.4
7
4
R0.
(11.5)
9.2
No.1
No.10
(0.58)
R0
.3
.85
:Copper foil + plating resist
:Land
(4)
3
Part Number
ST60-10P
CL No.
CL241-0022-5
Packaging
Reel packaging
(1500 pieces/reel)
RoHS
YES
ST60
0.3
10.1
1.5
(4.4)
●
18 pos.
B
Recommended PCB
mounting pattern
14.5
8.5
0.5 0.18
6.9
7.5
3.1
1.6
1.9
8.5
0.5
0.3(Land)
2
2.8 3.6
1
6.6(Land)
14.1
PCB edge
0.6(Through hole)
1.9(Land)
0.75
(0.58)
15.5
13.2
No.1
No.18
Part Number
CL No.
Packaging
Reel packaging
(1500 pieces/reel)
RoHS
YES
ST60
(4)
3
ST60-18P(50) CL241-0011-9-50
14.1
0.3
1.5
4.4
●
18 pos. with 4 power contacts
0.75
.3
2.7
R0.
85
R0
B
Recommended PCB
mounting pattern
11.15
10.45
8.65
7.95
8.5
0.5 0.18
7.5
1.5
11.15
8.65
0.4
3.6
3.1 2
2.7 1.6
6.2
6.9
10.45
7.95
0.8(Land)
8.5
0.3
0.5 (Land)
2
2.8 3.6
1
6.6(Land)
14.1
0.9
R
R0
0.3
1.9
.85
Part Number
CL No.
Packaging
Reel packaging
(1000 pieces/reel)
RoHS
YES
(15.5)
24
21.6
16.6
14.5
13.2
No.1 No.18
ST60
PCB edge
0.6(Through hole)
1.9(Land)
0.8
3
0.75 3.6
4.8
4
1.76
(0.58)
(4.7)
ST60-18P/4(50) CL241-0005-6-50
0.3
14.1
1.5
4.4
0.9
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
ST Series●Interface Connectors for Miniature, Portable Terminal Devices
●

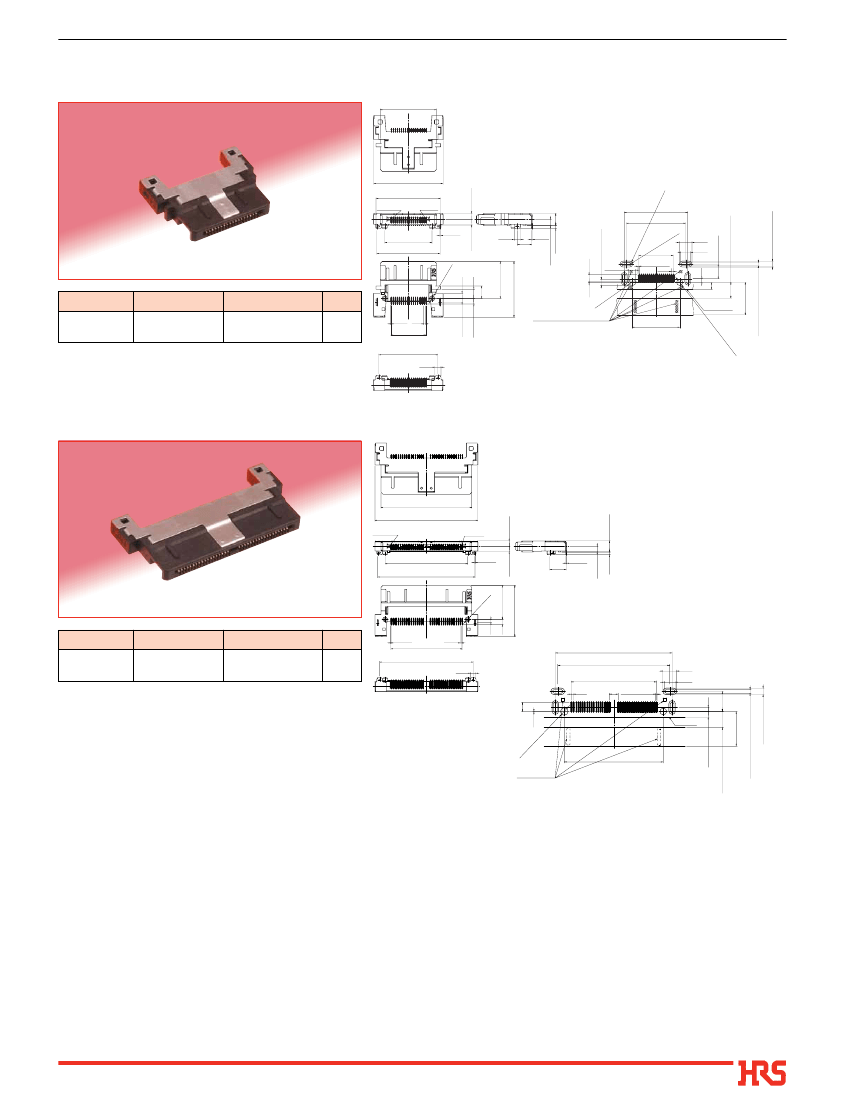

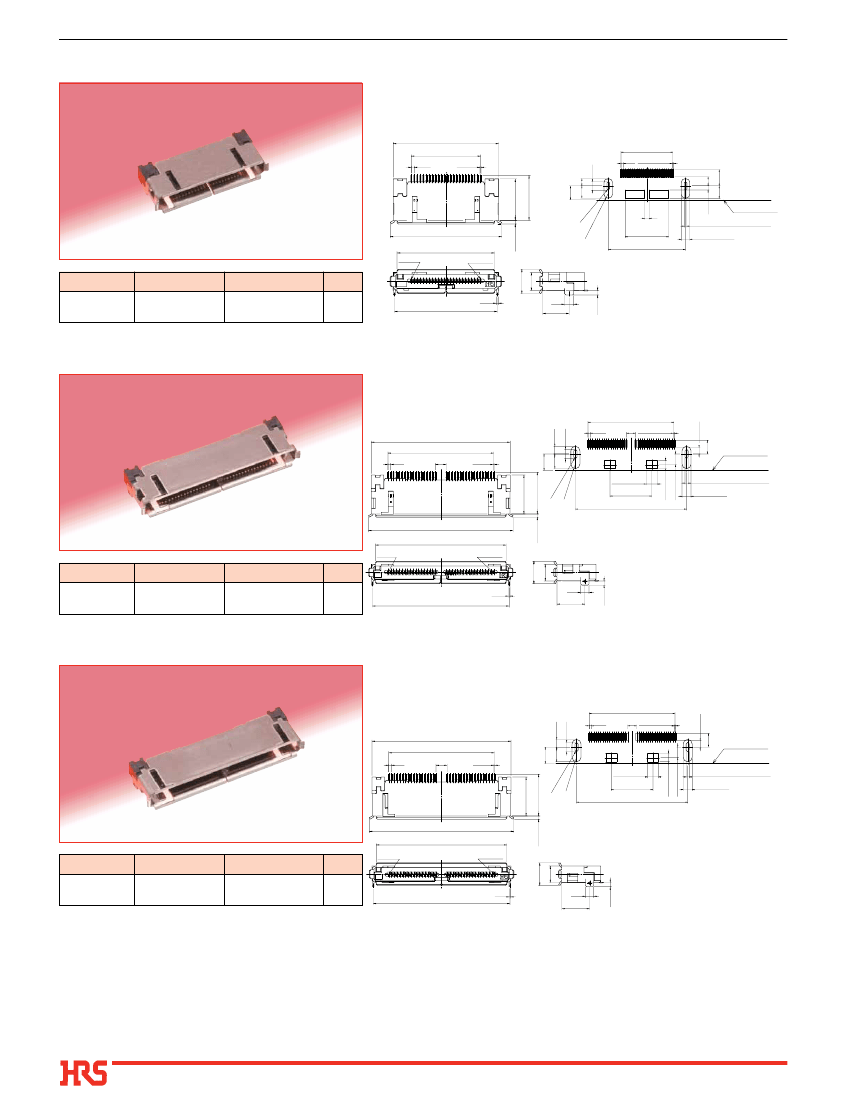

24 pos.
B
Recommended PCB
mounting pattern
17.5
11.5
3.1
R0
2.71.6
R0
.85
.3
1.9
0.5
0.18
6.9
7.5
11.5
0.5 0.3(Land)
2
2.8 3.6
1
9.6(Land)
17.1
(18.5)
16.2
No.1
No.24
Part Number
CL No.
Packaging
Reel packaging
(1500 pieces/reel)
RoHS
YES
ST60
ST60-24P(50) CL241-0003-0-50
17.1
●
36 pos.
B
Recommended PCB
mounting pattern
25
19
2
1.7
2.1
0.5
1.45
19
2 0.35(Land)
3.05
3.05
0.75
0.3
(4)
3
(0.58)
PCB edge
0.6(Through hole)
1.9(Land)
1.5
4.4
0.9
0.5
0.18
3.65
R0
3.25
.3
R1
5
PCB edge
2.45(Land)
9.25
24.6
(26)
23.5
No.1
No.36
Part Number
ST60-36P
CL No.
CL241-0033-1
Packaging
Reel packaging
(1500 pieces/reel)
RoHS
YES
ST60
(4.06)
3
(0.58)
7
7.5
0.3
24.6
1.5
5
●
36 pos. reverse type
B
Recommended PCB
mounting pattern
1.7
2.1
0.5
1.45
19
2 0.35(Land)
0.5
0.18
3.65
R0
.3
3.25
R1
5
25
19
2
0.75
1.8
2.35
0.7(Through hole)
2(Land)
PCB edge
2.45(Land)
9.25
24.6
(26)
23.5
No.1
No.36
24.6
4
0.75
ST60-36PR
CL241-0036-0
Reel packaging
(1500 pieces/reel)
ST60
YES
(4.06)
3
Part Number
CL No.
Packaging
RoHS
0.3
(0.58)
7
7.5
1.5
5
1.8
2.35
0.7(Through hole)
2(Land)
