2TL48-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 2TL48-2

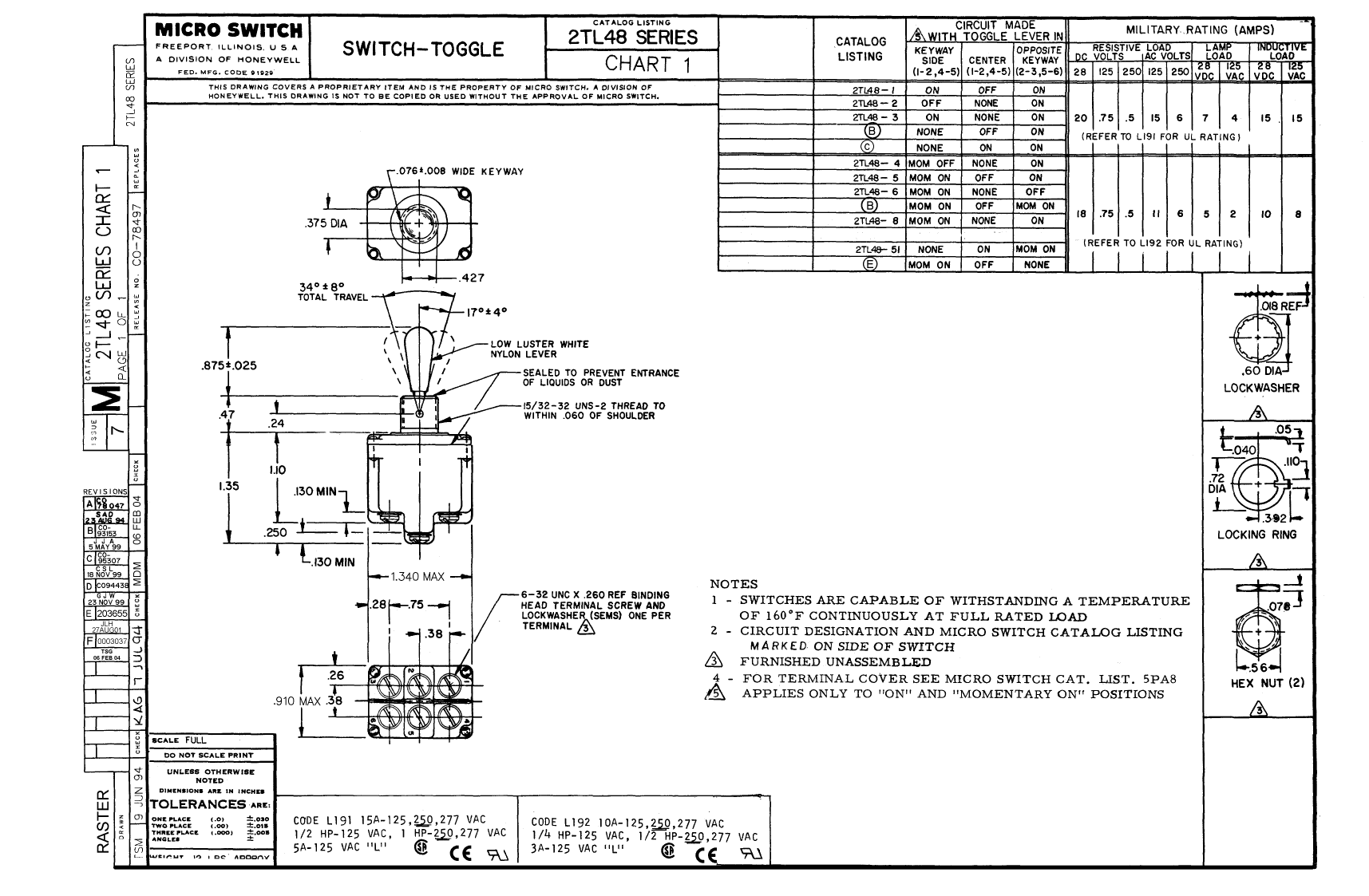

2TL48-2: DescriptionToggle Switch, DPST, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size86KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

2TL48-2 Overview

Toggle Switch, DPST, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded

2TL48-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	LEVER
body width	23.11 mm
body height	34.29 mm
Body length or diameter	34.04 mm
Contact (AC) maximum rated R load	15A@277VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	277 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	2TL48
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

2TL48-2 Related Products

	2TL48-2	2TL48-4	2TL48-1	2TL48-51	2TL48-5	2TL48-6	2TL48-8	2TL48-3
Description	Toggle Switch, DPST, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Latched And Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPST, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, 15A, 28VDC, Screw Terminal, Lever Actuator, Panel Mount-threaded	switch toggle dpdt 15a 125v
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER
body width	23.11 mm	23.11 mm	23.11 mm	23.11 mm	23.11 mm	23.11 mm	23.11 mm	23.11 mm
body height	34.29 mm	34.29 mm	34.29 mm	34.29 mm	34.29 mm	34.29 mm	34.29 mm	34.29 mm
Body length or diameter	34.04 mm	34.04 mm	34.04 mm	34.04 mm	34.04 mm	34.04 mm	34.04 mm	34.04 mm
Contact (AC) maximum rated R load	15A@277VAC	10A@277VAC	15A@277VAC	10A@277VAC	10A@277VAC	10A@277VAC	10A@277VAC	15A@277VAC
Maximum contact current (AC)	15 A	10 A	15 A	10 A	10 A	10 A	10 A	15 A
Maximum contact current (DC)	20 A	15 A	20 A	15 A	15 A	15 A	15 A	20 A
Contact (DC) maximum rated R load	20A@28VDC	15A@28VDC	20A@28VDC	15A@28VDC	15A@28VDC	15A@28VDC	15A@28VDC	20A@28VDC
Maximum contact voltage (AC)	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V	28 V	28 V	28 V	28 V
Manufacturer's serial number	2TL48	2TL48	2TL48	2TL48	2TL48	2TL48	2TL48	2TL48
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	MOMENTARY	LATCHED	MOMENTARY	LATCHED AND MOMENTARY	MOMENTARY	MOMENTARY	LATCHED
switch function	DPST	DPDT	DPDT	DPDT	DPDT	DPST	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1	1	1	1
