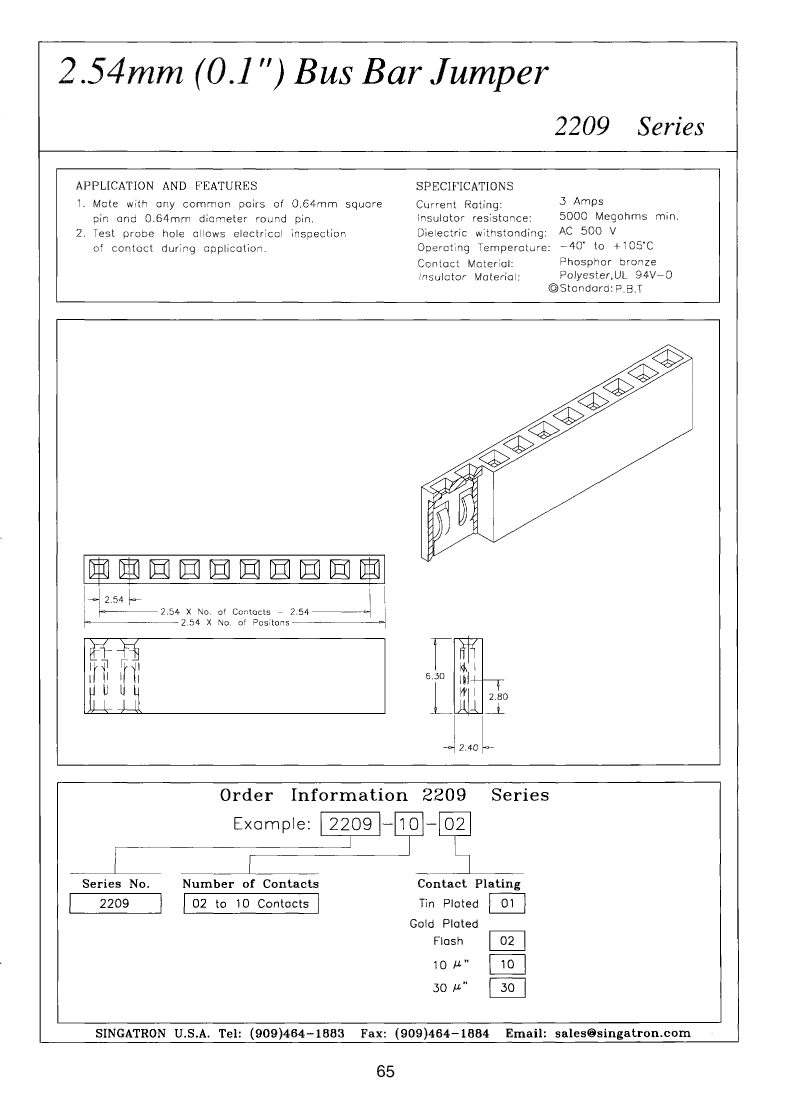

2209-02-02 datasheet, PDF - EEWORLD Datasheet

2209-02-02: DescriptionInterconnection Device; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2209-02-02 Overview

Interconnection Device

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	BUS BAR JUMPER
body width	0.095 inch
subject depth	0.248 inch
body length	0.2 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2209
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	2
Base Number Matches	1
