2TP18-6 Overview

Rocker Switch, DPST, Momentary, Screw Terminal, Rocker Actuator, Panel Mount

2TP18-6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	ROCKER
body width	22.06 mm
body height	41.66 mm
Body length or diameter	55.12 mm
Contact (AC) maximum rated R load	10A@277VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	277 V
Manufacturer's serial number	2TP18
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	DPST
Switch type	ROCKER SWITCH
Termination type	SCREW
Base Number Matches	1

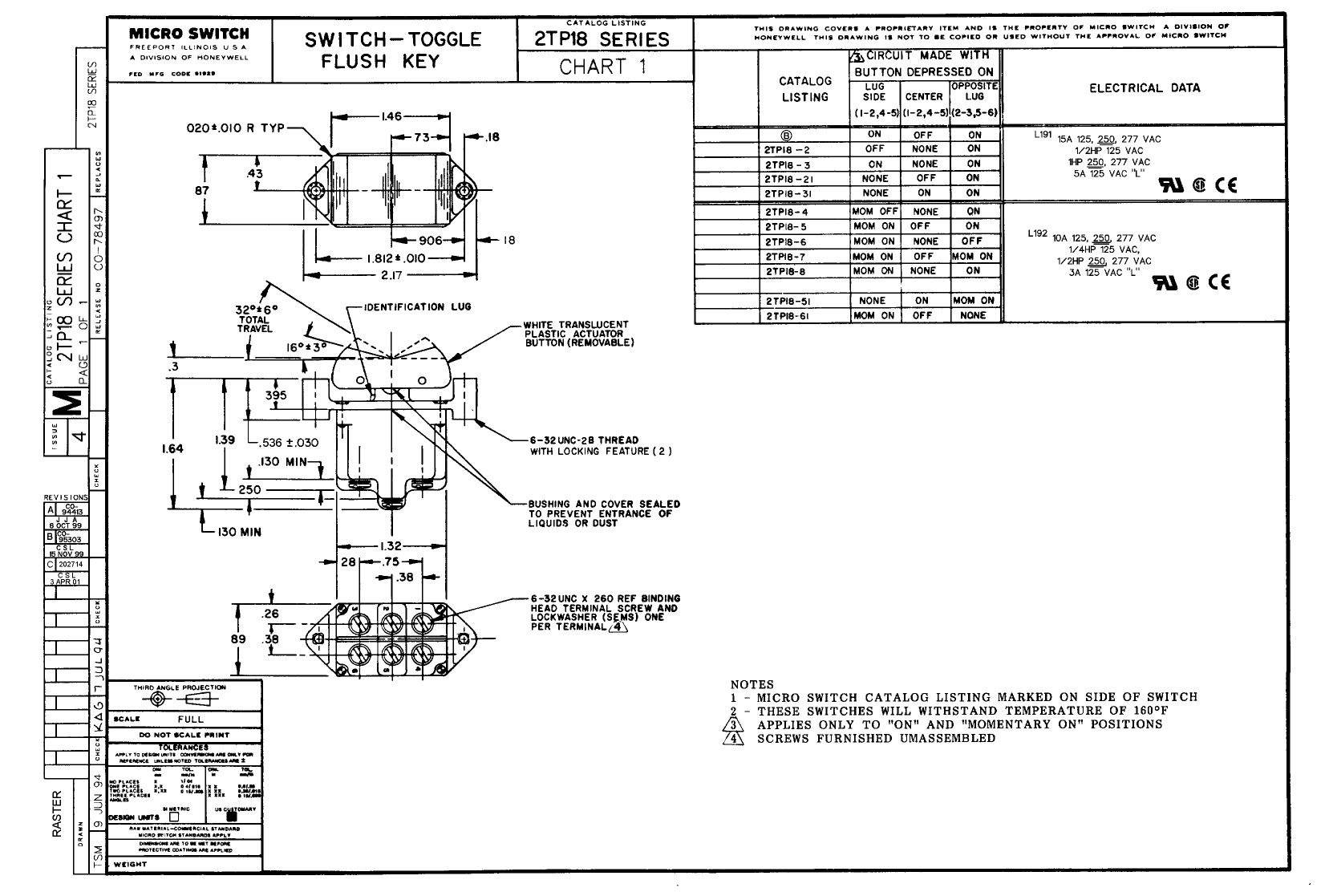

Preview

Download Datasheet

View All

2TP18-6 Related Products

	2TP18-6	2TP18-51	2TP18-21	2TP18-61	2TP18-4	2TP18-31	2TP18-3	2TP18-5	2TP18-8	2TP18-2
Description	Rocker Switch, DPST, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Latched And Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPDT, Momentary, Screw Terminal, Rocker Actuator, Panel Mount	Rocker Switch, DPST, Latched, Screw Terminal, Rocker Actuator, Panel Mount
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER	ROCKER
body width	22.06 mm	22.06 mm	22.06 mm	22.06 mm	22.06 mm	22.06 mm	22.06 mm	22.06 mm	22.06 mm	22.06 mm
body height	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm	41.66 mm
Body length or diameter	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm	55.12 mm
Contact (AC) maximum rated R load	10A@277VAC	10A@277VAC	15A@277VAC	10A@277VAC	10A@277VAC	15A@277VAC	15A@277VAC	10A@277VAC	10A@277VAC	15A@277VAC
Maximum contact current (AC)	10 A	10 A	15 A	10 A	10 A	15 A	15 A	10 A	10 A	15 A
Maximum contact voltage (AC)	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V	277 V
Manufacturer's serial number	2TP18	2TP18	2TP18	2TP18	2TP18	2TP18	2TP18	2TP18	2TP18	2TP18
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	LATCHED	MOMENTARY	MOMENTARY	LATCHED	LATCHED	LATCHED AND MOMENTARY	MOMENTARY	LATCHED
switch function	DPST	DPDT	DPST	DPST	DPDT	DPDT	DPDT	DPDT	DPDT	DPST
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1	1	1	1	1	1
