MC12FA131J-T-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> MC12FA131J-T-F

MC12FA131J-T-F: DescriptionCAPACITOR, MICA, 100 V, 0.00013 uF, SURFACE MOUNT, 1210, CHIP, 1210, ROHS COMPLIANT; CategoryPassive components capacitor; File Size438KB，9 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance; Related ProductsFound6parts with similar functions to MC12FA131J-T-F

Download Datasheet Parametric View All

MC12FA131J-T-F Overview

CAPACITOR, MICA, 100 V, 0.00013 uF, SURFACE MOUNT, 1210, CHIP, 1210, ROHS COMPLIANT

MC12FA131J-T-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	, 1210
Reach Compliance Code	compli
capacitance	0.00013 µF
Capacitor type	MICA CAPACITOR
dielectric materials	MICA
JESD-609 code	e3
Manufacturer's serial number	MC
Installation features	SURFACE MOUNT
negative tolerance	5%
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TAPE
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
size code	1210
surface mount	YES
Temperature Coefficient	25+/-25ppm/Cel ppm/°C
Terminal surface	TIN
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

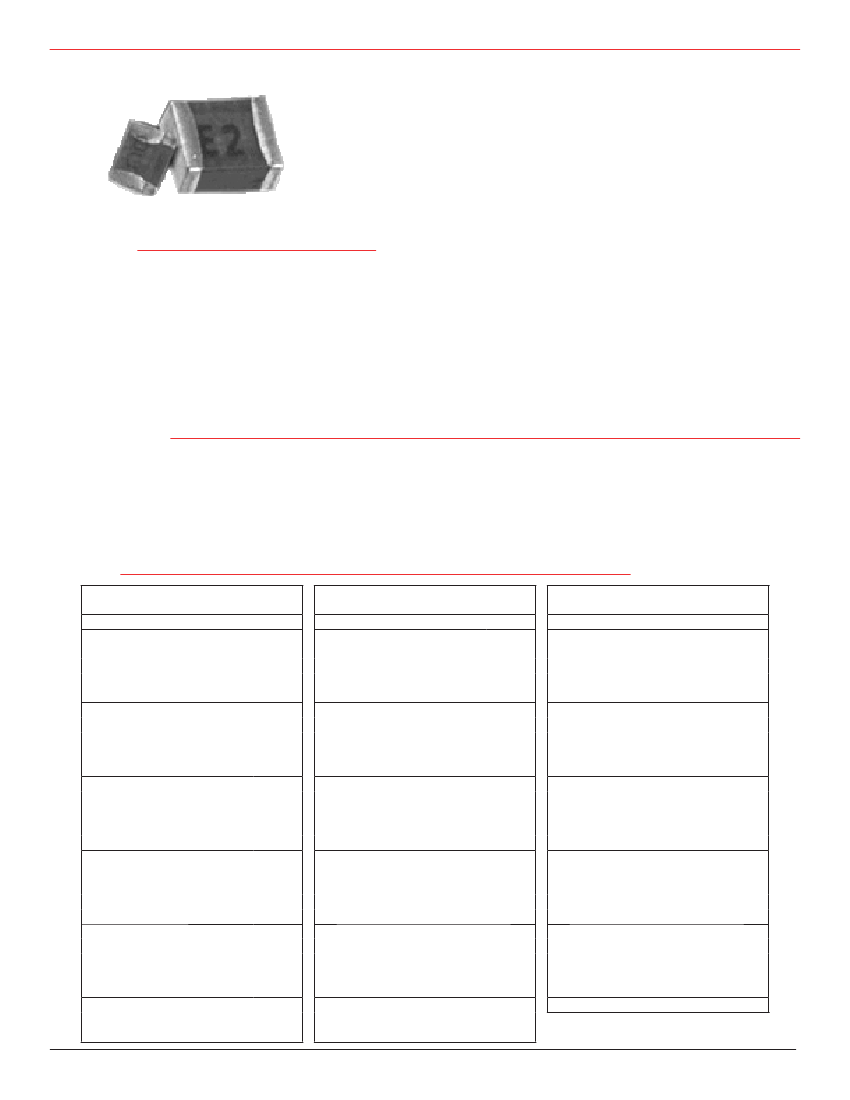

Types MC and MCN

Multilayer RF Capacitors

High-Frequency, High-Power Chips and New Nonmagnetic Option.

Rugged ﬂexibility and compatibility with FR4 boards make Type

MC and MCN capacitors ideal for use where other larger size

multilayer caps aren’t recommended. The natural mica dielectric

retains its high-Q to many megahertz, so higher frequency

applications are limited by the circuit inductance, not the Type MC

capacitor. Now new

nonmagnetic

Type MCN chips are available

for MRI and other high frequency applications that often use more

expensive porcelain ceramic chips.

Highlights

•

Extremely high Q at UHF/VHF frequencies

Free from thermal cracking, FR4 compatible

Wave solderable

Nonmagnetic option

Withstands 2 mm bend test

Better than porcelain

High RF current — dV/dt 20,000 V/µs

Rock stable: No change with time, V & f

Voltages:

Max. Allowable Voltage:

Capacitance Range:

Capacitance Tolerance:

Temperature Range:

Case Sizes:

Case

Type

Cap

(pF)

Applications

•

MRI Coils and Generators

RF Instruments

Power Ampliﬁers

Transmitters

CATV

Ground and Flight Mobile Radio

Lasers

Low-noise Ampliﬁers

Speciﬁcations

Ratings

Cap

(pF)

100 Vdc, 500 Vdc, and 1000 Vdc

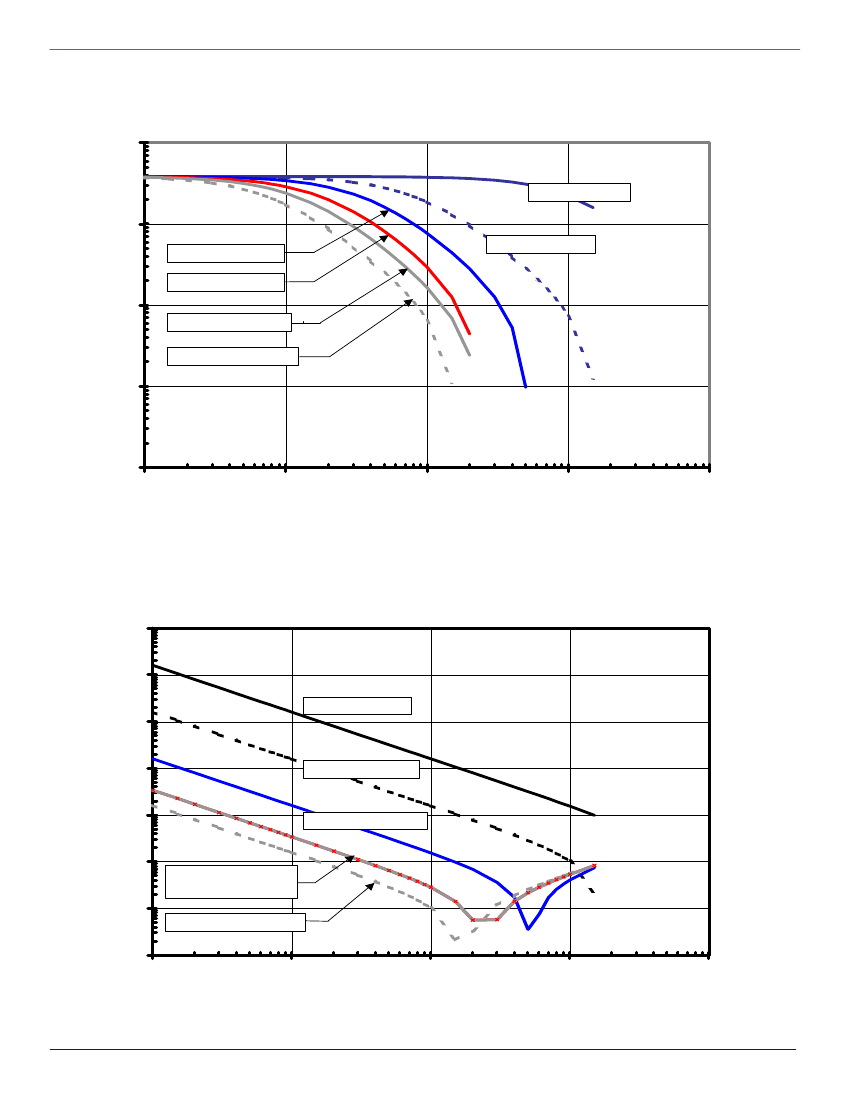

135 VRMS & 200 V pk-pk (see graph pg. 6)

0.5 pF to 2,200 pF

±0.25% to ±5%

–55 ºC to +125 ºC

0805, 1210, 1812, and 2220

Catalog

Part Number

100 Vdc

MC08FA680J-F

MC08FA750J-F

MC08FA820J-F

MC08FA910J-F

MC08FA101J-F

MC12FA470J-F

MC12FA500J-F

MC12FA510J-F

MC12FA560J-F

MC12FA620J-F

MC12FA680J-F

MC12FA750J-F

MC12FA820J-F

MC12FA910J-F

MC12FA101J-F

MC12FA111J-F

MC12FA121J-F

MC12FA131J-F

MC12FA151J-F

MC12FA161J-F

MC12FA181J-F

MC12FA201J-F

MC12FA221J-F

MC12FA241J-F

MC12FA251J-F

MC12FA271J-F

MC12FA301J-F

MC12FA331J-F

Case

Type

Cap

(pF)

Catalog

Part Number

100 Vdc

MC12FA361J-F

MC12FA391J-F

MC12FA431J-F

MC18FA251J-F

MC18FA271J-F

MC18FA301J-F

MC18FA331J-F

MC18FA361J-F

MC18FA391J-F

MC18FA431J-F

MC18FA471J-F

MC18FA501J-F

MC18FA511J-F

MC18FA561J-F

MC18FA621J-F

MC18FA681J-F

MC18FA751J-F

MC18FA821J-F

MC22FA911J-F

MC22FA102J-F

MC22FA112J-F

MC22FA122J-F

MC22FA152J-F

MC22FA182J-F

MC22FA202J-F

MC22FA222J-F

RoHS Compliant

Case

Type

0.5

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0

10.0

12.0

15.0

18.0

20.0

22.0

24.0

27.0

30.0

33.0

36.0

39.0

43.0

47.0

50.0

51.0

56.0

62.0

Catalog

Part Number

100 Vdc

MC08CA0R5D-F

MC08CA010D-F

MC08CA020D-F

MC08CA030D-F

MC08CA040D-F

MC08CA050D-F

MC08CA060D-F

MC08CA070D-F

MC08CA080D-F

MC08CA090D-F

MC08CA100D-F

MC08EA120J-F

MC08EA150J-F

MC08EA180J-F

MC08EA200J-F

MC08EA220J-F

MC08EA240J-F

MC08EA270J-F

MC08EA300J-F

MC08FA330J-F

MC08FA360J-F

MC08FA390J-F

MC08FA430J-F

MC08FA470J-F

MC08FA500J-F

MC08FA510J-F

MC08FA560J-F

MC08FA620J-F

0805

100

110

120

130

150

160

180

200

220

240

250

270

300

330

0805

1210

360

390

430

250

270

300

330

360

390

430

470

500

510

560

620

680

750

820

910

1000

1100

1200

1500

1800

2000

2200

1210

1812

2220

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Recommended Resources

BX2 series AC arc welding machine circuit c

Timing pulse generator circuit

M51240P (TV and audio equipment) 6-function infrared remote control receiving circuit

Solar cell application circuit

One of the blind pathfinder circuits

JJlB-90～315/380-2 type auto-coupling step-down starter circuit

MC12FA131J-T-F Similar Products

Part Number	Manufacturer	Description
MC12FA131J-T	CDE [ CORNELL DUBILIER ELECTRONICS ]	Mica Capacitor, Mica, 100V, 5% +Tol, 5% -Tol, 25+/-25ppm/Cel TC, 0.00013uF, Surface Mount, 1210, CHIP
MC12FA131JT-F	CDE [ CORNELL DUBILIER ELECTRONICS ]	CAPACITOR, MICA, 100 V, 0.00013 uF, SURFACE MOUNT, 1210, CHIP, 1210, ROHS COMPLIANT
MC12FA131J-F	CDE [ CORNELL DUBILIER ELECTRONICS ]	CAPACITOR, MICA, 100 V, 0.00013 uF, SURFACE MOUNT, 1210
MC12FA131J	CDE [ CORNELL DUBILIER ELECTRONICS ]	Mica Capacitor, Mica, 100V, 5% +Tol, 5% -Tol, 25+/-25ppm/Cel TC, 0.00013uF, Surface Mount, 1210, CHIP
MC12FA131JF	CDE [ CORNELL DUBILIER ELECTRONICS ]	CAPACITOR, MICA, 100 V, 0.00013 uF, SURFACE MOUNT, 1210, CHIP, ROHS COMPLIANT
MCN12FA131J	CDE [ CORNELL DUBILIER ELECTRONICS ]	Mica Capacitor, Multilayer, Mica, 100V, 5% +Tol, 5% -Tol, 25+/-25ppm/Cel TC, 0.00013uF, Surface Mount, 1210, CHIP
