DTSHW-21R-Q-B Overview

Keypad Switch

DTSHW-21R-Q-B Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	DTSHW-2
Switch type	KEYPAD SWITCH

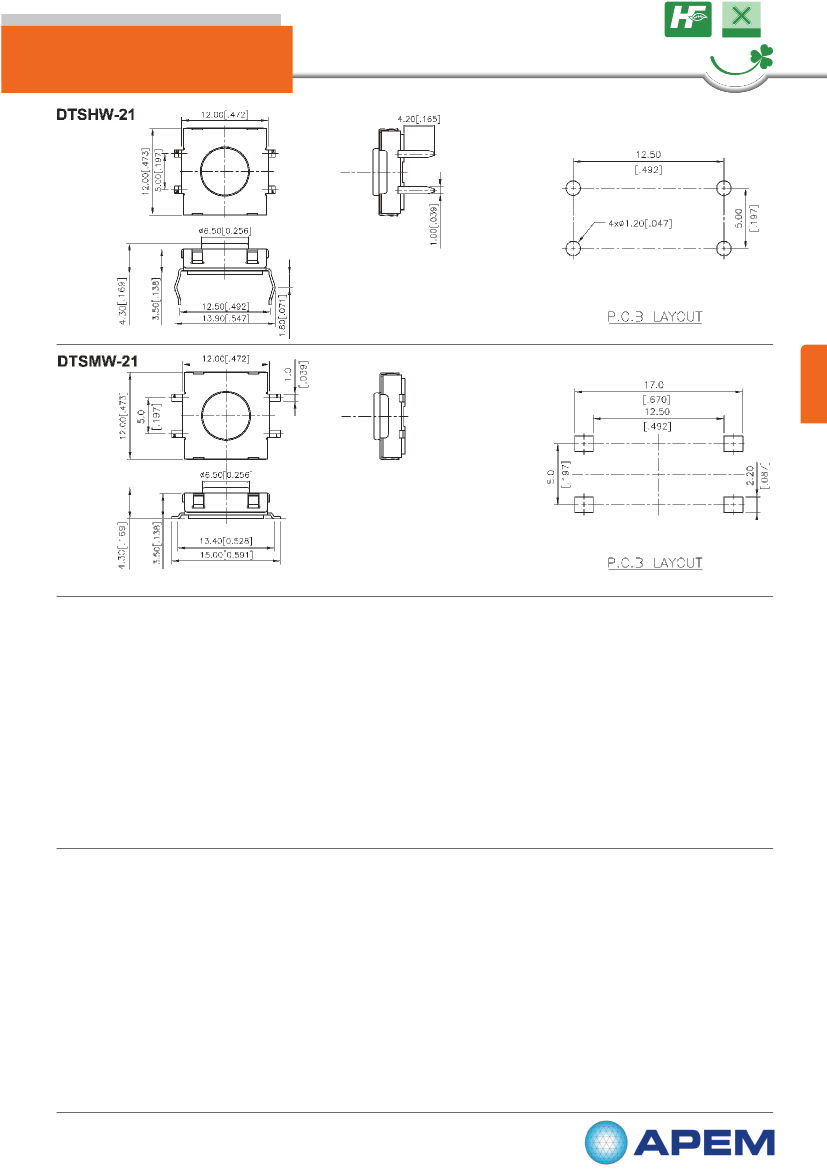

Preview

Download Datasheet

View All

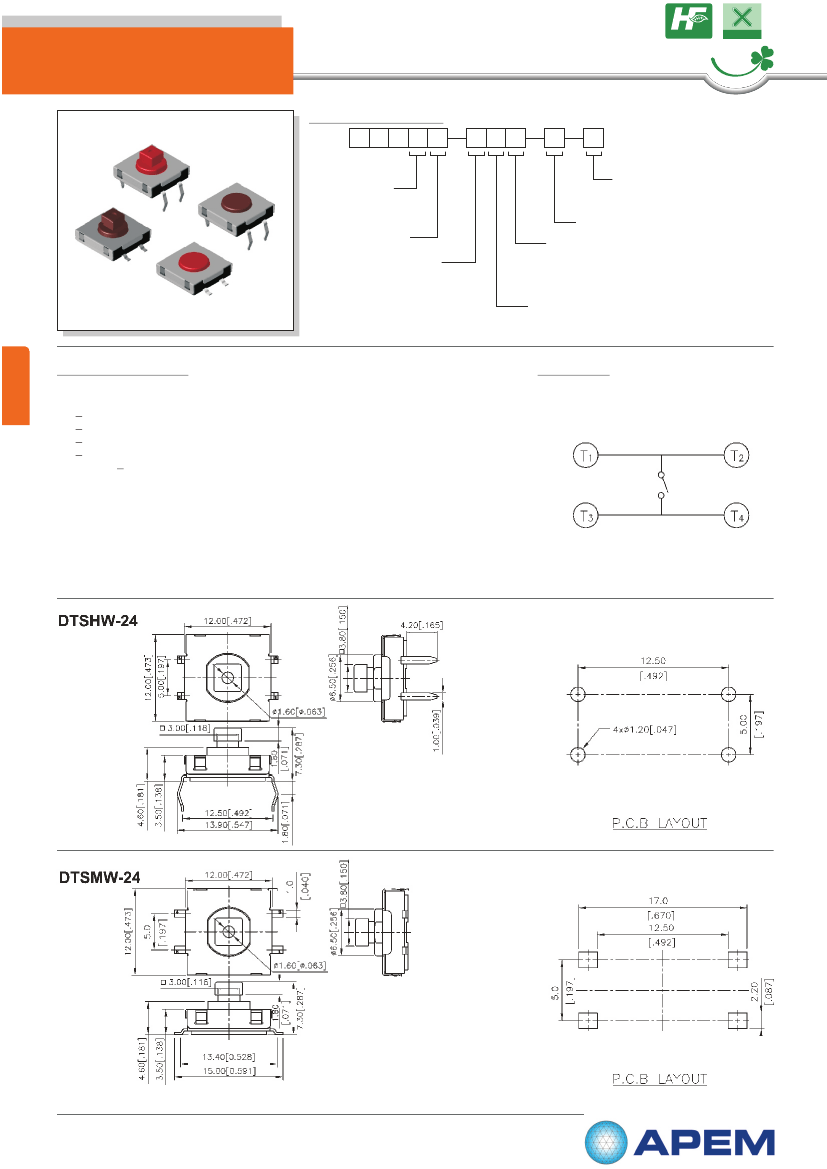

DTS( )W-2

SERIES

SMT & Through Hole

Washable Type

HOW TO ORDER

D

T

S

W

2

Q

Halogen Free

LEAD FREE

Pb

RoHS

Compliant

Termination Type:

M=SMT

H=Through Hole

Washable

12.0x12.0mm

Package:

B=Tube

T/R=Tape & Reel (Only for SMT)

Halogen Free

Operating Force:

N=Brown, 160gf

R=Red, 260gf

W=White, 320gf

Y=Yellow, 520gf

Height:

1=4.3mm

4=7.3mm

SPECIFICATION

MECHANICAL

Operation Force:

520+130gf Yellow (Y)

320+80gf Salmon (S)

260+50gf Red (R)

160+50gf Brown (N)

Stroke: 0.35+0.10mm

ENVIRONMENTAL

o

Operation Temperature Range : -40C to +85C

o

Storage Temperature Range : -40C to +85C

ELECTRICAL

Electrical Life: 1,000,000 cycles for 160g, 260g.

500,000 cycles for 320g, 520g.

Rating: 50mA, 50VDC

PACKAGE

Tube: 39 pcs/tube

Tape & Reel:

DTSMW-21: 700 pcs/reel

DTSMW-24: 500 pcs/reel

CIRCUIT

TACT SWITCH

61

www.dip.com.tw
