TP7T10MBK: Description7.2 x 7.2 mm Sealed Tactile Switches; File Size67KB，1 Pages; ManufacturerGREATECS; Websitehttp://www.greatecs.com/

Download Datasheet View All

TP7T10MBK Overview

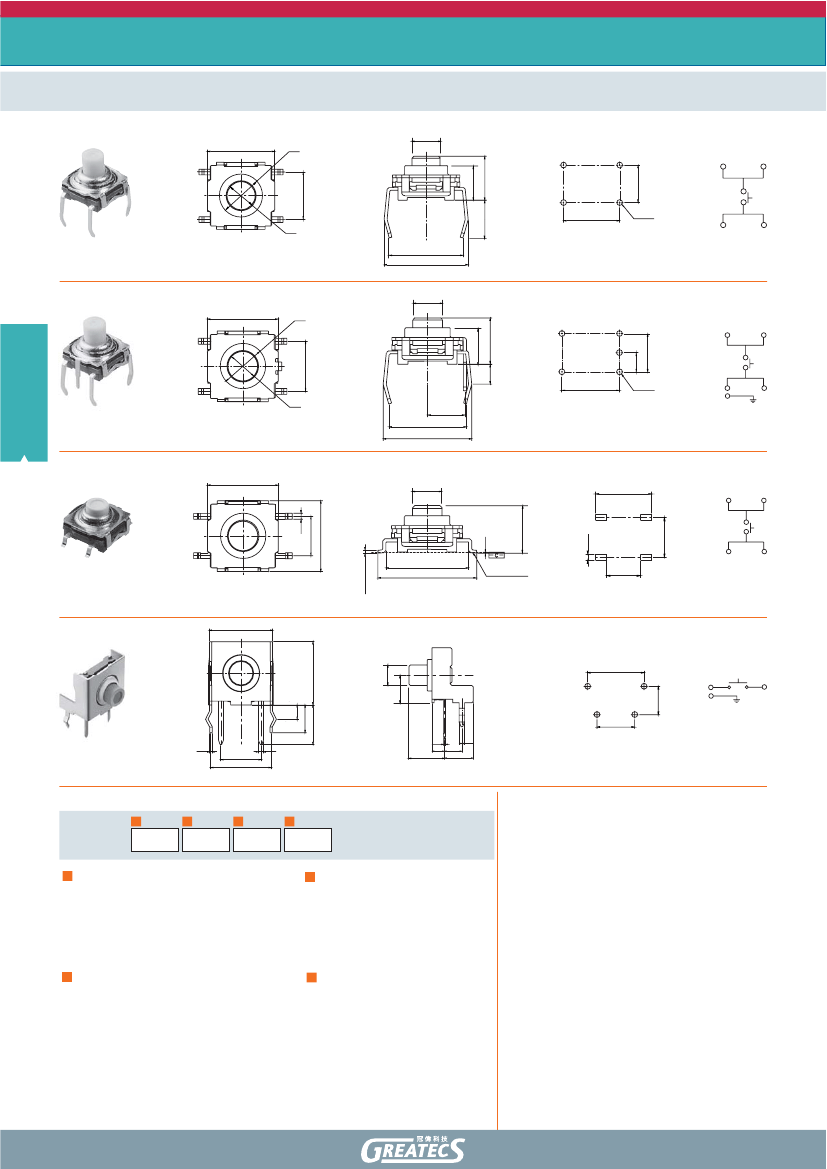

7.2 x 7.2 mm Sealed Tactile Switches

Preview

Download Datasheet

View All

Tactile Switches

7.2 x 7.2 mm Sealed Tactile Switches

Ø3.0

7.2

Ø4.6

5.08

TP7 Series

5.1

Ø3.0

7.6

9.0

2.0

7.62

PCB LAYOUT

Ø0.9

CIRCUIT

TP7T

THT Terminals without Earth

7.2

Ø3.0

Ø4.6

2.5

5.08

2.0

7.62

Ø3.0

7.6

9.0

3.8

PCB LAYOUT

Ø0.9

CIRCUIT

Ø3.0

12.0

0.3

8.4

10.0

0.1

1.0

0.1mm COPLANER

9.2

PCB LAYOUT

4.0

0.6

4.0

7.2

Ø3.0

8.0

4.0

1.8

3.5

5.0

2.54

E07

Tactile Switches

TP7TE

THT Terminals with Earth

7.2

5.1

CIRCUIT

TP7S

SMT Terminals

8.0

7.62

5.08

0.3

0.8

1.8 2.54

4.2

PCB LAYOUT

CIRCUIT

0.3

5.1

7.7

TP7RT

THT Terminals Right Angle

How to order:

General Speciﬁcations:

FEATURES

» Positive tactile feedback

» Sealed against ﬂux soldering

» Unique dust-proof construction

MATERIALS

» Contact: Stainless steel / Phosphor bronze

MECHANICAL

» Travel: 0.25 ± 0.1 mm

» Operating Life: 1,000,000 cycles for stainless

contact; 100,000 cycles for phosphor contact

» Operating Temperature: -10°C ~ +50°C

ELECTRICAL

» Rating: DC 12V 50mA

» Contact Resistance: 100m

TP7

TYPE OF TERMINALS:

THT Terminals without Earth

THT Terminals with Earth

SMT Terminals

THT Terminals Right Angle

DIMENSION L :

L=4.7mm

(Only for TP7T, TP7TE & TP7S)

L=5.2mm

(Only for TP7T, TP7TE & TP7S)

L=6.9mm

(Only for TP7T, TP7TE & TP7S)

L=10mm

(Only for TP7T, TP7TE & TP7S)

L=3.5mm

(Only for TP7RT)

L=4.0mm

(Only for TP7RT)

L=5.7mm

(Only for TP7RT)

L=8.7mm

(Only for TP7RT)

OPERATING FORCE:

130 gf

160 gf

250 gf

300 gf

PACKAGING:

Box

Tube

max.

sales@greatecs.com

www.greatecs.com
