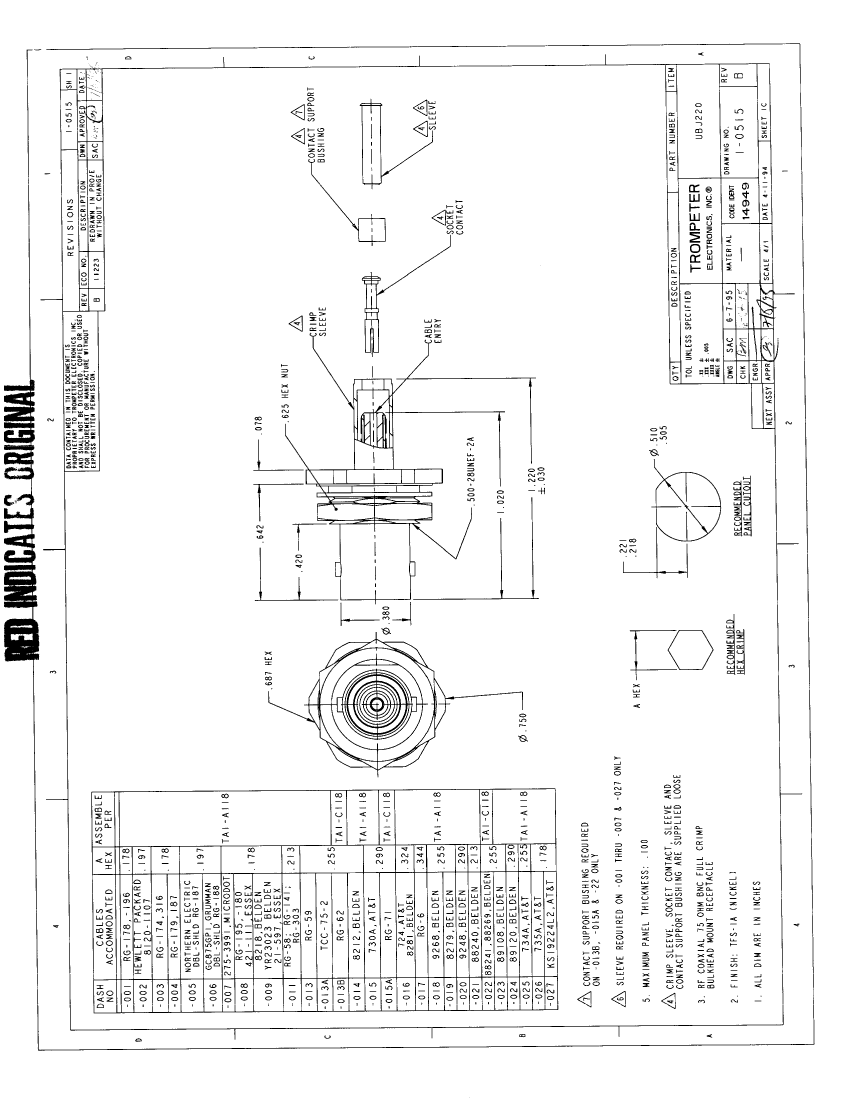

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | APPLICABLE CABLES: RG-179; RG-187 |
| subject depth | 0.742 inch |
| Body diameter | 0.38 inch |
| Body/casing type | JACK |
| Cable type | RG-174 |
| Characteristic impedance | 75 Ω |
| Connector type | RF BNC CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact style | COAX |
| Coupling type | BAYONET |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| MIL compliance | NO |
| Manufacturer's serial number | UBJ220 |
| Plug information | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Number of ports | 1 |
| Maximum operating frequency | 4 GHz |
| Maximum operating temperature | 165 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | YES |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Termination type | CRIMP |
| Total number of contacts | 1 |
| voltage standing wave ratio | 1.3 |
| UBJ220-004 | UBJ220-009 | UBJ220-008 | UBJ220-011 | UBJ220-014 | UBJ220-013 | UBJ220-022 | UBJ220-006 | UBJ220-020 | UBJ220-023 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack | RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug | RF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack | RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug | RF BNC Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack | RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug | RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug | RF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack | RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug |
| Reach Compliance Code | unknown | unknow | unknow | unknow | unknow | unknown | unknown | unknown | unknown | unknown |
| Other features | APPLICABLE CABLES: RG-179; RG-187 | APPLICABLE CABLES: BELDEN 8218; BELDEN 9068 | APPLICABLE CABLE: BELDEN 83266 | APPLICABLE CABLES: BELDEN 8219; BELDEN 8259 | APPLICABLE CABLES: BELDEN 8212; BELDEN 9054 | APPLICABLE CABLES: BELDEN 8219; BELDEN 8259 | APPLICABLE CABLES: BELDEN 8279; BELDEN 89269 | APPLICABLE CABLE: BELDEN 1671J | APPLICABLE CABLES: BELDEN 9066; BELDEN 9114 | APPLICABLE CABLES: BELDEN 87108; BELDEN 89108 |
| Body/casing type | JACK | JACK | PLUG | JACK | PLUG | JACK | PLUG | PLUG | JACK | PLUG |
| Characteristic impedance | 75 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω | 75 Ω |
| Connector type | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR | RF BNC CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NICKEL | NOT SPECIFIED | NICKEL | NOT SPECIFIED | NICKEL | NICKEL | NOT SPECIFIED | NICKEL |
| Contact point gender | FEMALE | FEMALE | MALE | FEMALE | MALE | FEMALE | MALE | MALE | FEMALE | MALE |
| Coupling type | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET | BAYONET |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUOROETHYLENE | POLYTETRAFLUORO ETHYLENE |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE | CABLE AND PANEL | CABLE |
| Maximum operating frequency | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | YES | YES | NO | YES | NO | YES | NO | NO | YES | NO |
| Termination type | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP | CRIMP |
| voltage standing wave ratio | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| ECCN code | EAR99 | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Manufacturer's serial number | UBJ220 | UBJ220 | UBJ220 | UBJ220 | UBJ220 | UBJ220 | UBJ220 | UBJ220 | - | UBJ220 |
| Plug information | NO | NO | NO | NO | NO | NO | NO | NO | - | NO |
