TPA-5 Overview

ELECTRIC FUSE, 5A, 170VDC, INLINE/HOLDER

Preview

Download Datasheet

View All

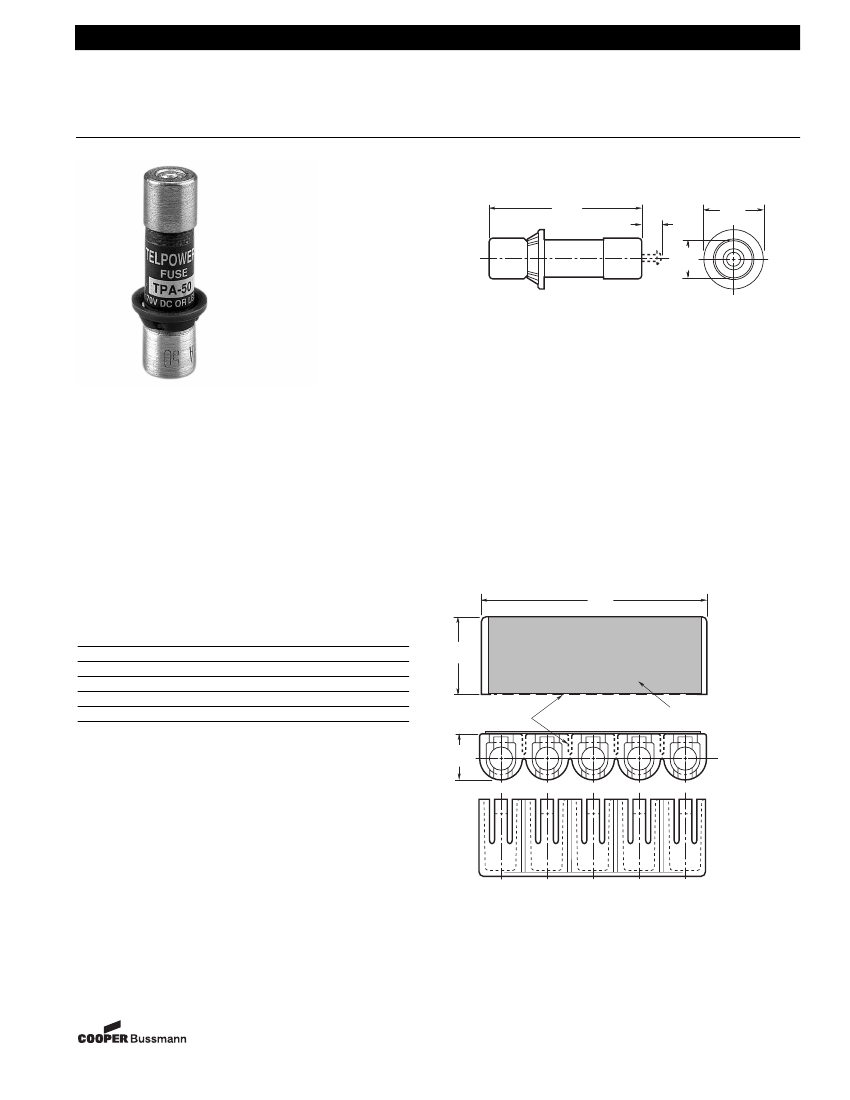

Bussmann

Telpower DC Power Distribution Fuses

TPA

170 Volts, DC, 3–50 Amps

Dimensional Data – TPA Fuses

38.10

1.50"

4.83

.19"

10.31

.41"

14.61

.58"

CATALOG SYMBOL: TPA and TPA-B

DC POWER DISTRIBUTION FUSES

AMPERE RATING: 3-50 Amps

VOLTAGE RATING: TPA - 170 VOLTS DC; TPA-B - 65V DC

INTERRUPTING RATINGS: TPA, 100 kA; TPA-B, 20kA

CONSTRUCTION:

• SILVER-PLATED BRASS FERRULES AND INDICATOR PIN.

• GLASS MELAMINE TUBE.

AGENCY APPROVALS:

U.L. RECOGNIZED (GUIDE # JFHR2, FILE E56412)

CSA CERTIFIED, CLASS 1422-30, FILE 53787

• Recognized branch circuit protection.

• Current-limiting capability.

• Complete system coordination capability.

• Use with Telpower

TP15914 and TP15900-4

Disconnect Switches.

• Five position spare fuseholder available –

Part No. 5TPH.

Five Position Spare Fuseholder – 5TPH

75.57

2.98"

Catalog Numbers

TPA-3

TPA-5

TPA-10

TPA-15

TPA-20

TPA-25

TPA-30

TPA-40

TPA-50

TPA-B-20

TPA-B-25

26.16

1.03"

SPARE FUSE

HOLDER BODY

15.88

.63"

DOUBLE SIDED

ADHESIVE TAPE

12-28-98

SB98107

Rev. A

Form No. TPA

Page 1 of 2

BIF Doc #5012
