54150-0801 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54150-0801

54150-0801: DescriptionBoard Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size403KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54150-0801 Overview

Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,

54150-0801 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SLIMSTACK
Board mount options	SOLDER HOLDING FLANGE
body width	0.161 inch
subject depth	0.079 inch
body length	0.941 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHTHALAMIDE
MIL compliance	NO
Manufacturer's serial number	54150
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.6228 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
UL Flammability Code	94V-0
Evacuation force-minimum value	.0556 N
Base Number Matches	1

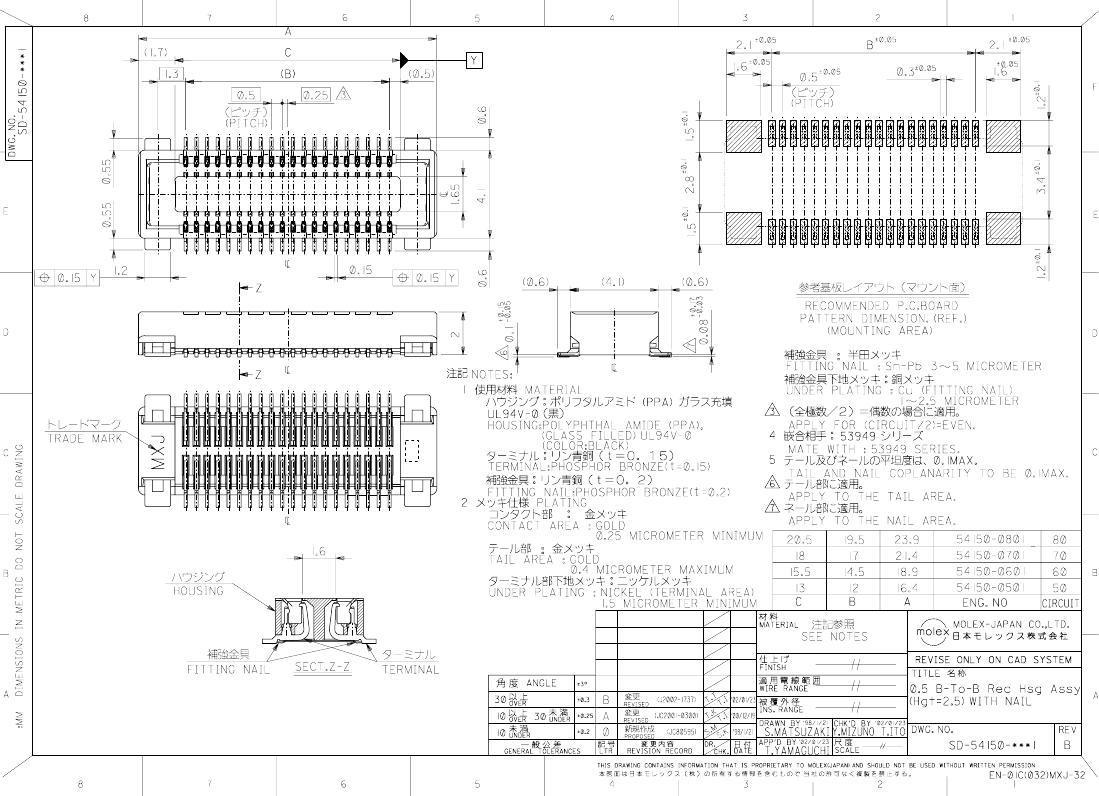

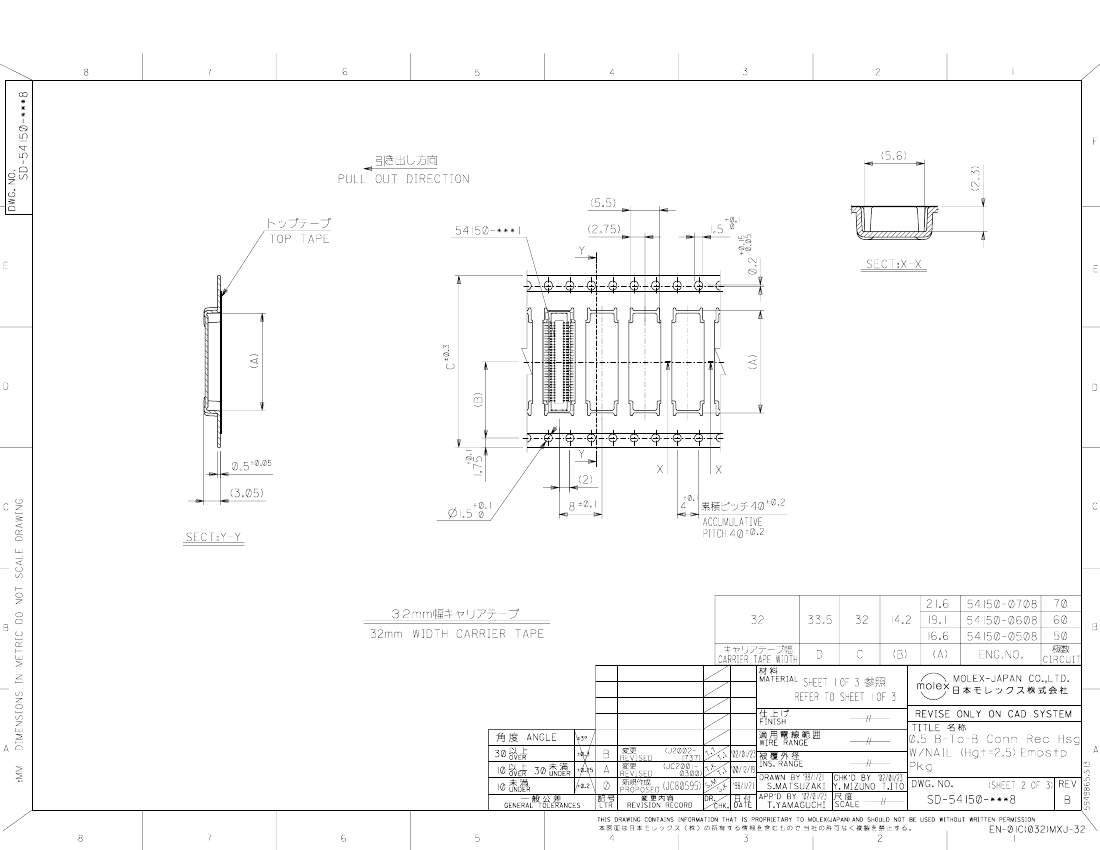

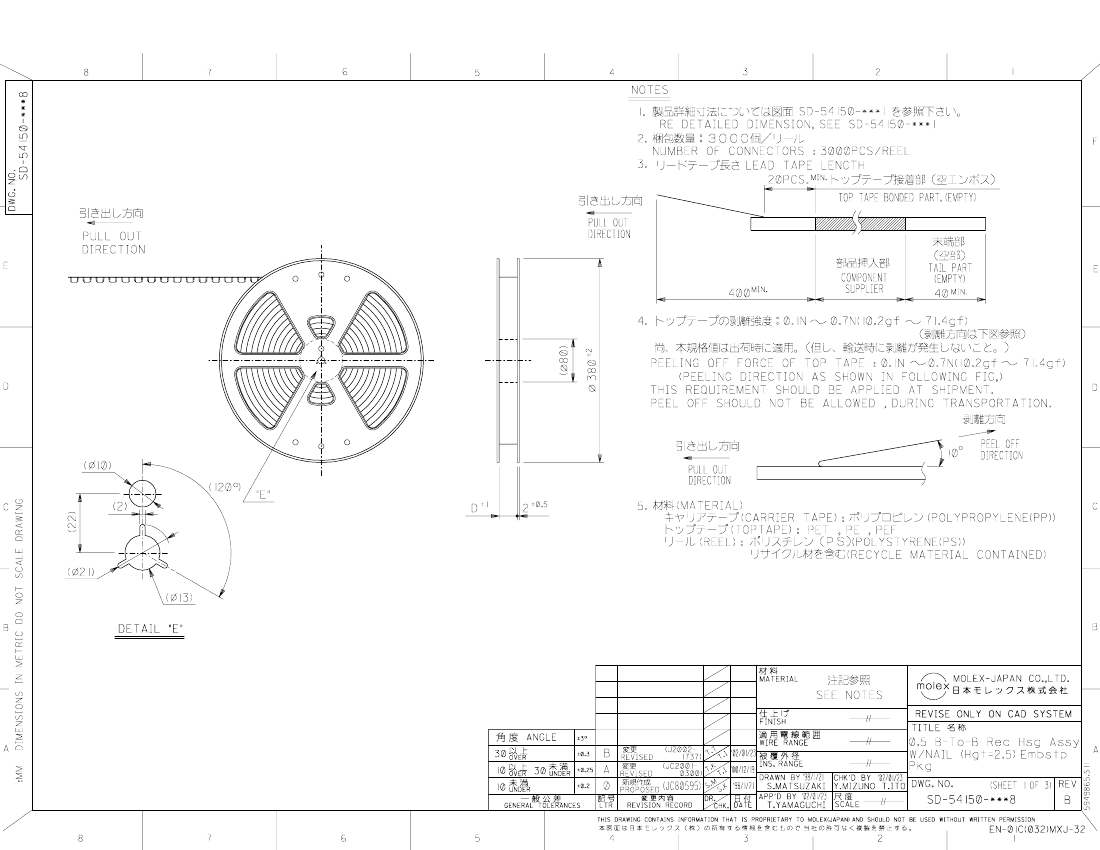

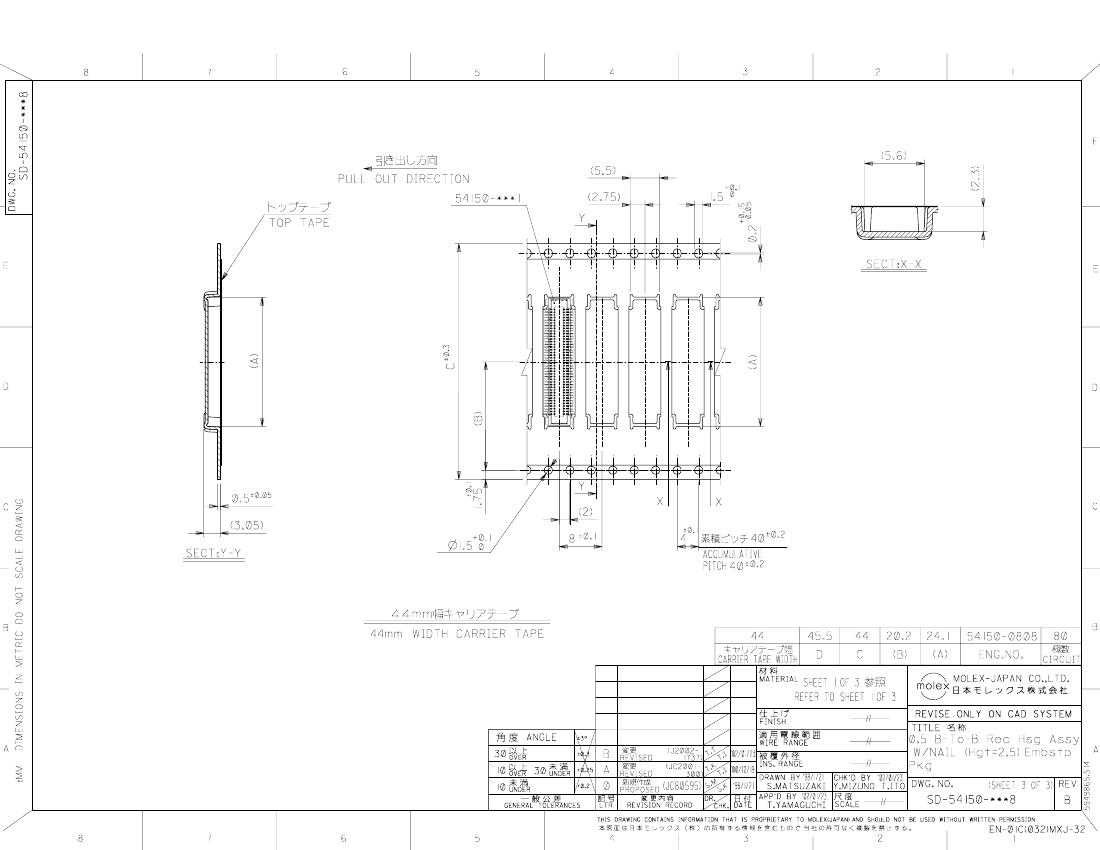

Preview

Download Datasheet

View All

54150-0801 Related Products

	54150-0801	54150-0601	54150-0701	E1SGA20-22.180M	54150-0608	54150-0508	54150-0808	54150-0501
Description	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,	Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,	Board Stacking Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle,	Quartz Crystal Resonator HC49/UP Short 2 Pad Surface Mount (SMD) 3.2mm Height Metal Resistance Weld Seal 22.180MHz ±15ppm/30ppm over 0°C to +70°C	Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Receptacle	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Black Insulator, Receptacle
Reach Compliance Code	unknow	unknow	unknown	compliant	unknown	unknown	unknown	unknown
Other features	SLIMSTACK	SLIMSTACK	SLIMSTACK	AT-CUT; BULK	SLIMSTACK	SLIMSTACK	SLIMSTACK	SLIMSTACK
ECCN code	EAR99	EAR99	EAR99	-	-	EAR99	EAR99	EAR99
Board mount options	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	SOLDER HOLDING FLANGE	-	-	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS	SOLDER HOLDING FLANGE
body width	0.161 inch	0.161 inch	0.161 inch	-	-	0.161 inch	0.161 inch	0.161 inch
subject depth	0.079 inch	0.079 inch	0.079 inch	-	-	0.079 inch	0.079 inch	0.079 inch
body length	0.941 inch	0.744 inch	0.843 inch	-	-	0.646 inch	0.941 inch	0.646 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	-	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-	-	AU ON NI	NOT SPECIFIED	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	-	-	GOLD OVER NICKEL	-	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	-	-	40 mΩ	40 mΩ	40 mΩ
DIN compliance	NO	NO	NO	-	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	-	-	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	-	-	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	-	NO	NO	NO	NO
IEC compliance	NO	NO	NO	-	NO	NO	NO	NO
maximum insertion force	.695 N	-	.8062 N	-	-	48.928 N	48.928 N	.973 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	-	-	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	-	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHTHALAMIDE	GLASS FILLED POLYPHTHALAMIDE	GLASS FILLED POLYPHTHALAMIDE	-	-	GLASS FILLED POLYPHTHALAMIDE	GLASS FILLED POLYPHTHALAMIDE	GLASS FILLED POLYPHTHALAMIDE
MIL compliance	NO	NO	NO	-	NO	NO	NO	NO
Manufacturer's serial number	54150	54150	54150	-	54150	54150	54150	54150
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	-	-	0.02 inch	0.02 inch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	-	NO	NO	NO	NO
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	-	-	LOCKING	LOCKING	LOCKING MECH
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	-	-	ONE	ONE	ONE
PCB row number	2	2	2	-	-	2	2	2
Number of rows loaded	2	2	2	-	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.6228 mm	4.6228 mm	4.6228 mm	-	-	4.6228 mm	4.6228 mm	4.6228 mm
Plating thickness	10u inch	10u inch	10u inch	-	-	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	-	-	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	-	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	80	60	70	-	60	50	80	50
UL Flammability Code	94V-0	94V-0	94V-0	-	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.0556 N	-	.0556 N	-	-	4.8928 N	4.8928 N	.1112 N
Base Number Matches	1	1	1	-	1	1	1	-
