Tactile Switches
SPST THT Tactile Switches with LED
TPIAA...
TPIAA1...

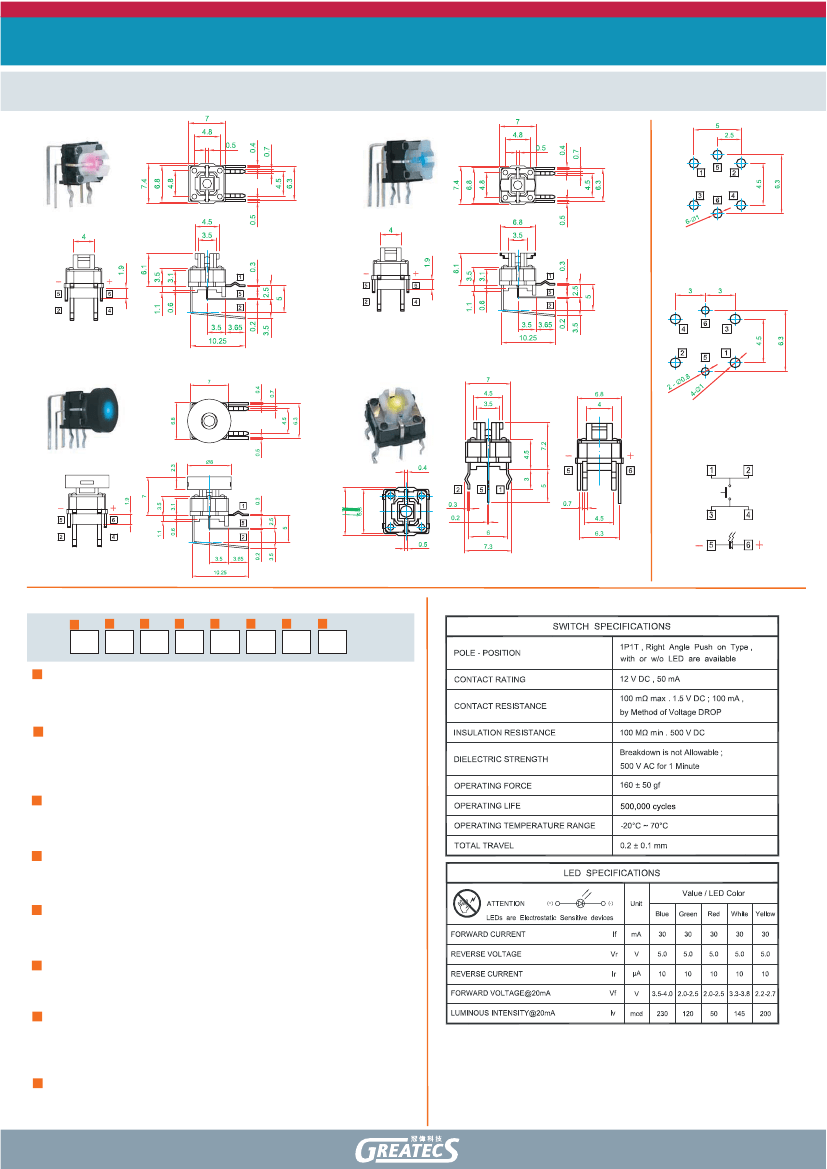

TPI Series
P.C.B. LAYOUT
(Right Angle Type)
TPIAB_ _ _ _R...
TPIBA...
P.C.B. LAYOUT
(Top Type)
CIRCUIT DIAGRAM
How to order:
1
2
3
4
5
6
7
8
General Specifications:
TPI
1
A
B
2
FRAME TYPE:
Right Angle Type
Top Type
ACTUATOR TYPE:
A
A Type (Standard, no cap)
A1
A1 Type without Cap (suitable to caps)
B
A1 Type with Cap
3
U
N
4
FIRST ILLUMINATION BRIGHTNESS:
Ultra Bright (Standard)
No Illumination
FIRST ILLUMINATION COLOR:
Blue
F
Green
B
White
Yellow
C
Red
N
Without
SECOND ILLUMINATION BRIGHTNESS:
Ultra Bright (Standard)
No Illumination
SECOND ILLUMINATION COLOR:
Blue
F
Green
B
White
Yellow
C
Red
N
Without
G
E
5
U
N
6
G
E
7
CAP:
R
Round Cap for Dot Type Illumination
T...
Round Cap Transparent (see next page)
N
Without Cap
8
COLOR OF CAP (only for R Type Cap):
H
Gray
A
Black
F
Green
E
Yellow
C
Red
N
No Color (Transparent, only T Type Cap)
Materials:
Cover: POM
Actuator: PBT + GF, PA + GF
Base Frame: PA + GF
Terminals: Brass with Silver Plating
sales@greatecs.com
www.greatecs.com
1
Tactile Switches

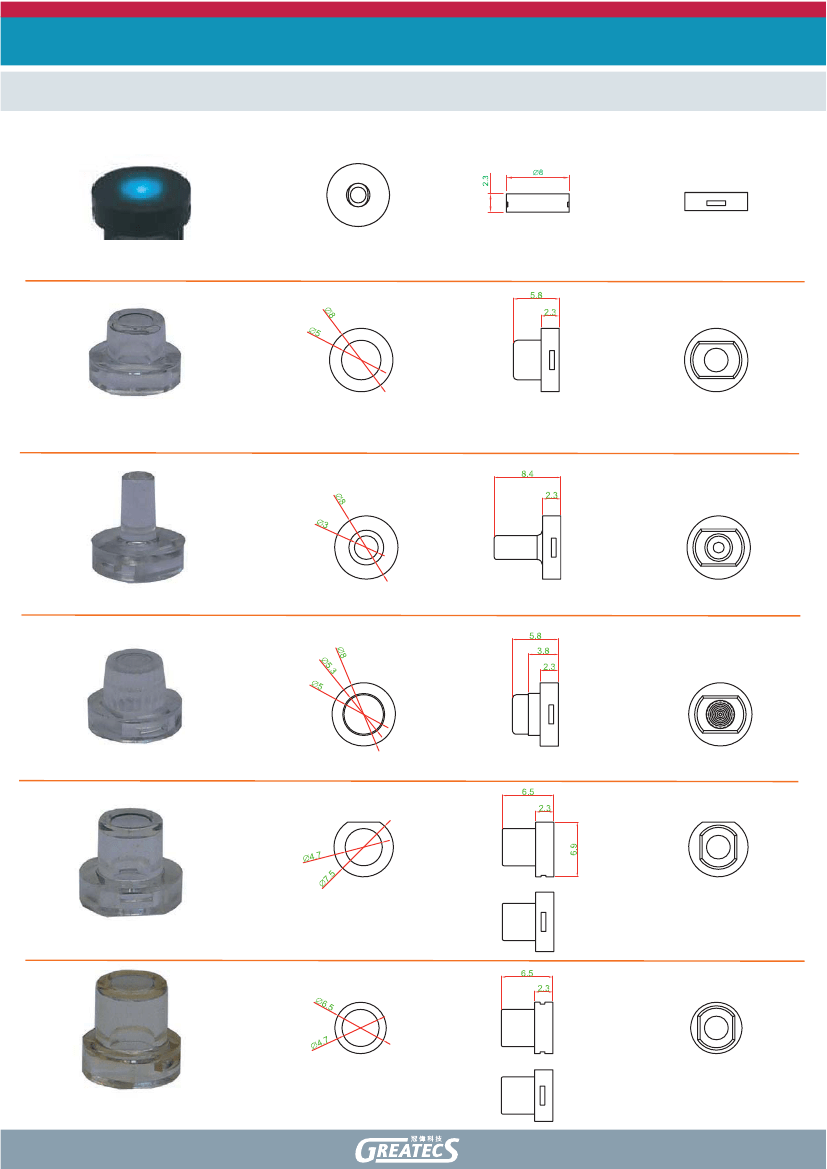

SPST THT Tactile Switches with LED - Caps
TPI Series
R
Available in color GRAY, BLACK, GREEN, YELLOW, RED
T1
Transparent
T2
Transparent
T3
Transparent
T4
Transparent
T5
sales@greatecs.com
Transparent
www.greatecs.com
