TS-RDP7K/W
Description
TS-RDP7K/W is a USB2.0 Portable Multi-Card Reader.
With 3 slots and USB hub function, it is a slim device
specifically designed for fast, easy data transfer and
exchange using multiple types of Memory Cards and
USB Flash Drives.
O
O
O
USB2.0 Portable Multi-Card Reader
Need an adapter of SD interface:
MMCmicro
™
miniSD
™
miniSDHC
The reader does not support more than one memory card at
a time.
Placement
Features
•
Color: Black / White
•
Fully Compliant with the Hi-Speed USB 2.0 specification
•
USB powered (no external power or battery needed)
•
LED indicates card insertion and data traffic
•
Support 3 USB ports.
Do not plug a heavy power consumption device(over
500mA) into the USB hub, such as external hard drives
•
Built-in USB A-type cable.
•
Supports many different types of Memory Cards
Insert directly:
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Secure Digital (SD )
SDHC (Secure Digital High Capacity)
microSDHC
microSD
/
TransFlash
MultiMediaCard (MMC )
MMCplus
RS-MMC
MMCmobile
™
™
™
™
™
™

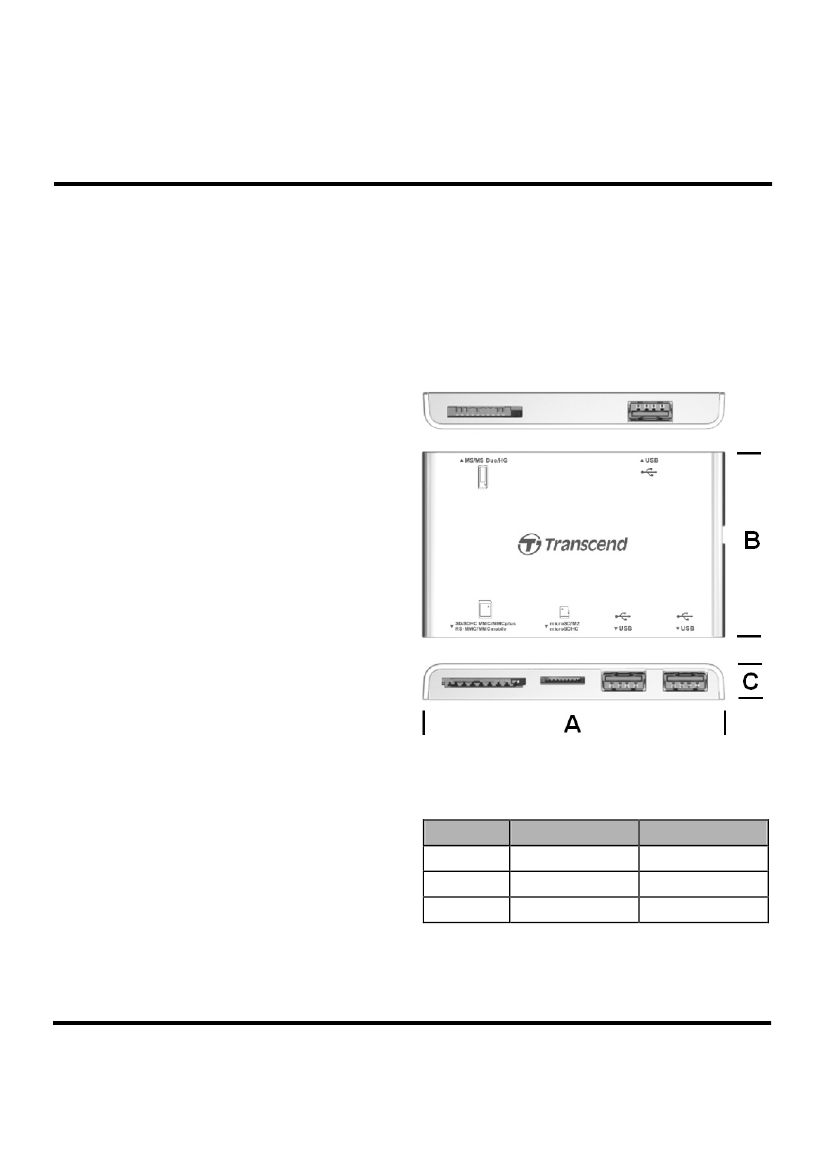

Dimensions
Side
A
B
C
™
™
™
Millimeters
88.00
±
1.0
54.00
±
1.0
10.60
±
1.0
Inches
3.47
±
0.04
2.13
±
0.04
0.42
±
0.04
Memory Stick (MS)
Memory Stick PRO
Memory Stick Duo
™
Memory Stick PRO Duo
™
Memory Stick PRO-HG Duo
Memory Stick Micro (M2)
Transcend Information, Inc.
1
TS-RDP7K/W
System Requirements
Desktop or notebook computer with a working USB port
One of the following Operating Systems:
O
O
O
O
O
O
O
USB2.0 Portable Multi-Card Reader
Windows Me
Windows 2000
Windows XP
Windows Vista
Windows 7
™
™
™
™
®
®
®
Mac OS 9.x, or later
Linux Kernel 2.4.2, or later
Transcend Information, Inc.
2
TS-RDP7K/W
USB Pinouts
Pin No.
01
02
03
04
Pin Name
V
5IN
USB-
USB+
VSS
VSS
V
5IN
USB-
USB+
USB2.0 Portable Multi-Card Reader
USB Pin Identification
Symbol
Function
USB differential signal:
The pairs are used to transmit
Data/Address/Command
Ground
USB Power Input
Block Diagram
Transcend Information, Inc.
3
TS-RDP7K/W

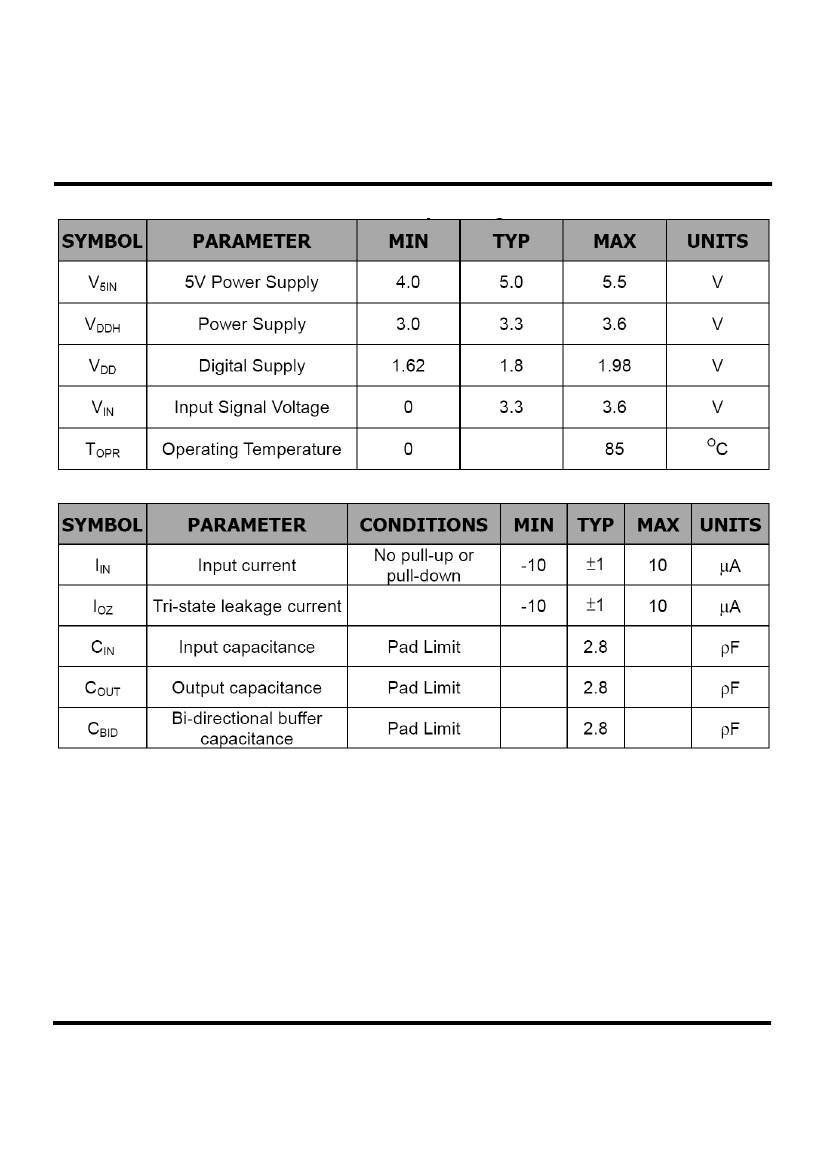

Recommended Operating Conditions:
USB2.0 Portable Multi-Card Reader
General DC Characteristics:
Transcend Information, Inc.
4
TS-RDP7K/W

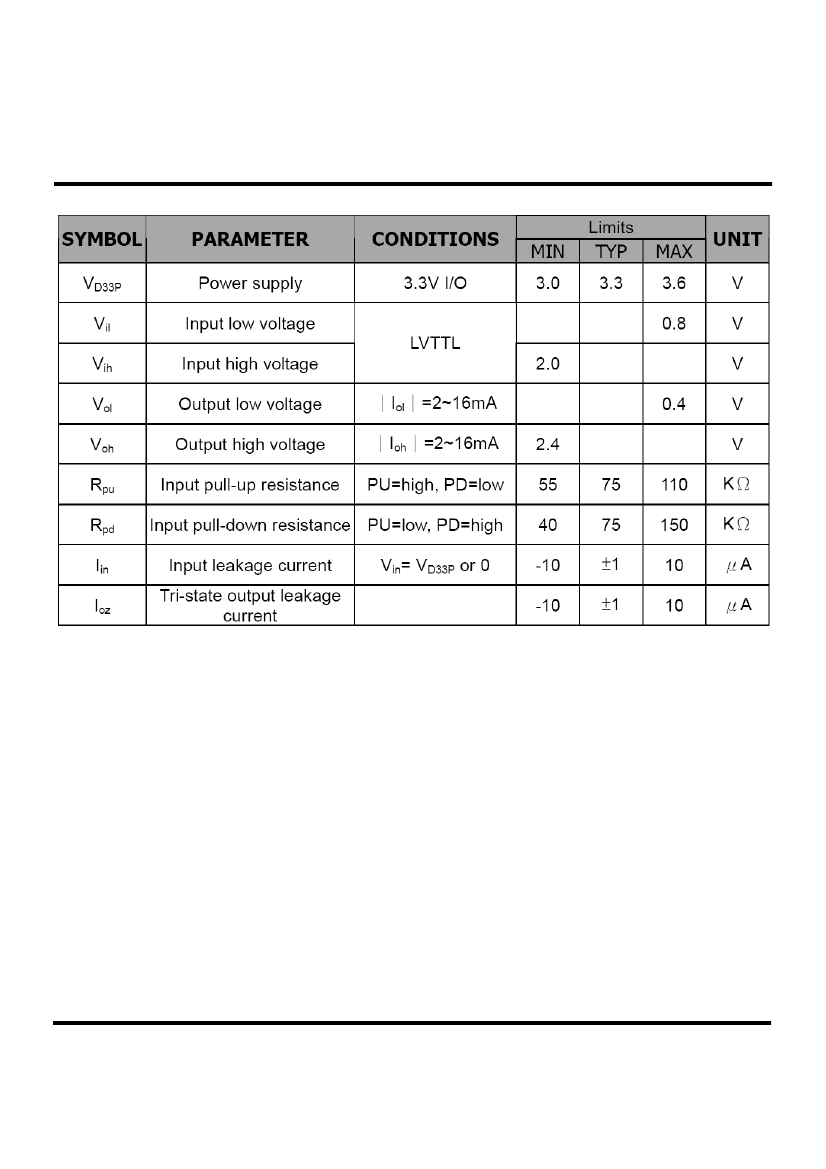

DC Electrical Characteristics of 3.3V I/O Cells:
USB2.0 Portable Multi-Card Reader
Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no
warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this product.
Transcend reserves the right to make changes in specifications at any time without prior notice.
Transcend Information, Inc.
5
