TS1086_08 datasheet, PDF - EEWORLD Datasheet

TS1086_08: Description1.5A Low Dropout Positive Voltage Regulator; File Size165KB，9 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet Compare View All

TS1086_08 Overview

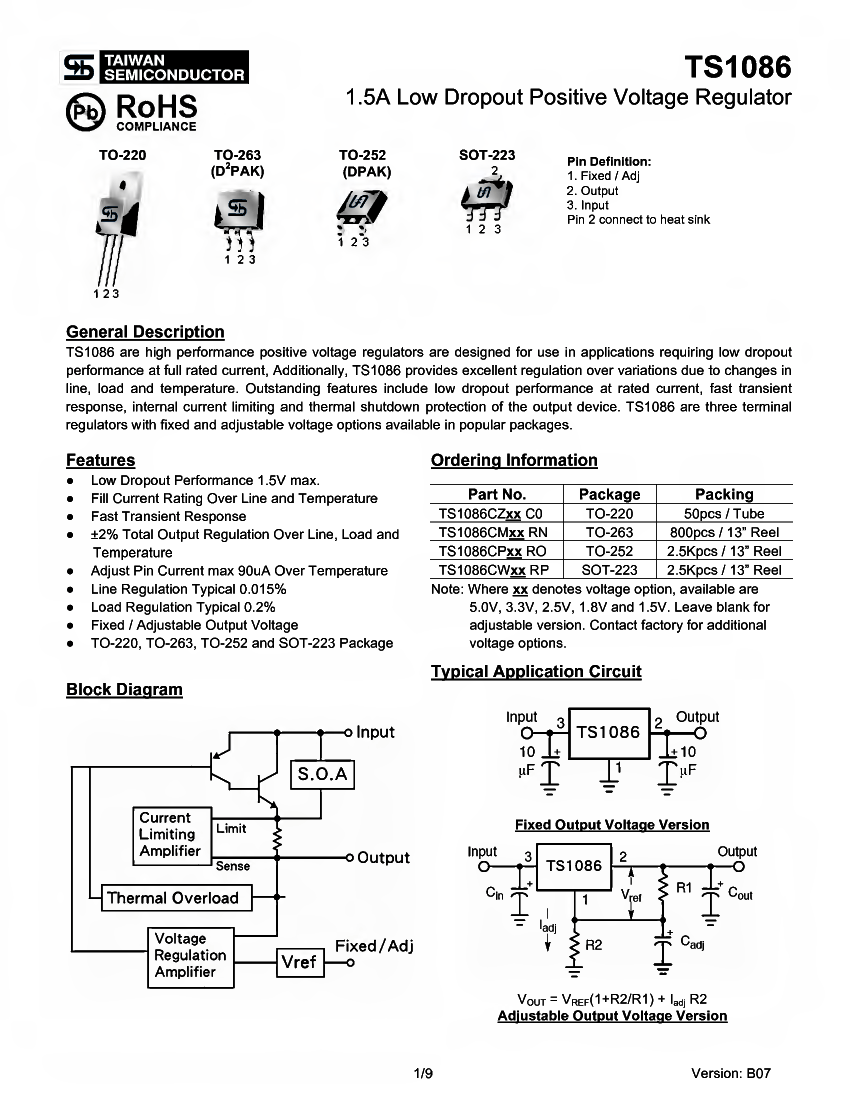

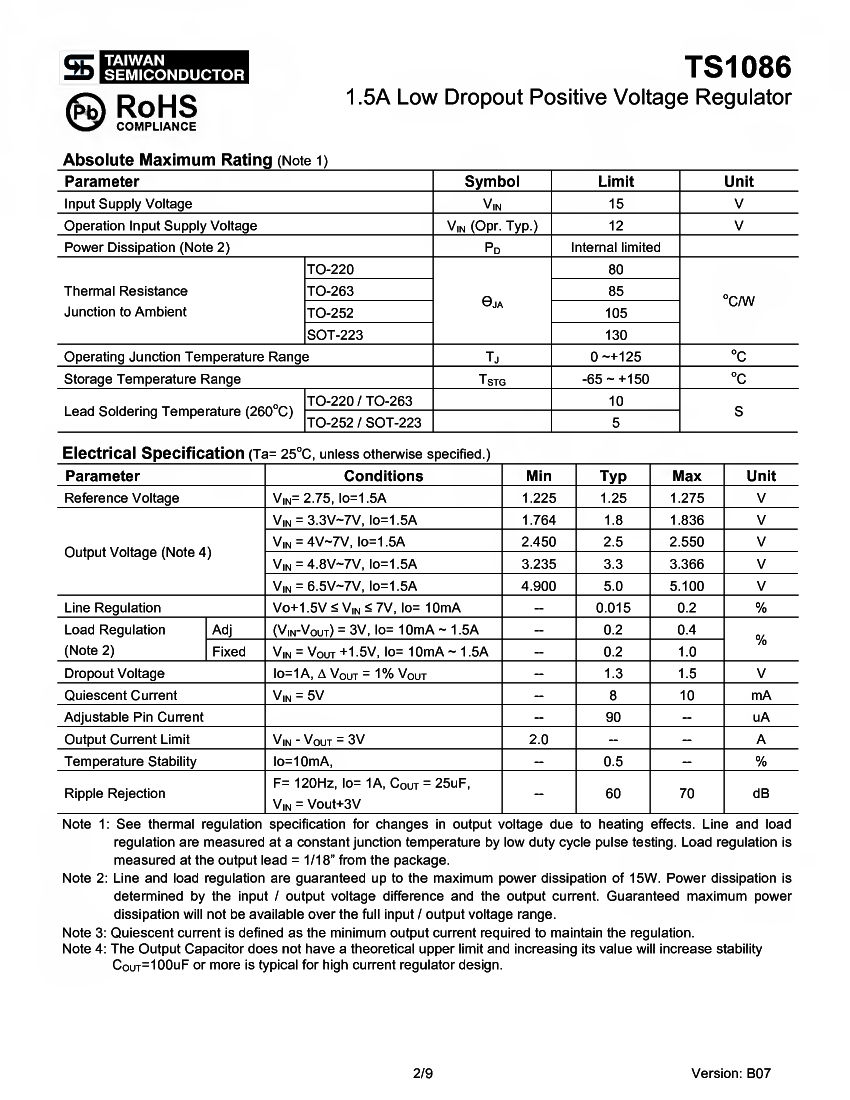

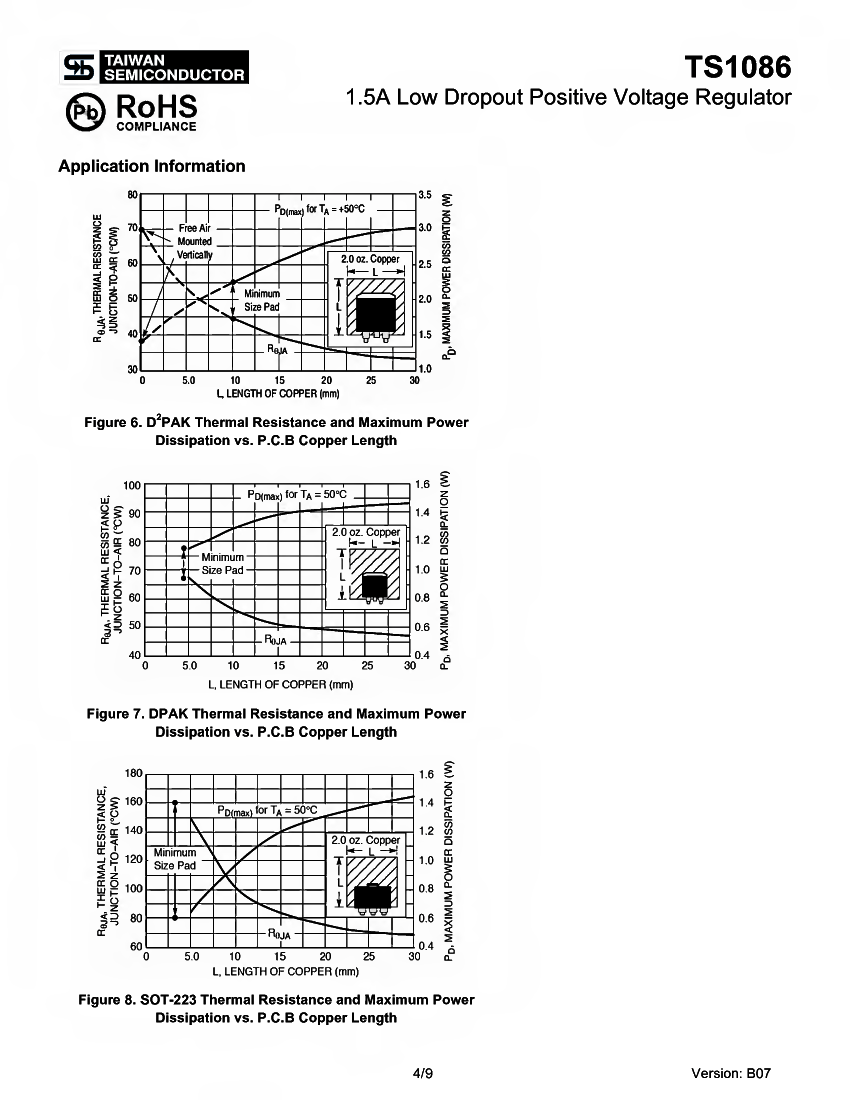

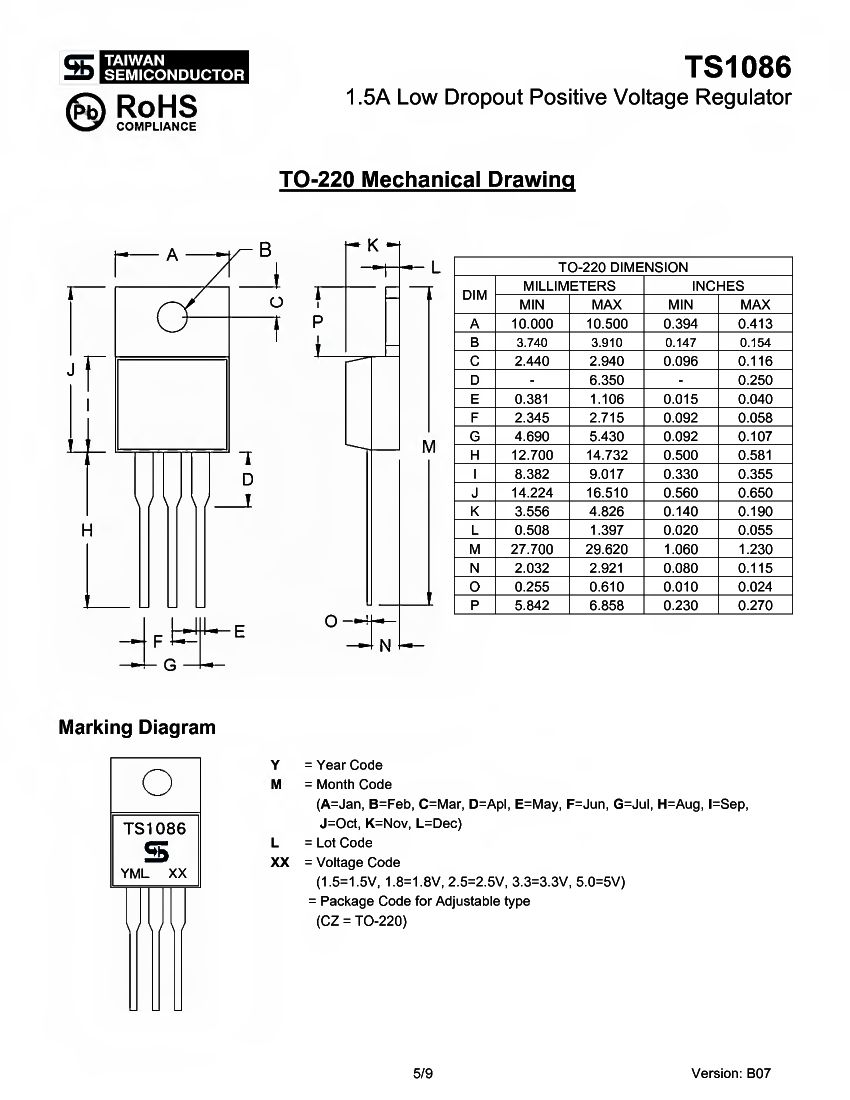

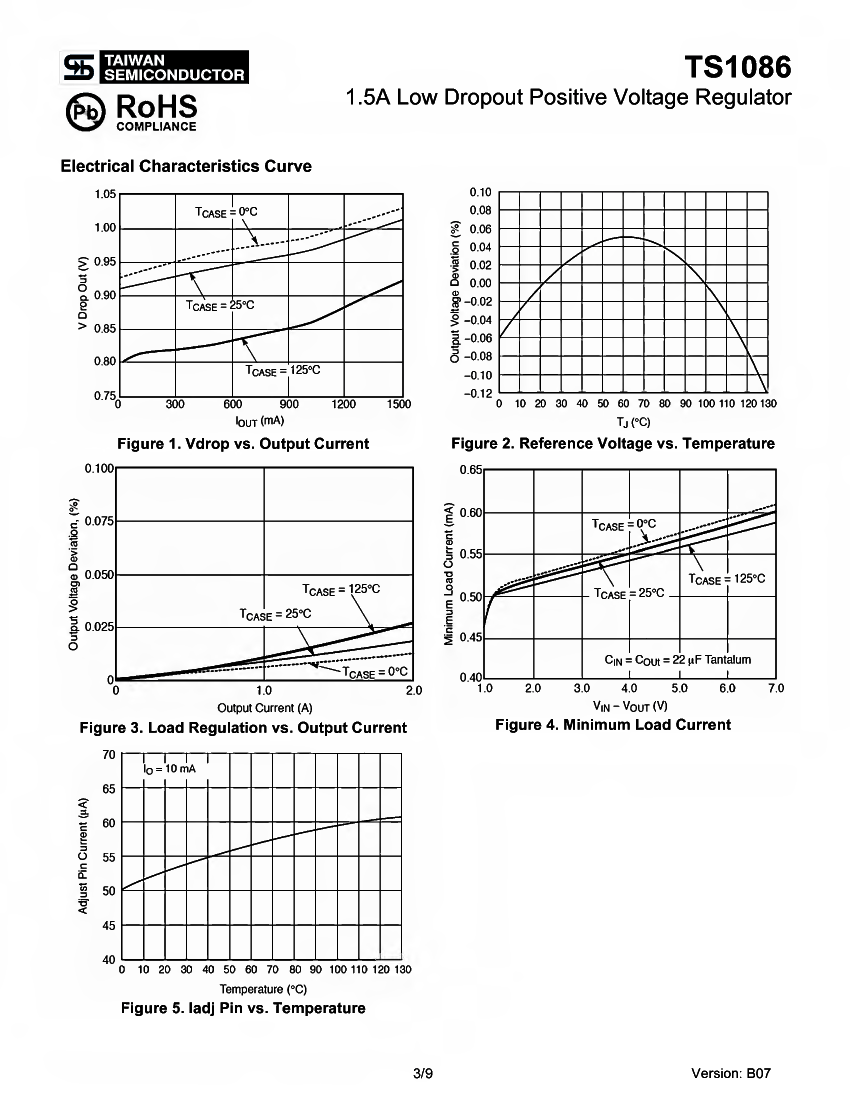

1.5A Low Dropout Positive Voltage Regulator

	TS1086_08	TS1086CWRP	TPS54225-Q1_15	TS1086CMRN	TS1086CPRO
Description	1.5A Low Dropout Positive Voltage Regulator	1.5A Low Dropout Positive Voltage Regulator	4.5V to 18V Input, 2-A Synchronous Step-Down SWIFTTM Converter	1.5A Low Dropout Positive Voltage Regulator	1.5A Low Dropout Positive Voltage Regulator
Maker	-	Taiwan Semiconductor	-	Taiwan Semiconductor	Taiwan Semiconductor
package instruction	-	ROHS COMPLIANT, SOT-223, 4 PIN	-	ROHS COMPLIANT,TO-263, D2PAK-3	ROHS COMPLIANT, TO-252, DPAK-3
Reach Compliance Code	-	unknow	-	unknow	unknow
ECCN code	-	EAR99	-	EAR99	EAR99
Maximum drop-back voltage 1	-	1.5 V	-	1.5 V	1.5 V
JESD-30 code	-	R-PDSO-G4	-	R-PSSO-G3	R-PSSO-G2
length	-	6.6 mm	-	10.25 mm	6.525 mm
Number of functions	-	1	-	1	1
Number of terminals	-	4	-	3	2
Working temperatureTJ-Max	-	125 °C	-	125 °C	125 °C
Maximum output current 1	-	1.5 A	-	1.5 A	1.5 A
Package body material	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	-	TO-263	TO-252
Package shape	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE
Certification status	-	Not Qualified	-	Not Qualified	Not Qualified
Regulator type	-	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	-	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	-	1.8 mm	-	4.83 mm	2.6 mm
surface mount	-	YES	-	YES	YES
Terminal form	-	GULL WING	-	GULL WING	GULL WING
Terminal pitch	-	2.3 mm	-	2.54 mm	2.3 mm
Terminal location	-	DUAL	-	SINGLE	SINGLE
width	-	3.6 mm	-	8.54 mm	5.5 mm
