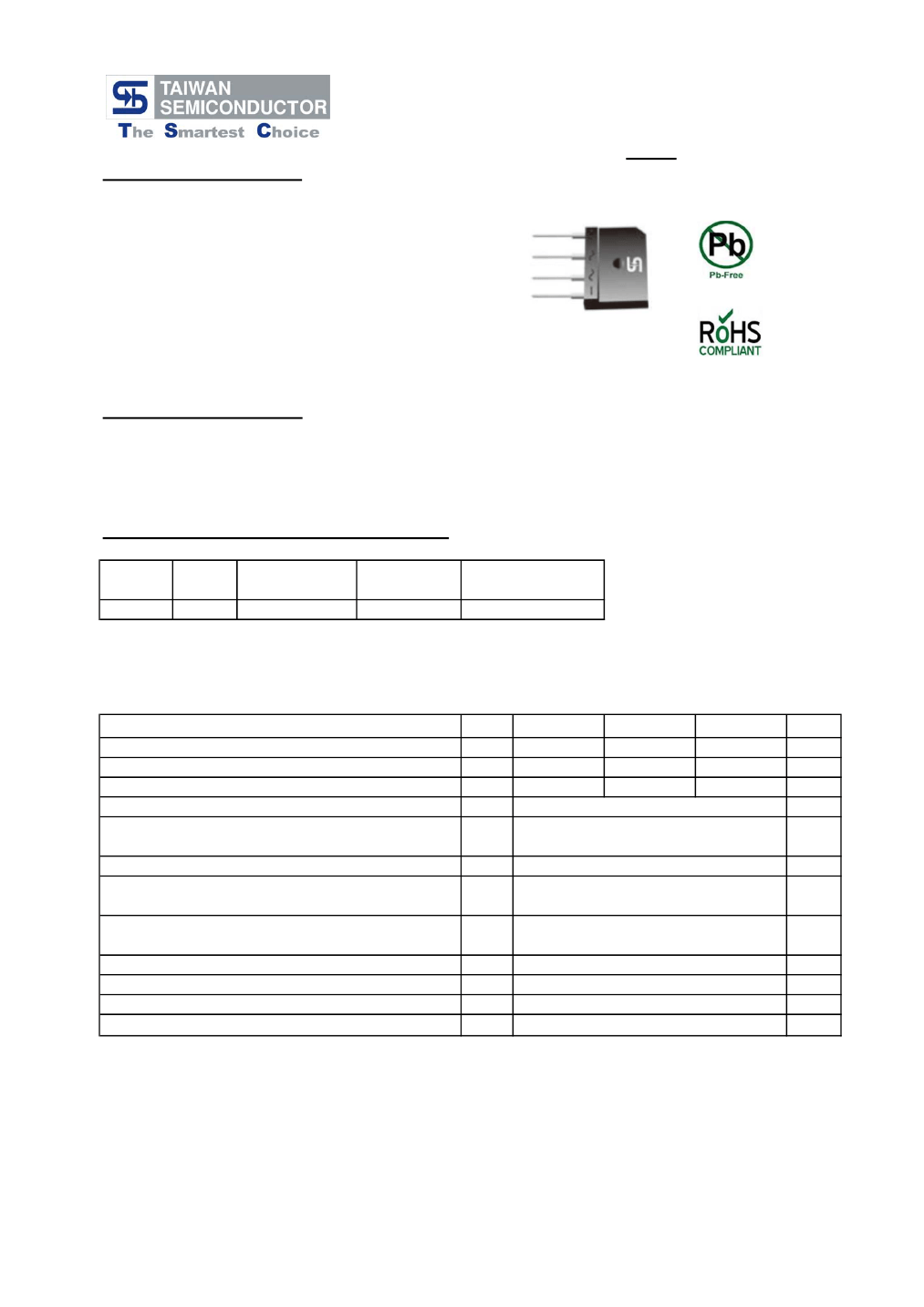

TS35P05G - TS35P07G
Single Phase 35.0 AMPS.
Glass Passivated Bridge Rectifiers

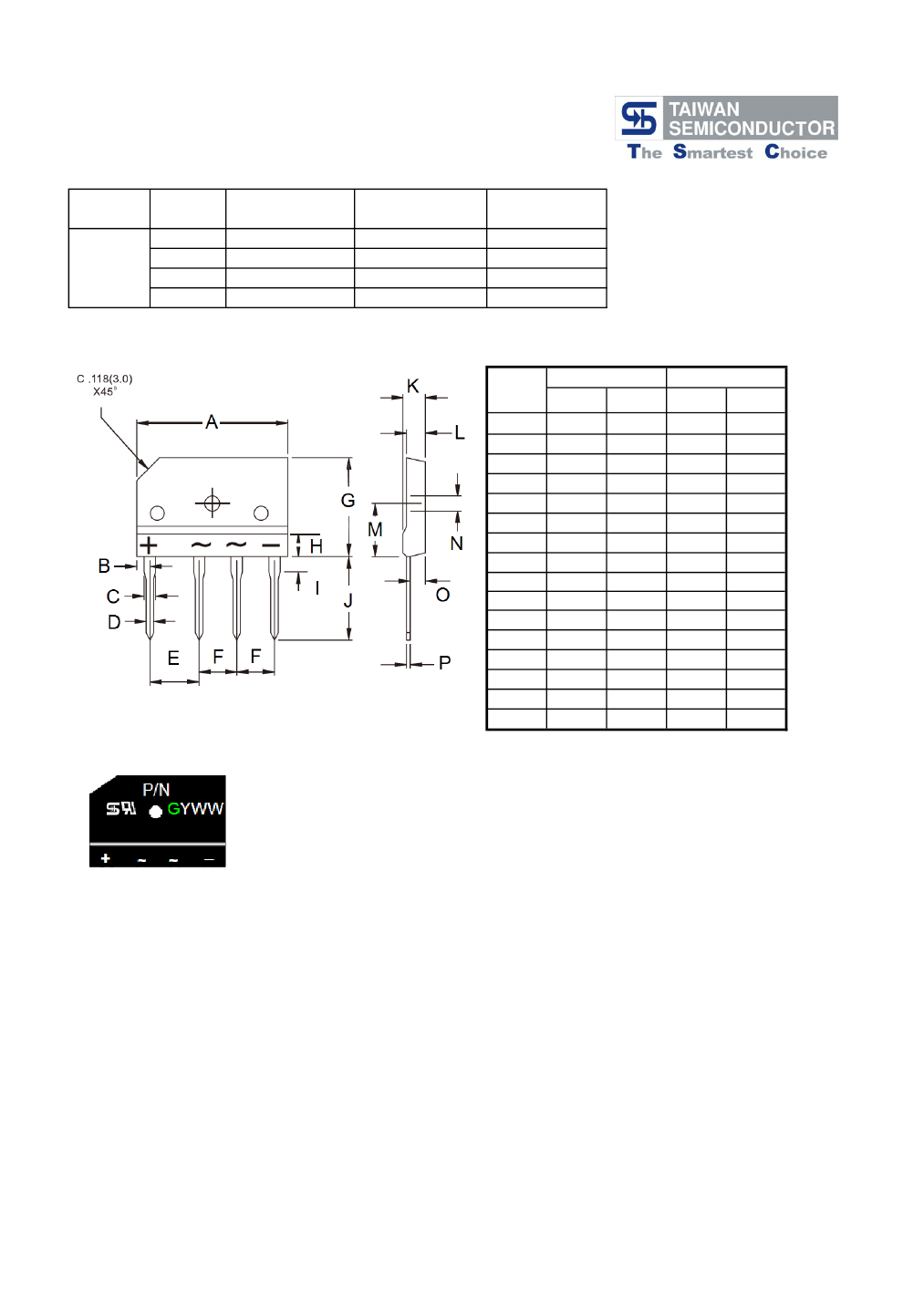

TS-6P
Features
UL Recognized File # E-326243
Glass passivated junction
Ideal for printed circuit board
Plastic material has Underwriters Laboratory
Flammability Classification 94V-0
Typical IR less than 0.1uA
High surge current capability to 350A
High temperature soldering guaranteed:
260℃/10 seconds
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data
Case: Molded plastic body
Terminals: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208 guaranteed
Weight: 7.15 grams
Mounting Torque : 8.17 in-lbs Max.
Ordering Information (example)
Part No.
TS35P05G
Package
TS-6P
Packing
15 / TUBE
Packing code
C2
Packing code
(Green)
C2G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current (With Heatsink)
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC mrthod)
Rating of fusing ( t<8.3ms)
Maximum Instantaneous Forward Voltage @ 17.5A
(Note 1)
Maximum Reverse Current @ Rated VR
T
A
=25
℃
T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
T
V
F
I
R
Cj
R
θjA
T
J
T
STG
TS35P05G
600
420
600
TS35P06G
800
560
800
35
350
508
1.1
10
500
140
20
-55 to +150
-55 to +150
TS35P07G
1000
700
1000
Unit
V
V
V
A
A
A
2
S
V
uA
pF
O
Typical Junction Capacitance per leg (Note 2)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1 : Pulse Test with PW=300 usec, 1% Duty Cycle
Note 2 : Measured at 1MHz and applied Reverse bias of 4.0V DC.
C/W
O
O
C
C
Version:A12

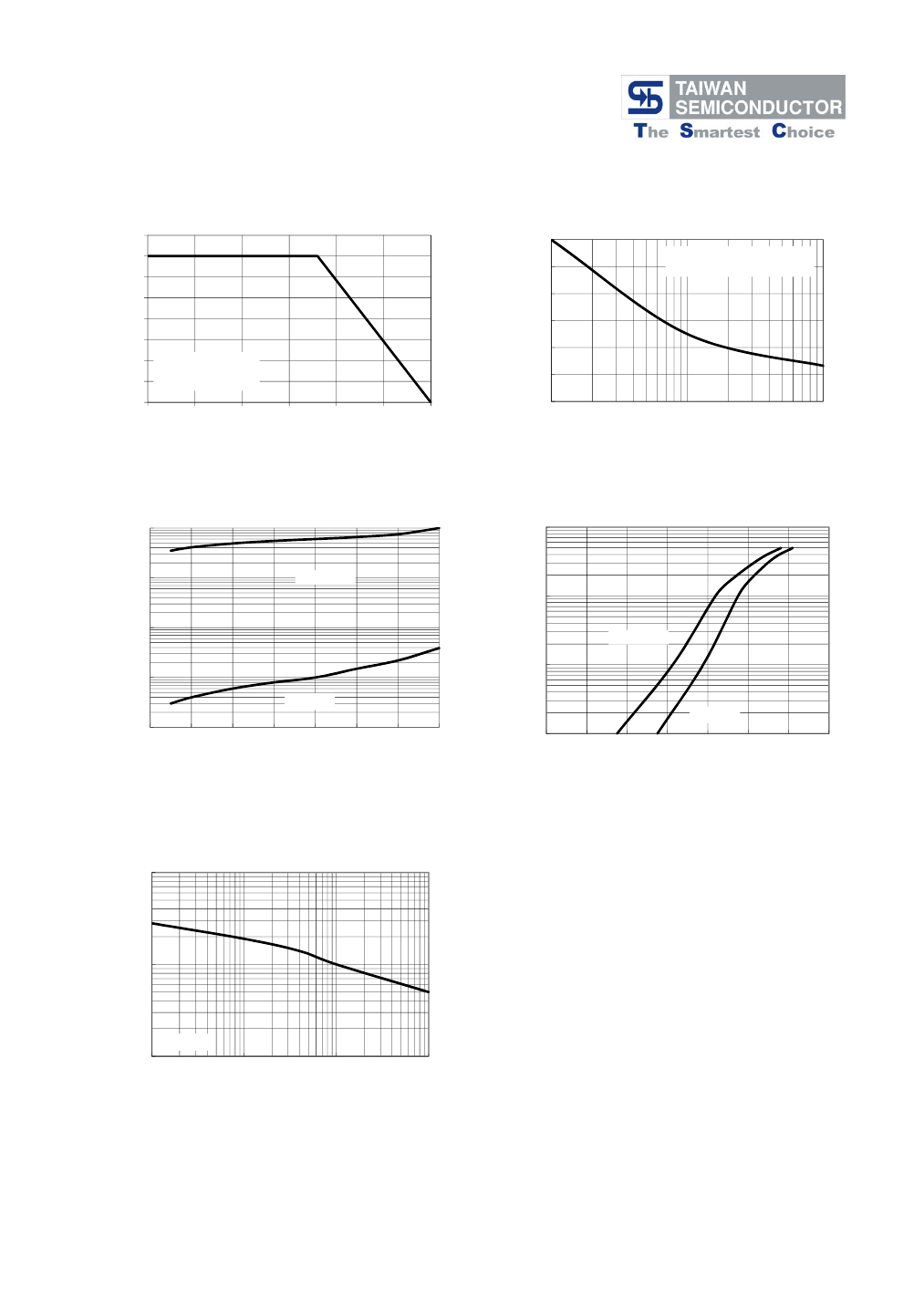

RATINGS AND CHARACTERISTIC CURVES (TS35P05G THRU TS35P07G)
FIG.1 FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT (A)
40
35
30
25
20
15
10
5
0
0
25
50
75
100
125
150
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
PEAK FORWARD SURGE CURRENT (A)
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
350
300
250
200
150
100
50
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3mS Single Half Sine Wave
JEDEC Method
FIG. 3 TYPICAL REVERSE CHARACTERISTICS
PER LEG
100
INSTANTANEOUS REVERSE
A
CURRENT (uA)
100
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
PER LEG
10
TA=125℃
INSTANTANEOUS FORWARD
A
CURRENT (A)
10
1
TA=125℃
1
0.1
TA=25℃
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
TA=25℃
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
INSTANTANEOUS FORWARD VOLTAGE (V)
1000
JUNCTION CAPACITANCE (pF)
A
FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
100
TA=25℃
10
0.1
1
10
100
REVERSE VOLTAGE (V)
Version:A12
